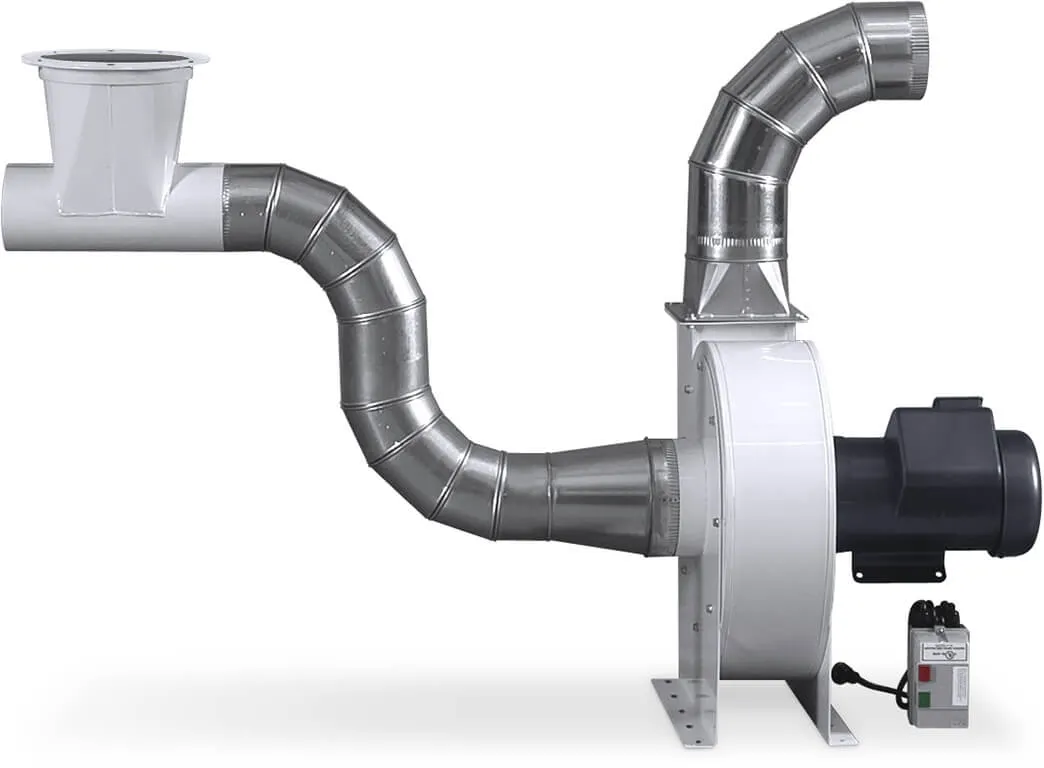

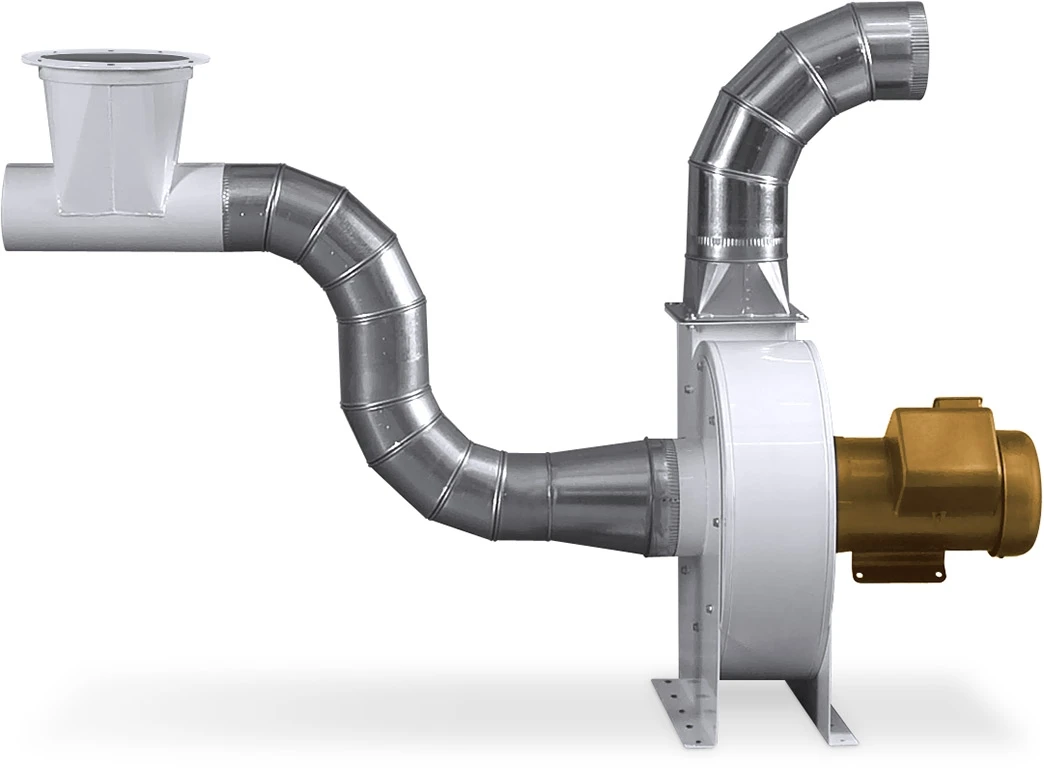

Transfer Blower Kit
$3,363.00 – $3,863.00
| Horsepower | 3HP, 5HP |
|---|---|
| Phase (Pre-Wired) | 1-Phase, 3-Phase |
Description
Bulk Handling for Dust and Debris
Ideal for commercial applications that produce high volumes of dust, Oneida Air Systems’ transfer blower systems are great for conveying dust away from the primary dust collection system to be deposited in a large, remote container for disposal (e.g. trailer, hopper, dumpster, truck bed, etc.). Conveying the dust to a remote location is far more cost effective than continuously emptying 55 gallon containers and saves your shop significant time and money in labor costs.

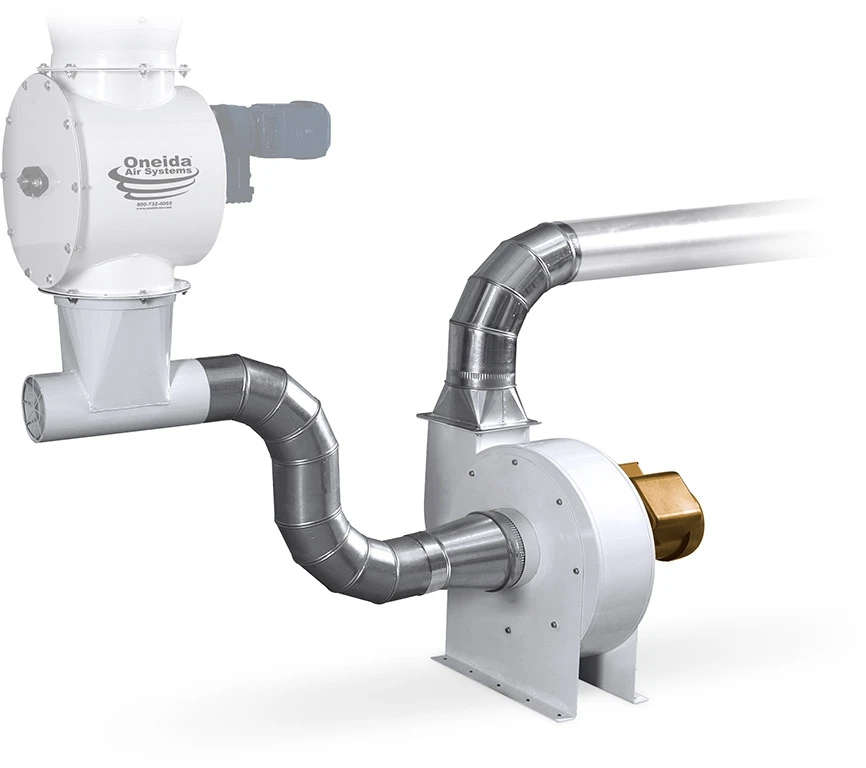

Recommended installation is connected to our Rotary Air Lock Valves to preserve airflow performance within the dust control system. This kit includes heavy-gauge steel ductwork components to connect to your air lock’s flanged opening – combine with 7″ dia. straight piping (sold separately) based on your shop’s needs.
Benefits & Features
- 3HP High-Efficiency 3-phase U.S. Motor
- Industrial blower construction with full welds and heavy gauge steel with powder-coated finish.
- Blower can be surface mounted with an outlet orientation that rotates at 45 degree increments.
- Backward inclined fan wheel made from cast-aluminum alloy.
Rotary air lock valve and straight pipe fittings not included with this kit and are shown only as an illustration.
Specifications
| Horsepower | 3HP |
|---|---|
| Motor Type | U.S. Baldor® TEFC Motor |
| Motor Service Factor | 1.15 |
| Voltage | 208-230V |
| Recommended Breaker Size | 20A |
| Amperage (Typical) | 7.9-7.2A |
| Phase (Pre-Wired) | 3-Phase |
| Frequency | 60Hz |
| Power Connector | Wire |
| Power Cord Length | 10 feet |
| Impeller Type | Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy. |
| Impeller Size | 14-1/4″ Dia. |
| Real CFM Rating | 1,700Â Actual CFM |
| Waste Capacity | Customizable |
| Remote Control | Call for Info |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | White |
| Inlet Size | 10″ Flange (8″ Dia. at Blower) |
| Outlet Size | 7″ Dia. |
| Contents | Blower Motor Assembly, Fan Housing, Blow-Through Adapter, 3x Adjustable Elbows, Long-Taper Reducer, Square-to-Round Adapter, Male Pipe Adapter |
| Country of Manufacture | United States |
| Warranty Information | 1 Year Limited Warranty |
