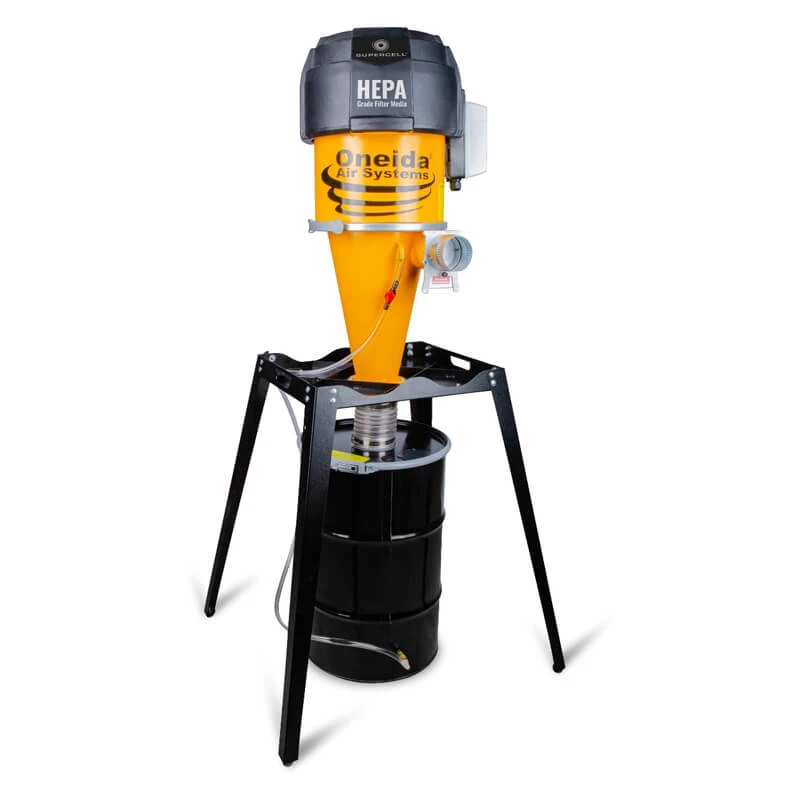

Supercell High-Pressure 30 Gal. Freestanding HEPA-GFM Cyclone Dust Collector
$4,727.00
- Universal design collects through up to 100′ of hose and ductwork.
- 10x higher suction pressure than standard dust collectors.
- Serves 1-4″ dia. dust ports and incidental use of some 5″ ports.
- Named Best Dust Collector by Popular Mechanics.
- 30-gallon steel dust bin with automatic bag holder and fill level indicator.
- HEPA-grade media filter with internal pulse filter cleaner.
- Compact steel stand perfect for small shops.
- Includes 4″ x 25′ vacuum-rated SD urethane flex-hose.
Description
Oneida Air Systems’ new Supercell® dust collector is the tool shop owners have been dreaming of: a single system that efficiently and effectively captures and contains dust from every tool in the shop with a dust port size of 1” to 5”.
The Supercell is ideal for handheld and portable tools – even small CNC routers. This compact mobile design can travel virtually anywhere, and connects to tools by up to an astounding 100 feet of 4” hose and ductwork. Check out Supercell Ductwork & Hose Kit to get started!
Included Features & Components
- Combined 5HP 230V High-Pressure Fan Motors
- Up to 10x More Suction Power than Standard Dust Collectors
- Simultaneously Supports Up to Three 1″ to 2.5″ Dust Ports
- Wireless Radio Frequency Remote Control Keyfob
- High-Efficiency Heavy-Gauge Steel Cyclone Separator
- HEPA-Grade Filter Media
- Internal Pulse Filter Cleaner System
- Reinforced 30-Gallon Dust Bin with Viewing Window
- Automatic Bag Holder System (5 Free Bags Included)
- Dust Sentry™ Bin Fill Level Indicator
- Compact Steel Angle Frame Stand
- 4″ x 25′ Reinforced Vacuum-Rated Flex Hose *
- 1 Year Limited Warranty
- cETLus Certified and NFPA Compliance Ready
Specifications
| Horsepower | 5 hp |
| Motor Type | 3x 1300W Modular Motors |
| Voltage | 220-240V |
| Recommended Breaker Size | 20A |
| Amperage (Typical) | 17A |
| Phase Option | Single-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type |
 |
| Power Cord Length | 9 feet |
| Real CFM Rating | 434 CFM @ 1.9" WC |
| Free Fan CFM Rating | 475 CFM |
| Maximum Suction | 97.8" WC |
| Noise Level | 80 dBA @ 10 ft |
| Motor Speed Type | Fixed |
| Cyclonic Separation Efficiency | Removes over 99% of fine wood dusts |
| Filter Type | HEPA Grade ePTFE Media |
| Filtration Efficiency | E12 Minimum Efficiency Rating |
| Total Filtration Area | 40 sq ft |
| Waste Capacity | 30 Gallons |
| Remote Control | Included |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | Yellow |
| Inlet Size | 4" O.D. |
| Outlet Size | N/A |
| Discharge Size | 5" O.D. |
| Width | 39.5" |
| Depth | 34.5" |
| Height |
77.5" 81.5" if used with drum dolly |
| Height to Center of Inlet |
52.75" 56.75" if used with drum dolly |
| Actual Weight | 171.4 lbs |
| Contents | Fan Motor Assembly, Magnetic Starter, Remote Control, Cartridge Filter, Pulse Filter Cleaner, Cyclone Separator, Stand, Blast Gate, 2x Turn Key Clamp, Mobile Dust Bin, Dust Sentry Bin Level Indicator, Automatic Bag Holder System, 25' x 4" Vacuum Pressure Rated Hose, 5x Liner Bags, Viewing Window, Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 1 Year Limited Warranty |
