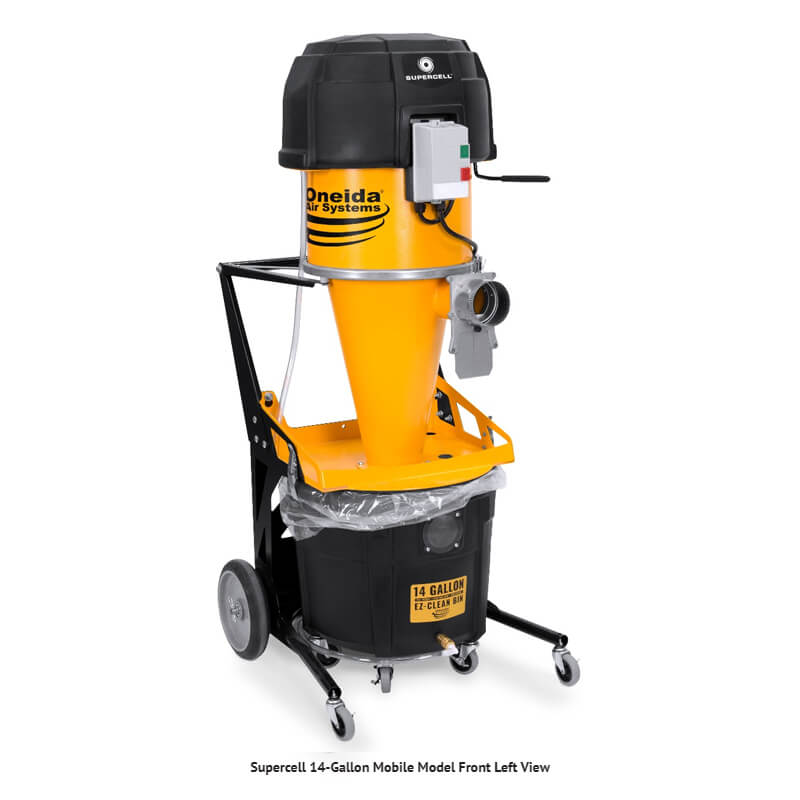

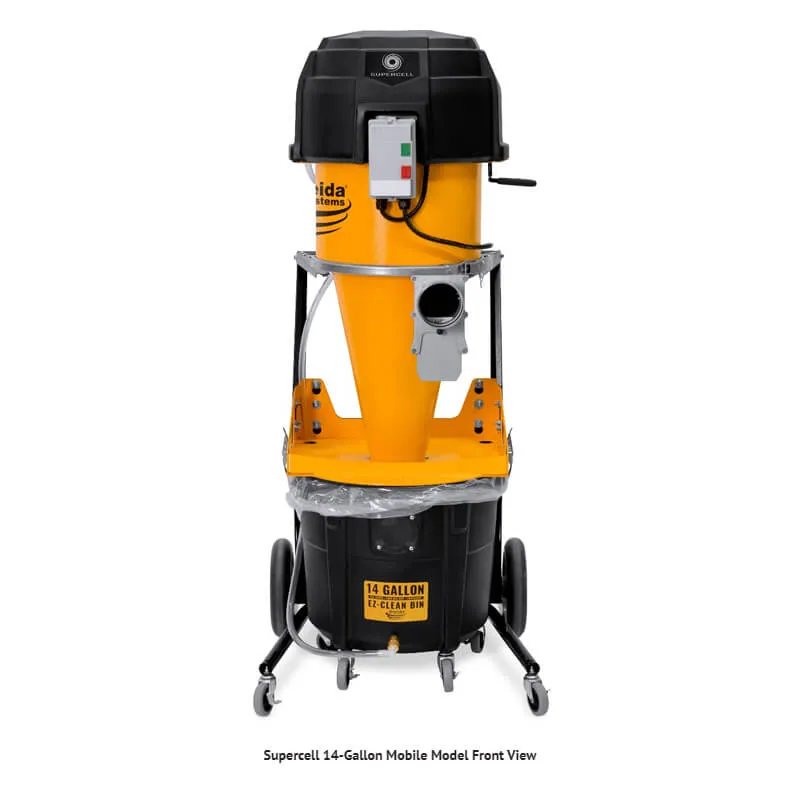

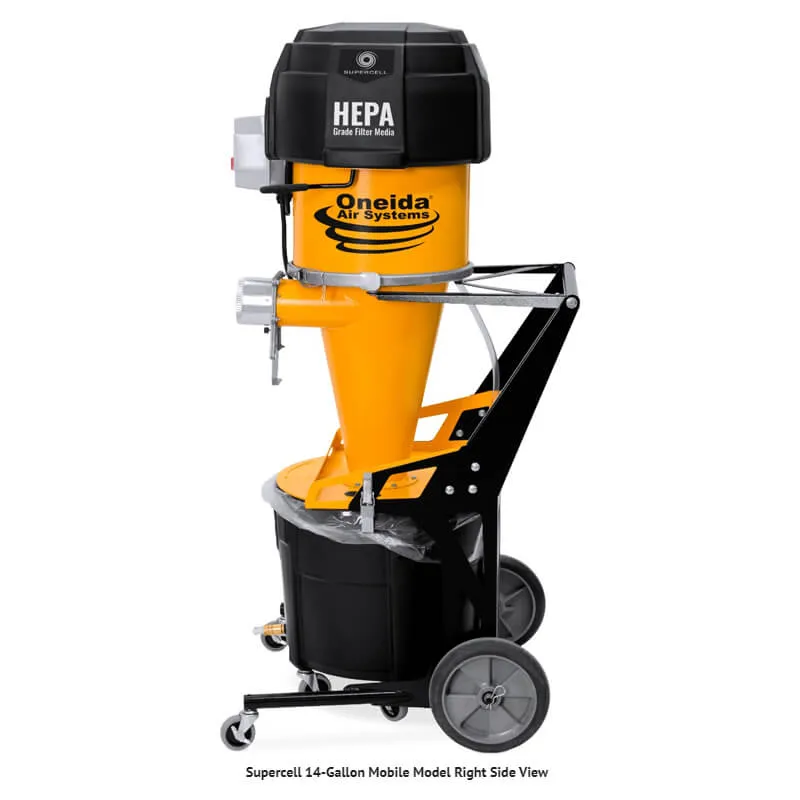

Supercell High-Pressure 14 Gal. Mobile HEPA-GFM Cyclone Dust Collector

$4,865.00

  • Universal design collects through up to 100′ of hose and ductwork.
  • 10x higher suction pressure than standard dust collectors.
  • Serves 1-4″ dia. dust ports and incidental use of some 5″ ports.
  • 14-gallon drop-down dust bin with automatic bag holder and fill indicator.
  • HEPA-grade media filter with internal pulse filter cleaner.
  • Compact, mobile design ideal for smaller shops with limited space.
  • Includes 4″ x 25′ vacuum-rated SD urethane flex-hose.
Usually ships in 2-4 weeks
Inquire Now
Categories: ,

Description

Oneida Air Systems’ new Supercell® dust collector is the tool shop owners have been dreaming of: a single system that efficiently and effectively captures and contains dust from every tool in the shop with a dust port size of 1” to 5”.

The Supercell is ideal for handheld and portable tools – even small CNC routers. This compact mobile design can travel virtually anywhere, and connects to tools by up to an astounding 100 feet of 4” hose and ductwork. Check out Supercell Ductwork & Hose Kit to get started!

Included Features & Components

  • Combined 5HP 230V High-Pressure Fan Motors
  • Up to 10x More Suction Power than Standard Dust Collectors
  • Simultaneously Supports Up to Three 1″ to 2.5″ Dust Ports
  • Wireless Radio Frequency Remote Control Keyfob
  • High-Efficiency Heavy-Gauge Steel Cyclone Separator
  • HEPA-Grade Filter Media
  • Internal Pulse Filter Cleaner System
  • Lightweight 14-Gallon Drop-Down Dust Bin with Viewing Window
  • Automatic Bag Holder System (5 Free Bags Included)
  • Dust Sentry™ Bin Fill Level Indicator
  • Compact, Mobile Cart with Non-Marking Casters and Solid Rubber Wheels
  • 4″ x 25′ Reinforced Vacuum-Rated Flex Hose *
  • 1 Year Limited Warranty
  • cETLus Certified and NFPA Compliance Ready

Specifications

Horsepower 5 hp
Motor Type 3x 1300W Modular Motors
Voltage 220-240V
Recommended Breaker Size 20A
Amperage (Typical) 17A
Phase Option Single-Phase (Pre-Wired)
Frequency 60Hz
Power Connector Type Power Connector Type
Power Cord Length 9 feet

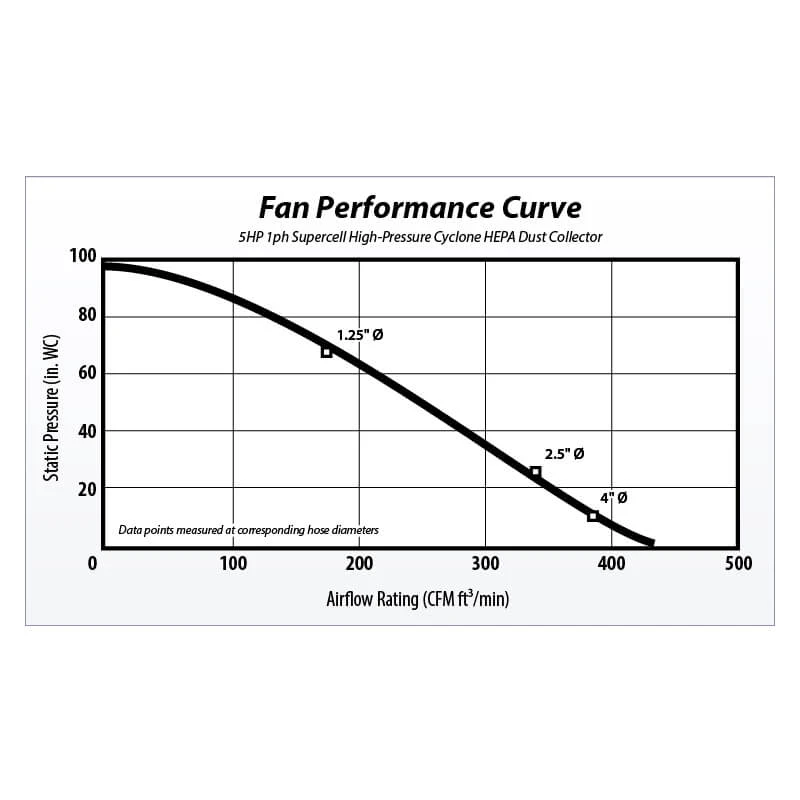

Real CFM Rating 434 CFM @ 1.9" WC
Free Fan CFM Rating 475 CFM
Maximum Suction 97.8" WC
Noise Level 80 dBA @ 10 ft
Motor Speed Type Fixed
Cyclonic Separation Efficiency Removes over 99% of fine wood dusts
Filter Type HEPA Grade ePTFE Media
Filtration Efficiency E12 Minimum Efficiency Rating
Total Filtration Area 40 sq ft
Waste Capacity 14 Gallons
Remote Control Included
Primary Build Materials Cold Rolled Steel
Welding Seam Welded
Static Resistance Rating Conductive (Metal)
Color Yellow
Inlet Size 4" O.D.
Discharge Size 5" O.D.
Width 28.5"
Depth 30"

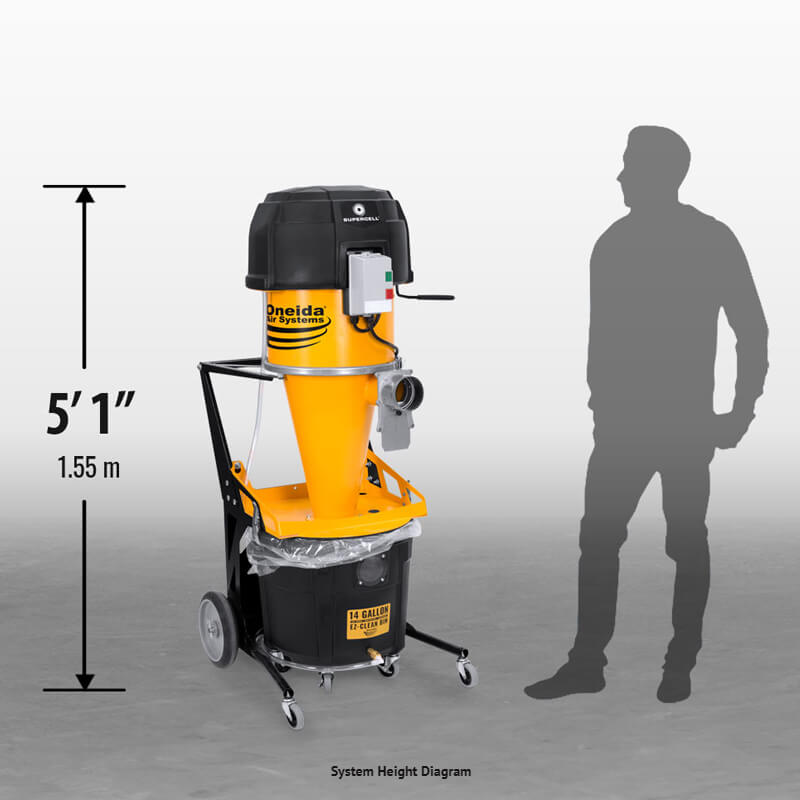

Height 61"
Actual Weight 176 lbs
Contents Fan Motor Assembly, Magnetic Starter, Remote Control, Cartridge Filter, Pulse Filter Cleaner, Cyclone Separator, Mobile Cart, Blast Gate, 2x Turn Key Clamp, Mobile Dust Bin, Dust Sentry Bin Level Indicator, Automatic Bag Holder System, 25' x 4" Vacuum Pressure Rated Hose, 5x Liner Bags, Viewing Window, Hardware
Manufacturer Oneida Air Systems
Warranty Information 1 Year Limited Warranty
