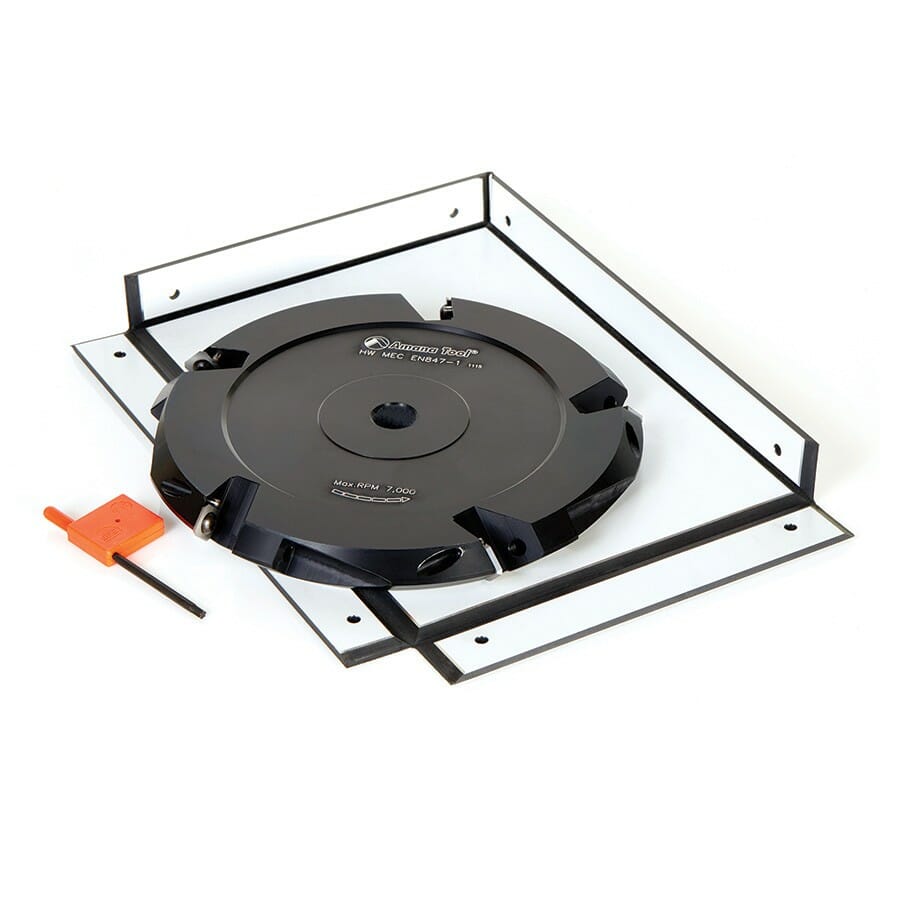

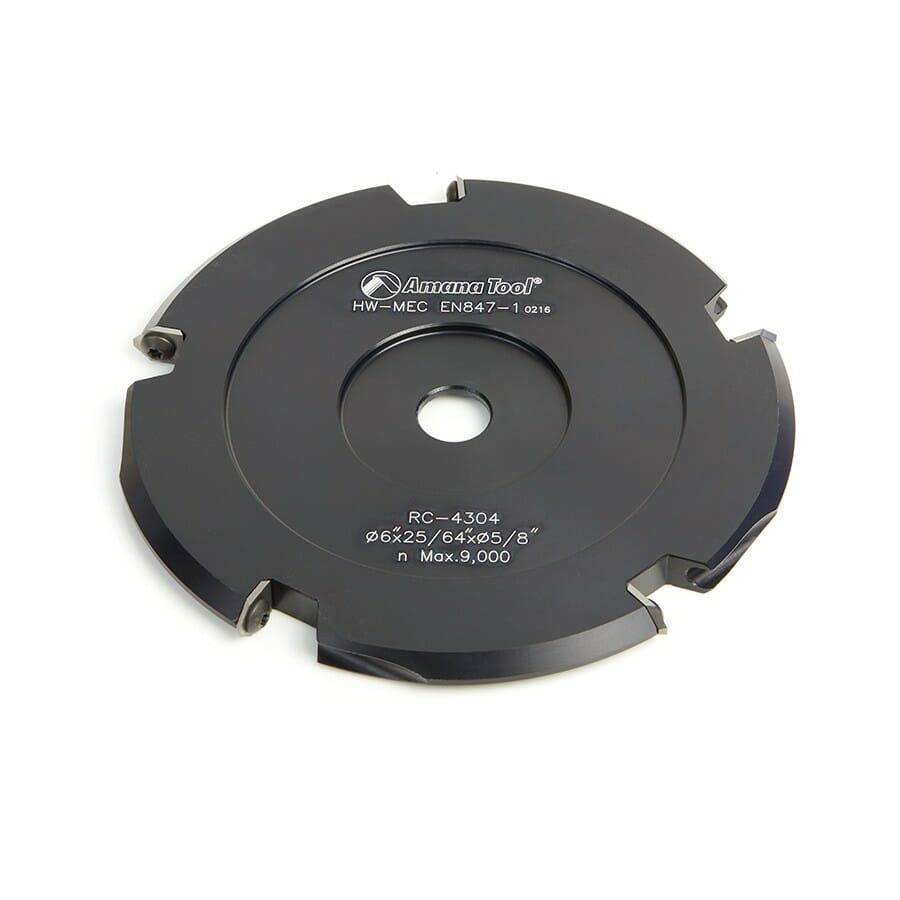

Insert Carbide ACM 90º Double Edge V-Scoring 6 Inch Dia x 5T x 5/8 Bore Saw Blade
$301.90
| D Diameter | 6 |
|---|---|
| Teeth | 5 |
| D Bore | 5/8 |
| Kerf B | 25/64 |
| Max Rpm | 9 | 000 |
| Repl- Knives | RCK-48 |
| Machine | Table Saw |
| A Angle | 90 |
Description
V-Scoring blade designed for cutting angled cuts with flat bottoms in aluminum/non-ferrous/plastics composite sandwich materials such as:
Aluminum, Clay, Zinc & Wood Composite Panels Aluminum Composite Materials (ACM) Aluminum Composite Panel (ACP) * ALPOLIC® Copper Composite Material (CCM) Alucobond® Alupanel®
Dibond® Durabond ** e-panel™ Etalbond® Phenolics Plastic/Acrylic Plexiglas® Titanium Composite Material (TCM) Wood Designed for scoring Aluminum Composite (sandwich) Materials with 90° angle V-groove with flat bottom. Widely used for cladding many diverse exterior and interior applications. The long lasting durablility of the material makes it an excellent choice for buildings, signage, displays, etc. Utilizes 4-sided carbide inserts. ACP is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration. This set requires a custom zero clearance throat plate. Not to be used with portable saws. * ** WARNING: WARNING:
Specifications
| (D) Diameter | 6 |
| Teeth | 5 |
| (d) Bore | 5/8 |
| Kerf (B) | 25/654 |
| Max RPM | 9,000 |
| Repl. Knives | RCK-48 |
| Machine | Table saw |
| (a°) Angle | 90 |
| Flat Bottom Width | 0.090" |
