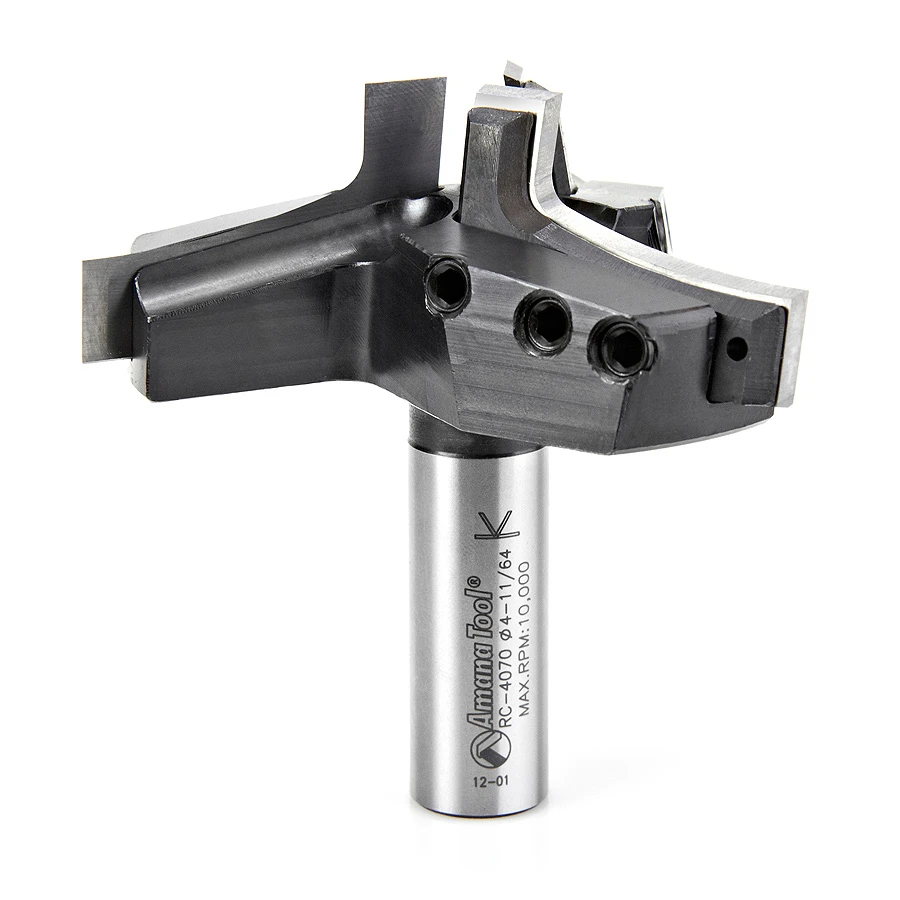

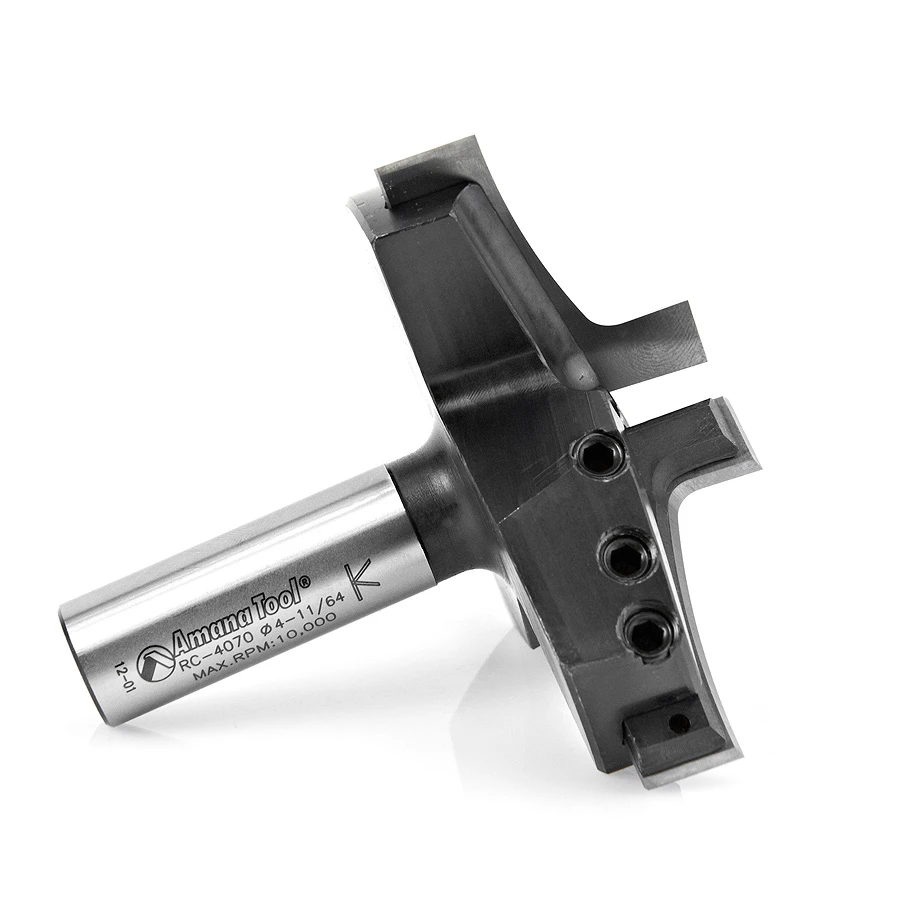

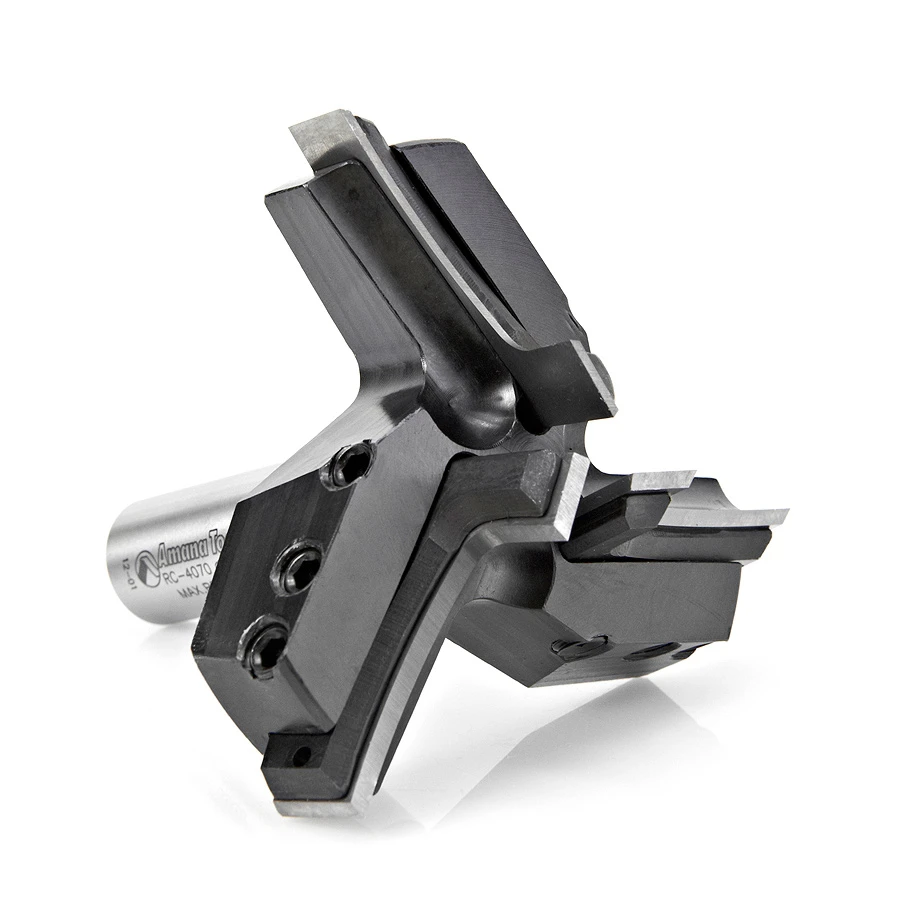

RC-4070 CNC Insert 3 Flute Multi Profile Raised Panel Solid Carbide 106mm Dia x 20mm x 3/4 Shank

$611.35

Usually ships on the 2nd business day from order date.

Diameter (D)	106mm(4-3/16)
(B) Cutting Height	20mm(7/8)
Shank (d)	3/4
Overall Length (L)	99.5mm(3-29/32)
Max Rpm	10,000

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

RC-4070 CNC Insert 3 Flute Multi Profile Raised Panel Solid Carbide 106mm Dia x 20mm x 3/4 Shank quantity

+ Add to cart

UPC: 738685040706 SKU: RC-4070 Categories: Raised Panel CNC Insert Router Bits, CNC Router Bits, Door Making CNC Insert Router Bits

Share:

Description

W = width of the frame.
H = maximum depth of the frame.

The dimension W determines the frame width.
The dimension H determines the profile depth.

In the example shown W = 50 and H = 13.

Any change in the dimensions of the frame width and depth should be done according to the formula that is written on each tool drawing.

Excellent For:

• MDF
• Wood
