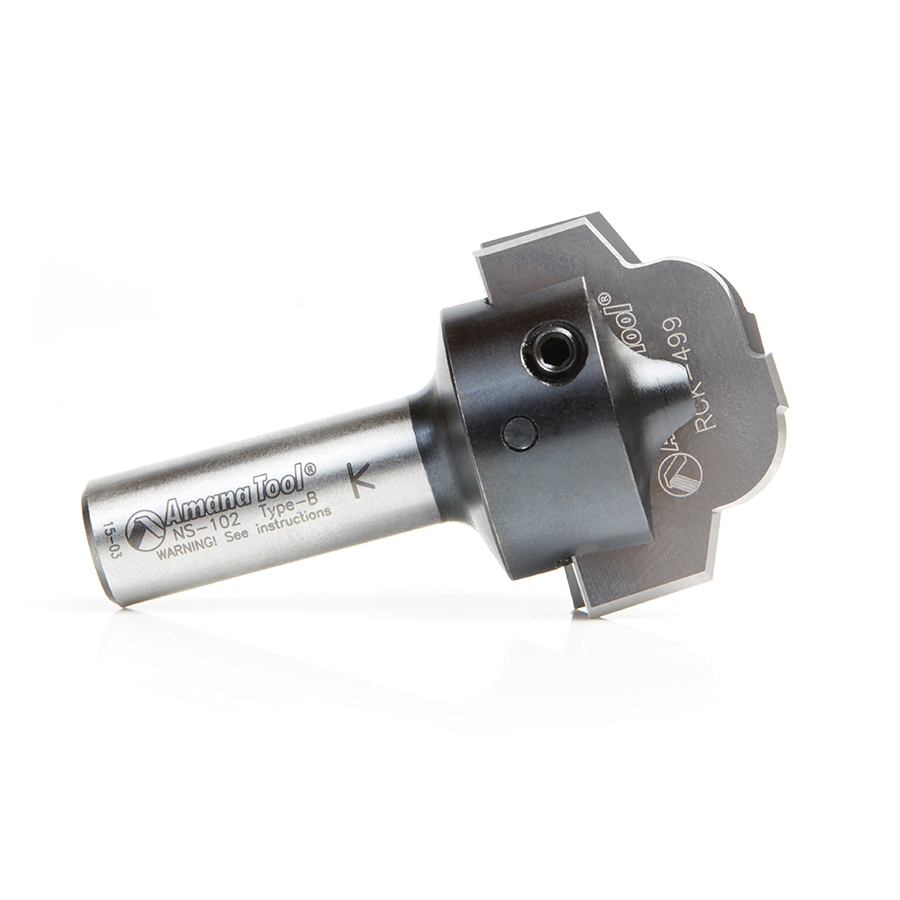

RC-2499 CNC Insert Nova System Classical Cove Plunge Form for MDF & Wood Cabinet Doors 1-11/32 Dia x 23/64 x 1/2 Inch Shank

$219.44

Usually ships on the 2nd business day from order date.

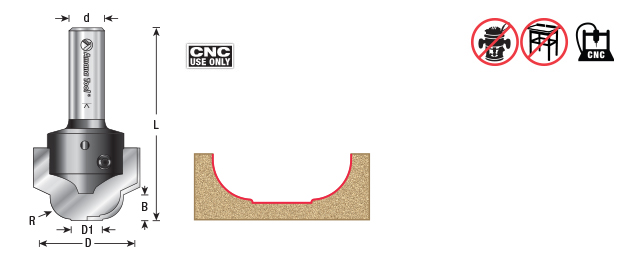

Diameter (D) 1-11/32
Radius (R) 7.5mm
(B) Cutting Height 23/64
Shank (d) 1/2
Overall Length (L) 2-5/8
Style Classical Cove
Repl. Knives RCK-499
Type Plunge Form
D1 7/16
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.

One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.

Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.

Excellent For:

  • MDF
  • Wood

Specifications

Diameter (D) 1-11/32
Radius (R) 7.5mm
Cutting Height (B) 23/64
Shank (d) 1/2
Overall Length (L) 2-5/8
Style Classical Cove
Replacement Knives RCK-499
Type Plunge Form
D1 7/16
