DT12960 Carbide Tipped Sliding Table Saw 12 Inch Dia x 96T ATB, 10 Deg, 1 Inch Bore
$263.13
Usually ships on the 2nd business day from order date.

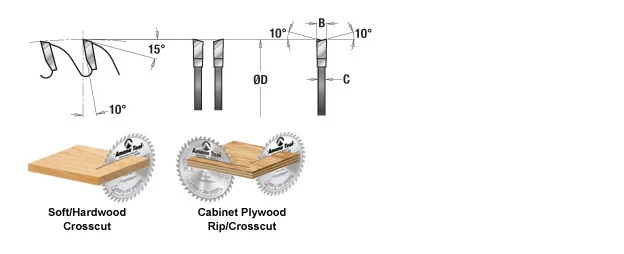

| Diameter (D) | 12 (300mm) |
|---|---|
| Teeth | 96 |
| (d) Bore | 1 |
| Tooth Grind | ATB |
| Hook Angle | 10° |
| Kerf (B) | .126 (3.2mm) |
| Plate (c) | .087 (2.2mm) |
Description

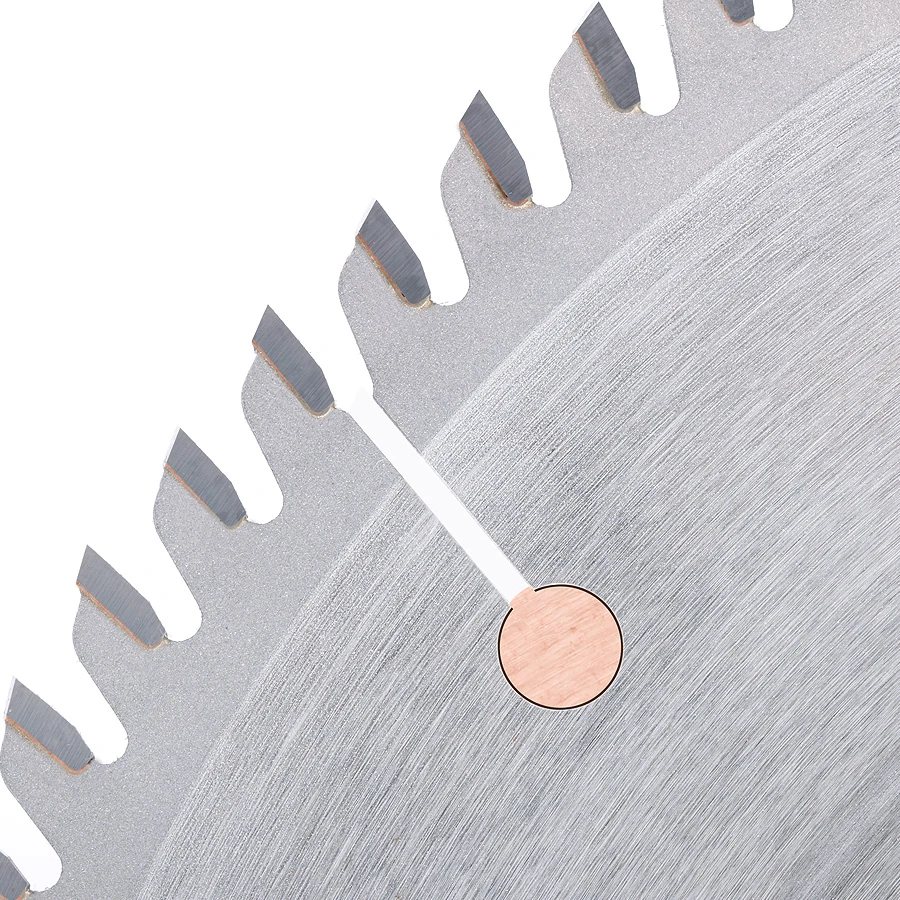

This high-performance crosscutting blade is designed primarily for use in sliding table saws, such as Striebig®, Altendorf®, SCMI® and Delta® models. They are also suitable for use in regular table saws. The blades incorporate an exceptional array of features: high tooth count, expansion slots and turbulence-dampening copper plugs. The DITEC™ carbide tips add exceptional sharpness and long tool life to these features. TC grind is for MDF, OSB, HDF, single or double-sided melamine and plastic laminated panels.
√ Exclusive DITEC™ Carbide Tips
√ Higher Reliability & Lower Maintenance
√ Low Noise Level
√ Laser Cut Saw Bodies
√ Excellent Cutting Quality
Instructions for grinding:
- For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate.
- Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade.
- Since the carbide in the DITEC™ is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced. Heat absorbed during the brazing process will seriously degrade the DITEC™ carbide.
Specifications
| Diameter (D) | 12 (300mm) |
| Teeth | 96 |
| (d) Bore | 1 |
| Tooth Grind | ATB |
| Hook Angle | 10° |
| Kerf (B) | ATB |
| Plate (C) | .087 (2.2mm) |
