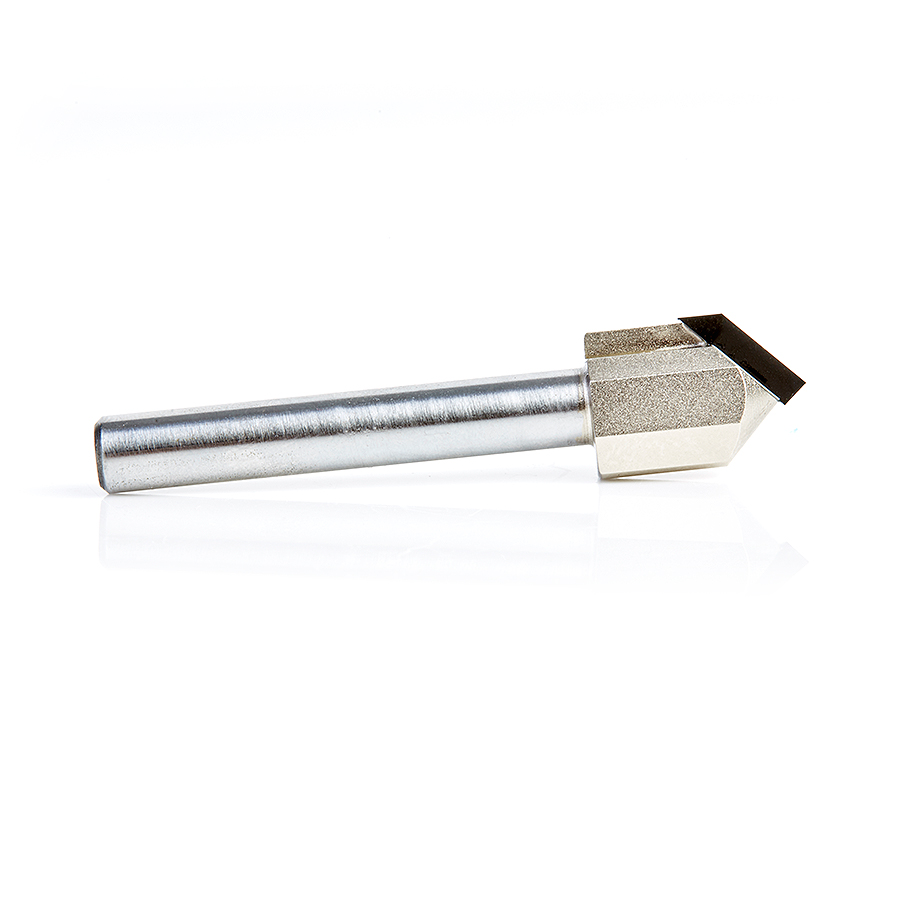

DRB-418 CNC Polycrystalline Diamond (PCD) 90 Degree Engraving, V-Grooving and Chamfering Router Bit 1/2 Dia x 3/8 x 1/4 Shank

$313.49

Usually ships on the 2nd business day from order date.
Diameter (D) 1/2
(a°) Angle 90º
(B) Cutting Height 3/8
Shank (d) 1/4
Overall Length (L) 2-1/4
B1 1/4
Max Rpm 24,000
Flutes 1
D1 0.01"
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685884188 SKU: DRB-418 Categories: , ,

Description

Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate which allows the diamond to be brazed onto a tool body.

If you’re looking for the ultimate in tooling you’ve found it! Amana Tool®’s PCD tipped 60 degree engraving V-grooving and chamfering CNC router bits will groove a wide variety of tough abrasive materials including composites particleboard MDF (both raw or with melamine) veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.

Excellent for V-Grooving and Chamfering:

  • Aluminum Composite Material (ACM)
  • Carbon Fiber
  • Composites
  • Composite Decking
  • Hard Wood
  • Laminated Chipboard and MDF
  • Plywood Veneer
  • Soft Wood
  • Solid Surface
  • Synthetic and Homogenous Marble

Excellent for Engraving:

  • Aluminum Brass & Copper
  • Aluminum Composite Material (ACM)
  • Aluminum Composites
  • Carbon Fiber
  • Coroplast®
  • Hard Wood
  • HDPE
  • King Starboard® / Marine Building Material
  • Laminated Chipboard and MDF
  • Metal Alloys that don’t contain Iron
  • PCB Board
  • Phenolic
  • Plastics
  • Plywood Veneer
  • Soft Wood
  • Solid Surface
  • Synthetic and Homogenous Marble
  • Titanium

Benefits of Diamond Technology

  • Harder cutting edge provides higher resistance to wear
  • Cut thousands of feet more than carbide without changing tool saving setup time
  • Optimized machine tool efficiency
  • Quality of finish is often significantly improved

Warning: Maximum recommended material depth in one pass varies from 0.5mm – 3.0mm depending on the hardness of the material. The harder the material the less the depth.

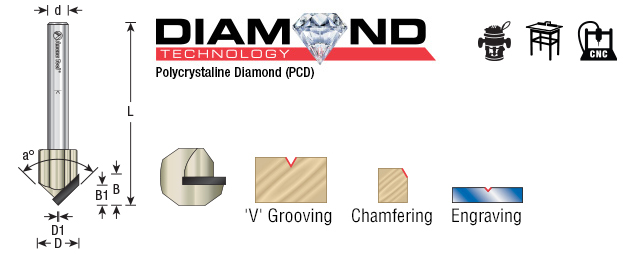

Specifications

Diameter (D) 1/2
(a°) Angle 90°
(B) Cutting height 3/8
Shank (d) 1/4
Overall Length (L) 2-1/4
B1 1/4
Max RPM 24,000
Flutes 1
D1 0.01"
