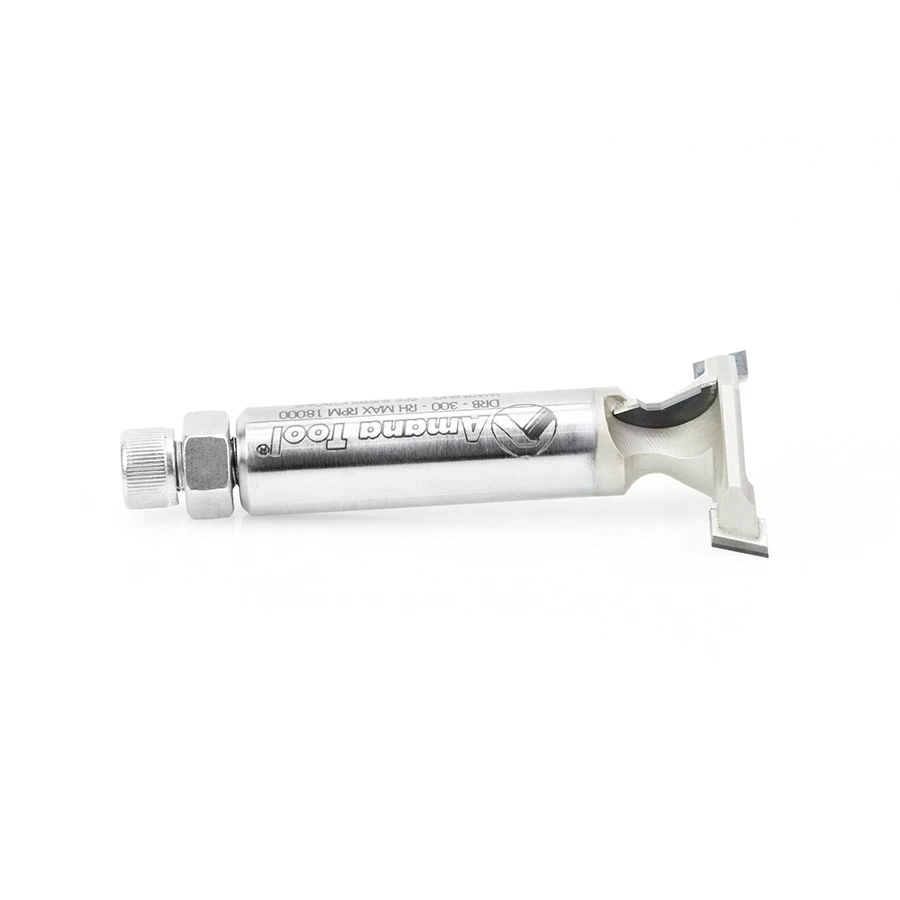

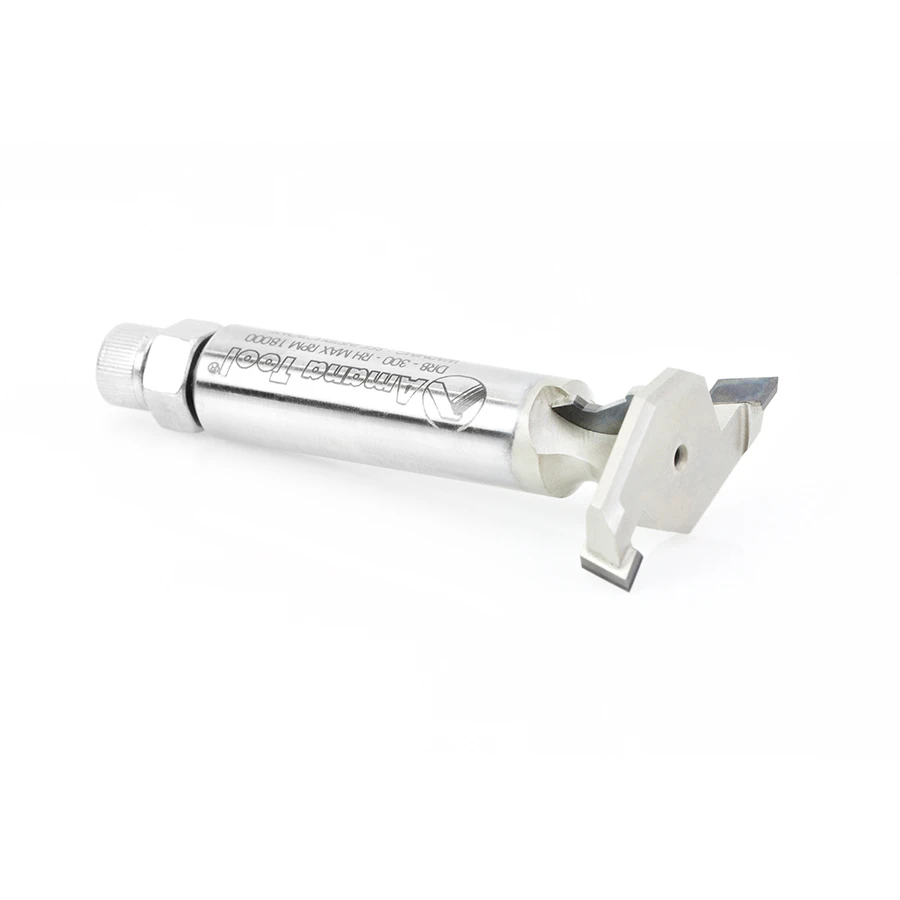

DRB-300-RH CNC Polycrystalline Diamond (PCD) Tipped T-Slot 1-3/8 Dia x 1/4 x 1/2 Inch Shank Router Bit 2+1 Cutters
$407.55
Usually ships on the 2nd business day from order date.
| Rotation | Right Hand |
|---|---|
| Diameter (D) | 1-3/8 |
| (B) Cutting Height | 1/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/8 |
| B1 | 1/16 |
| Max Rpm | 18,000 |
| Type | RH |
| D1 | 3/8 |
| Cutters | 2+1 |
Description
Diamond is the hardest material on the earth. Polycrystalline Diamond (PCD) tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.
If you’re looking for the ultimate in tooling you’ve found it! Amana Tool®’s PCD tipped t-slot CNC router bits will groove a wide variety of tough abrasive materials including composites, particleboard, MDF (both raw or with melamine), veneer and hardwoods. The cutting edge lasts much longer than carbide for extremely long life.
T-Slot diamond tipped router (standard T-slot). Re-sharpen one to two times.
Excellent for Cutting:
- Aluminum
- Aluminum Composites
- Aluminum Composite Material (ACM)
- Composites
- Hardwood
- MDF
- Melamine
- Particle Board
Benefits of Diamond Technology
- Harder cutting edge provides higher resistance to wear
- Cut thousands of feet more than carbide without changing tool saving setup time
- Optimized machine tool efficiency
- Quality of finish is often significantly improved
Specifications
| Rotation | Right Hand |
| Diameter (D) | 1-3/8 |
| (B) Cutting Height | 1/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/8 |
| B1 | 1/16 |
| Max RPM | 18,000 |
| Type | RH |
| D1 | 3/8 |
| Cutters | 2+1 |
