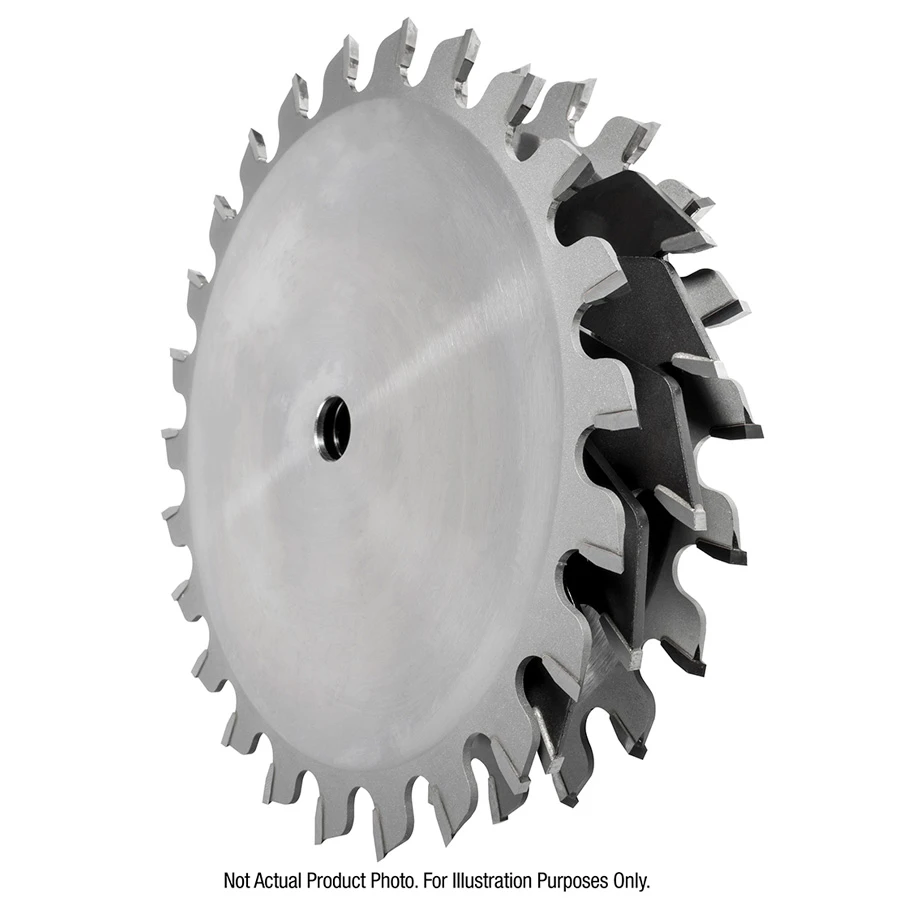

656030 Carbide Tipped Dado 6 Inch Dia x 18T ATB/FT 15 Deg, 5/8 Bore, Dado Set with Five 2-Wing Chippers

$311.76

Usually ships on the 2nd business day from order date.

Diameter (D)	6 (150mm)
Teeth	18
(d) Bore	5/8
Tooth Grind	ATB/FT
Hook Angle	15°
Kerf (B)	1/4 - 13/16

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

656030 Carbide Tipped Dado 6 Inch Dia x 18T ATB/FT 15 Deg, 5/8 Bore, Dado Set with Five 2-Wing Chippers quantity

+ Add to cart

UPC: 738685656037 SKU: 656030 Categories: Dado Sets, Saw Blades, Dado Sets & Accessories

Share:

Description

Dadoes (cross-grain cuts) and grooves (cuts with the grain) are cut efficiently on the table saw with a dado stack set. Unlike a wobbler, a stack set produces a flat-bottom cut with chip-free edges. Amana Tool® makes dado stack sets for every machine and every type of woodworking material. The standard width capacity ranges from 1/4″ to 13/16″. Additional chippers may be purchased separately to expand the capacity beyond 13/16″. The standard set, regardless of diameter or tooth count, consists of two outside saw blades and four inside chippers. The outside blades feature hollow-ground plates for proper clearance, and alternate top bevel (ATB) grind with every sixth tooth flat ground (FT).

For plywood and melamine, the sets with 46-tooth outside blades are recommended.

Teeth refers to the number of teeth for each outside saw blade.  (5) 2-Wing Chippers
