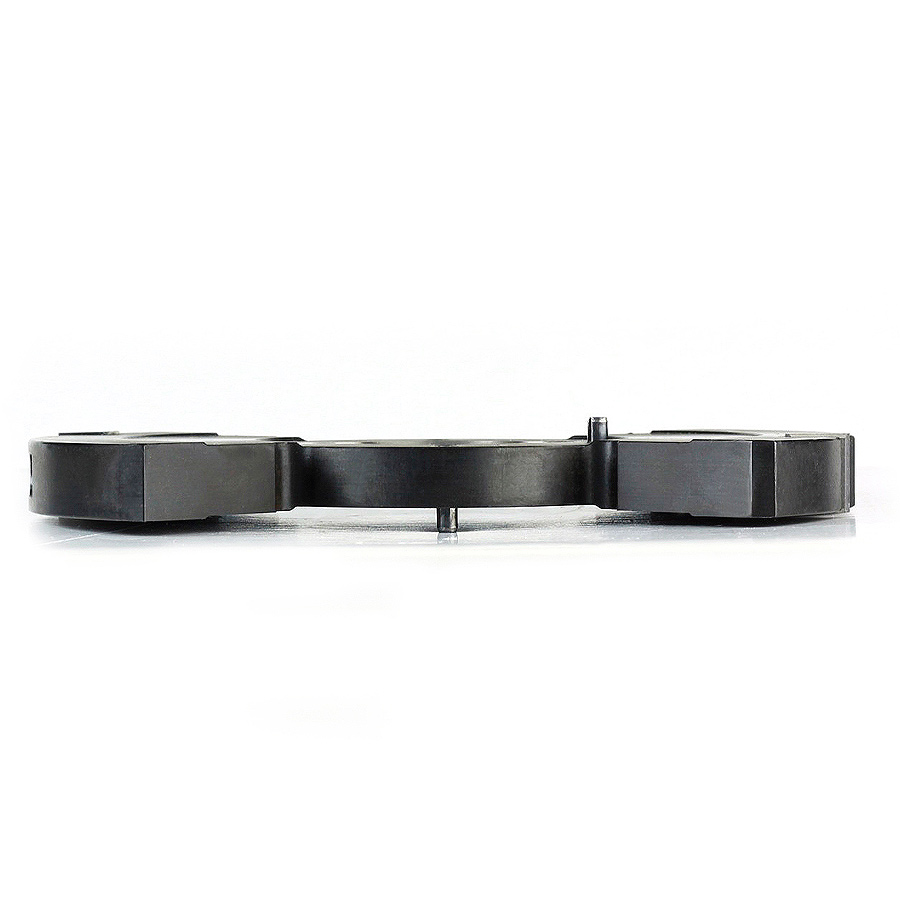

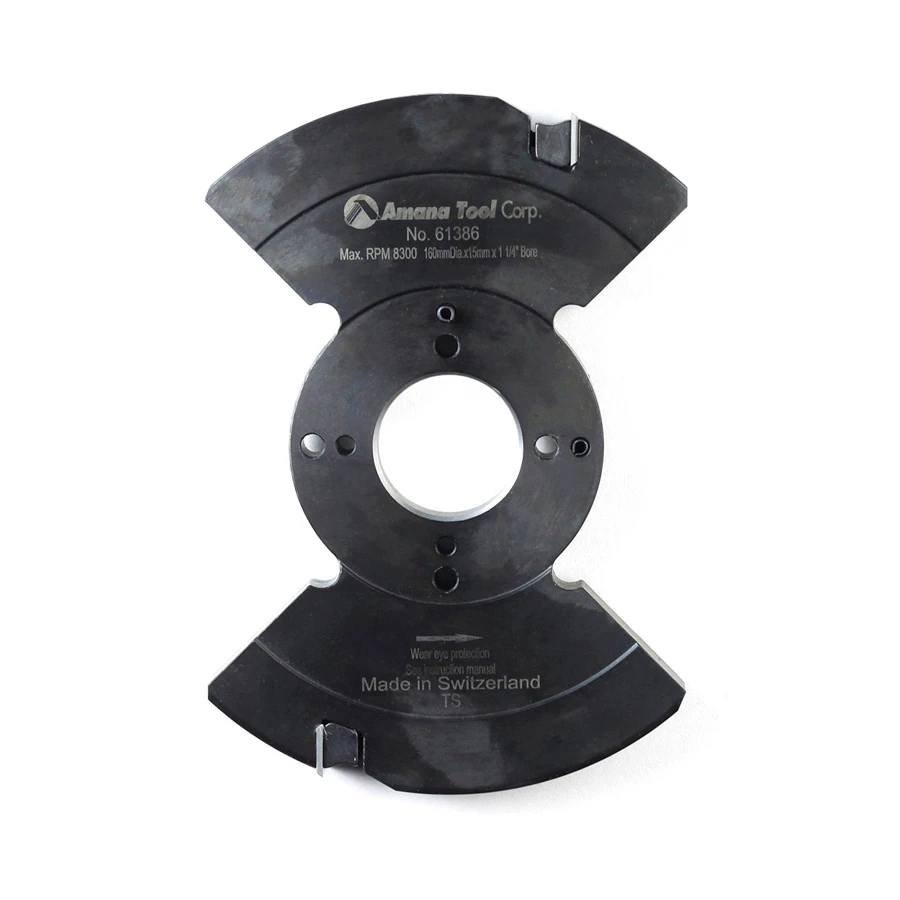

61386 Intermediate Stackable Cutter 160mm (6-5/16) Dia x 15mm (19/32) x 1-1/4 Bore

$311.79

Usually ships on the 2nd business day from order date.

Diameter (D)	160mm (6-5/16)
(d) Bore	1-1/4
(B) Cutting Height	15mm (19/32)
Max T	30mm (1-3/16)
RPM	4,800-8,300
Teeth	2
Use W/ Cutterhead	61350, 61360 and 61362
Replacement Knives	ICK-15

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

61386 Intermediate Stackable Cutter 160mm (6-5/16) Dia x 15mm (19/32) x 1-1/4 Bore quantity

+ Add to cart

UPC: 738685613863 SKU: 61386 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Intermediate Stackable Cutters 7, 15 & 20mm Kerfs, Grooving Insert Shaper Cutters, Shaper Cutters

Share:

Description

Expand the range of the shim-type adjustable groovers with these intermediate cutters. Works like a stackable dado set: sandwich one or more of the intermediate cutters between a pair of the groovers (model #’s 61350, 61352, 61360, 61362, 61364, 61366). Find the coarse groove width by stacking the appropriate selection of cutters on the shaper spindle, and fine-tune the width by shimming the outside groovers.
