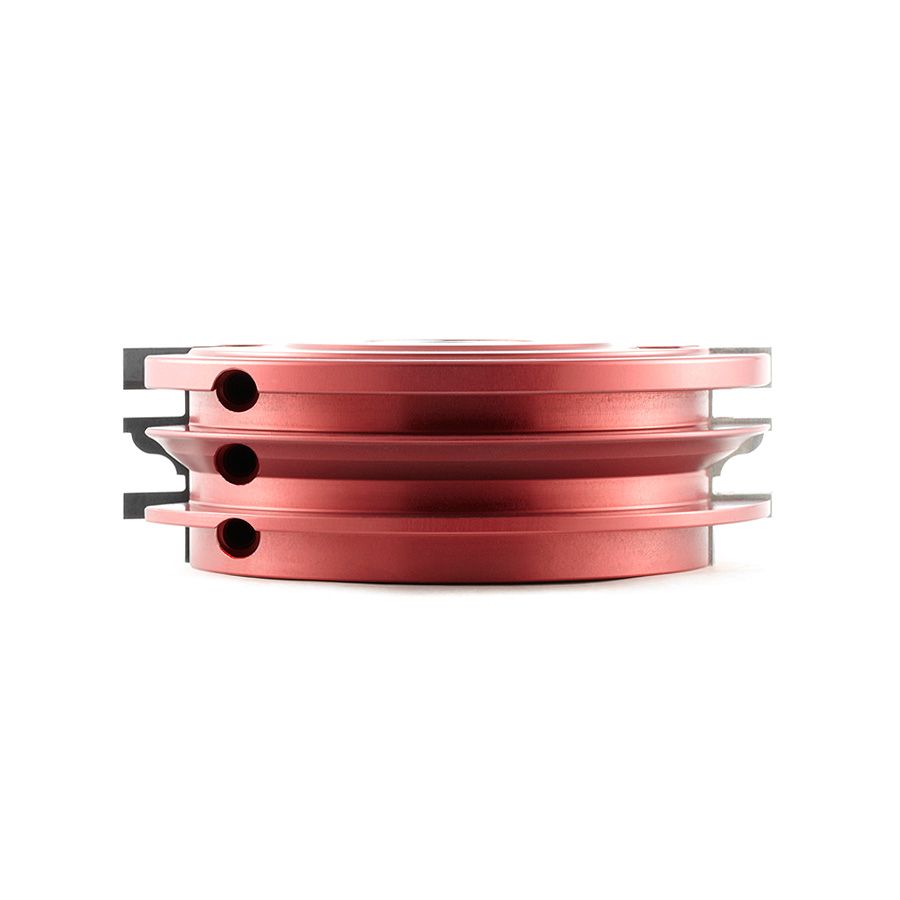

61272 Insert Carbide 2-Wing Stile & Rail 4-3/4 Dia x 1-1/2 x 1-1/4 Bore Profile #1 Steel
$313.99
Usually ships on the 2nd business day from order date.
| Diameter (D) | 120mm (4-3/4) |
|---|---|
| (d) Bore | 1-1/4 |
| (B) Cutting Height | 40mm (1-1/2") |
| Max T | 11.8mm (15/32) |
| RPM | 6,400-8,400 |
| Teeth | 2 |
| Replacement Knives | RCK-60 |
| Profile | 1 |
Description
Cutterhead in hard wearing aluminum alloy with one-sided tungsten carbide knives, utilizing the same knives for both stile and rail cuts by simply adjusting the spindle height of your shaper. Same tool body accepts all four different profiles. 3mm T-handle hex key included. To change profiles order individual knives separately. All patterns are designed for 7/8″ through 1″ thick materials.
Specifications
| (D) Diameter | 120mm (4-3/4) |
| (d) Bore | 1-1/4 |
| (B) Cutting Height | 40mm (1-1/2) |
| Max. t | 11.8mm (15/32) |
| RPM | 6,400-8,400 |
| Teeth | 2 |
| Replacement Knives | RCK-60 |
| Profile | 1 |
