5HP Dust Gorilla Pro SMART Boost Dust Collector

$6,406.00

  • Patented SMART Boost® doubles airflow performance through smaller ports and long ducting runs. Ideal for CNC machines!
  • Industrial 230V U.S. made fan motor provides ample CFM for up to 3 tools at once. Includes RF remote control starter.
  • High efficiency cyclone (over 99% separation) made from heavy gauge, powder-coated steel.
  • Reinforced steel dust bin with quick-release lid and automatic fill level indicator.
  • HEPA-certified filter media with non-stick membrane for easy cleaning.
Usually ships in 2-4 weeks
System Configuration Freestanding Leg Kit with 35-Gallon Steel Drum, Freestanding Leg Kit with 55-Gallon Steel Drum, Wall Mounting Bracket with 35-Gallon Steel Drum, Wall Mounting Bracket with 55-Gallon Steel Drum
Inquire Now SKU: XGK05 Categories: ,

Description

Introducing: The Last Dust Collector You’ll Ever Need – Now With Twice The Airflow!

2019 Edition – New features for improved efficiency and ease of use!

Choosing the best dust collector for your shop can be difficult, especially when you start combining mixed/undersized dust port and long runs of ducting or hoses. Oneida Air Systems’ patented SMART Boost® technology offers the only solution that can adapt to nearly any shop layout!

Our unique SMART Boost monitors your system for any suction loss and automatically adjust the fan motor’s speed to compensate – delivering maximum air volume for a wide range of tools and delivering higher suction at the cutter head where you need it the most!

Combining the award-winning features of our Super Dust Gorilla with the rugged construction of our Pro series, this new system will help you maximize your investment and ensure that your shop is running at peak-efficiency for years to come.

Included Features & Components

  • Industrial 5HP U.S. Made Fan Blower Motor
  • SMART Boost Variable Speed Airflow Controller

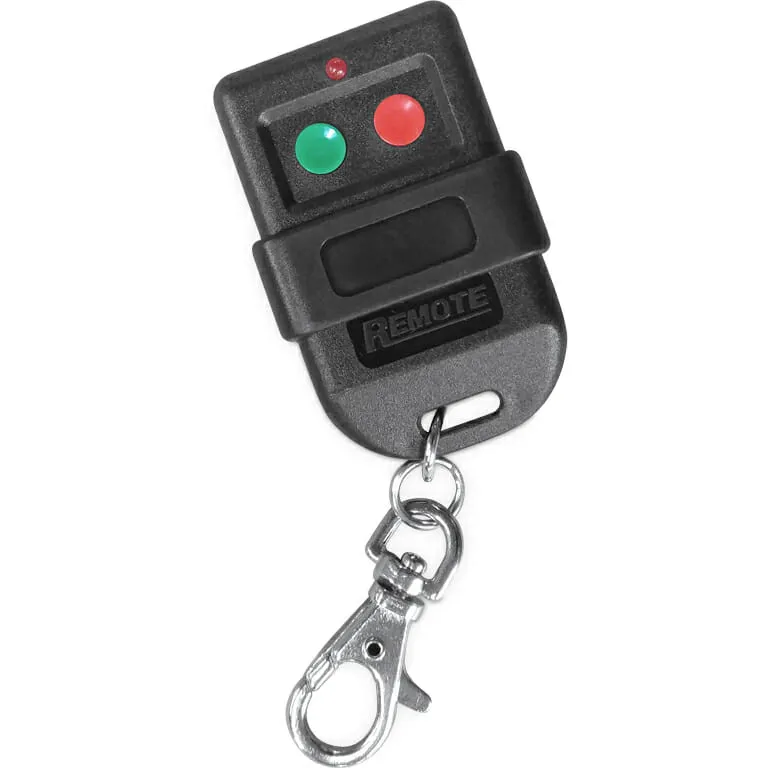

  • Wireless Radio Frequency Remote Control Keyfob
  • Single-Piece, Smooth-Wall, Molded Fan Housing
  • Heavy-Gauge Steel Cyclone Separator
  • HEPA-Certified Filter Media
  • Stacking Sound Filter & Drop-in Silencer
  • Steel Angle Frame Stand or Wall Mounting Bracket
  • Reinforced Steel Dust Bin
  • Dust Sentryâ„¢ Bin Fill Level Indicator
  • D.I.Y. Ductwork Design Guide
  • 2 Year Limited Warranty

Features

Continuously High Airflow Performance

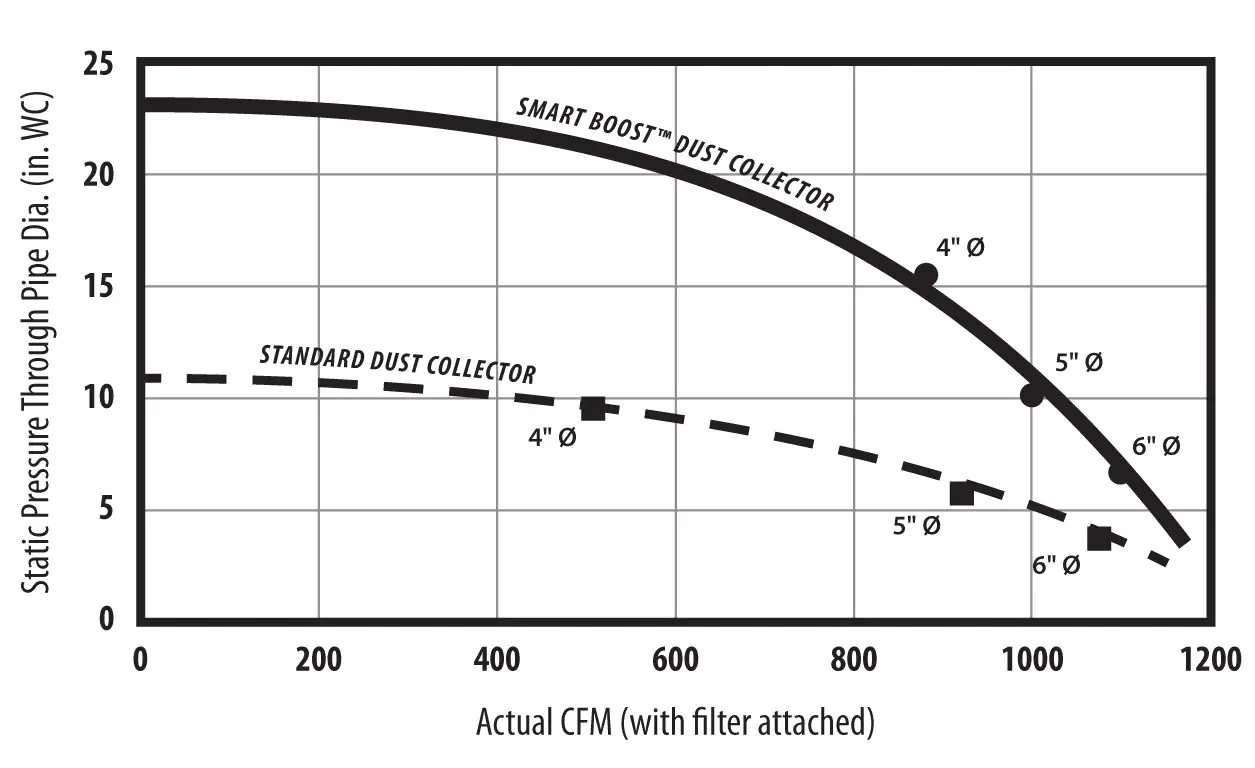

Our patented SMART Boost technology directly measures resistance placed on the fan motor and automatically increases the fan’s speed to compensate when suction is low, ensuring that the motor always works at peak performance levels! This can double your airflow through smaller or mixed ports – perfect for CNC machines!

  • High-efficiency, U.S. made fan blower motor
  • Industrial-grade brushless motor designed for continuous duty
  • Delivers ample airflow for collecting from up to 3 machines at once.
  • Low pitch noise level provides ideal operator comfort
  • Includes RF remote control that works through walls and up to 100 feet away.
  • System’s inlet and outlet rotate independently at 45 degree increments to suit your shop’s needs.

Ultra-High Efficiency Steel Cyclone Separator

Features Oneida Air Systems’ unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.

  • Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
  • Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
  • 7″ dia. neutral-vane inlet for use with common 6″ ductwork layouts (reducers available).
  • Industrial 16 gauge steel construction with full welded, airtight seams.
  • Oneida Air Systems’ trademark gold, rust preventative, powder coat finish.

High Quality & Serviceable Filtration

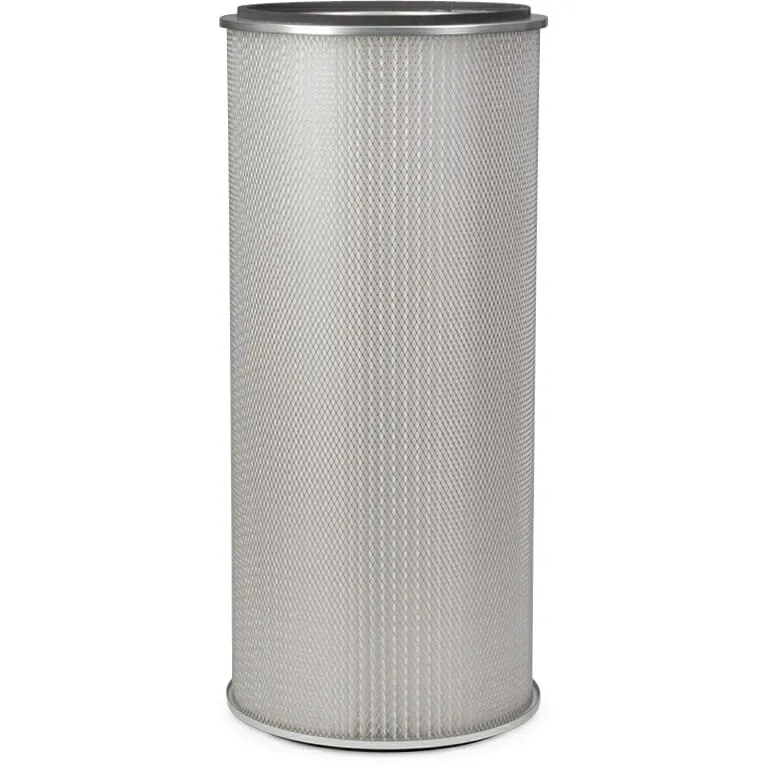

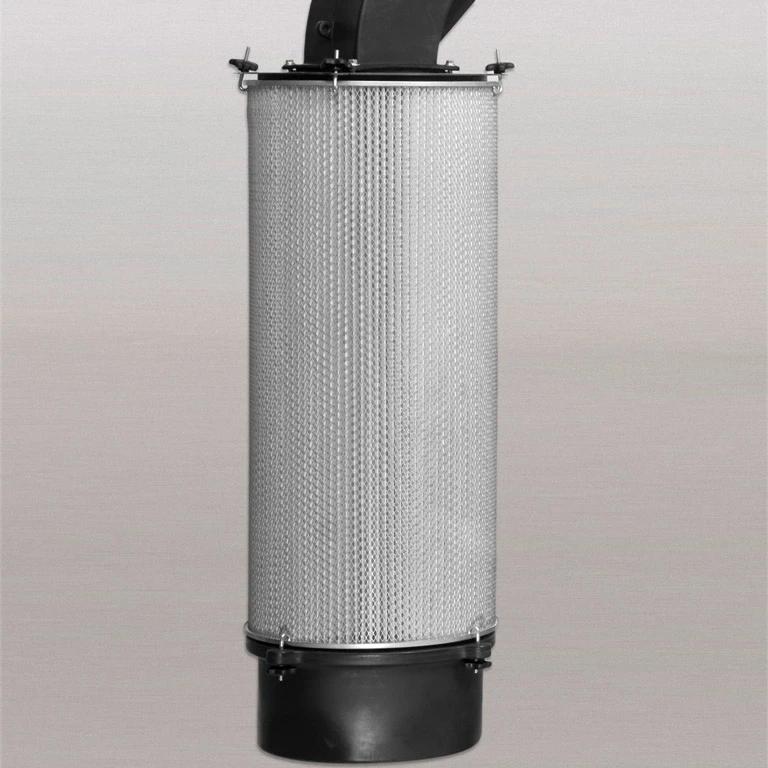

The Dust Gorilla Pro system uses HEPA cartridge filters that are specifically designed for dust collection applications – providing unbeatable airflow and filtration performance.

  • We fully stand by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
  • Stacking Sound Filter and internal silencer reduce overall noise output of the system by up to 6 dBA.
  • Patented Flame Guardâ„¢ safety mesh rapidly dissipate any heat generated by a deflagration within your filter, helping to comply with future planned NFPA fire safety codes.
  • Wide-spaced filter pleating coated with non-stick PTFE membrane to facilitate east cleaning.
  • Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.

Compact, Configurable Mounting Options

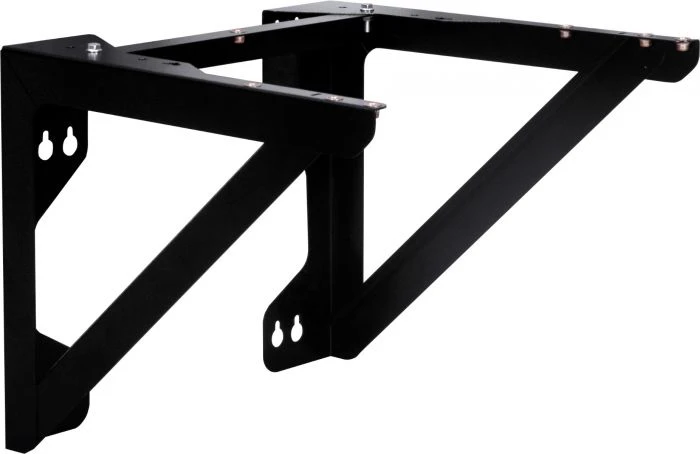

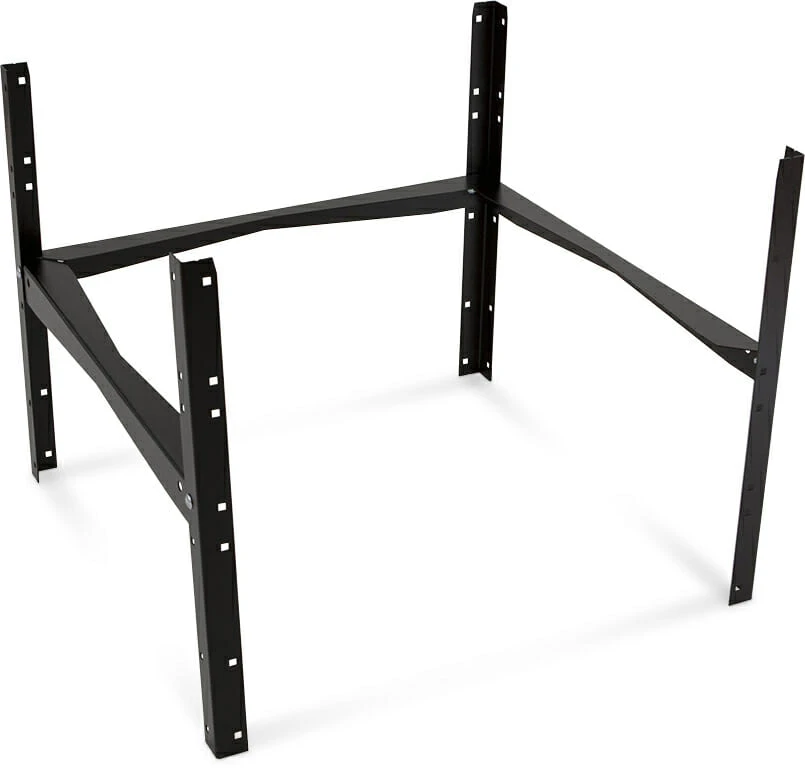

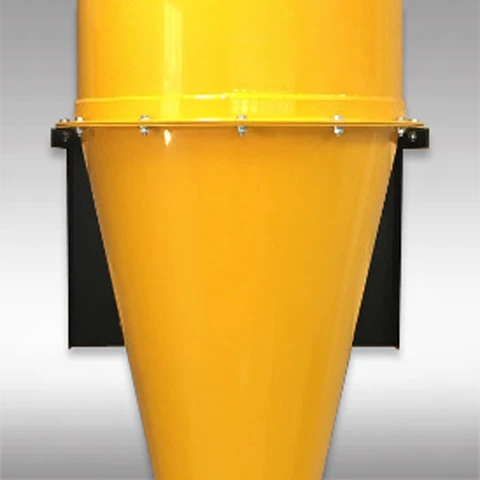

This unit can be equipped with your choice of wall bracket or freestanding leg kit to best suit your shop’s floor plan. Both options are highly compact and support various rotations of the cyclone body to best position the inlet. Our mounting systems are built from heavy-gauge, powder coated steel for long lasting durability and are delivered flat packed with easy assembly.

Specifications

Horsepower 5HP
Motor Type U.S. Motor
Motor Service Factor 1.15
Voltage 208-230V
Recommended Breaker Size 30A
Amperage (Typical) 18-23A
Phase (Pre-Wired) 1-Phase
Frequency 60Hz
Power Connector
Power Cord Length 7 feet
Impeller Type Single-piece, backward inclined, non-sparking/non-ferrous
Impeller Size 15" Dia.
Real CFM Rating 1,625 Actual CFM at 3" WC
Free Fan CFM Rating 3,250 CFM
Maximum Suction 23" WC
Max. Open Blast Gates 3 Gates
Noise Level 78 dBA at 10 ft
Filter Type G.E. H12 HEPA Media
Filtration Efficiency 99.97% @ 0.3 microns
MERV Rating MERV 16 ±
Total Filtration Area 110 sq ft
Waste Capacity 35 Gallons, 55 Gallons
Remote Control Included
Remote Control Part # See Item #AMR000000 for additional or replacement keyfobs.
Primary Build Materials Cold Rolled Steel
Welding Seam Welded
Static Resistance Rating Conductive (Metal)
Color Yellow
Inlet Size 7" Dia.
Outlet Size Square ID: 7-3/8"(W) x 6-3/8"(H)
Discharge Size 9" Dia.
Width 48"
Depth 30"
Height 94" w/ 35 Gal. Model
106" w/ 55 Gal. Model
Height to Center of Inlet 66.5" w/ 35 Gal. Model
78.5" w/ 55 Gal. Model
Contents Blower Motor Assembly, Magnetic Starter, SMART Boost Controller, Fan Housing, Cyclone Separator, Filter Plenum, Stacking Sound Filter, FlameGuard Cartridge Filter, Freestanding Leg Kit, Steel Dust Bin, Bin Level Indicator, Remote Control, Hardware
Country of Manufacture United States
Warranty Information 2 Year Limited Warranty
Certifications Complete system is cETLus certified for indoor use
Applicable Patents US Pat. #8491685, #8496719, #8514090, #9370740, #D908854, #7247180, Patent Pending
