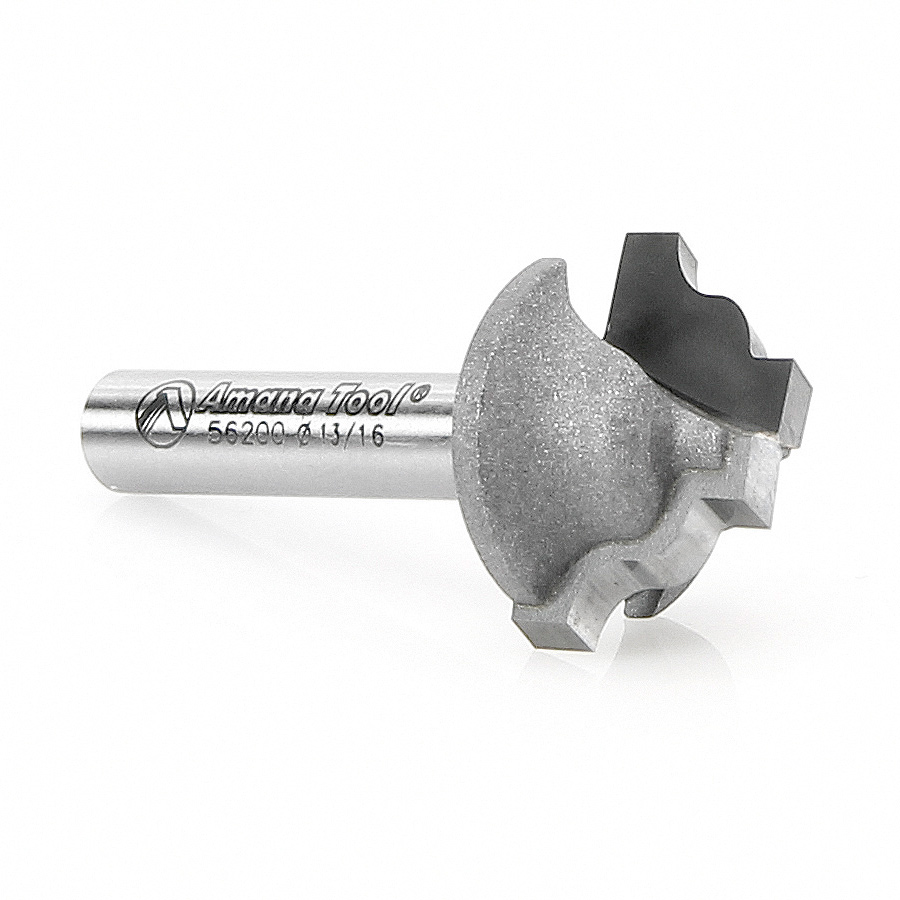

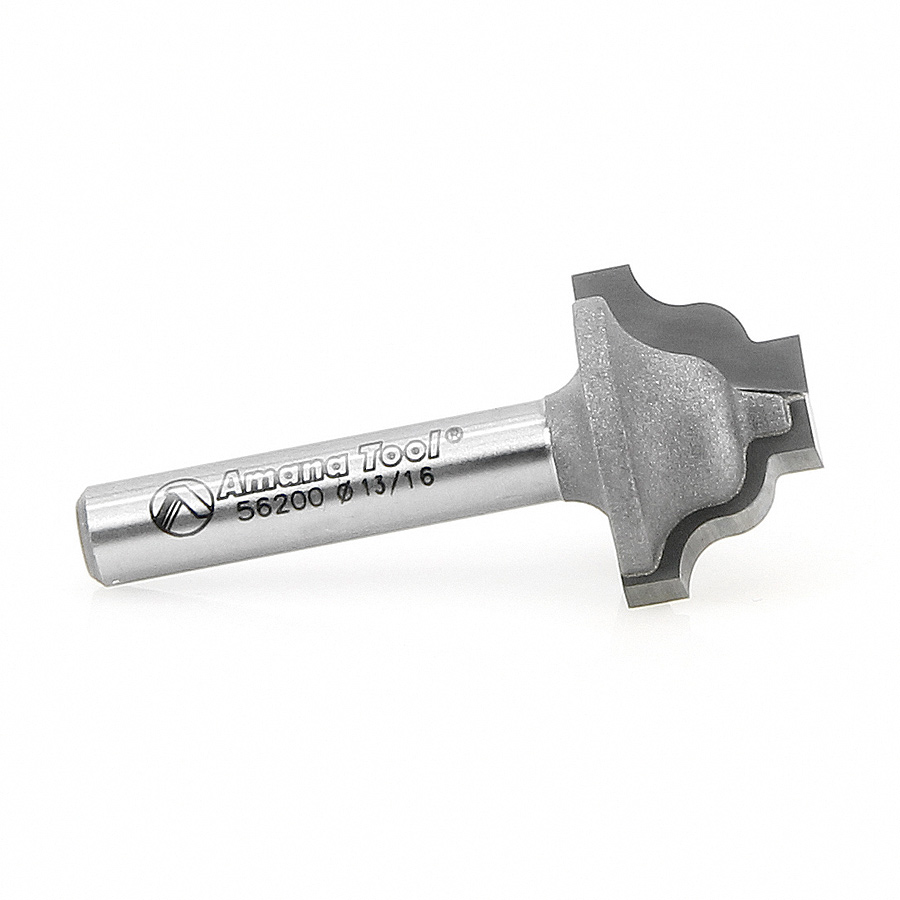

56200 Carbide Tipped Plunging Ogee Stile 1/8 Radius x 13/16 Dia x 33/64 x 1/4 Inch Shank
$46.47
Usually ships on the 2nd business day from order date.
| Diameter (D) | 13/16 |
|---|---|
| D1 | 5/16 |
| Radius (R) | 1/8 |
| (B) Cutting Height | 33/64 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-49/64 |
| Type | Ogee Stile |
| Flutes | 2 |
Description

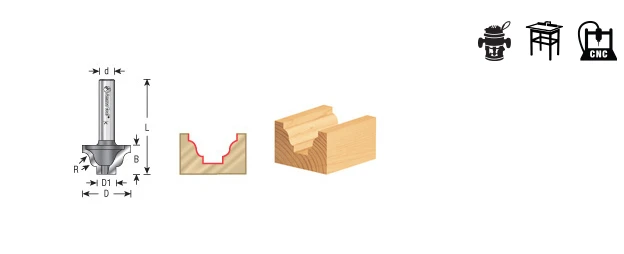

This bit forms a flat-bottom groove with a reverse ogee and step profile for the shoulders.
Specifications
| Diameter (D) | 13/16 |
| D1 | 5/16 |
| Radius (R) | 1/8 |
| Cutting Height (B) | 33/64 |
| Shank (d) | 1/4 |
| Overall Length (L) | 1-49/64 |
| Type | Ogee Stile |
| Flutes | 2 |
