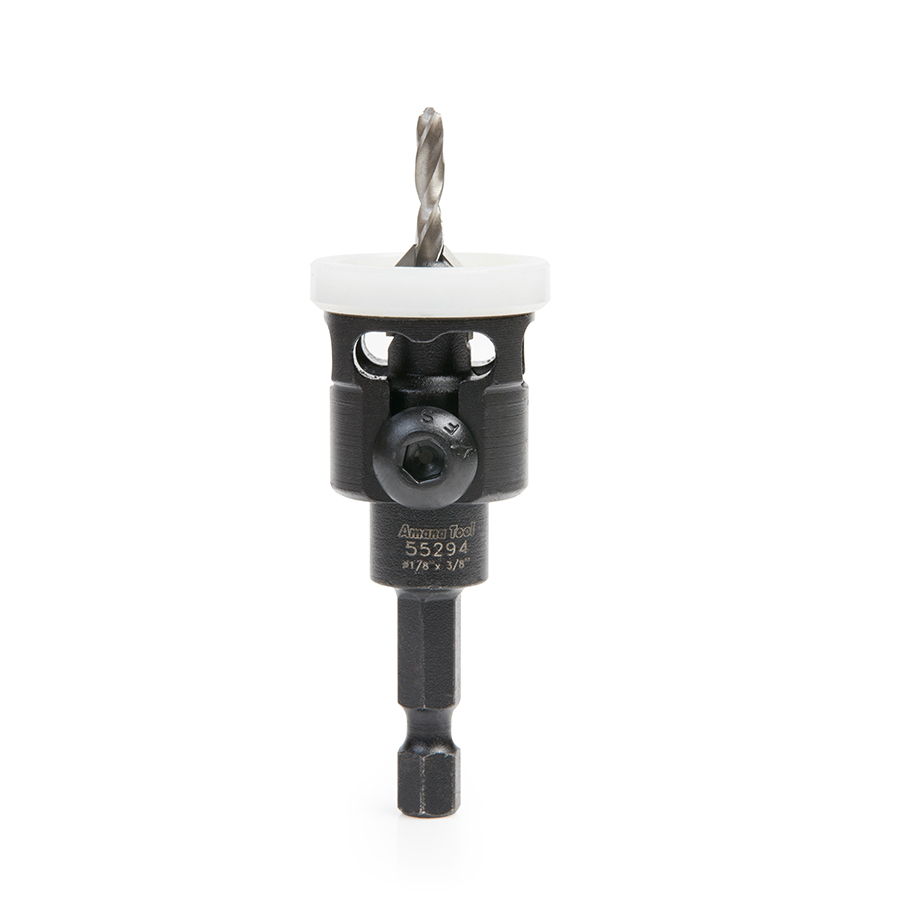

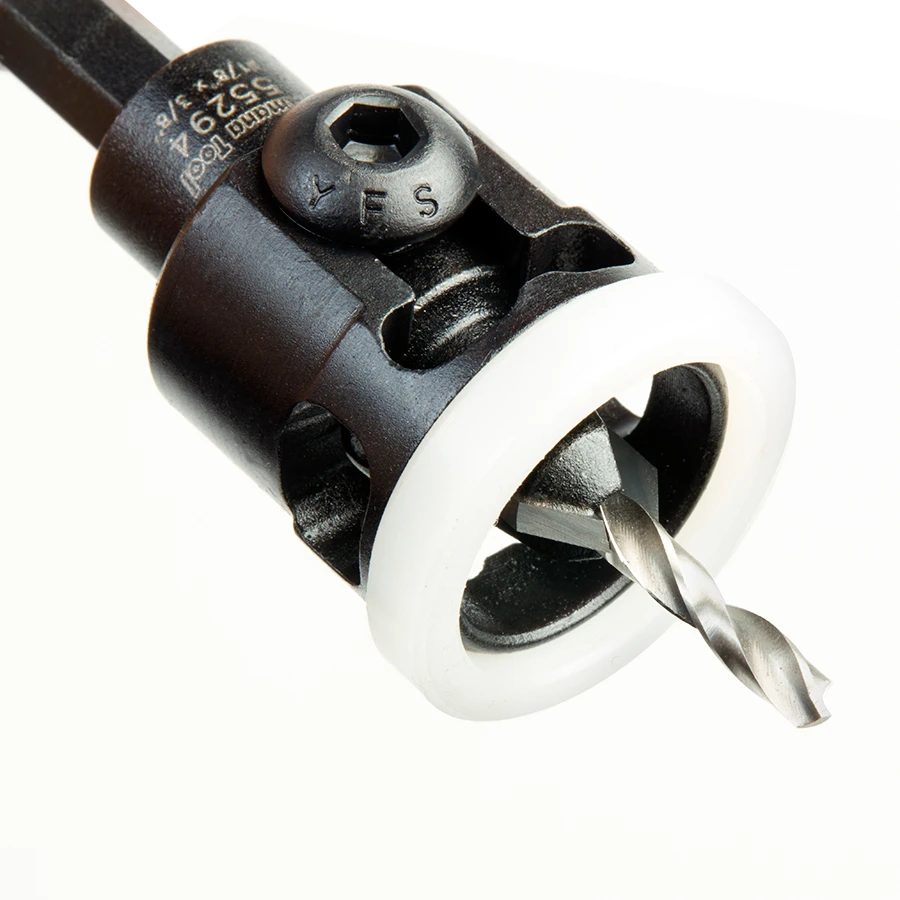

55294 Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, 3/8 Dia x 1/8 Drill Dia x 1/4 Inch Quick Release Hex Shank
$45.78
| (a°) Angle | 49° |
|---|---|
| Cutting Height (B) | 5/64-11/32 |
| Diameter (D) | 3/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-3/8 |
| Drill Din | 1897 |
| Wood Screw Size | 6 |
| D1 | 1/8 |
| Replacement Drill | 630-226 |
Description
A must have tool for every woodworker!
Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).
Low friction polymer collar. No surface scratches or burn marks!
These tools combine carbide countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn’t mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging.
Quick release 1/4″ hex shank with slow spiral, HSS M2 fully ground drill bit included.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Specifications
| (a°) Angle | 49° |
| (B) Cutting Height | 5/64-11/32 |
| Diameter (D) | 3/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-3/8 |
| Drill Din | 1897 |
| Wood Screw Size | 6 |
| D1 | 1/8 |
| Replacement Drill | 630-226 |
