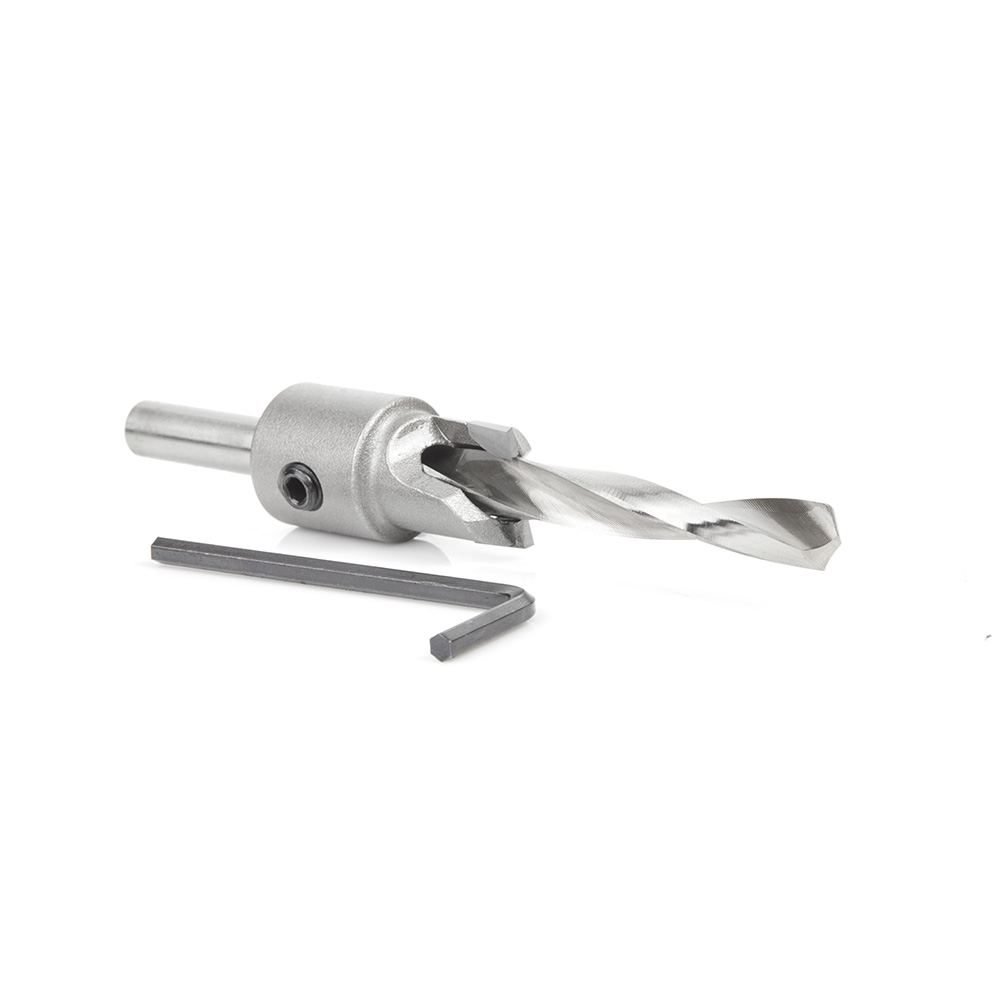

55140 Carbide Tipped Shankless Counterbore with Slow Spiral Drill, #20 Screw 5/8 Dia x 5/16 Drill Dia x 5/16 Drill Shank

$66.62

Usually ships on the 2nd business day from order date.

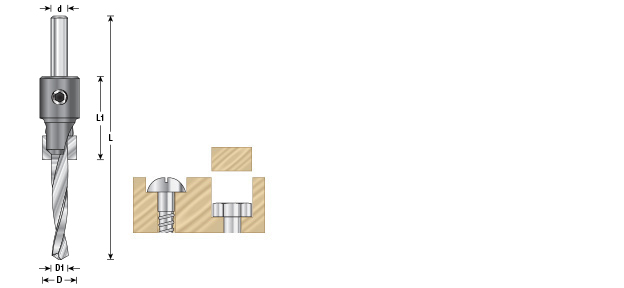

Diameter (D) 5/8
Shank (d) 5/16
Overall Length (L) 4-5/8
Wood Screw Size #20
# Wings 2
D1 5/16
Replacement Drill 630-706
L1 1-1/2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685140550 SKU: 55140 Categories: , ,

Description

Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.

Excellent for Drilling:

  • Natural Woods
  • Man-Made Boards
  • MDF
  • Chipboard
  • Plywood
  • Aluminum/Non-Ferrous
  • Aluminum Composite Material (ACM)
  • Composites
  • Composite Decking Materials

Warning: When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

Specifications

Diameter (D) 5/8
Shank (d) 5/16
Overall Length (L) 4-5/8
Wood Screw Size #20
# Wings 2
D1 5/16
Replacement Drill 630-706
L1 1-1/2
