54528 Carbide Tipped Ogee with Bead Vertical Raised Panel 7/8 Radius x 1-3/16 Dia x 1-5/8 x 1/2 Inch Shank

$74.55

Usually ships on the 2nd business day from order date.

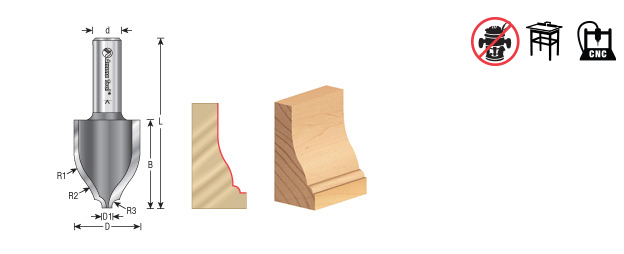

Diameter (D)	1-3/16
D1	3/16
(B) Cutting Height	1-5/8
Shank (d)	1/2
Overall Length (L)	3-1/8
Type	Ogee with Bead
R2	23/32
R3	1/8
R1	7/8
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

54528 Carbide Tipped Ogee with Bead Vertical Raised Panel 7/8 Radius x 1-3/16 Dia x 1-5/8 x 1/2 Inch Shank quantity

+ Add to cart

UPC: 738685545287 SKU: 54528 Categories: Vertical Raised Panel Router Bits, Router Bits, Door Making Router Bits - Industrial Quality, Rattle-Free from Amana Tool

Share:

Description

Raised panels with a low-horsepower, fixed speed router using these VERTICAL raised panel bits. You must do the work on a router table, with the work on edge, braced against the fence. Arched or curved shapes (i.e.: “cathedral” door panels) cannot be routed. To prolong tool life and get the best cut finish, several passes are recommended.
