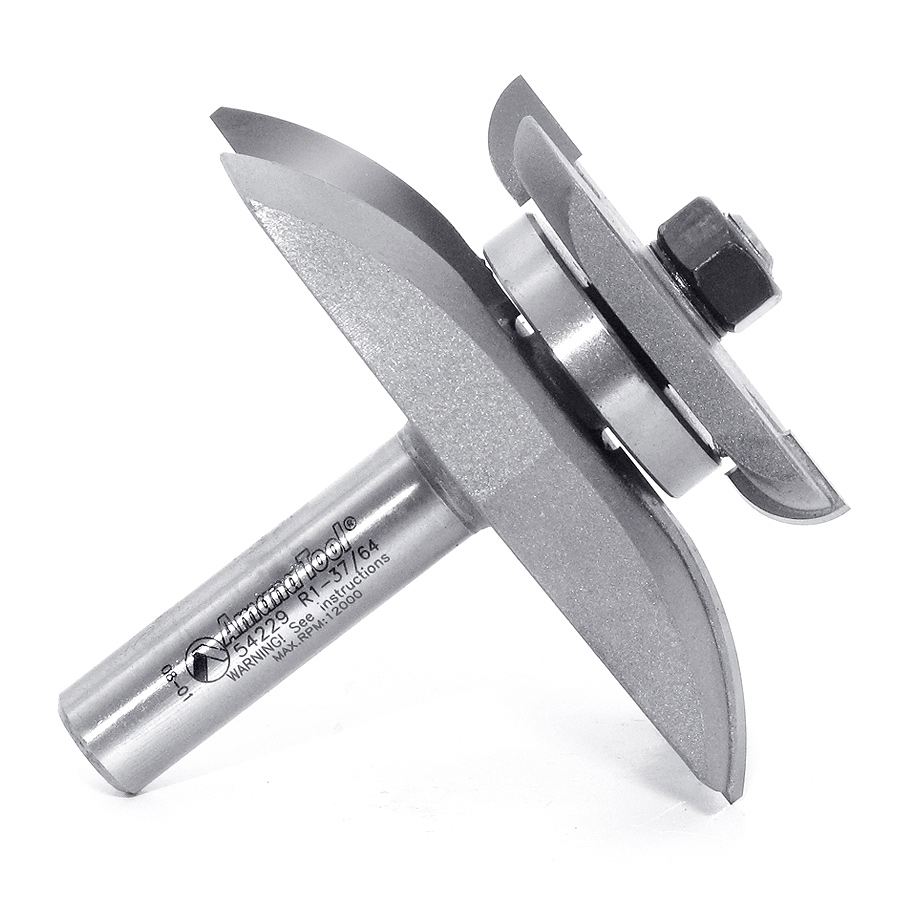

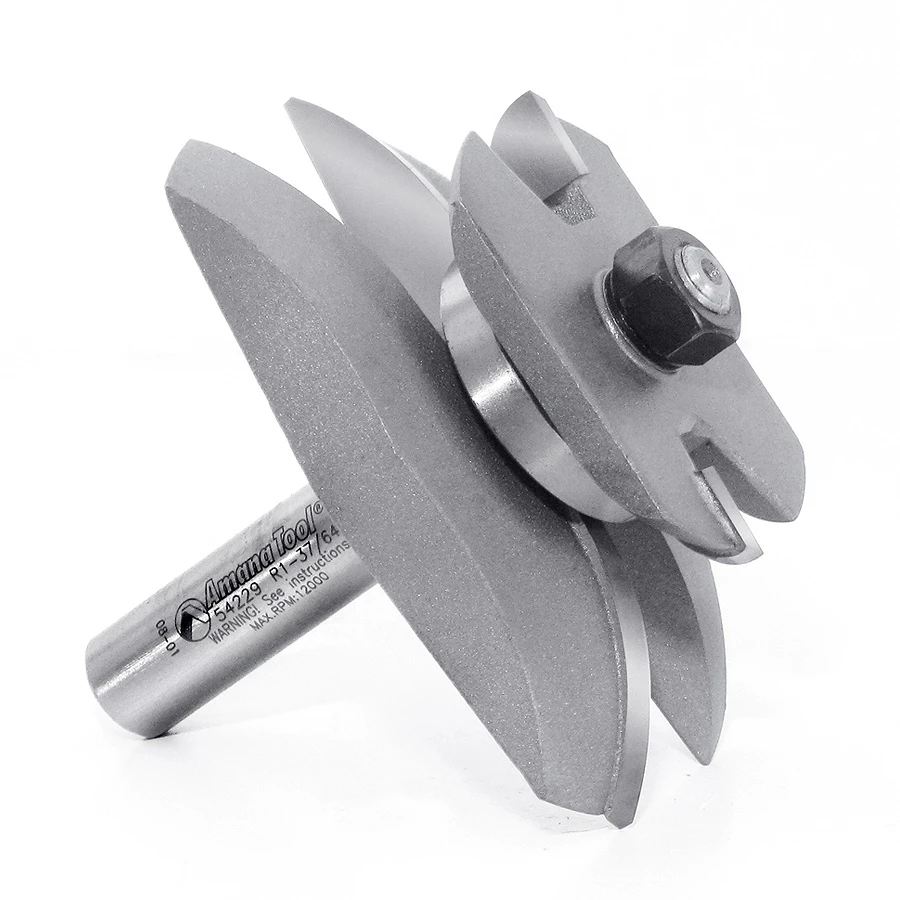

54229 Carbide Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank

$203.34

Usually ships on the 2nd business day from order date.

(A) Cut Depth	1-3/8
Diameter (D)	3-3/8
D1	2-1/8
Radius (R)	1-9/16
(B) Cutting Height	1-1/16
B1	1/2
Shank (d)	1/2
Overall Length (L)	2-15/16
A1	1-1/16
Replacement Bearing	47713,47763
R1	5/16
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

54229 Carbide Tipped Cove Raised Panel with Back Cutter 1-9/16 Radius x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank quantity

+ Add to cart

UPC: 738685542293 SKU: 54229 Categories: Router Bits, Raised Panel Router Bits, Door Making Router Bits - Industrial Quality, Rattle-Free from Amana Tool

Share:

Description

Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8″. As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended.

Note: Reveal (‘A’) reflects the total length of cut. Therefore, you must deduct 3/8″ (usually) for allowing the panel to recess into the frame.

Note: To recieve (‘A1’) use bearing #47763.

Maximum RPM 12,000.
