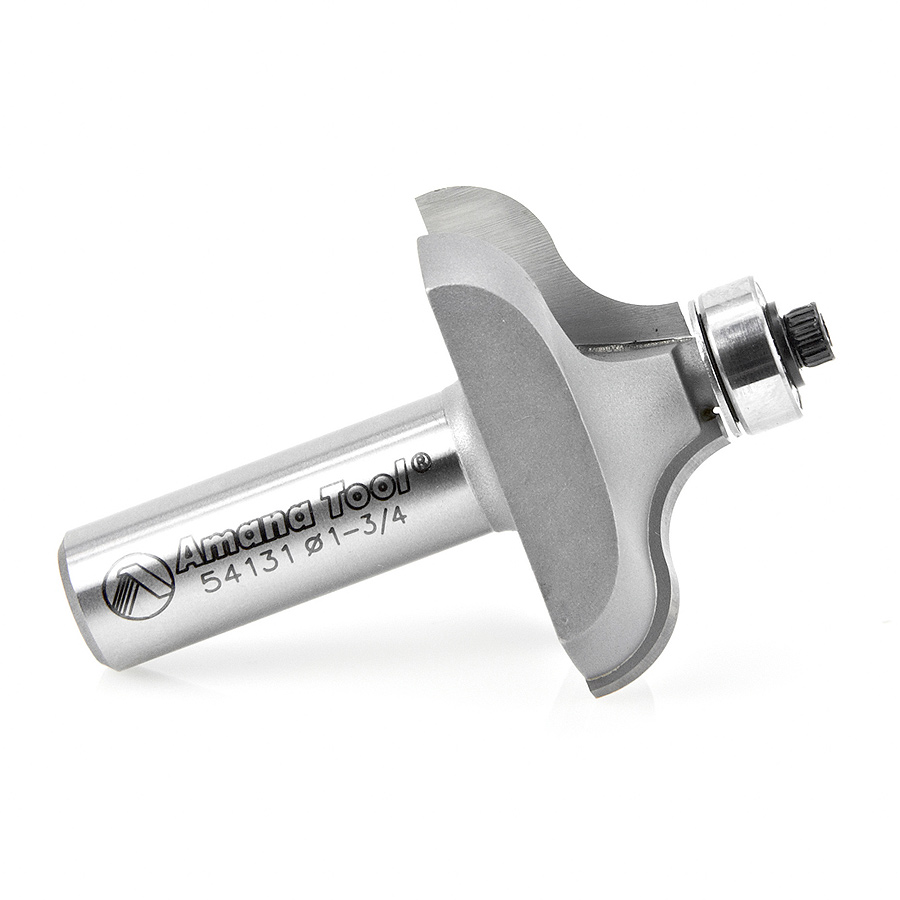

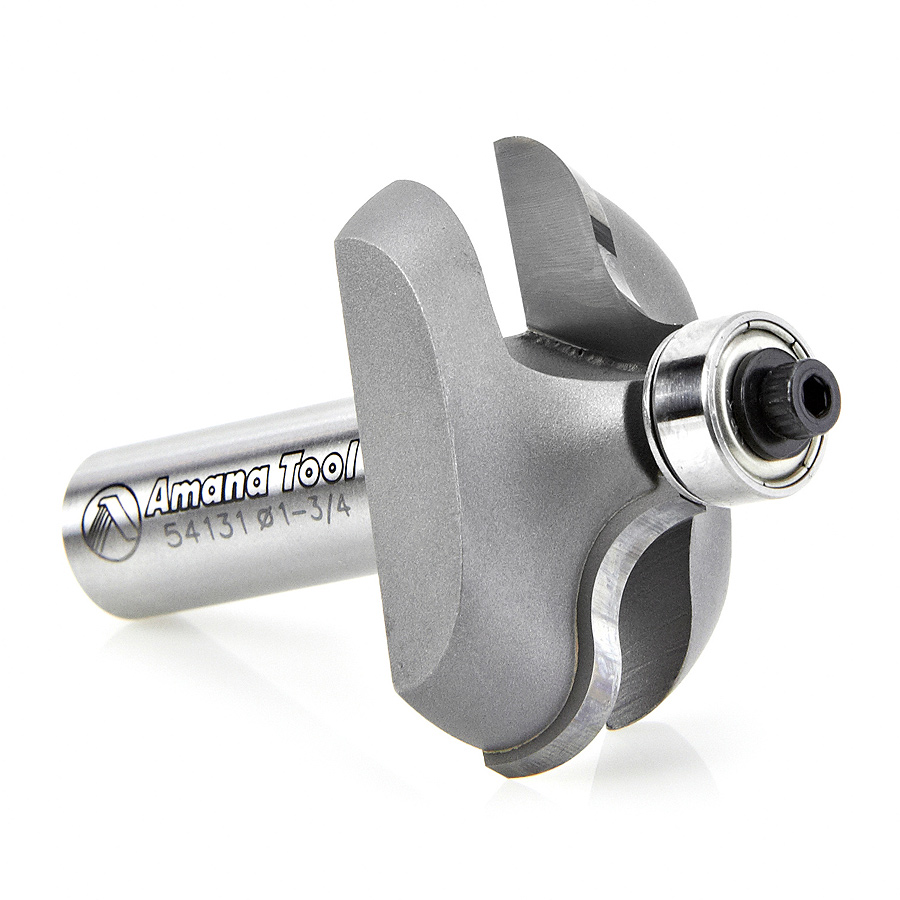

54131 Carbide Tipped Ogee 11/32 Radius x 1-3/4 Dia x 11/16 x 1/2 Inch Shank for 1-3/4 Material
$102.90
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-3/4 |
|---|---|
| Radius (R) | 11/32 |
| (B) Cutting Height | 11/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/16 |
| Type | Ogee Bit |
| Flutes | 2 |
| Material Size | 1-3/4" |
Description
Want the beauty of traditional cope and stick doors with the strength and longevity of true mortise-and-tenon joinery? Our newest design allows you to make beautiful doors with tenons of any length you choose.
This unique door-making system utilizes a “stub” spindle & cope cutter arrangement. The counterbored cope cutter is secured to the spindle with a cap screw. A matching profile bit is used to shape the decorative ogee a€œstickinga€ along the edges of the stiles and rails. As the cope is cut on the ends of the rails, the tenon passes over the top of the bit unobstructed.
This set is for making 1-3/4″ thick entry doors with an ogee sticking.
Specifications
| Diameter (D) | 1-3/4 |
| Radius (R) | 11/32 |
| Cutting Height (B) | 11/16 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/16 |
| Type | Ogee Bit |
| Material size | 1-3/4" |
| Flutes | 2 |
