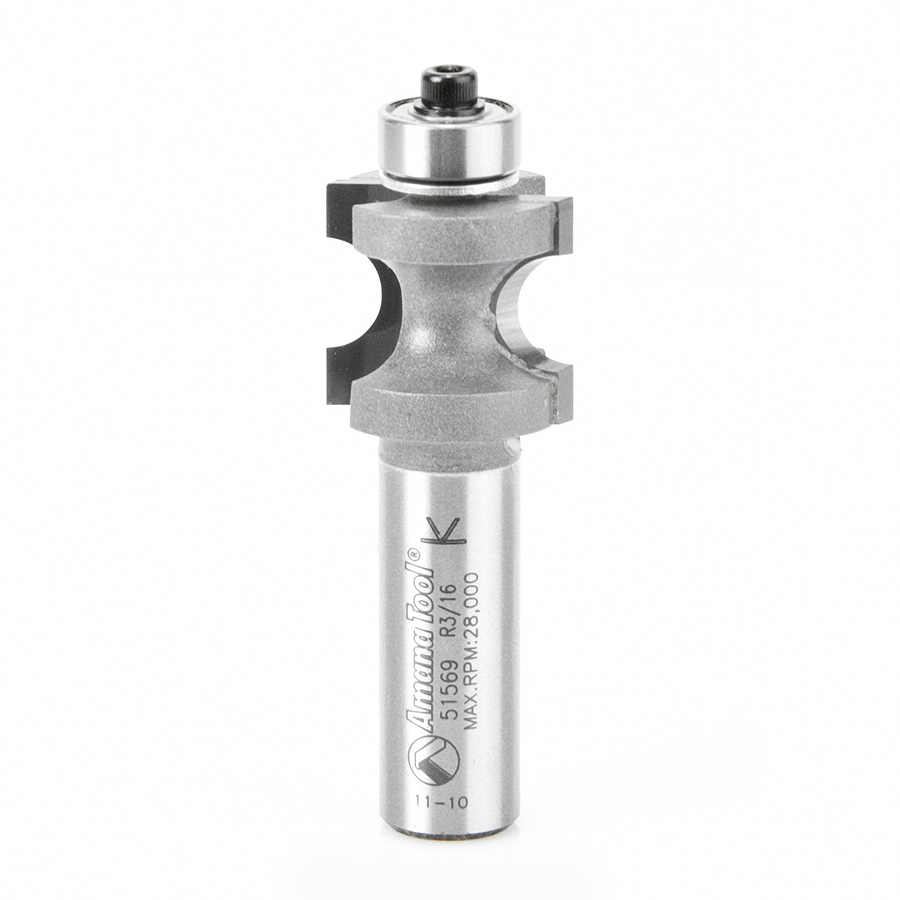

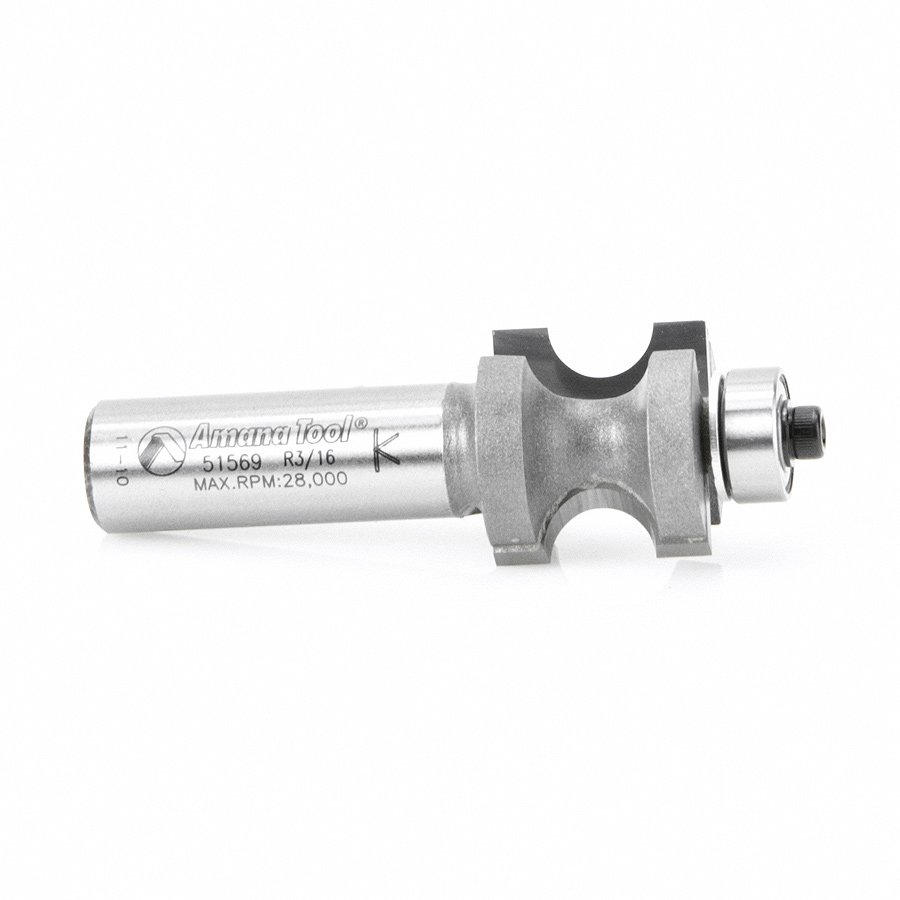

51569 Carbide Tipped Bullnose 13/64 Radius x 7/8 Dia x 3/4 x 1/2 Inch Shank
$117.60
Usually ships on the 2nd business day from order date.
| Diameter (D) | 7/8 |
|---|---|
| Radius (R) | 13/64 |
| (B) Cutting Height | 3/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/4 |
| Replacement Bearing | 47706 |
| M | 3/8 |
| Flutes | 2 |
Description
Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and making moldings. The “nose diameter” (M) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. ‘M’ denotes thickness of material on which a full 180° roundover can be
accomplished.
Specifications
| Diameter (D) | 7/8 |
| Radius (R) | 13/64 |
| Cutting Height (B) | 3/4 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2-3/4 |
| Replacement Bearing | 47706 |
| M | 3/8 |
| Flutes | 2 |
