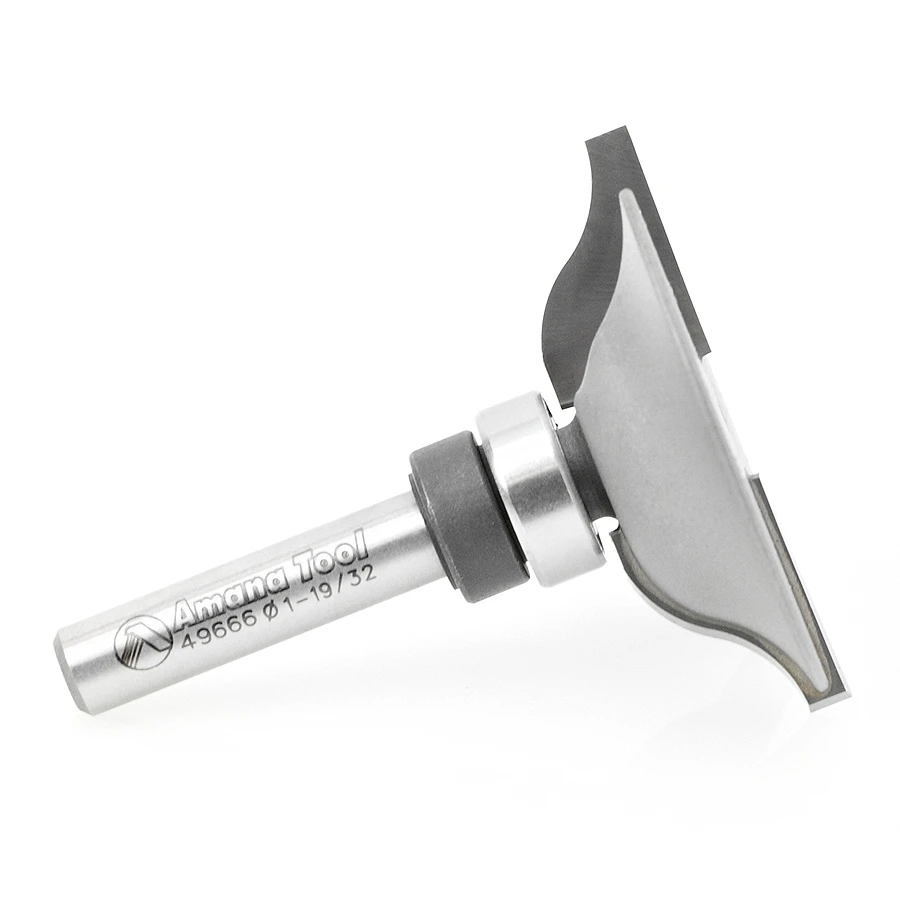

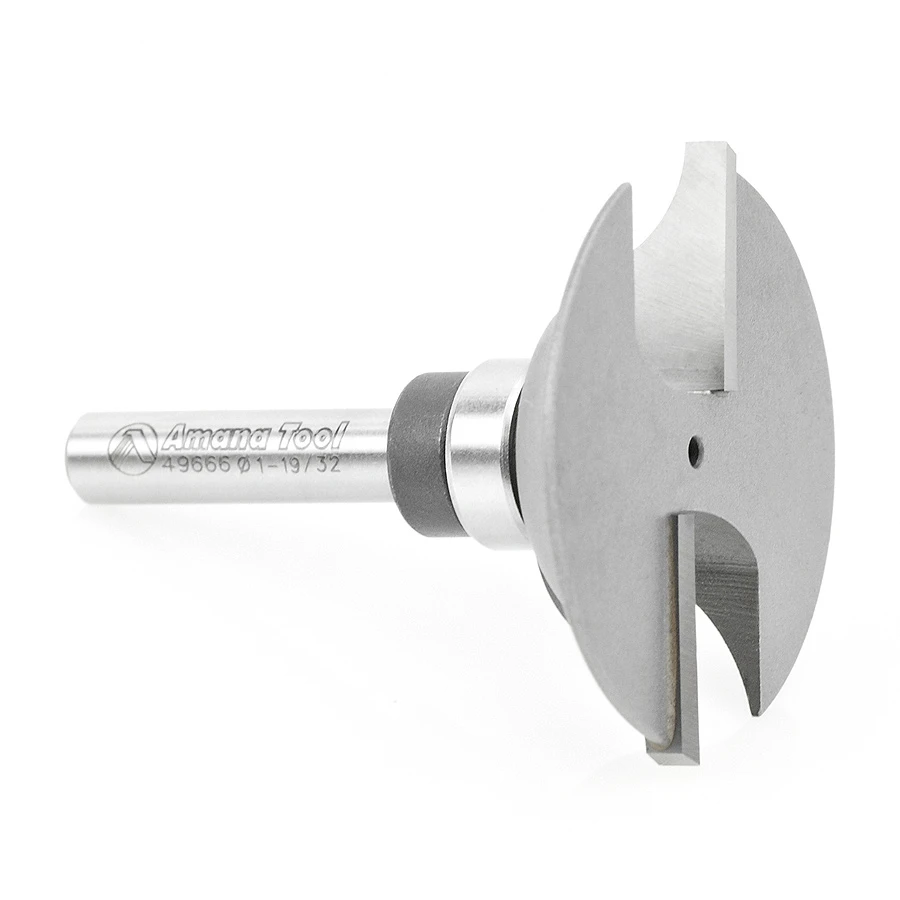

49666 Carbide Tipped Ogee Rail 1-19/32 Dia x 3/8 x 11/32 Radius x 1/4 Inch Shank
$62.43
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-19/32 |
|---|---|
| Radius (R) | 11/32 |
| (B) Cutting Height | 3/8 |
| B1 | 1/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Type | Ogee Rail |
| Replacement Bearing | 47701 |
| Flutes | 2 |
Description
Our Profile Cutters are a unique and versatile series that can be used for general profile routing, glass doors and windows, as well as stile and rail work. (The panel groove and stub tenon must be cut separately.) The inverted hand cutters will produce copes that nest perfectly into the profiles cut by the matching “regular” bits. In addition, the inverted head allows you to profile edges that are out of the reach of regular profile bits. These 1/4” shank bits will fit any router. All are equipped with ball bearing guides, either on the tip or on the shank.
Specifications
| Diameter (D) | 1-19/32 |
| Radius (R) | 11/32 |
| Cutting Height (B) | 3/8 |
| B1 | 1/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2 |
| Type | Ogee Rail |
| Replacement Bearing | 47701 |
| Flutes | 2 |
