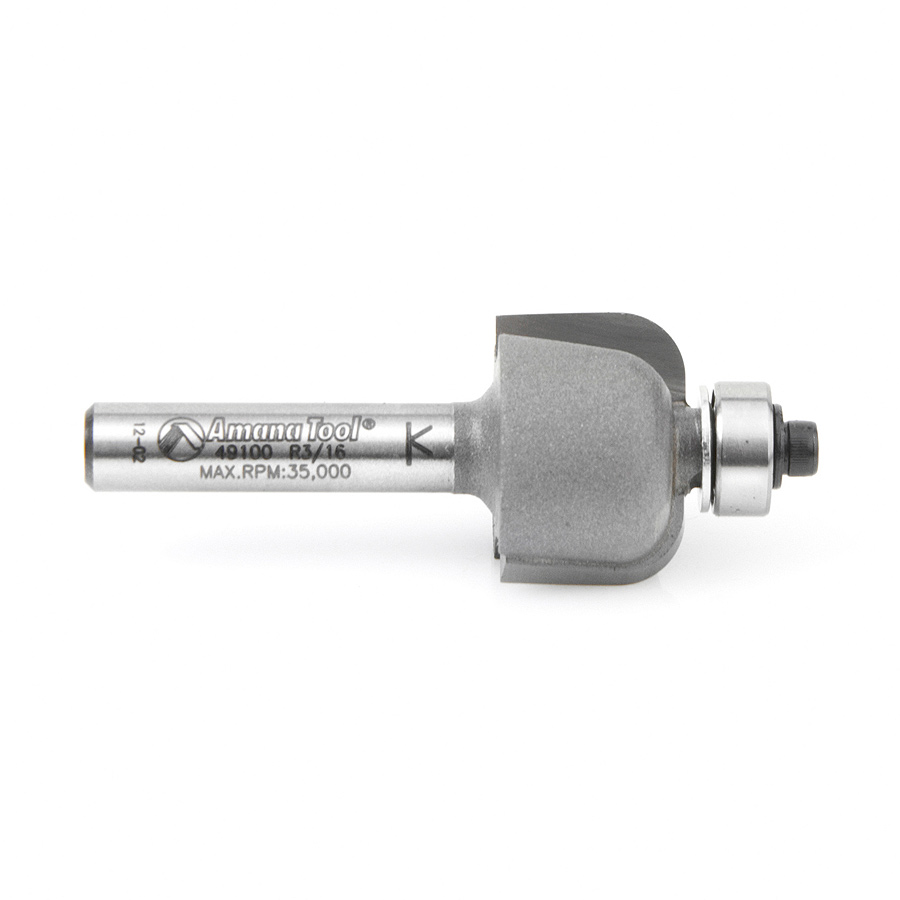

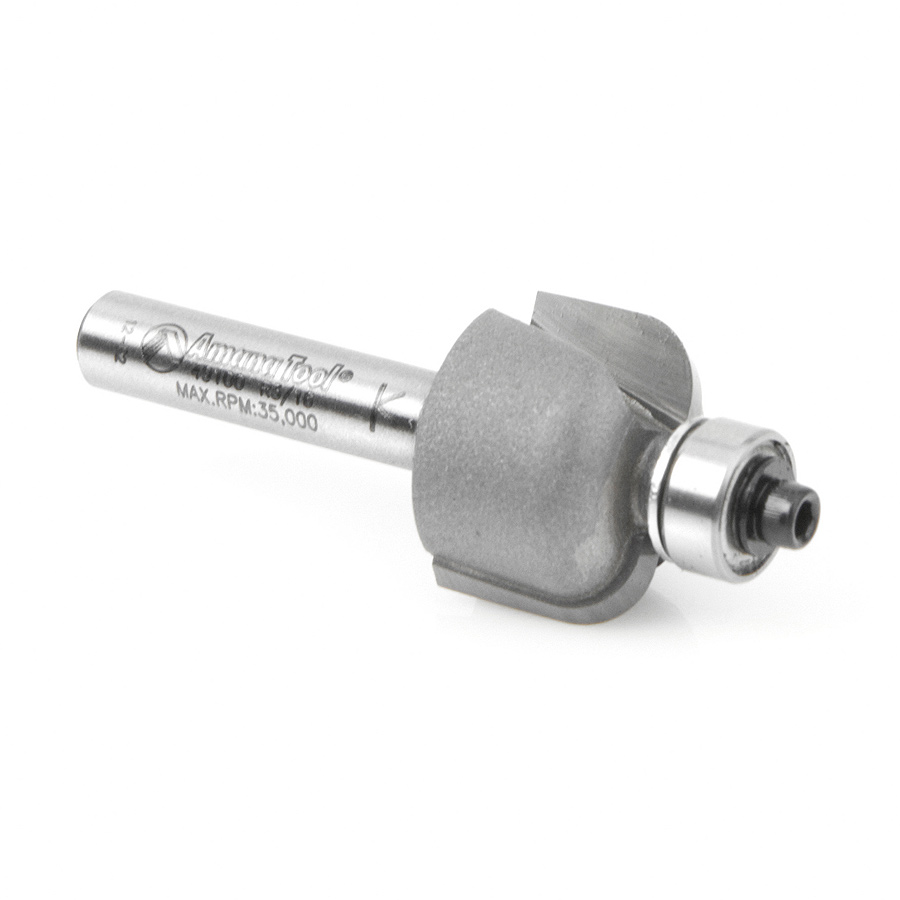

49100 Carbide Tipped Cove 3/16 Radius x 3/4 Dia x 9/16 x 1/4 Inch Shank

$47.19

Usually ships on the 2nd business day from order date.

Diameter (D)	3/4
Radius (R)	3/16
(B) Cutting Height	9/16
Shank (d)	1/4
Overall Length (L)	2
Replacement Bearing	47704
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

49100 Carbide Tipped Cove 3/16 Radius x 3/4 Dia x 9/16 x 1/4 Inch Shank quantity

+ Add to cart

UPC: 738685891001 SKU: 49100 Categories: Router Bits, Cove Router Bits, Profiling Router Bits - Industrial Quality from Amana Tool

Share:

Description

The covetto form – produced by the cove bit – is one of the classic building blocks for many molding profiles. Use it alone or in combination with beads and fillets. Use the cove to detail the edges of casework, doors and drawers, posts and columns. The cove also makes up one-half of the rule joint used on drop-leaf tables, the other half is the corner-round.

For best results with a large radius cutter, make a preliminary cut with a smaller radius bit or chamfer the workpiece to reduce the amount of stock to be removed in the finish pass. This will produce a smoother finish and prolong tool life. The largest diameter bits must be run at reduced speed. Use in a handheld or table-mounted router.

Maximum RPM 12,000.

Not guaranteed due to extreme diameter & radius. For best results, it is recommended to use a smaller radius bit or chamfer the material prior to using these large radius tools. Tool life will be prolonged and a smoother finish will result.

Use in a table-mounted router. Not for use in a handheld router!
