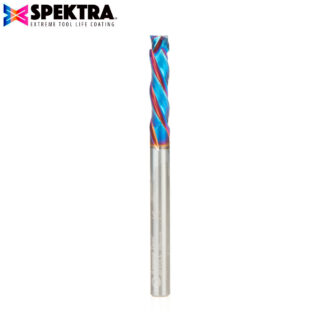

48351-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Mortise Compression Spiral 5mm Dia x 25mm x 5mm Shank
$83.69
Usually ships on the 2nd business day from order date.

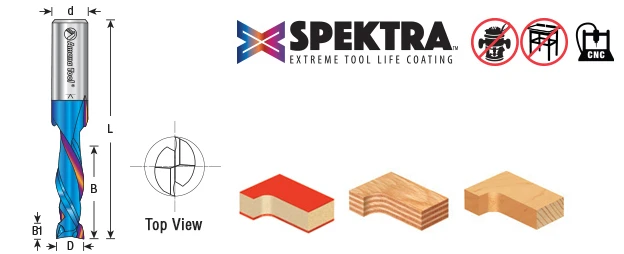

(D) Diameter | 5mm |
---|---|
(B) Cutting Height | 25mm |
B1 | 4.763mm |
(d) Shank | 5mm |
Overall Length (L) | 64mm |
Flutes | 2 |
Description
These tools have a much shorter up-cut section than the standard compression tools. They are ideal for mortising grooving and dado.
Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
- nACo coating is a micro-thin ceramic coating which enables the tool’s cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
- Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
- Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
- nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.
Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.
Excellent for cutting:
- MDF/HDF
- Laminate
- Laminated Plywood
- Melamine
- Particle Board
- Softwood/Hardwood
- Veneered Plywood
Recommended RPM 20,000-21,000.
Specifications
(D) Diameter | 5mm |
(B) Cutting Height | 25mm |
B1 | 4.763mm |
(d) Shank | 5mm |
Overall Length (L) | 64mm |
Flutes | 2 |
