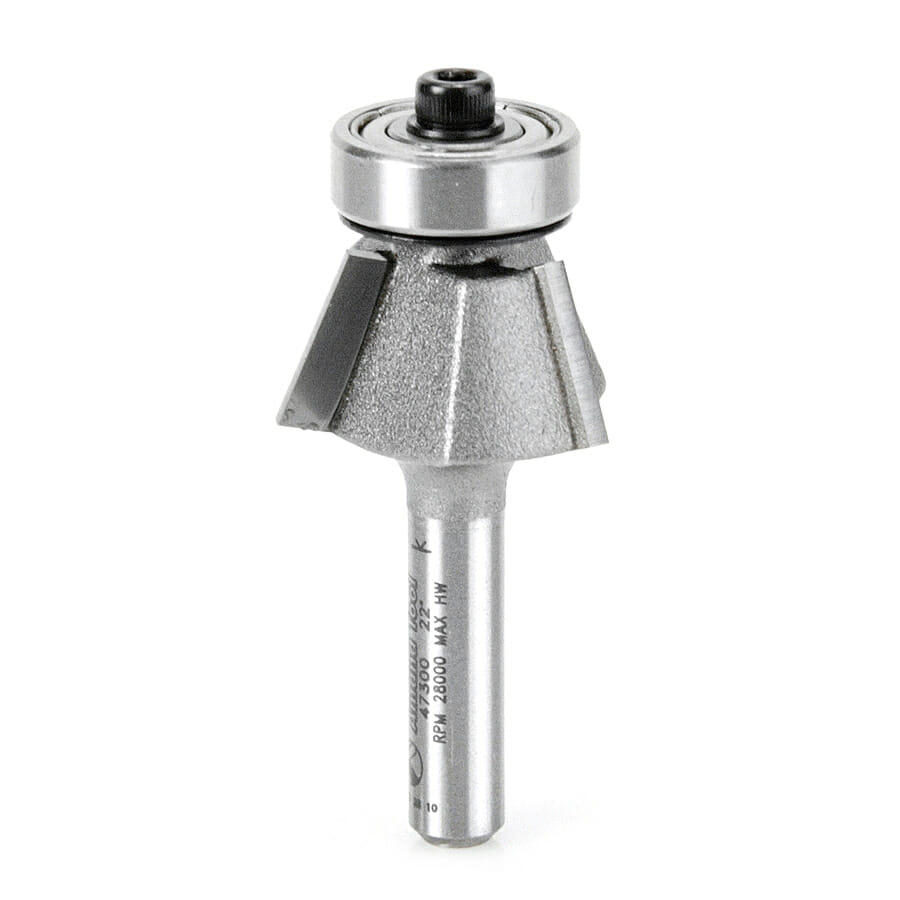

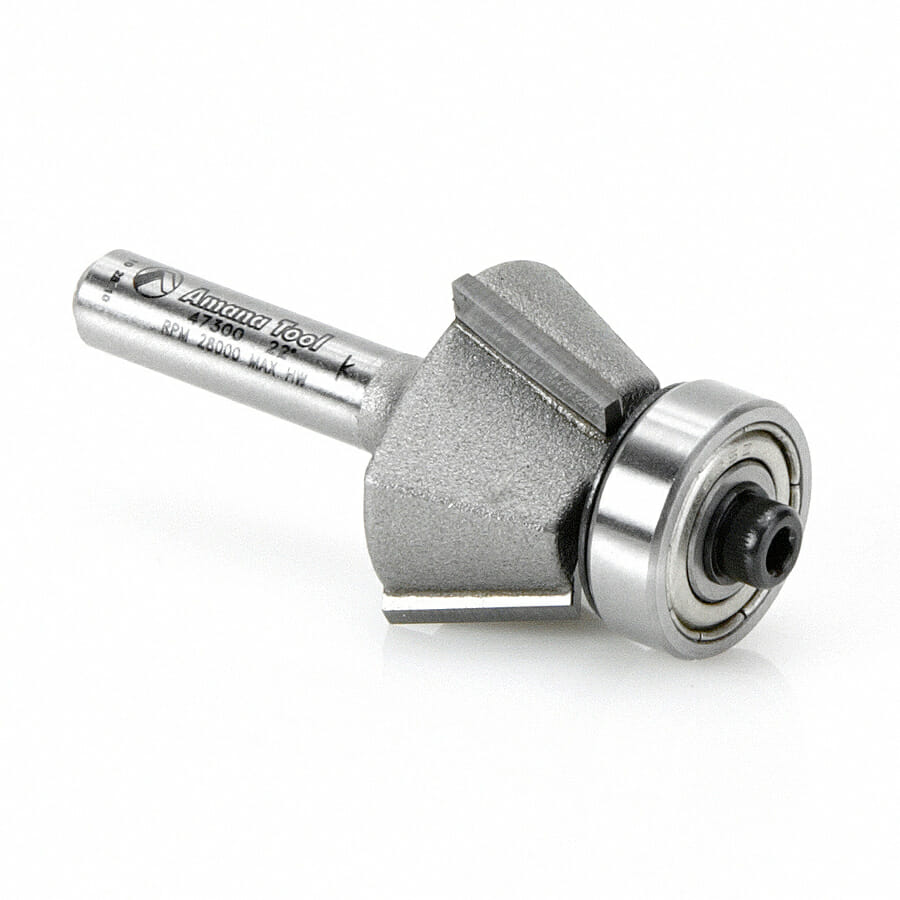

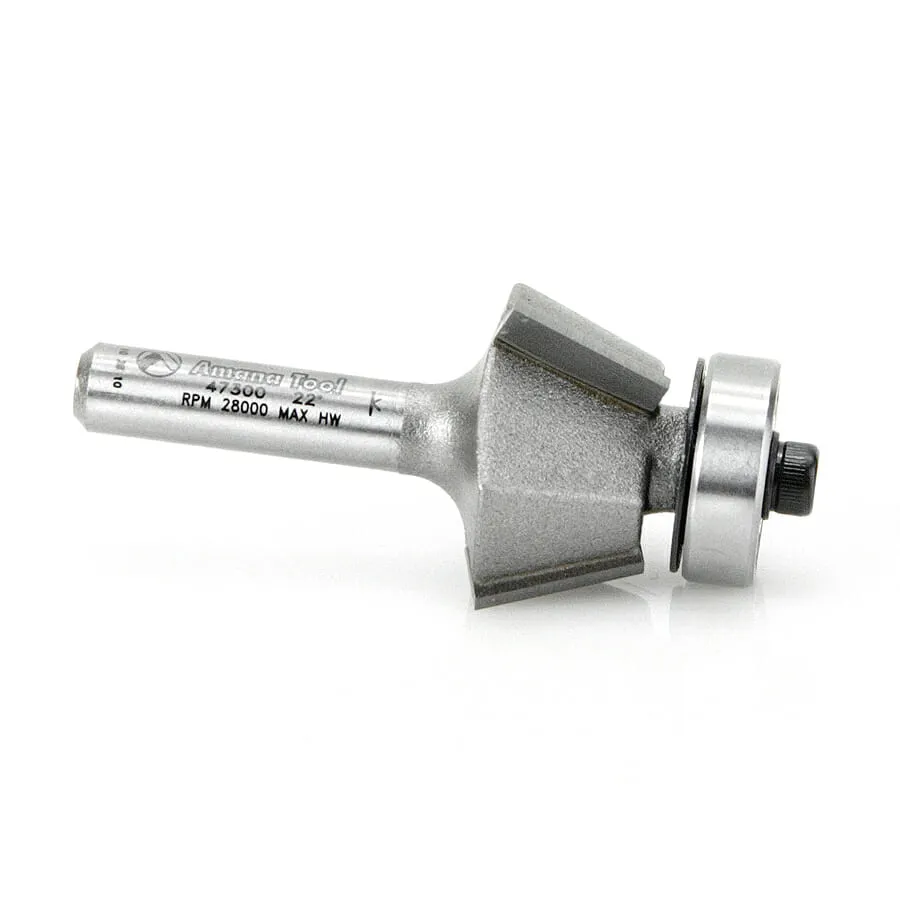

Carbide Tipped Bevel Laminate Trim 22 Deg x 15/16 Dia x 7/16 x 1/4 Inch Shank with Ball Bearing 3-Flute
$44.88
Usually ships on the 2nd business day from order date.
| Angle A | 22° |
|---|---|
| Diameter D | 15/16 |
| Cutting Height B | 7/16 |
| D1 | 16mm |
Description
The solid construction of this carbide-tipped bit reduces vibration, and its three-flute configuration produces a very smooth cut. Intended for use in a standard router.
Specifications
| Angle (a°) | 22° |
| Diameter (D) | 15/16 |
| D1 | 16mm |
| Cutting Height (B) | 7/16 |
| Shank (d)` | 1/4 |
| Overall Length (L) | 1-7/8 |
| Replacement Bearing | 47716 |
| Flutes | 3 |
