47136 Carbide Tipped Down-Shear SuperTrim™ Flush 3/4 Dia x 1-1/2 x 1/2 Inch Shank
$58.28
Usually ships on the 2nd business day from order date.

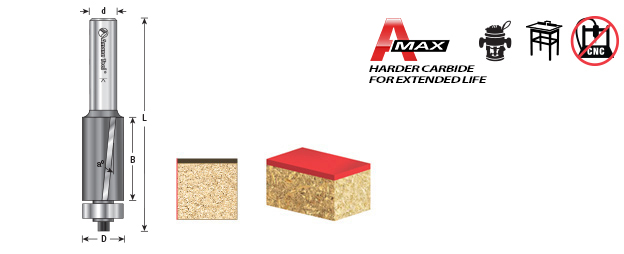

| (a°) Angle | 5° |
|---|---|
| (D) Diameter | 3/4 |
| (B) Cutting Height | 1-1/2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-7/8 |
| Type | Down-shear |
| Replacement Bearing | 47714 |
| Flutes | 2 |
Description
For exceptional cutting speed, coupled with a super-fine finish, use these large-diameter flush trim bits on a standard router. Available in either up-shear or down-shear. Especially suitable for solid surface material when used with optional #47709 Delrin® bearing. Furnished with steel bearing #47714.
Note: Down-shear bits are not intended for router table use.
AMAX Extended Life Features:
- 200% longer life time even when working with abrasive materials
- Superior geometric design
- Advanced grinding technology that improves the carbides’ resistance to wear
- Super clean cuts
Specifications
| Angle (a°) | 5° |
| Diameter (D) | 3/4 |
| Cutting Height (B) | 1-1/2 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-7/8 |
| Down-Shear | |
| Replacement Bearing | 47714 |
| Flutes | 2 |
