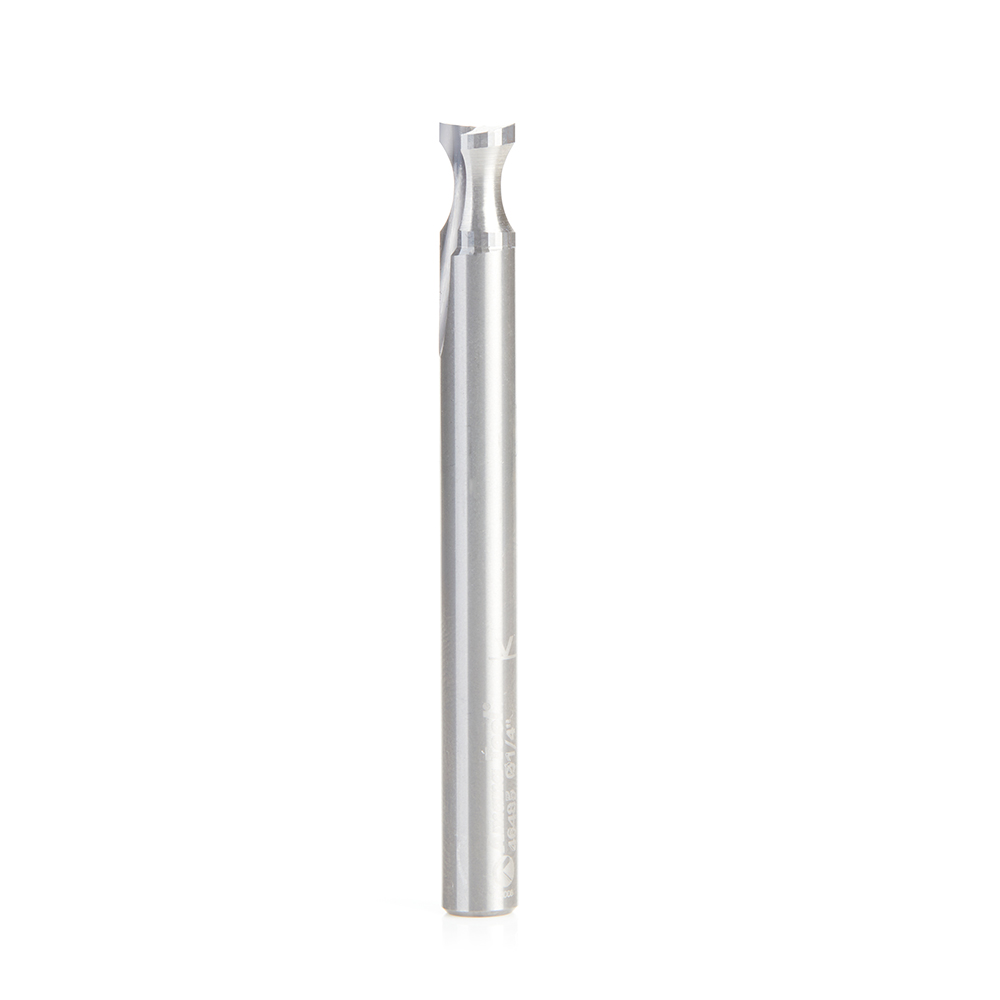

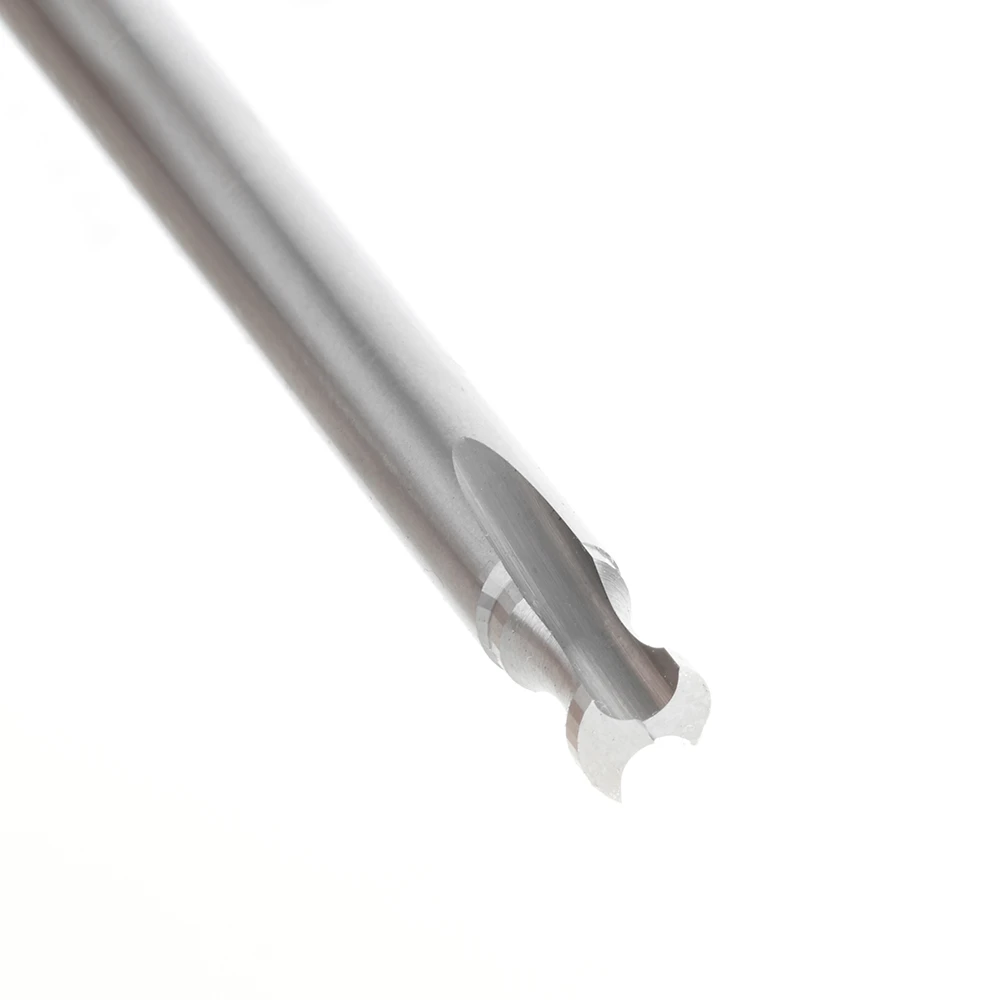

46485 Solid Carbide Double ‘O’ Flute Plastic Edge Rounding 1/4 Dia x 1/4 Radius x 3/8 x 1/4 Inch Shank
$82.01
Usually ships on the 2nd business day from order date.
| (D) Diameter | 1/4 |
|---|---|
| Radius (R) | 1/4 |
| (B) Cutting Height | 3/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| B1 | 9/32 |
| Type | Straight, for Plastic Thickness 1/4" |
| Flutes | 2 |
Description
Designed for rounding the edge of plastic sheets or parts.
Excellent for rounding:
- Plastic
- Acrylics
- Acrylic Stone
- Acrylonitrile Butadiene Styrene (ABS)
- Corian
- Coroplast®*
- Fomex®
- High Impact Polystyrene (HIPS)
- High Pressure Laminates (HPL)
- Hydroxy-Terminated Polyether (HTPE)
- Low Density Polyethylene (LDPE)
- LubX®
- Perspex® Cast Acrylic Sheet
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Poly (methyl methacrylate) (PMMA)
- Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
- Sign Foam
- StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
- Thermoplastic Polyolefin (TPO)
- Urethane
*A soft plastic cardboard made with super soft super flexible PVC.
Specifications
| (D) Diameter | 1/4 |
| (R) Radius | 1/4 |
| (B) Cutting Height | 3/8 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| B1 | 9/32 |
| Type | Straight, for Plastic Thickness 1/4" |
| Flutes | 2 |
