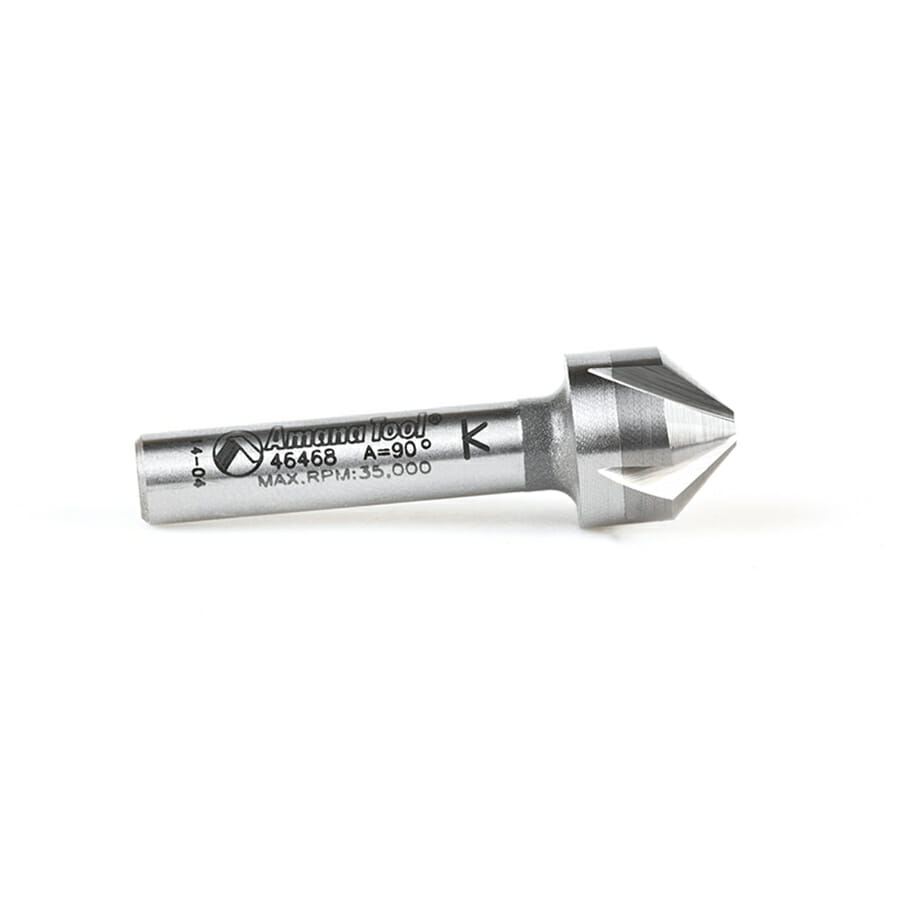

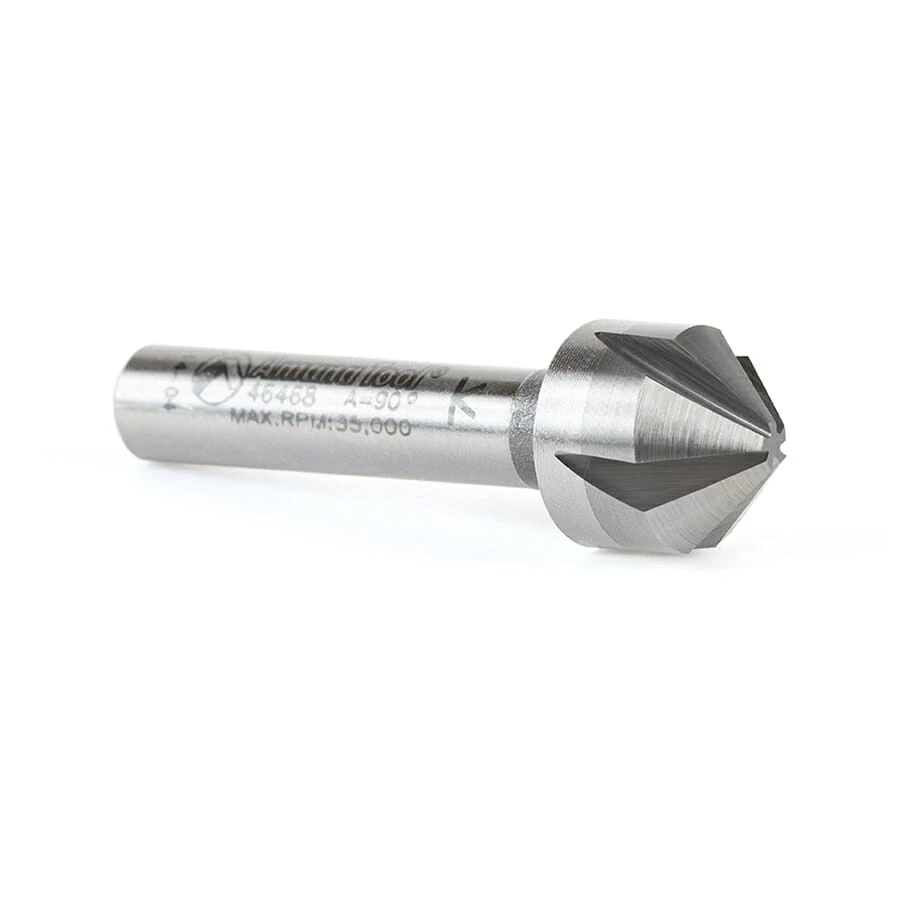

Solid Carbide CNC 90 Degree Angle x 1/2 Dia x 5mm x 1/4 Shank x 1-9/16 Inch Long 5 Flute Countersink

$104.52

Usually ships on the 2nd business day from order date.

A Angle	90°
D Diameter	1/2
B Cutting Height	5mm
D Shank	1/4
Overall Length L	1-9/16
D1	3mm

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

Solid Carbide CNC 90 Degree Angle x 1/2 Dia x 5mm x 1/4 Shank x 1-9/16 Inch Long 5 Flute Countersink quantity

+ Add to cart

UPC: 738685464687 SKU: 46468 Categories: Boring drilling bits, Carbide Tipped CNC Countersink Bits, Solid Carbide Countersink Router Bits for Composite Materials

Share:

Description

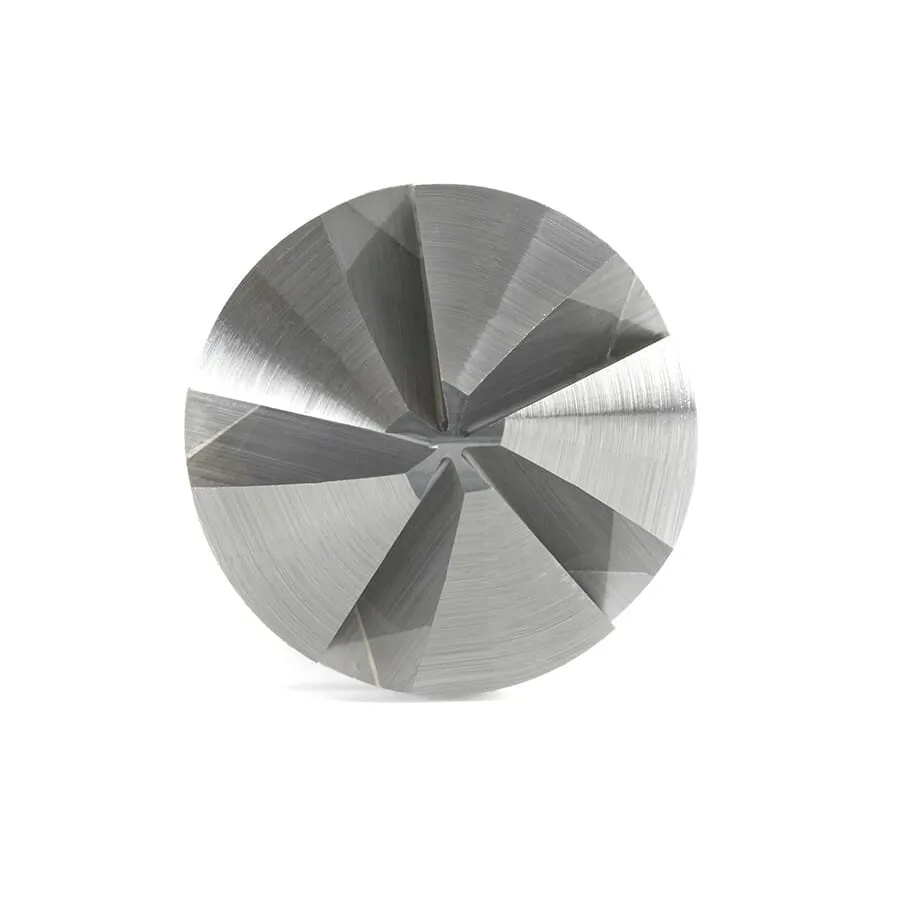

Designed for making 90 degree countersinks. 5 flute solid carbide head on brazed steel shank offers long-lasting durability. Excellent for: GFR (Glass Fiber Reinforced Polymer – Plastic Materials) CFRP (Carbon Fiber Reinforced Polymer – Plastic Materials) FRP (Fiber Reinforced Plastic) Micarta® (Brand name for composites of linen, canvas, paper, fiberglass, carbon fiber or other fabric in a thermosetting plastic.) MMC (Metal Matrix Composite) Honeycomb Thermoset Composites Thermosetting Plastics

CNC Countersink Drilling countersinks with these bits on the CNC machine is a great way to save time and have your pieces look great every time! With the adjustable depth drill bit you can adjust them for whatever size material you’re working with. They are best used with a drilling toolpath, utilizing the peck drill option at .25″ per pass with a .125″ retract height.

For best results run at 3,000 RPM with a 30 IPM (Inches Per Minute) plunge rate. No feed rate needs to be set with these as they only move up and down with the Z axis, not side to side. If your software doesn’t allow a 0 feed rate, you can enter 1 IPM (Inch Per Minute) in the feed rate as a placeholder.

For countersinks with 1/4″ round shank, use 1/4″ spring collet. For countersinks with 5/16″ round shank, use 7-8mm spring collet. For countersinks with 3/8″ round shank, use 9-10mm spring collet.
