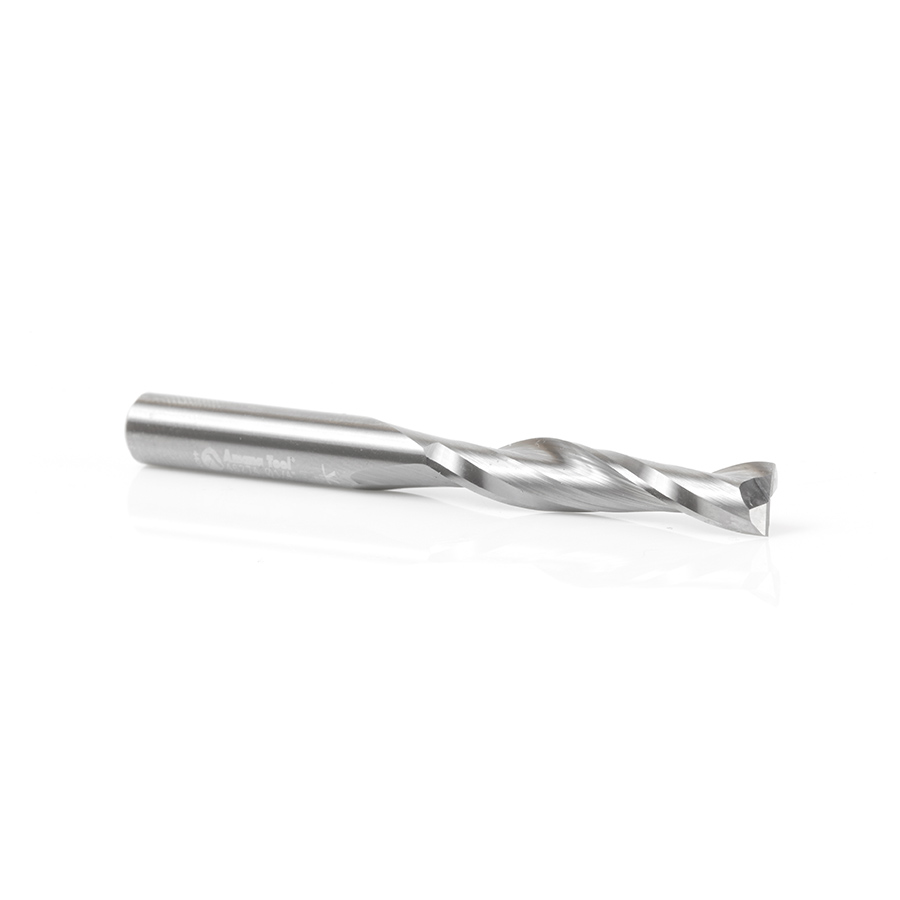

46274 Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/4 Dia x 1-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit

$67.98

Usually ships on the 2nd business day from order date.

Direction	Up-Cut
Diameter (D)	1/4
(B) Cutting Height	1-1/4
Shank (d)	1/4
Overall Length (L)	2-1/2
Type	Square End
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

46274 Solid Carbide CNC Foam Cutting Up-Cut Square End Spiral 1/4 Dia x 1-1/4 x 1/4 Shank x 2-1/2 Inch Long Router Bit quantity

+ Add to cart

UPC: 738685462744 SKU: 46274 Categories: CNC Router Bits, Solid Carbide Spiral Foam Cutting CNC Router Bits, Foam Cutting Router Bits

Share:

Description

Ensure your foam projects are milled with unparalleled accuracy detail and clarity. Achieve both precision and depth for foam carving and milling applications. Provides deeper cuts and larger slices with fewer passes in thick materials resulting in improved productivity and less assembly. The up-cut spiral ejects chips away from the workpiece.

Specifically designed for milling:

• Crosslinked Polyethylene Foam (XLPE)
• Ethafoam**
• Ethylene-vinyl Acetate Foam (EVA)
• Expanded Polypropylene (EPP)*
• Expanded Polystyrene (EPS)
• Extruded Polystyrene Foam (XPS)
• Flexible Polyurethane Foam (FPF)
• Fomex®
• High Density Urethane (HUD Board)
• PALFOAM™
• Polycarbonate (Lexan™)†
• Polyethylene Foam**
• Polylam**
• Polyurethane Foam

*Expanded polypropylene (EPP) is a foam form of polypropylene.

Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

For thick material with up-cut chip removal. For 2D & 3D CNC routing applications.
