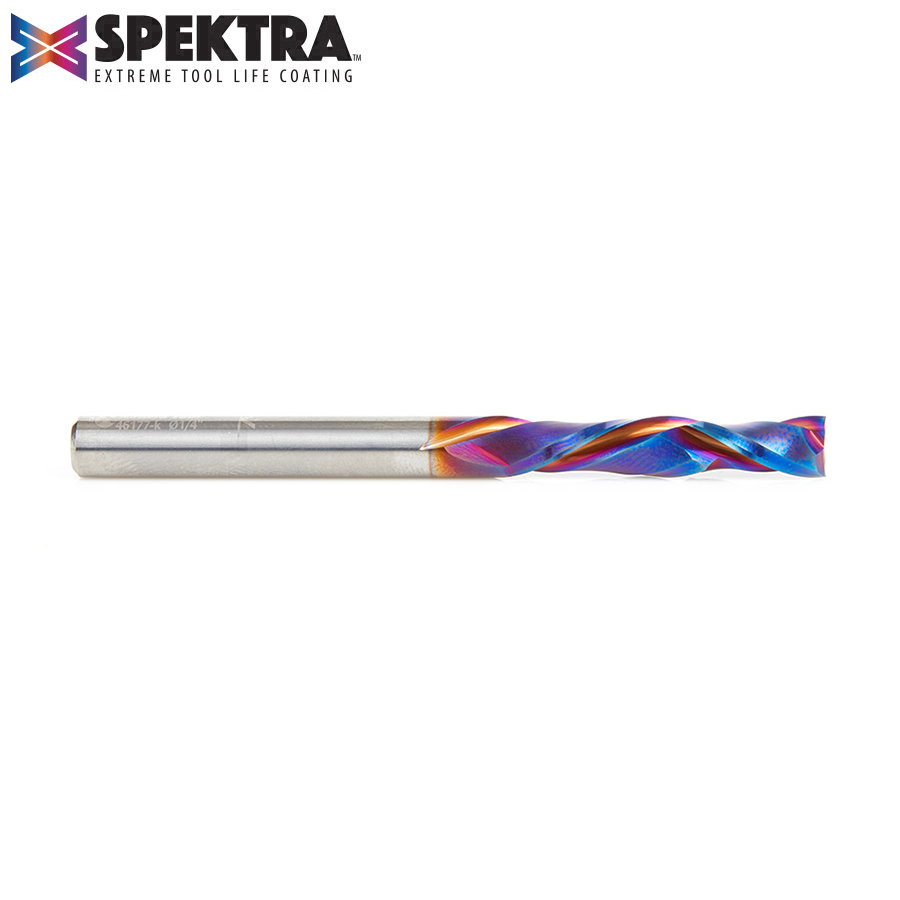

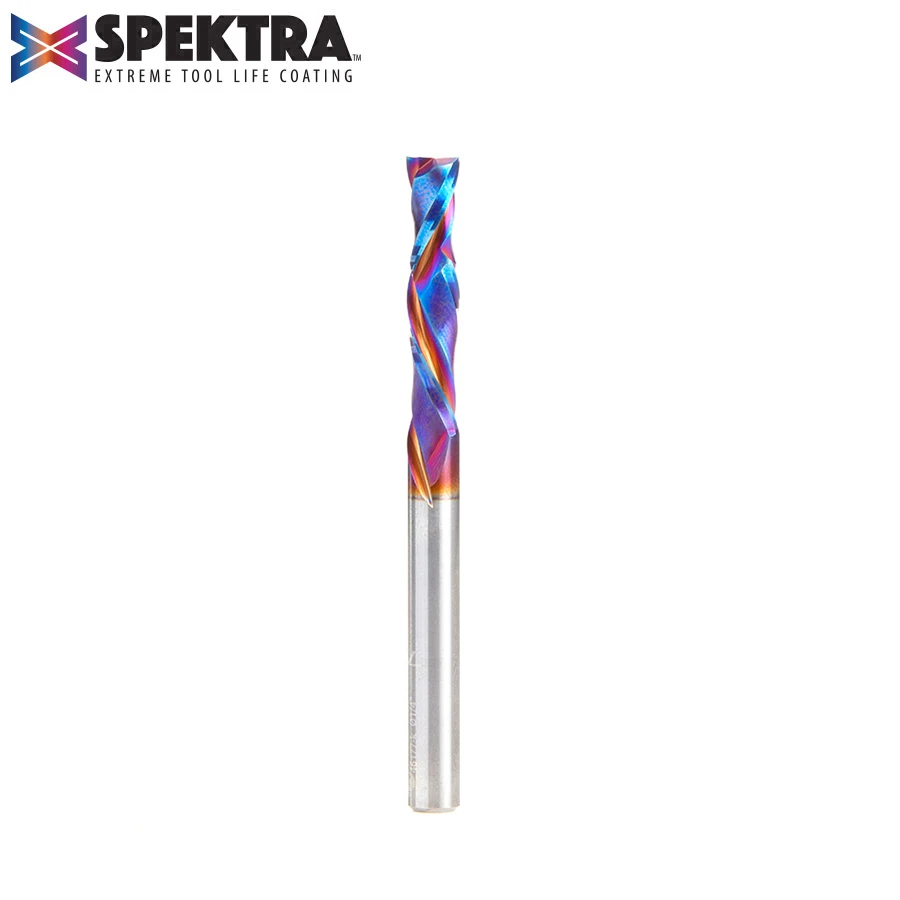

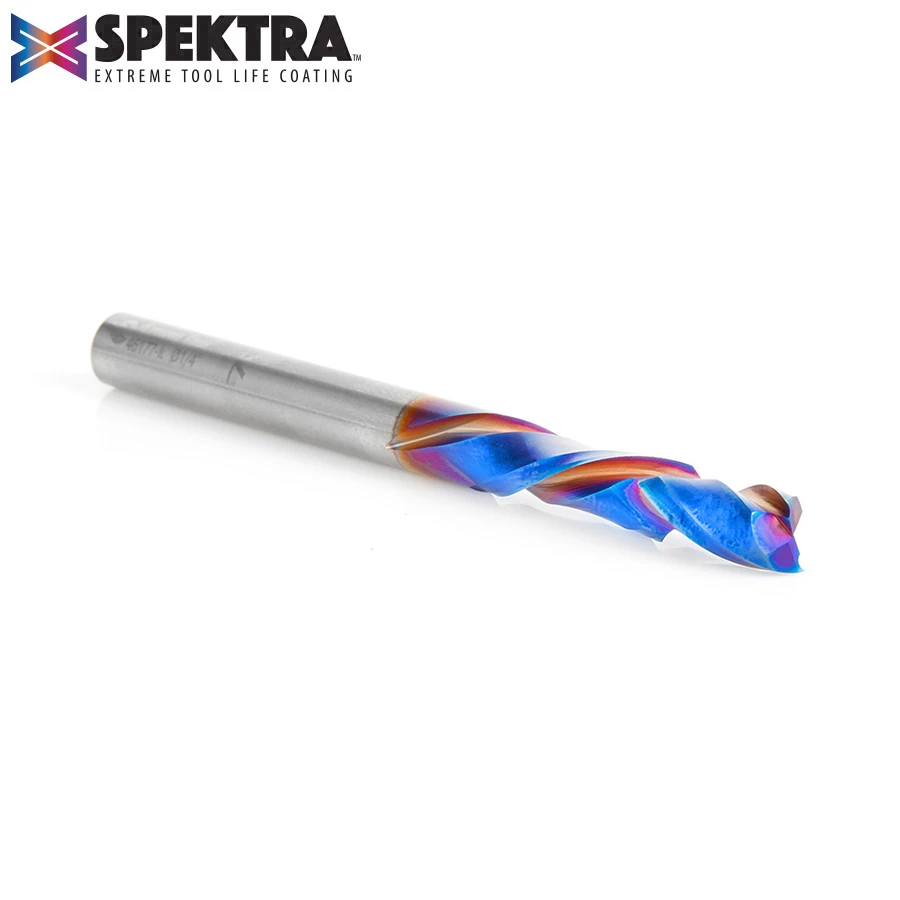

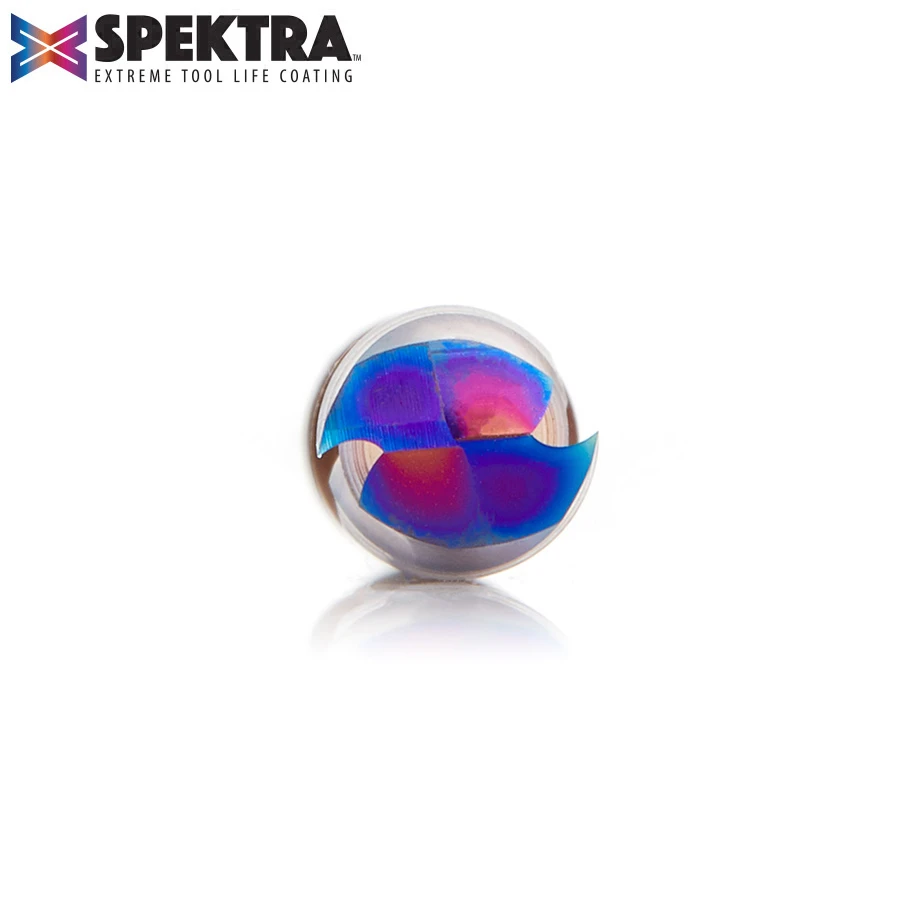

46177-K CNC Solid Carbide Spektra™ Extreme Tool Life Coated Compression Spiral 1/4 Dia x 1-1/4 x 1/4 Shank
$111.78
Usually ships on the 2nd business day from order date.

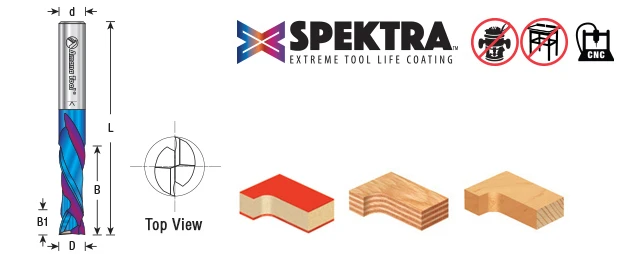

| (D) Diameter | 1/4 |
|---|---|
| (B) Cutting Height | 1-1/4 |
| B1 | .550" |
| (d) Shank | 1/4 |
| Overall Length (L) | 3 |
| Type | nACo Ceramic Coating |
| Flutes | 2 |
Description
Special unique carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated material. Flawless compression cuts.
Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.
- nACo coating is a micro-thin ceramic coating which enables the tool’s cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
- Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
- Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.

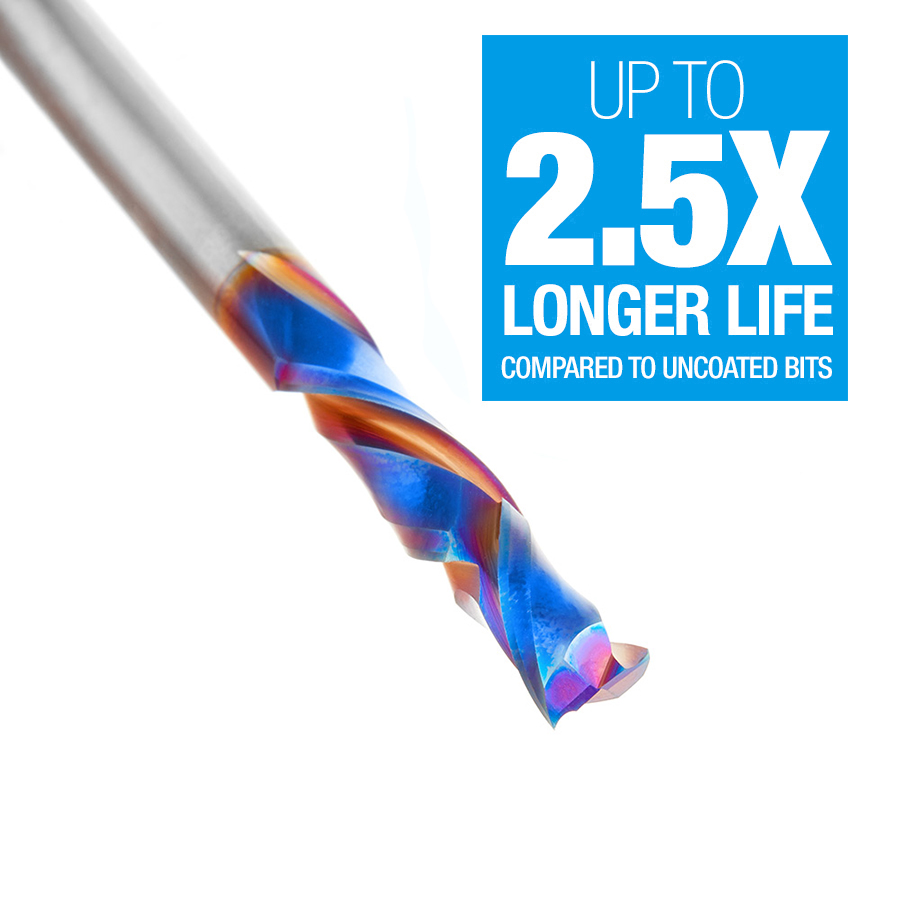

- nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.
Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.
Excellent for cutting:
- CFRP
- Double Sided Melamine
- Laminate
- Laminated Plywood
- Melamine Particle Board
- MDF
- Oriented Strand Board (OSB)*
- Particle Board
- Softwood/Hardwood
- Veneered Plywood
*Oriented Strand Board is an engineered wood particle board.
Specifications
| (D) Diameter | 1/4 |
| (B) Cutting Height | 1-1/4 |
| B1 | .550" |
| (d) Shank | 1/4 |
| Overall Length (L) | 3 |
| Type | nACo Ceramic Coating |
| Flutes | 2 |
