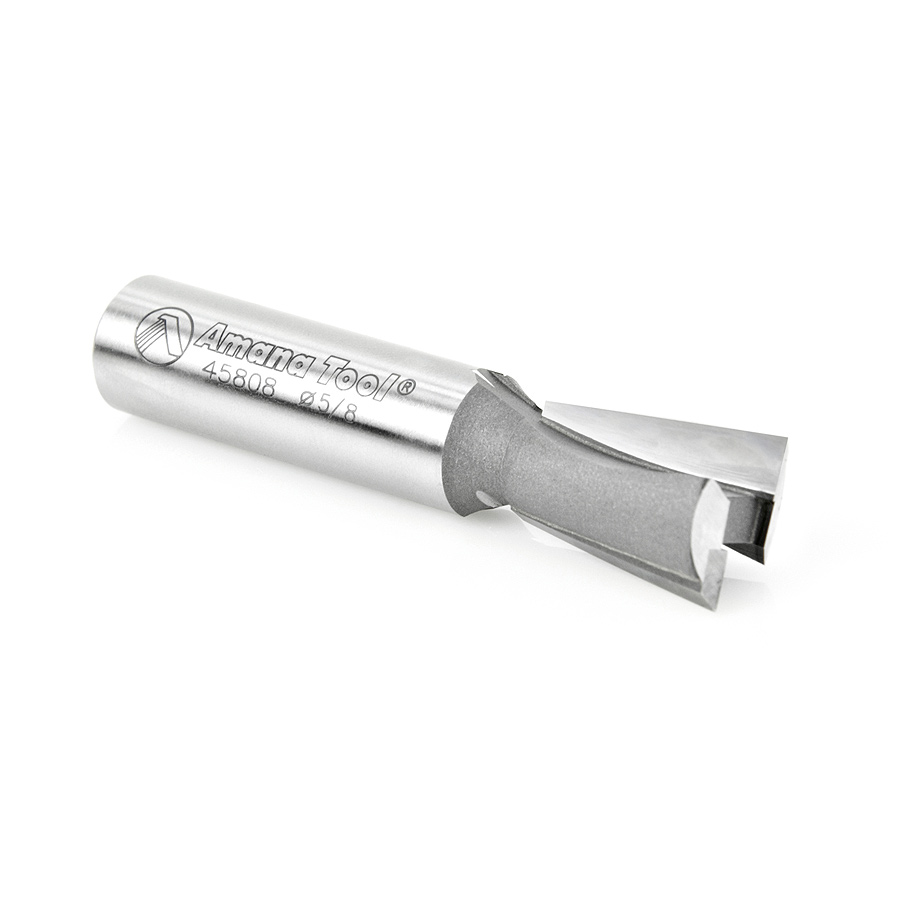

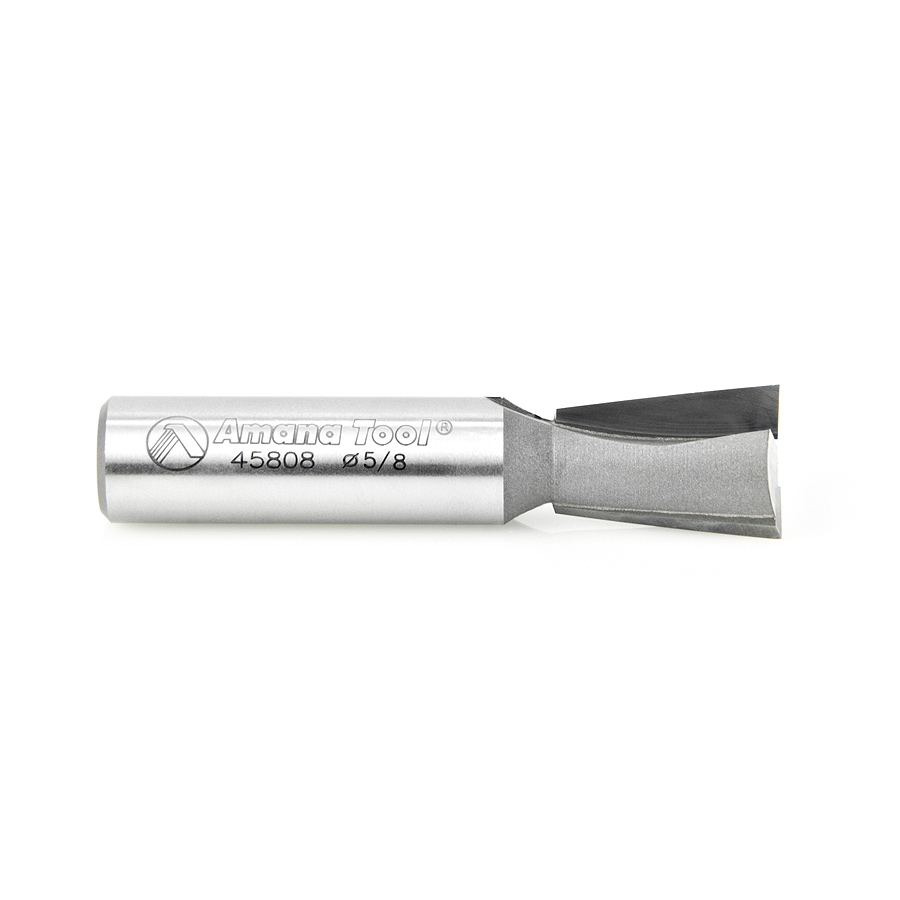

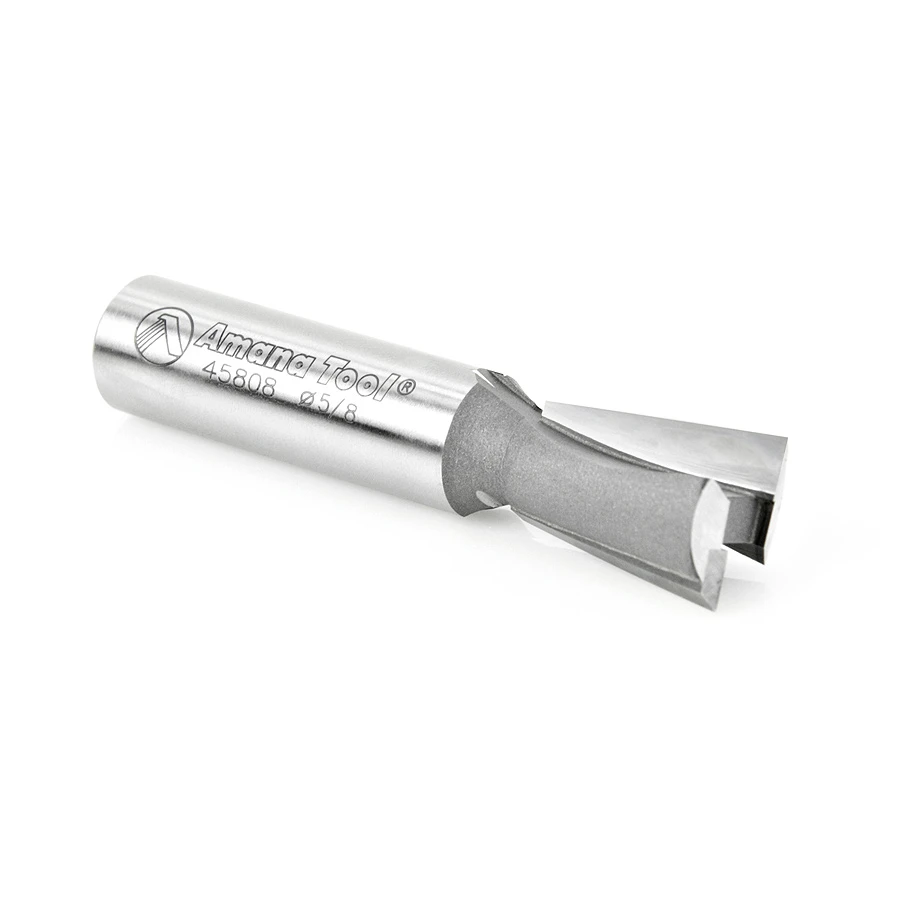

45808 Carbide Tipped Dovetail 7 Deg x 5/8 Dia x 7/8 x 1/2 Inch Shank
$61.47
Usually ships on the 2nd business day from order date.
| (a°) Angle | 7° |
|---|---|
| Diameter (D) | 5/8 |
| (B) Cutting Height | 7/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-5/8 |
| Flutes | 2 |
| Application | Incra® |
Description
For the Keller™ Dovetail Templates and certain Incra® applications, 7° dovetail bits are required. (Bits for the Keller™ system are supplied with shank-mounted bearings.) This angle is also used in cutting stair stringers.
Specifications
| Angle (a°) | 7° |
| Diameter (D) | 5/8 |
| Cutting Height (B) | 7/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-5/8 |
| Flutes | 2 |
| Application | Incra® |
