Super Nova 16S Redline: CNC Laser Engraving & Cutting Machines for Sale in Canada

Description

Unmatched Speed, Exceptional Precision, Boosting Your Efficiency!

How Does The Redline Series Achieve 4200mm/s With 8G Acceleration While Maintaining Precision?

Advanced Motion System: High-performance linear guides and motors.

Stability: Robust frame reduces vibrations at high speeds.

Precision Engineering: Ensures flawless laser head movement.

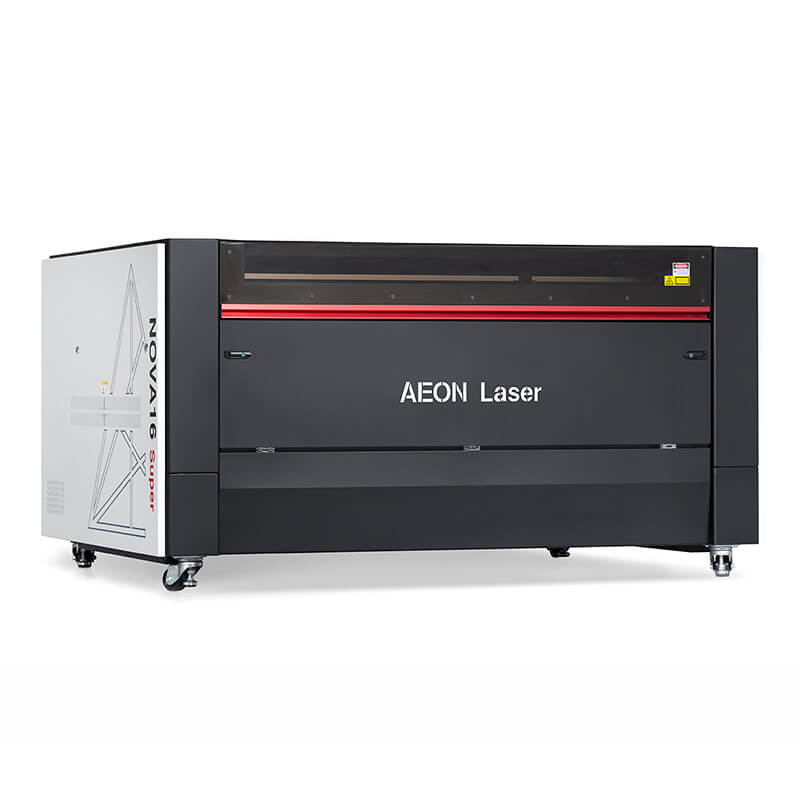

The Super Nova series freestanding laser engraver is unique. Unlike other products on the market, where all of the components are typically on the exterior, they are now inside with our clean pack design.

This machine is also capable of housing two types of laser technologies. DC laser glass tubes and RF laser tubes for extremely high resolution engravings.

Bringing the high power of a large machine into a compact space. With little space wasted, the material bed is basically the size of the machine. With the machine on rolling castors you can single handidly push or pull where you please.

This CNC laser cutter can cut up to .75” wood and can achieve scan speeds of up to 4200 mm/sec. It is also capable of quality engraving, similar to the Mira series.

Some techy features we are proud to showcase are a red dot pointer built into the laser engraving path, which makes it easy to set your starting position. The autofocus comes in handy when you are adjusting the bed height for a variety of material thicknesses. The front and rear pass through doors provide the advantage of placing oversized materials on the laser cutter.

Built in rotary plug to utilize rotary lathes, rotary rollers for tumblers, etc.

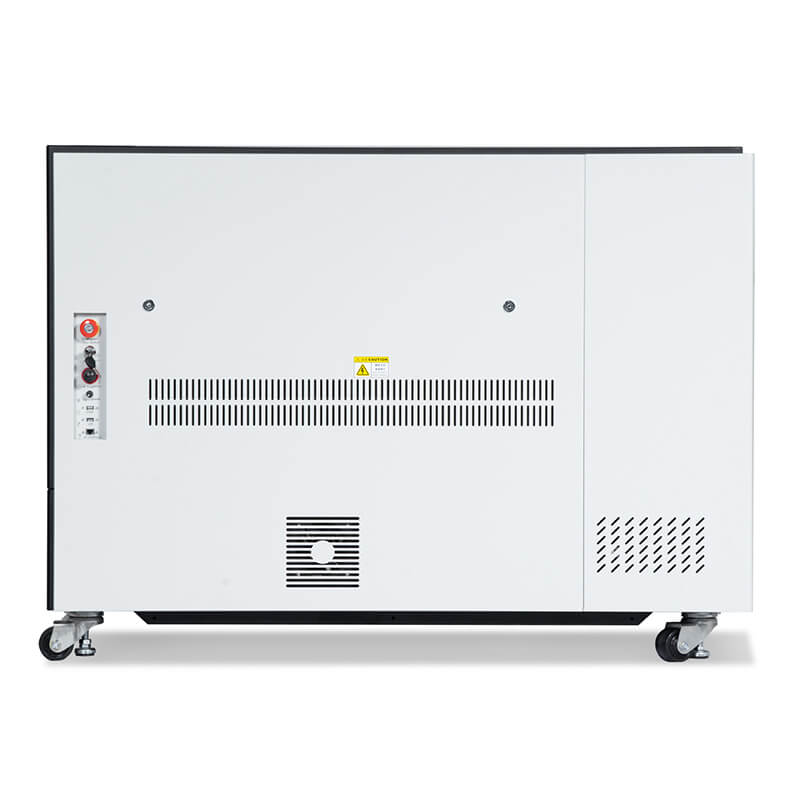

There is no wiring required; the machine comes with all of the ports and interfaces needed to get the most out of your laser engraver.

PC or Mac via USB, Ethernet, or WiFi. The controller has 256 MB of onboard memory for storing repetitive jobs. You can also run programs straight from a USB Flash Drive.

Product Features

	Robust Unibody Most lasers use a frame where parts are bolted to a thin shell. For high-speed performance, the frame must be rigid to prevent flexing. The Redline series has a strong frame that stays stable even with the side panel removed, making troubleshooting easier. This rigidity ensures consistent precision at maximum speeds. Additionally, the Redline NOVA can be separated to fit through narrow doors.
	Rigid Linear Guide Rail Linear guide rails with ball bearings offer greater precision and smoother motion, which improves print quality and longevity. Further, AEON Laser has been conducting rigorous test on all kinds of rails for over 7 years, and selected the most rigid one to meet the requirements for high speed and high precision.
	Full AC Servo Motor Step into the true closed-loop era with AEON Laser—no more hybrid servos. Our Full AC Servo Motors deliver instant acceleration at 8G of force, achieving top speeds of 4,200 mm/sec on RF models. While other manufacturers may use similar motors, AEON Laser stands out by combining speed, precision, and longevity, a feat few can match.
	Featherweight Laser Head A lightweight laser head contributes to less over-scanning and an overall reduction in vibration, reducing motor load and significantly enhancing the speed.
	Tool-Less Optic Path with Laser Tube Docking Station Eliminate the hassle of traditional tube replacements and beam alignment. AEON’s innovative laser tube docking station lets you seamlessly swap tubes in and out without the need for tools or calibration the optic path. Say goodbye to painstaking adjustments and hello to effortless precision.
	Easily Accessible Mirrors AEON’s mirrors are designed for ultimate convenience, allowing effortless cleaning or replacement without needing tools. Plus, there’s no need to re-calibrate after maintenance, ensuring seamless operation and consistent performance.
	Magnetic Lens Carriage: Quick and Hassle-Free Maintenance All Redline Series feature a magnetic lens carriage, making lens maintenance a breeze. The focal lens is secured with a press-fit silicone washer, allowing users to easily clean or swap lenses for various tasks without complications.
	Pro-Smart Monitoring & Alert System All AEON’s Pro-Smart Monitoring & Alert System integrates thermal sensors into all optics to monitor temperature in real-time. These sensors record and report temperature readings directly to the keypad, significantly reducing the risk of unexpected failures. If temperatures rise beyond the safe range, the system triggers an alert, prompting immediate cleaning of mirrors or lenses to maintain optimal performance.
	Modular Design: Simplifying Maintenance & Repairs AEON’s philosophy of effortless serviceability is embodied in its modular design. Most components are engineered for rapid removal and replacement, featuring quick connectors for maximum convenience. From chillers to sensors and motors, any issues can be resolved swiftly. Simply submit a ticket, and our service team will ensure prompt delivery of the required parts, making replacements straightforward—even for beginners.
	Super Clean Pack Design: Enhanced Protection The Super Clean Pack design goes beyond the basics, enclosing the linear rails and bearing blocks for added protection. Additionally, protective curtains on the left and right side rails prevent unwanted particles from spreading beyond the work area, significantly prolonging the lifespan of the rails and greatly enhancing cutting and engraving quality.
	Bullseye Leveling Gauge: Precision Leveling Glance Each Redline series is equipped with a bullseye leveling gauge, making it easy to ensure your laser is perfectly level—a critical detail often overlooked by engineers. Proper leveling is essential; without it, axles experience increased friction and distortion, significantly shortening the lifespan of the rails.
	Mechanical Micro Switch: Enhanced Reliability & Durability AEON’s engineering team has incorporated mechanical microswitches in the Redline series, replacing the previous photoelectric limit sensors. These microswitches are built to last, offering over 200,000 cycles of flawless operation, ensuring exceptional reliability and performance.
	Optical Path Securely Sealed AEON Laser takes every measure to protect your equipment and enhance its longevity. Our engineers have enclosed the laser path in durable aluminum tubes, providing a robust barrier against dust and debris. Additionally, we’ve incorporated protective lenses for the mirrors to further safeguard the optical components. This design significantly reduces the frequency of maintenance, ensuring a longer lifespan for your laser tubes, mirrors, and lenses.

Optional Product Features

	Compact All-In-One Solution If space is of concern, you’ll be pleased to know that Aeon is the first in the laser industry to offer an all-in-one solution comprised of an integrated water cooling system, exhaust fan, and air assist pump so that no extra space is needed for ancillary components ,minimize the footprint of the machine and make your workspace neat and more organized.
	LED Status Light The Aeon Laser logo on the front access door panel is now backlit and doubles as a functional Status Light, illuminating white when in standby, red when an error is encountered, and green while in operation, adding both form and function to an already stunning design.
	Brighter Illumination The already well-lit work area just got brighter with the addition of 2 more LED lights on the underside of the MIRA lid, just behind the handle. When the lid is opened, the 2 interior LEDs turn off and the overhead lights turn on to illuminate your work area, while loading material and using the camera. There is even a dimmer knob on the side of the machine for setting the mood just right.

Request Form

Working Area	1600*1000mm
Z Axis Lifting Space	200mm
Max Lifting Capacity	120 KG

Max Engraving Speed	4200mm/s (Super) 1200mm/s (Elite)
Acceleration	8G (Super) 5G (Elite)

Minimum Font Size(RF Tube)	1.0×1.0mm
Positioning Accuracy	<=0.1mm

Working Table	Honeycomb + Blade table
Cooling system	Glass: Built-in 5200 chiller RF: Air-cooled
Fume Exhaust Fan	Built-in 500W (Auto Start-stop)
Air Assist	Built-in compressor 750W with 40L air tank (Auto Start-stop)
Auto Focus	Yes
Wireless Connectivity	Yes
Red Dot Positioning	Yes
Camera	100° 8 megapixel (3840×2160)
Internal Memory	1G
Operating Software	Rdworks/Lighburn(Optional)
Compatible Design Software	CorelDraw/Illustrator/AutoCAD

Machine Dimension	210015101125mm
Net Weight	566 KG
Gross Weight	730 KG
