$9,700.00

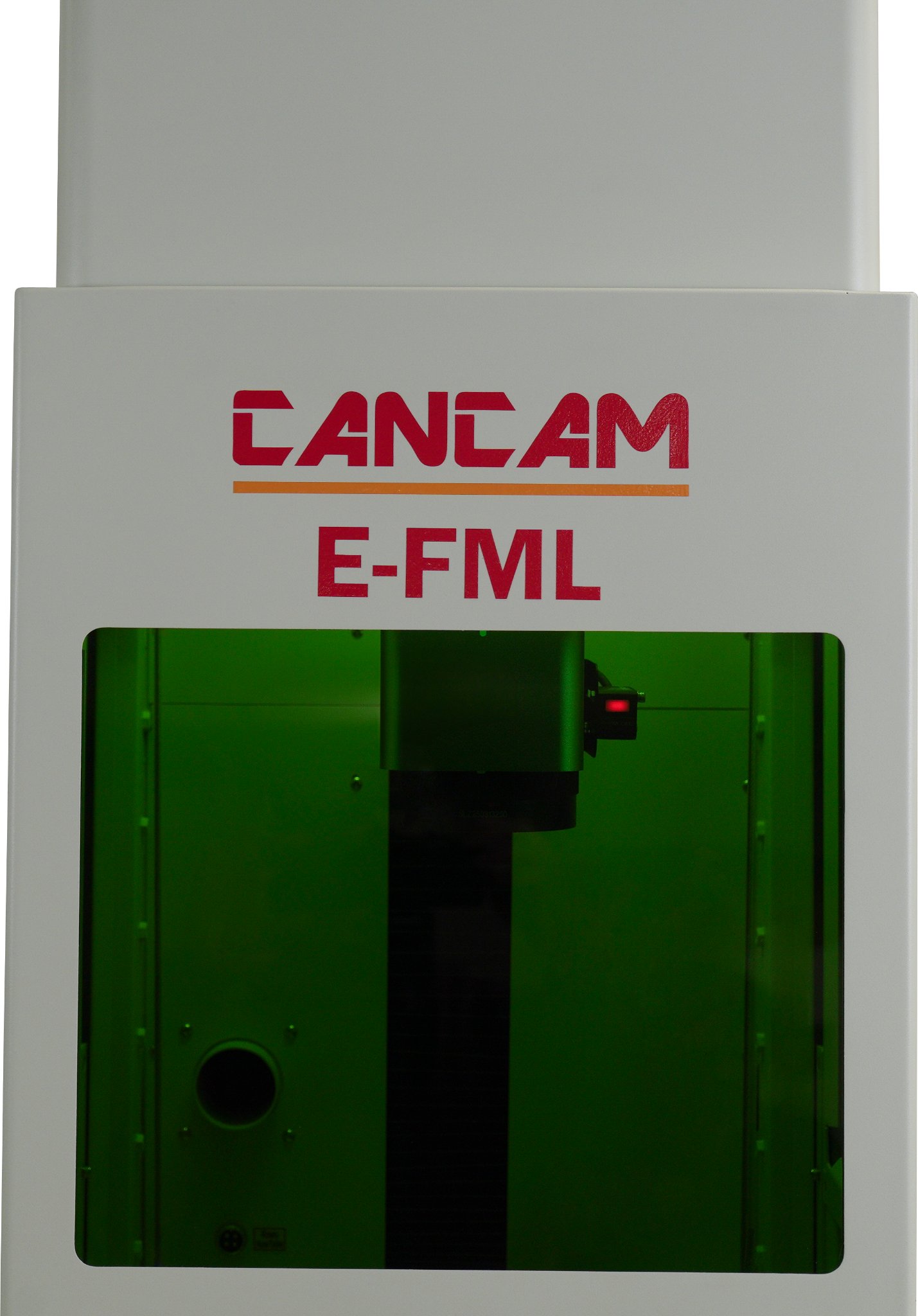

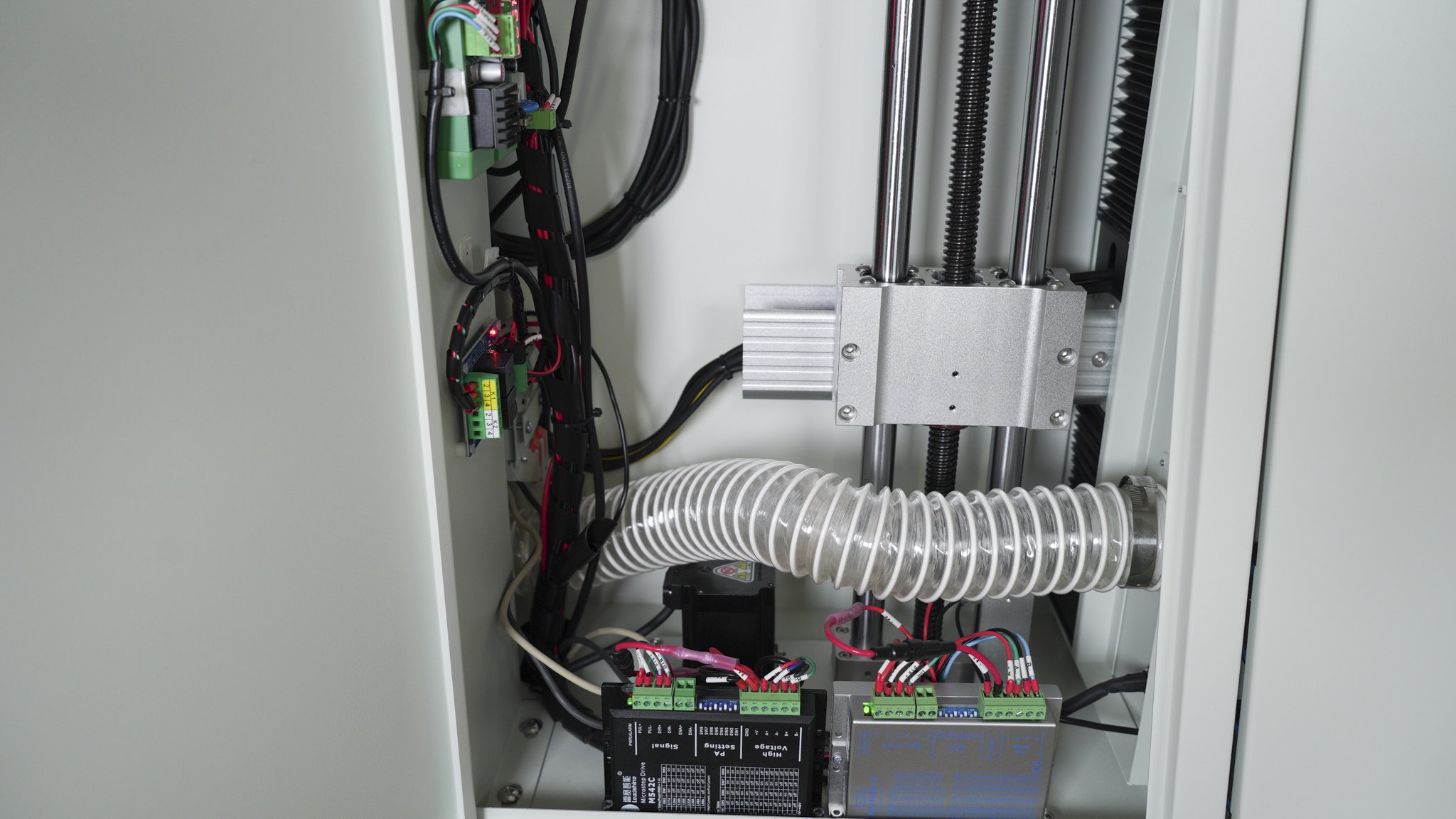

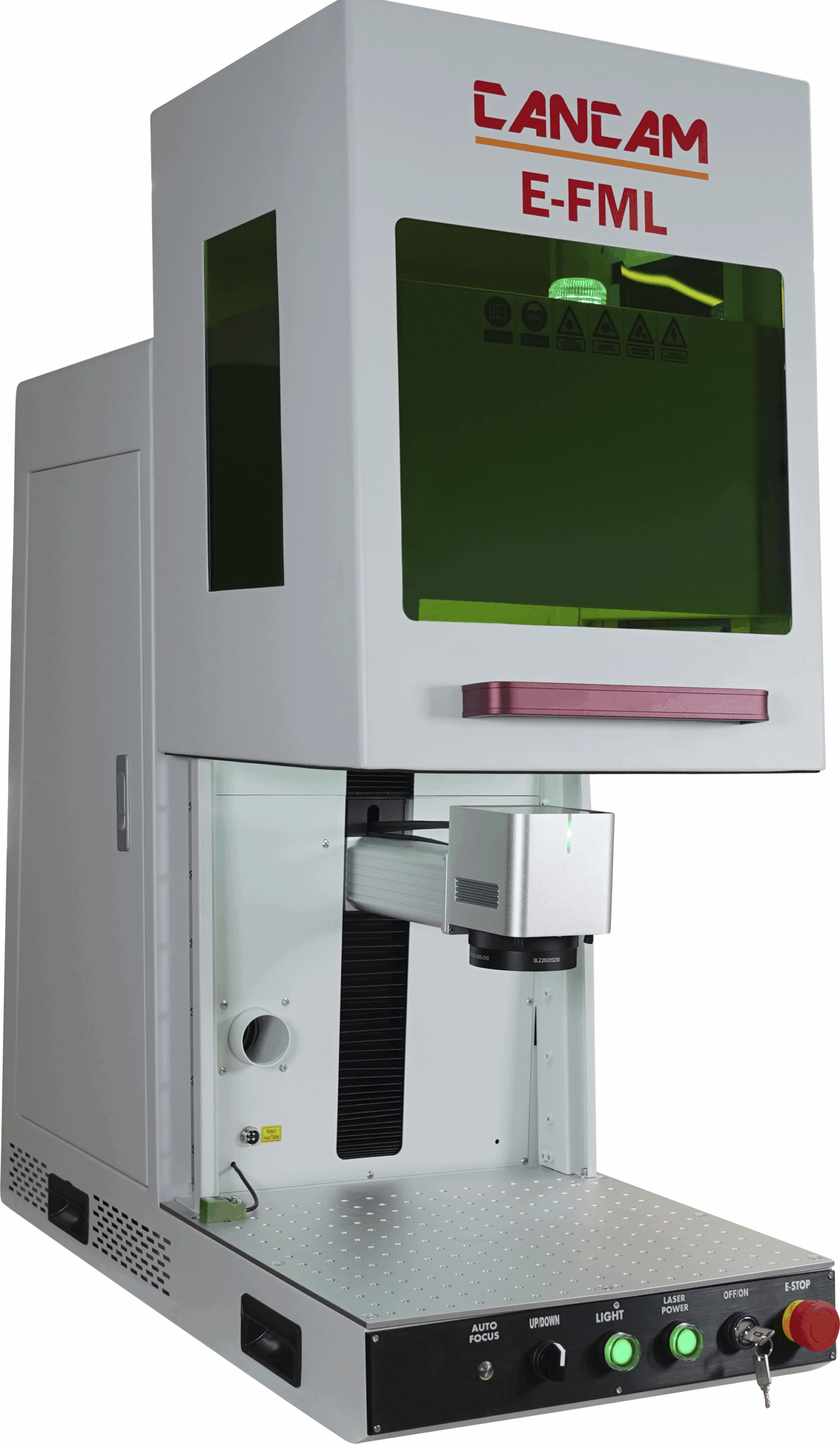

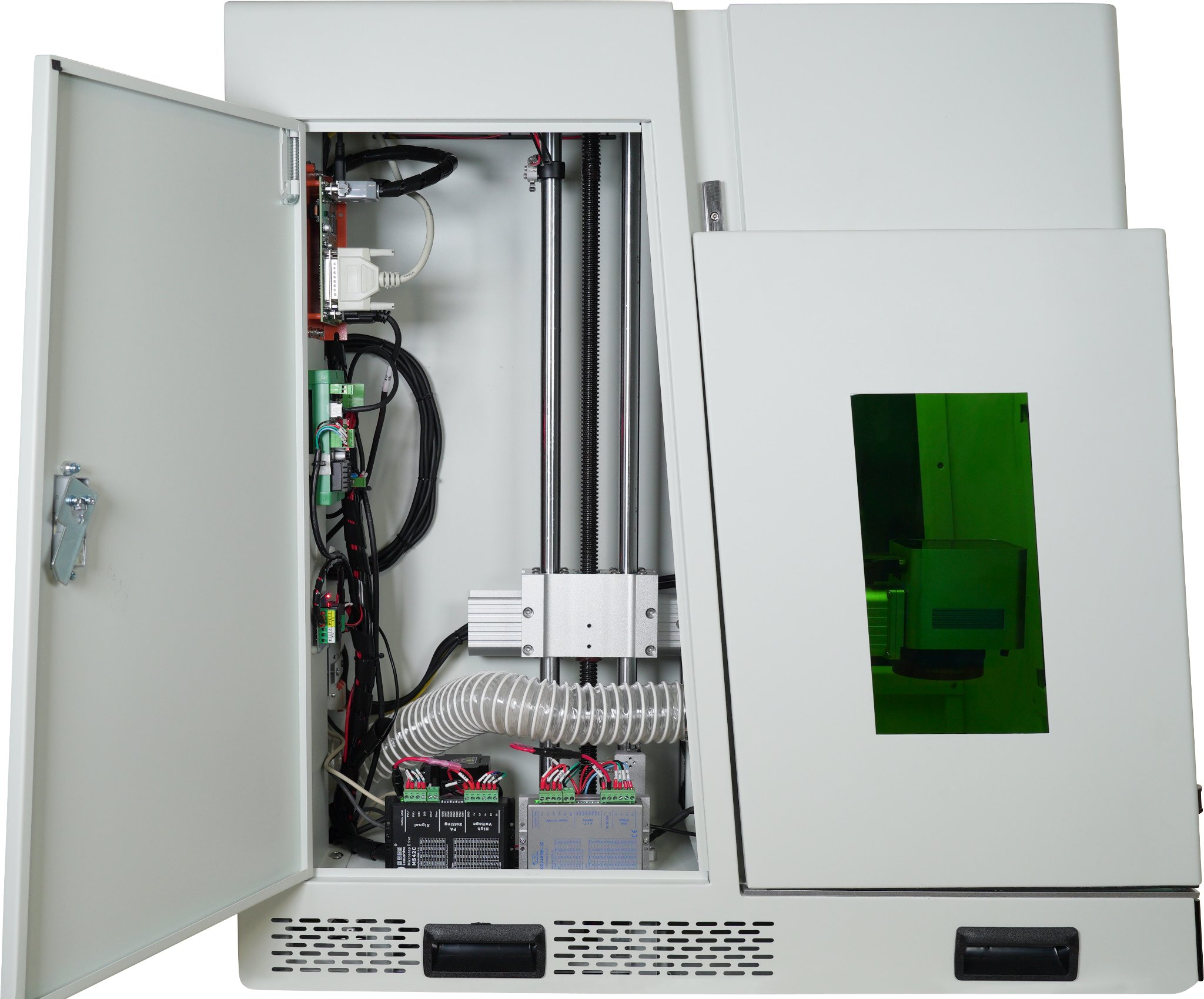

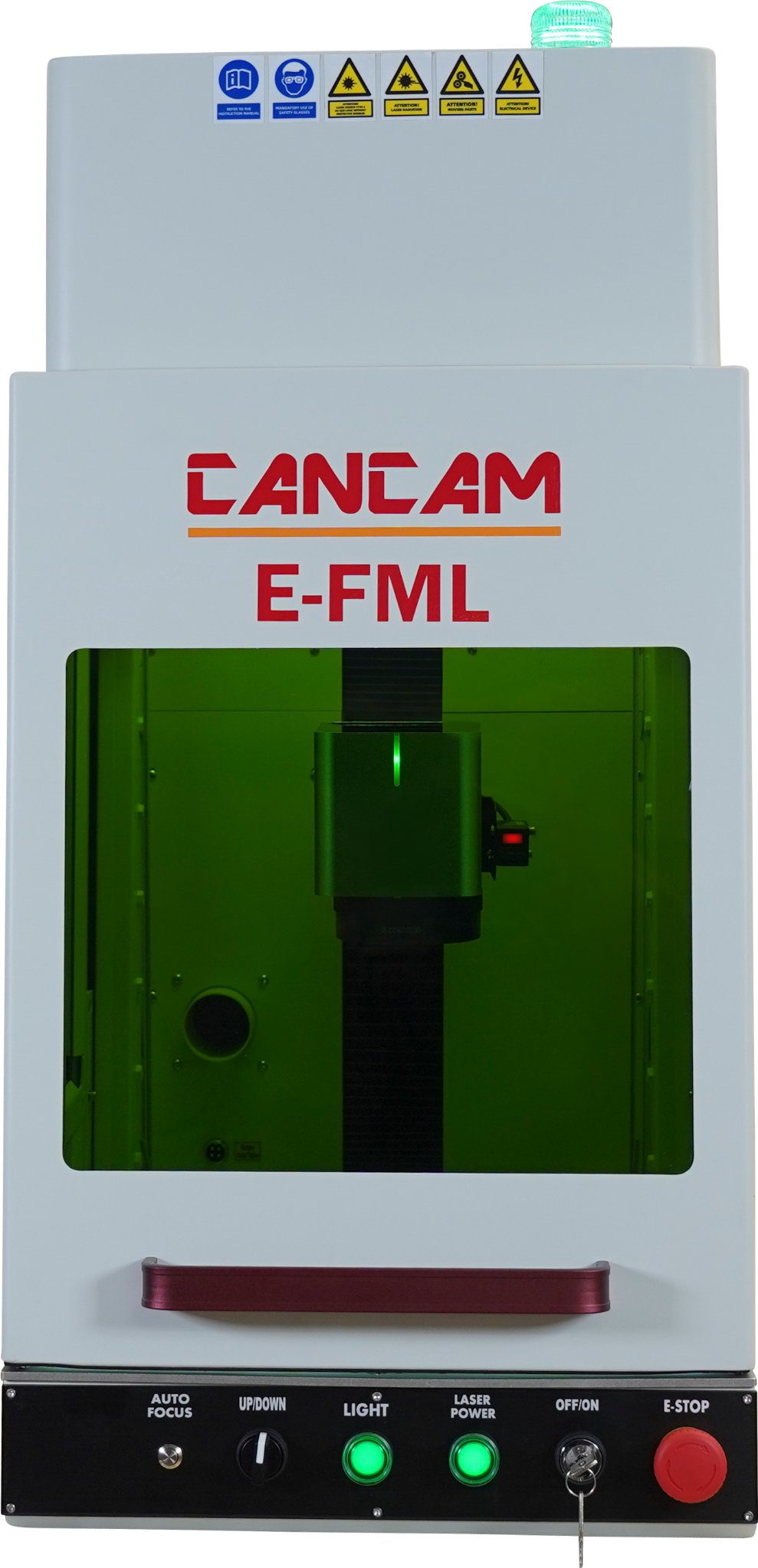

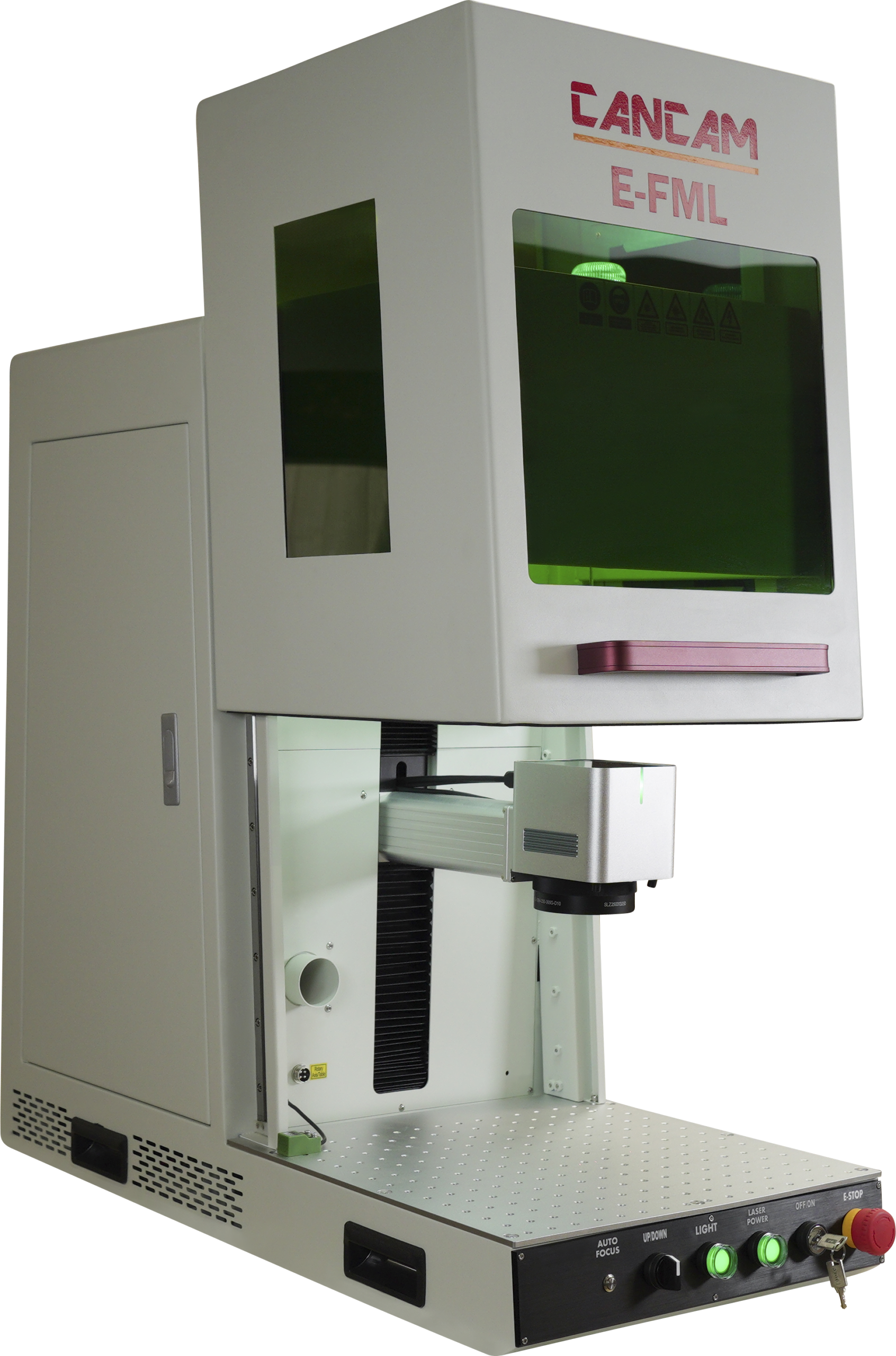

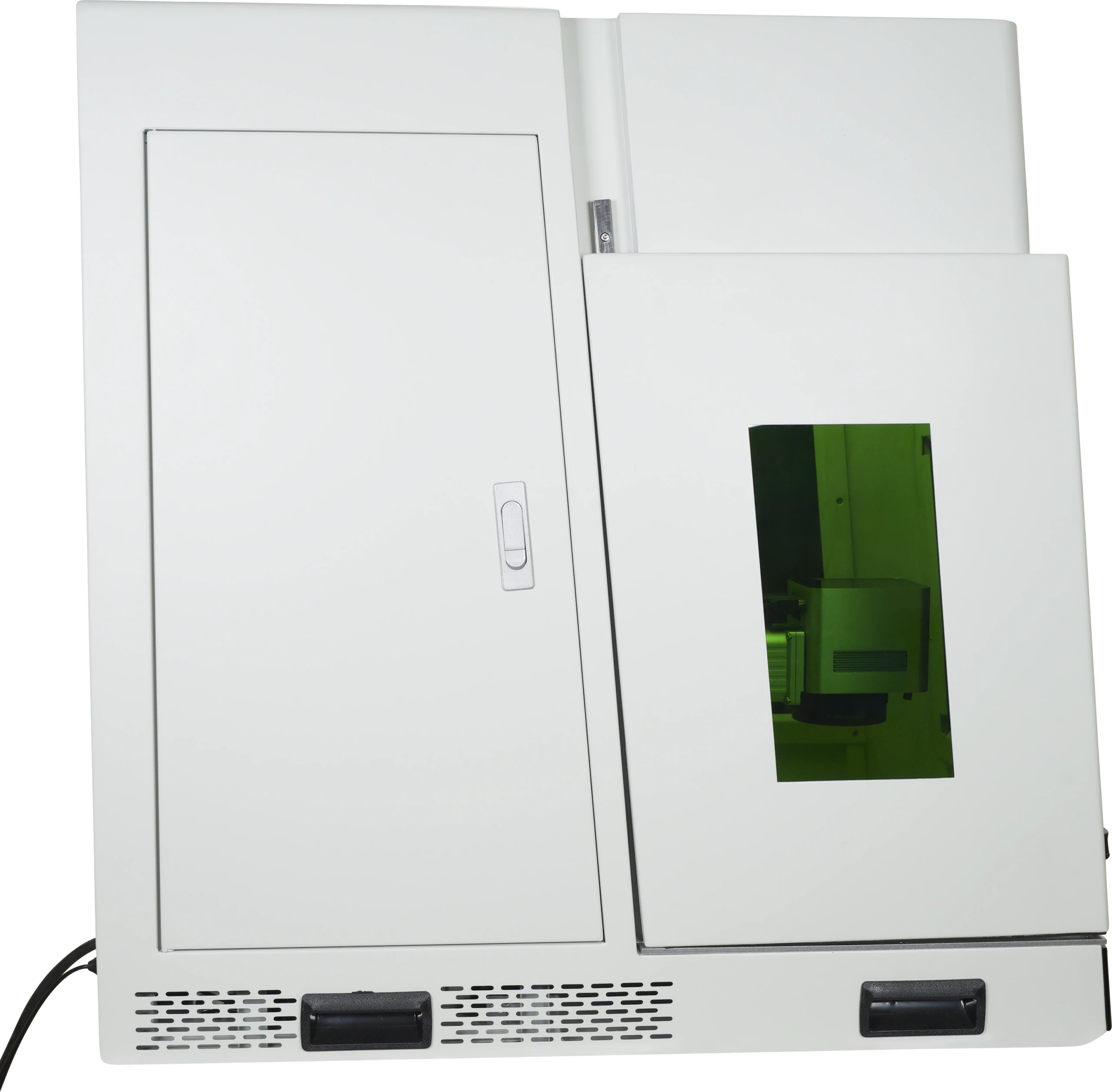

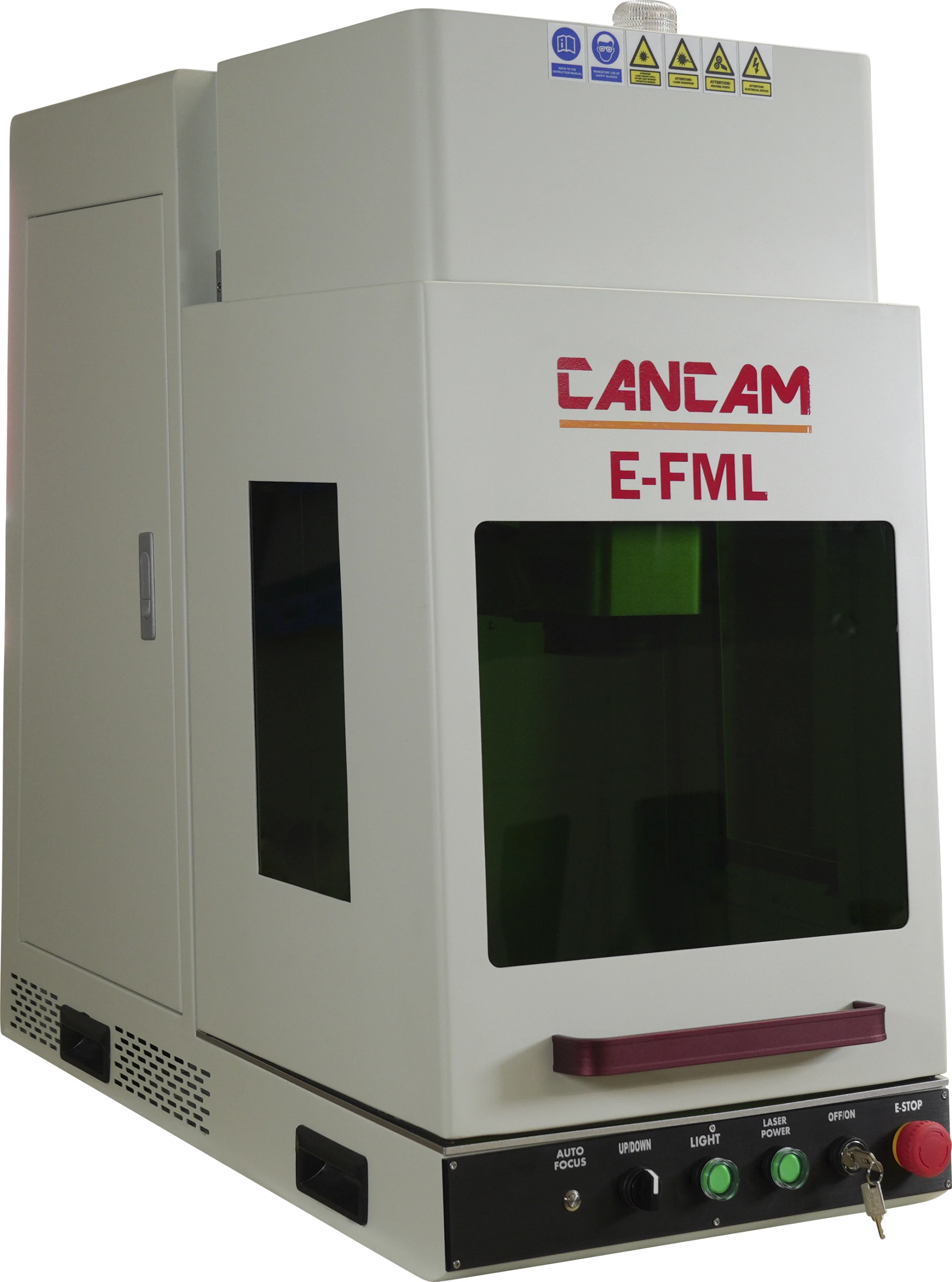

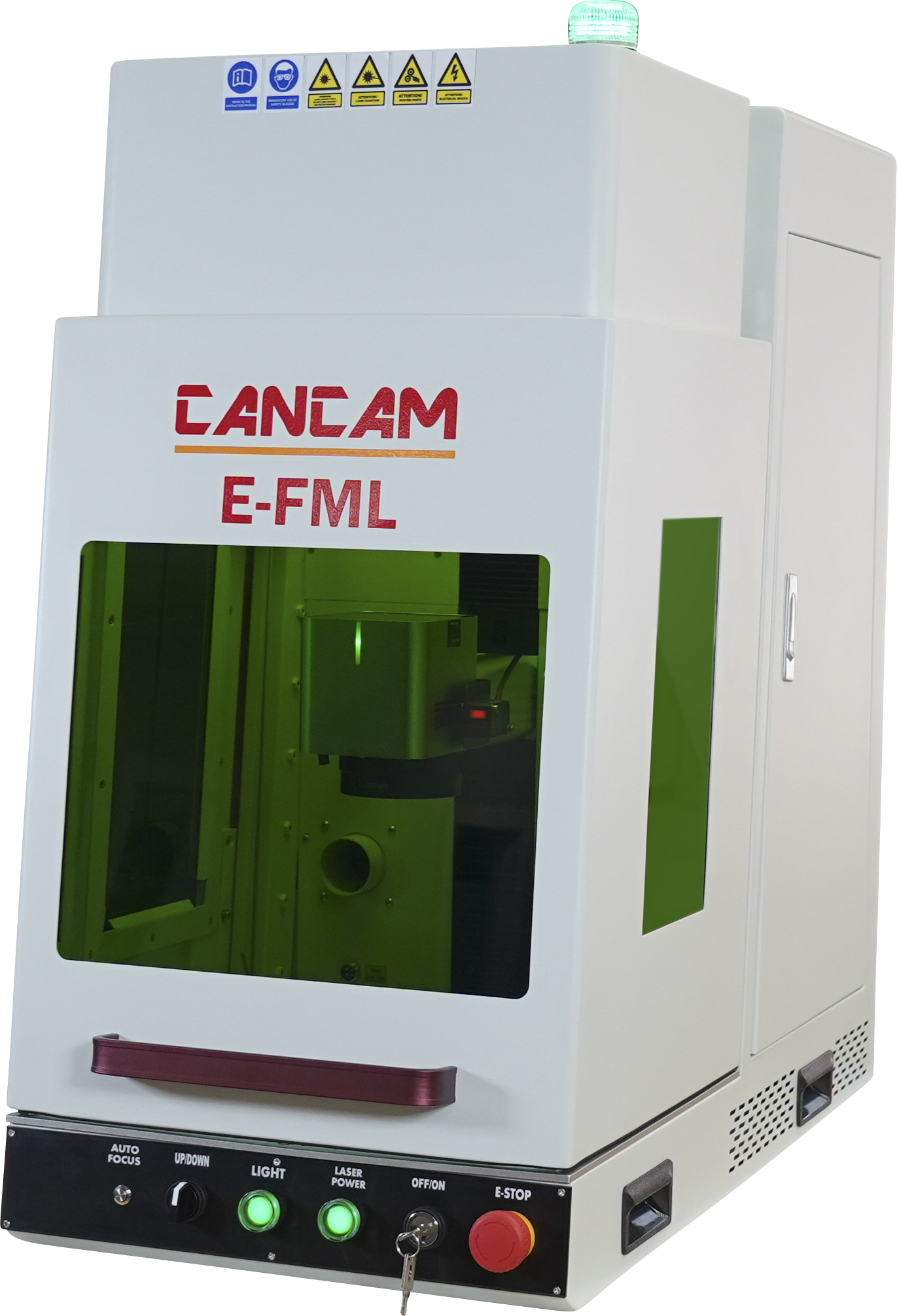

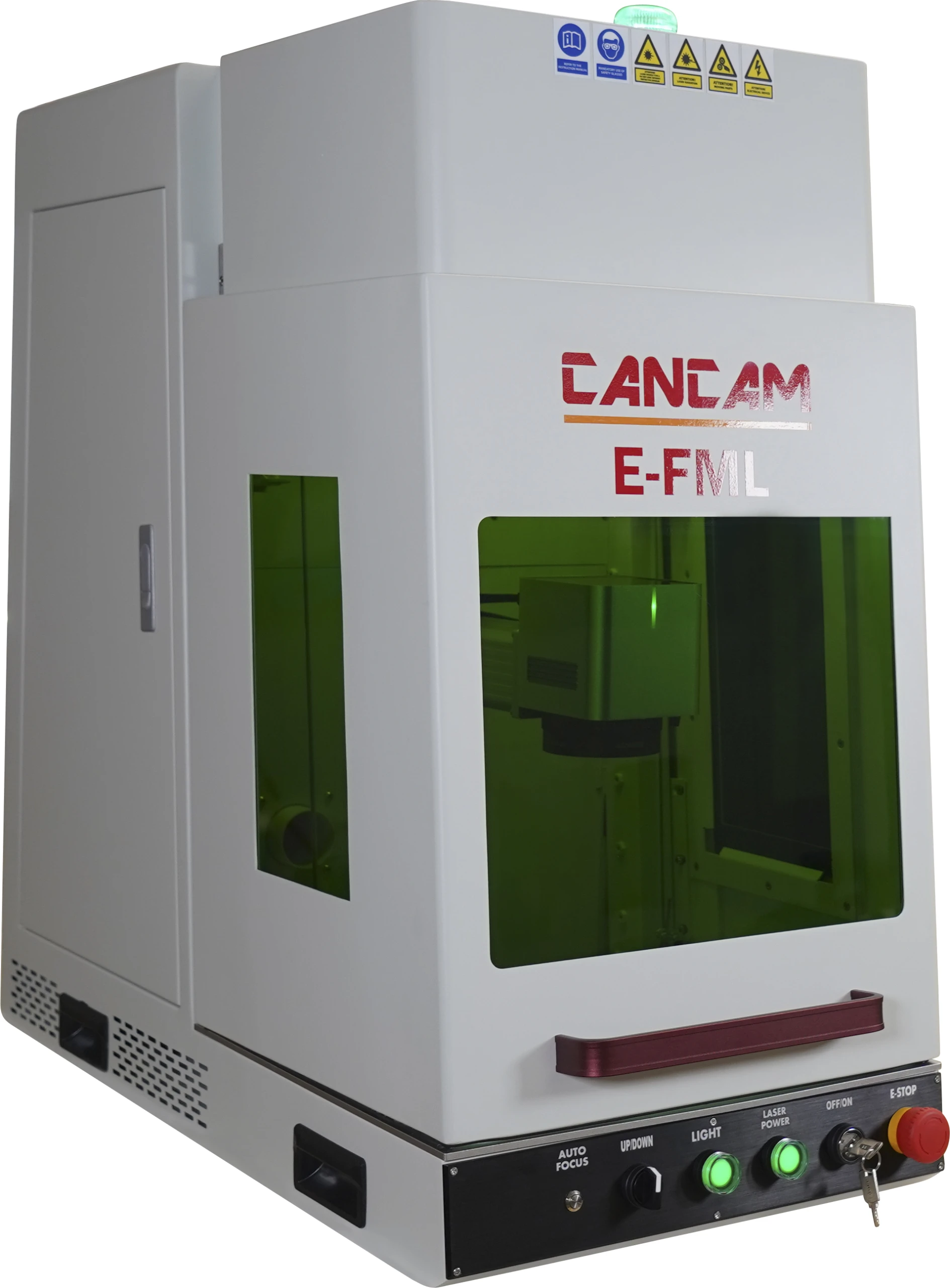

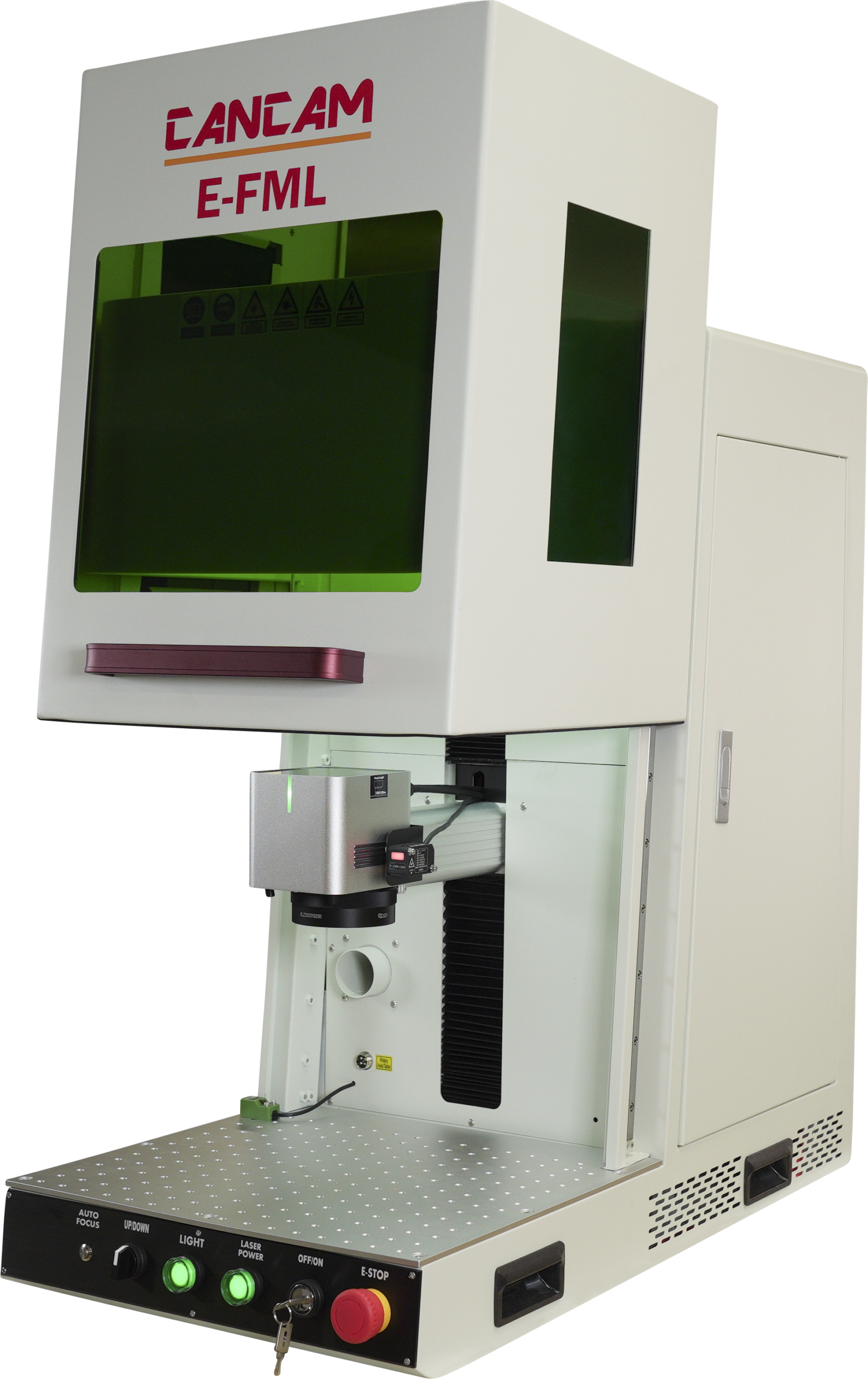

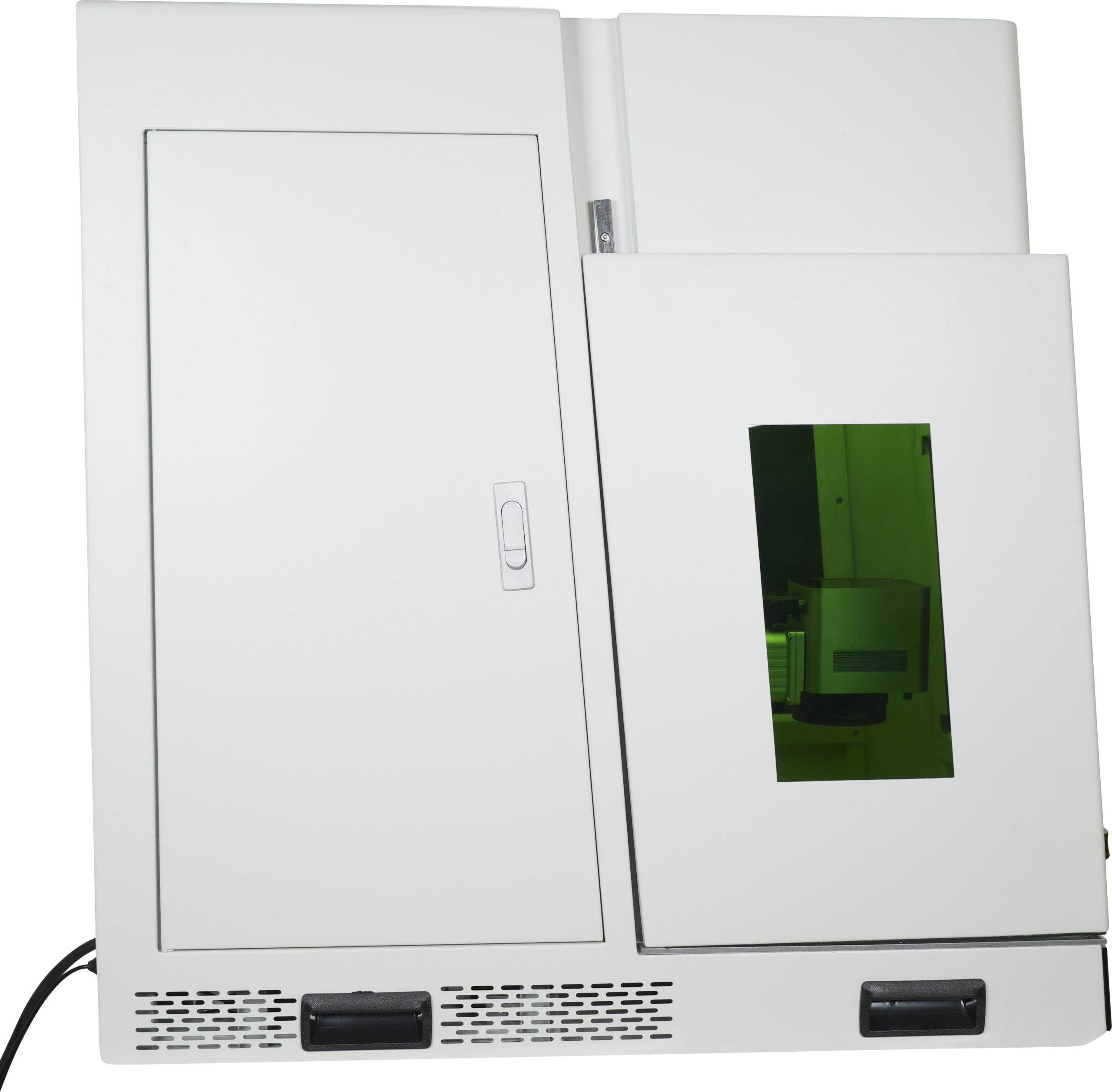

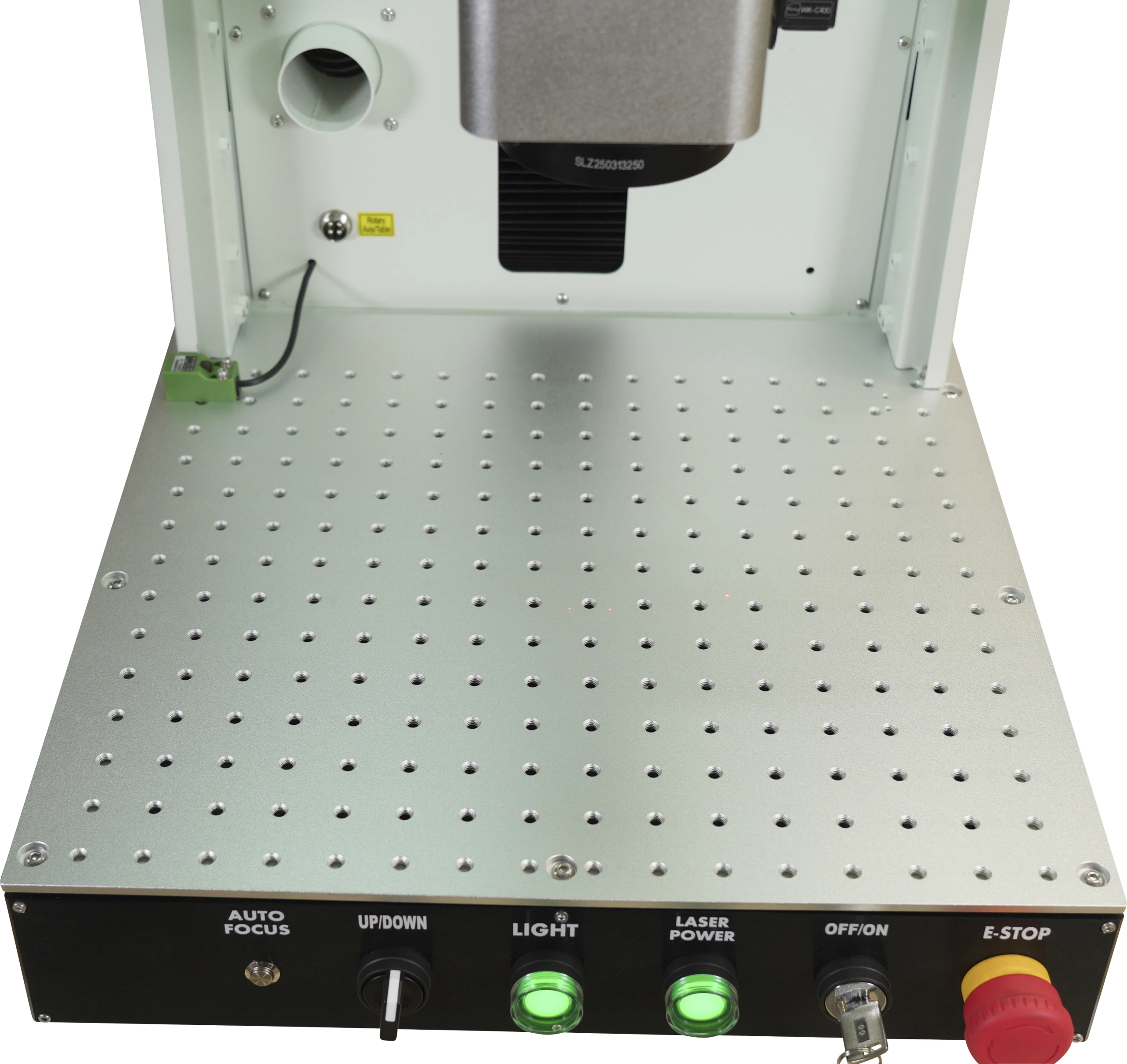

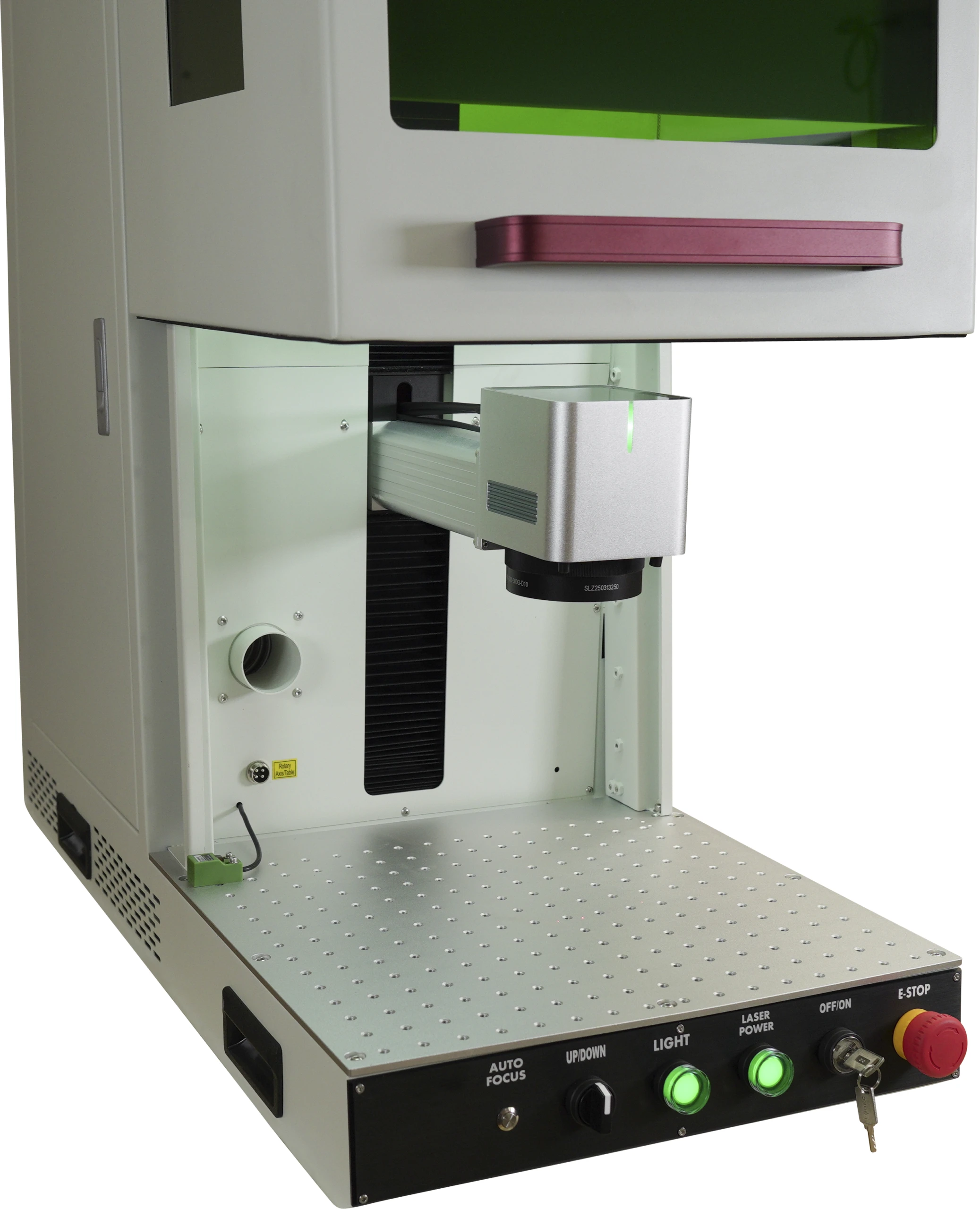

The E-FML is a (enclosed fiber marking laser system) that is designed to be stationary and offers high precision even in high volume operations at powers as high as 100 watts with minimal down time. This design allows for larger pieces to be placed underneath the galvo scanner with the press of a button due to the built in Z axis motor.
Item related to this Product
-
$650 -
$550 -
$650 -
$850 -
$850 -
$430 -
$430 -
$400 -
$400 -
$65 -
$225
Description

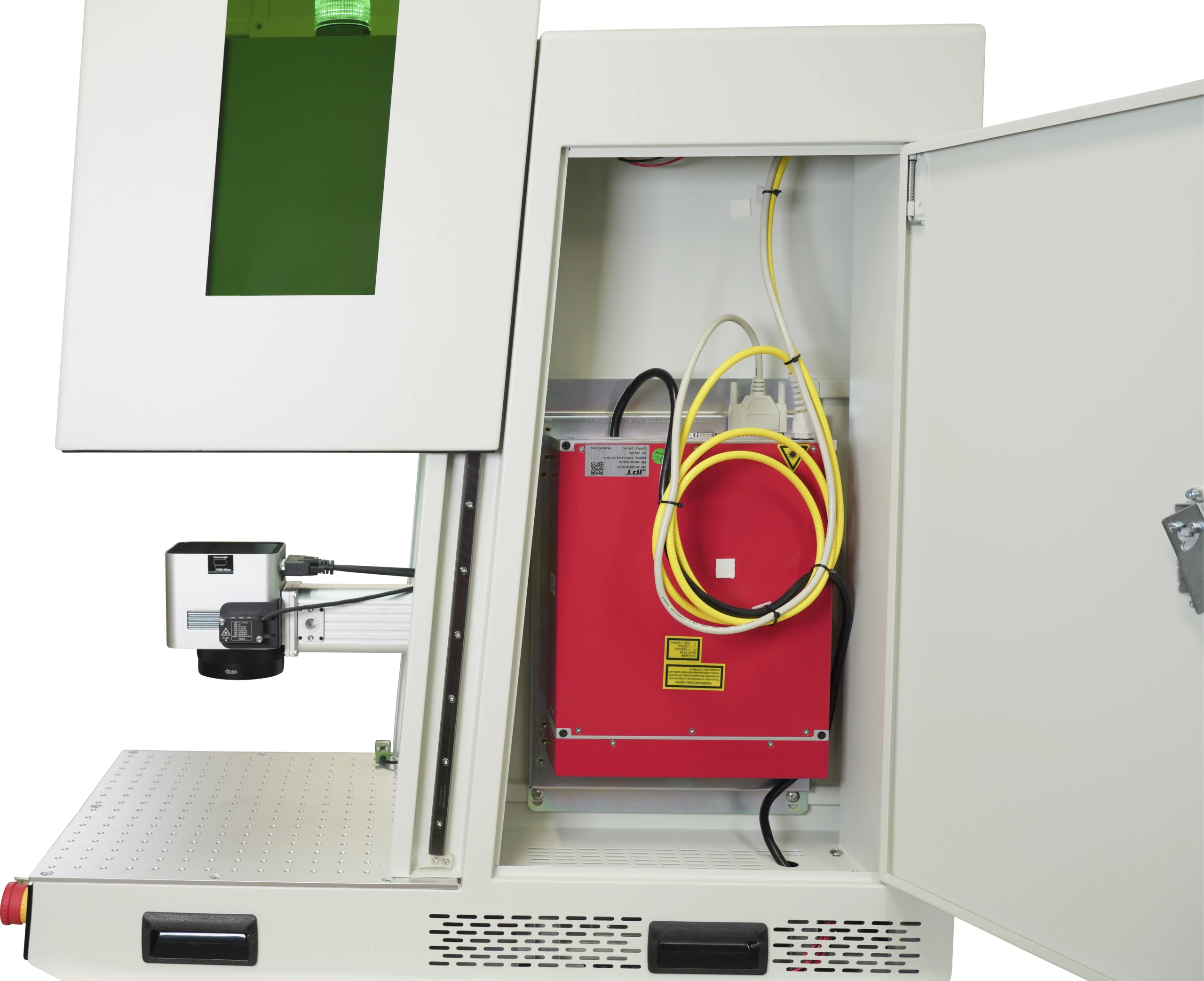

The minimalist design makes it easy to mark/engrave on large metal stainless steel and anodized aluminum surfaces with ease, to name a couple. This unit features an easy to use software and wifi along with the start/stop foot pedal. The E-FML operates with a solid state 1064nm fiber laser and easily upgradable for rotary operations on curved surfaces as well as other accessories. The fiber metal engraving laser is built to serve with very little maintenance and zero consumables. You can expect up to 100,000 working hours on this machine!
Product Features

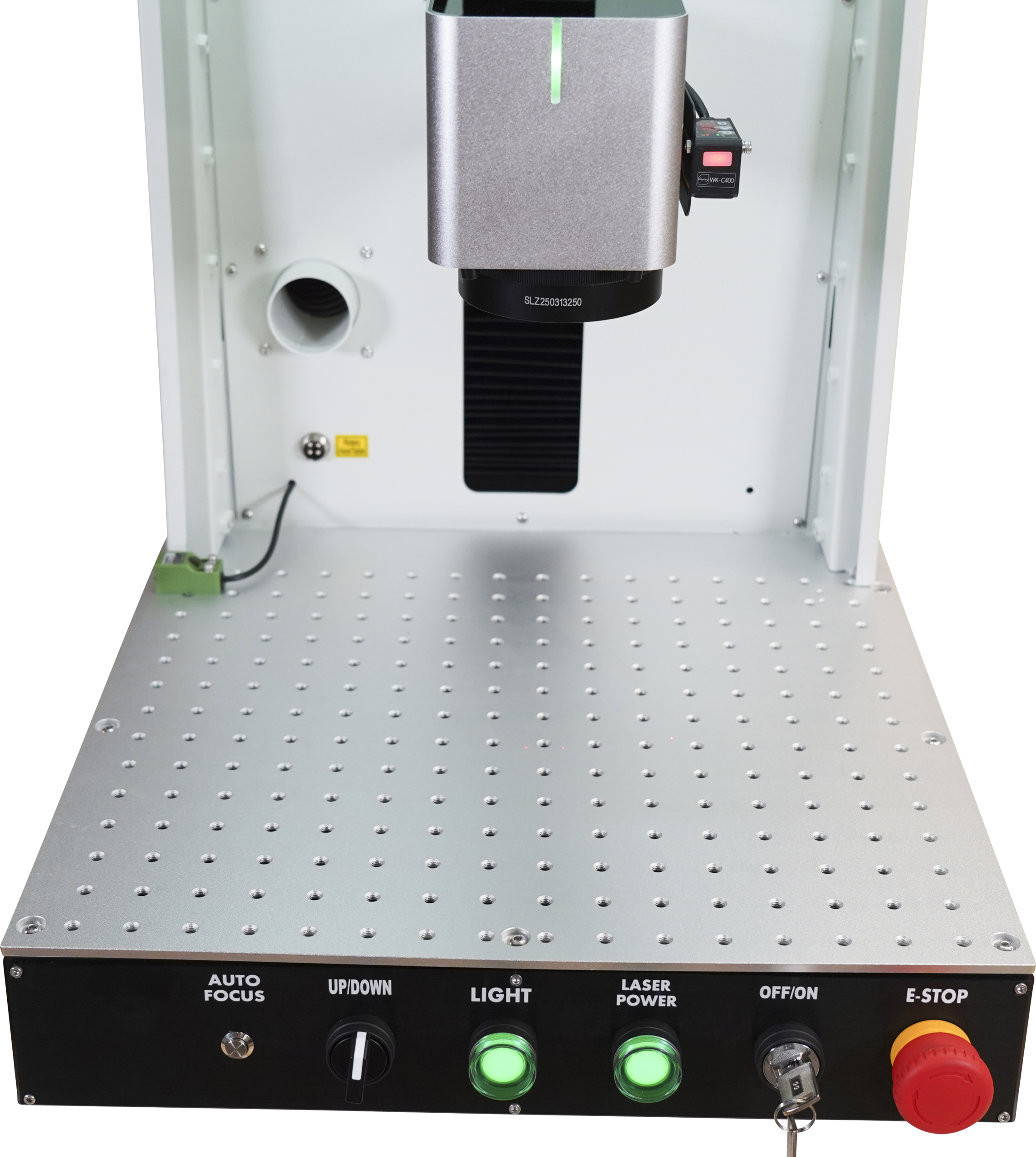

 | Motorized Z axis |
 | Accessory attachment plug |

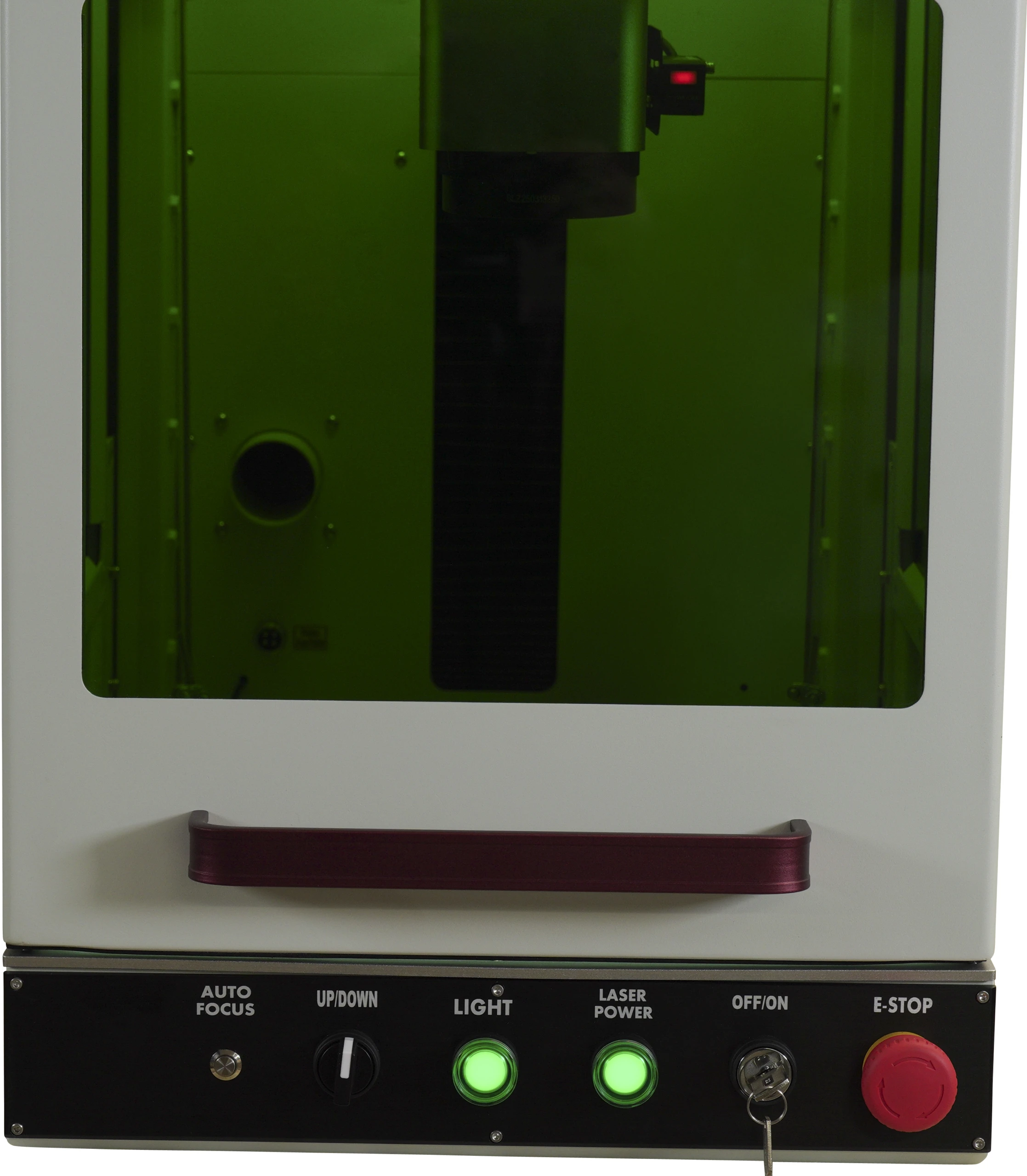

 | Foot pedal start/stop |
 | Marking results for colors |
 | High resolution |
| MOPA laser scanner (Master Oscillator Power Amplifier) |
| Material uses |
- mm
- inch
Specification
Physical Features
| Marking Area | 110mmx110mm |
| Marking Area (Options) | 150x150mm/175x175mm/200x200mm/220x220mm/250x250mm/300x300mm |
| Horizontal Processing Envelope | Max 300x300mm |
| Fume Port Size | N/A |
| Fume Extractor CFM | N/A |
| Machine Footprint | 915x431x965mm |
| Net Weight | 50kg |
| Gross Weight | 53kg |
| Crate Size | 780x400x800mm |
Power
| Voltage | 110v |
| Optional Voltage | N/A |
| Power Requirement | 600W |
Laser Power Source
| Frequency Range 1-600kHz | MOPA LP |
| Frequency Range 1-4000kHz | MOPA M7 |
Laser Power Specifications
| Laser Power | 20W |
| 30W (Option) | 30W (Option) |
| 40W (Option) | 40W (Option) |
| 50W (Option) | 50W (Option) |
| 100W (Option) | 100W (Option) |
| Wavelength | 1064nm |
| Laser Classification | Class 4 laser products, as defined in International Standard IEC 60825-1 |
Computer Software
| Recomended | Windows |
Controller Interface
| Lightburn | |
| (Option) | EZCad |
Computer
| (Option) | Windows PC with 15" Touch screen |
| Inputs for touchscreen PC | HDMI, USBx4, Ethernet, audio, VGA |
| Wifi | Yes |
Performance
| Positioning Accuracy | 0.005mm |
| Max Scanning Precision | 0.005mm |
| AutoFocus | No |
| Red Dot Positioning | Yes |
| Scan Speed | 7000mm/s |
| Minimum Font Size | 1mm |
Physical Features
| Marking Area | 4.33x4.33in |
| Marking Area (Options) | 5.90x5.90in/7.87x7.87in/8.66x8.66in/9.84x9.84in/11.81x11.81in |
| Horizontal Processing Envelope | Max 11.81x11.81in |
| Fume Port Size | N/A |
| Fume Extractor CFM | N/A |
| Machine Footprint | 36x17x38in |
| Net Weight | 50kg |
| Gross Weight | 53kg |
| Crate Size | 30.70x15.75x31.5in |
Power
| Voltage | 110v |
| Optional Voltage | N/A |
| Power Requirement | 600W |
Laser Power Source
| Frequency Range 1-600kHz | MOPA LP |
| Frequency Range 1-4000kHz | MOPA M7 |
Laser Power Specifications
| Laser Power | 20W |
| 30W (Option) | 30W (Option) |
| 40W (Option) | 40W (Option) |
| 50W (Option) | 50W (Option) |
| 100W (Option) | 100W (Option) |
| Wavelength | 1064nm |
| Laser Classification | Class 4 laser products, as defined in International Standard IEC 60825-1 |
Computer Software
| Recomended | Windows |
Controller Interface
| Lightburn | |
| (Option) | EZCad |
Computer
| (Option) | Windows PC with 15" Touch screen |
| Inputs for touchscreen PC | HDMI, USBx4, Ethernet, audio, VGA |
| Wifi | Yes |
Performance
| Positioning Accuracy | 0.005mm |
| Max Scanning Precision | 0.005mm |
| AutoFocus | No |
| Red Dot Positioning | Yes |
| Scan Speed | 7000mm/s |
| Minimum Font Size | 1mm |
