C3-48ATC

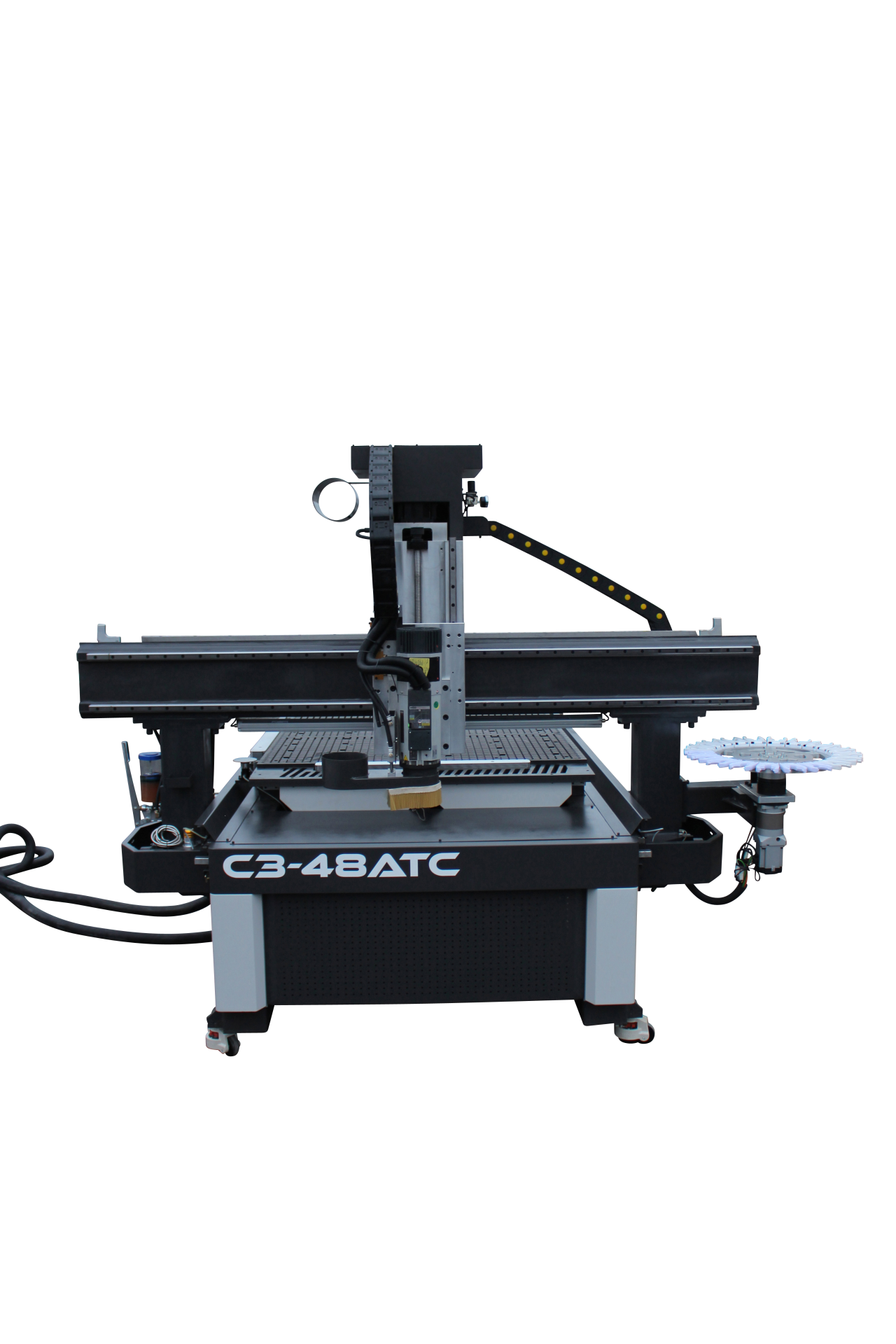

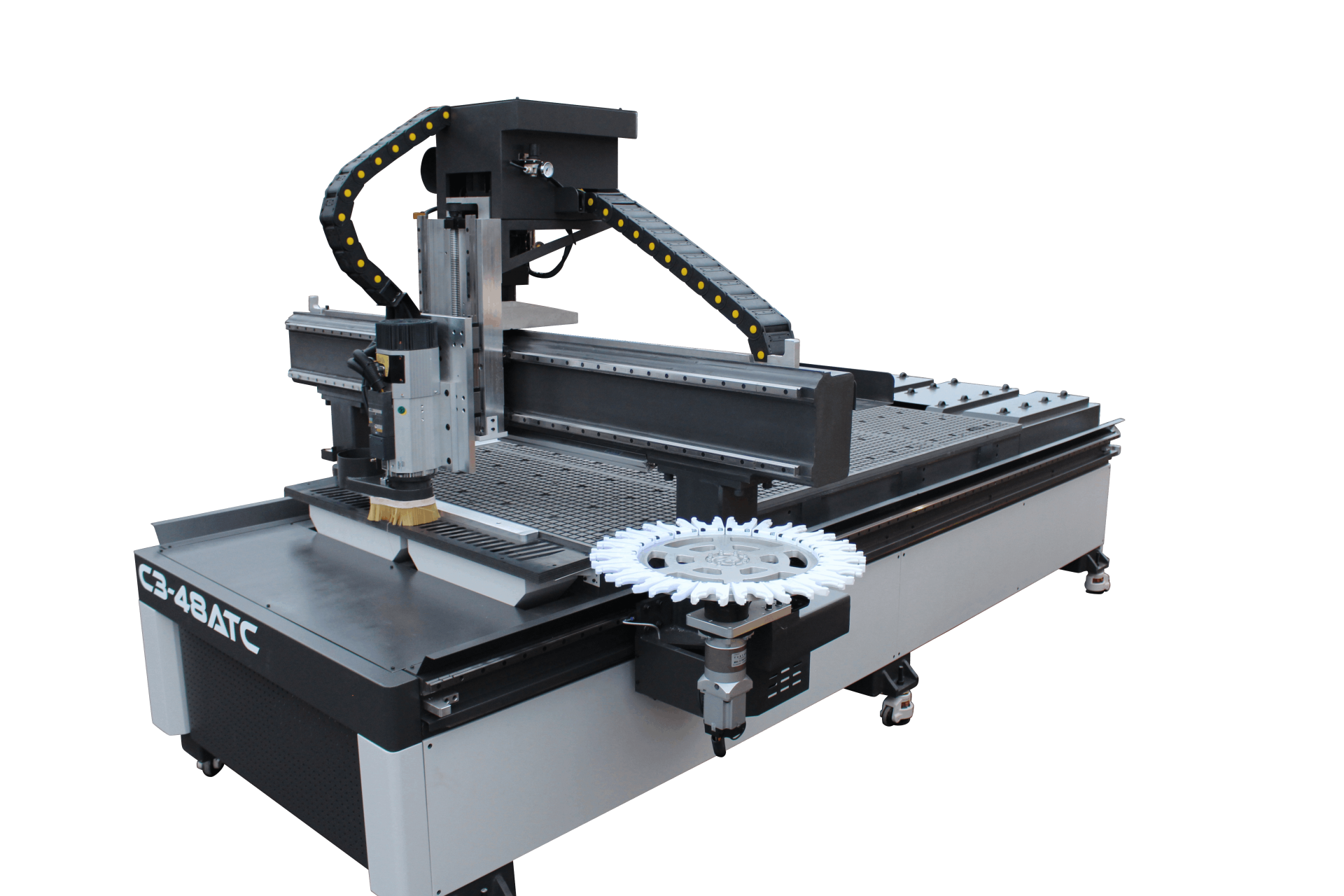

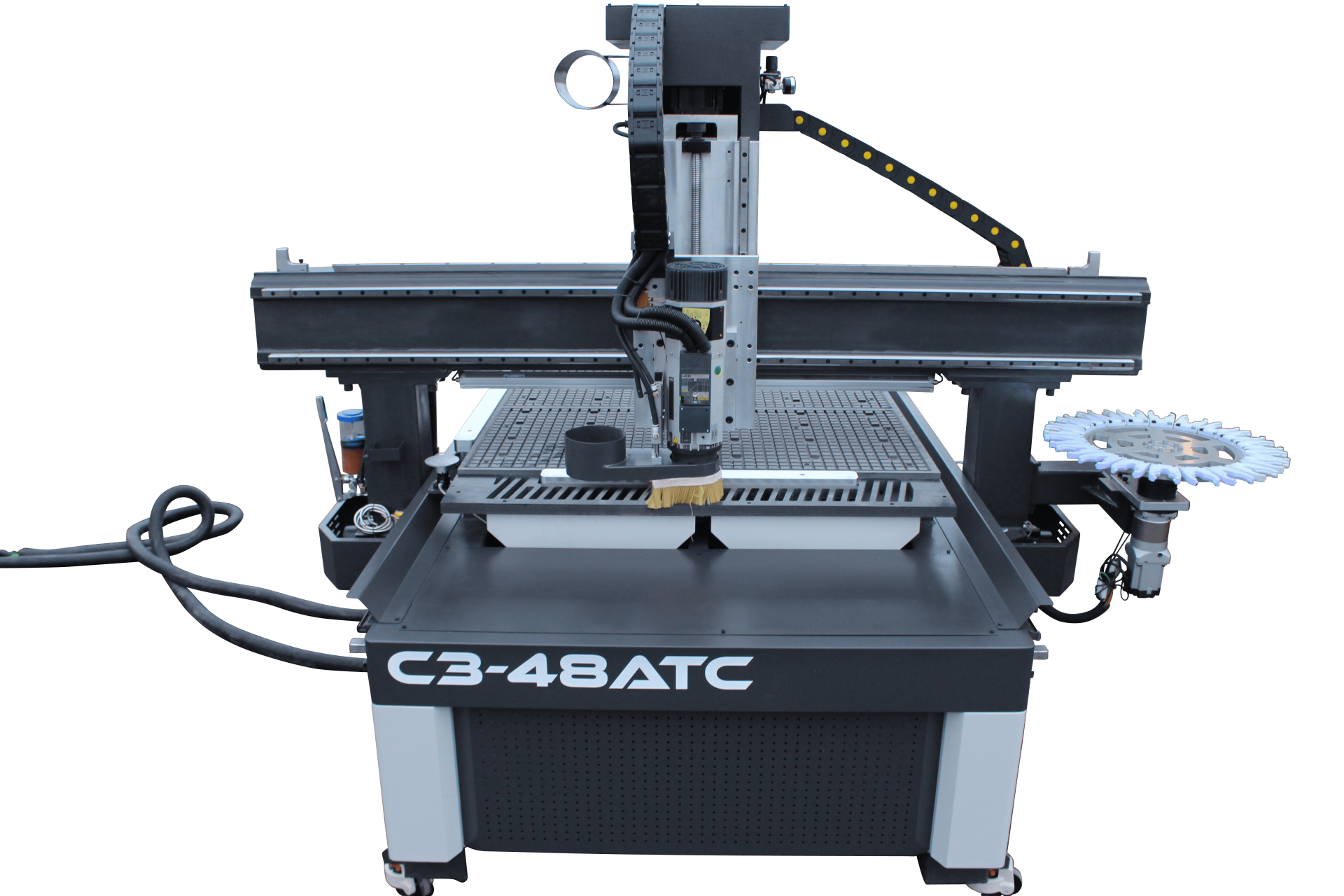

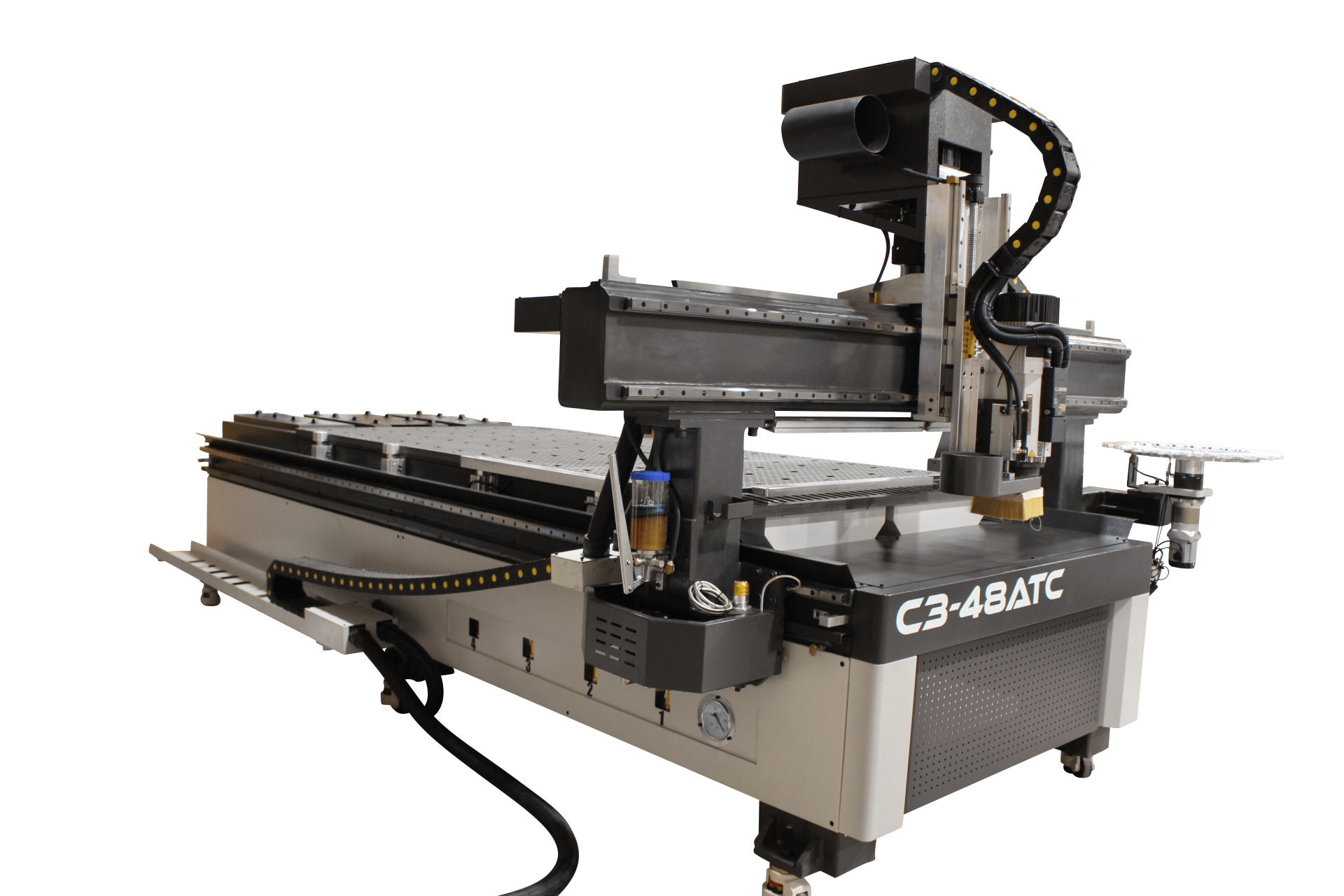

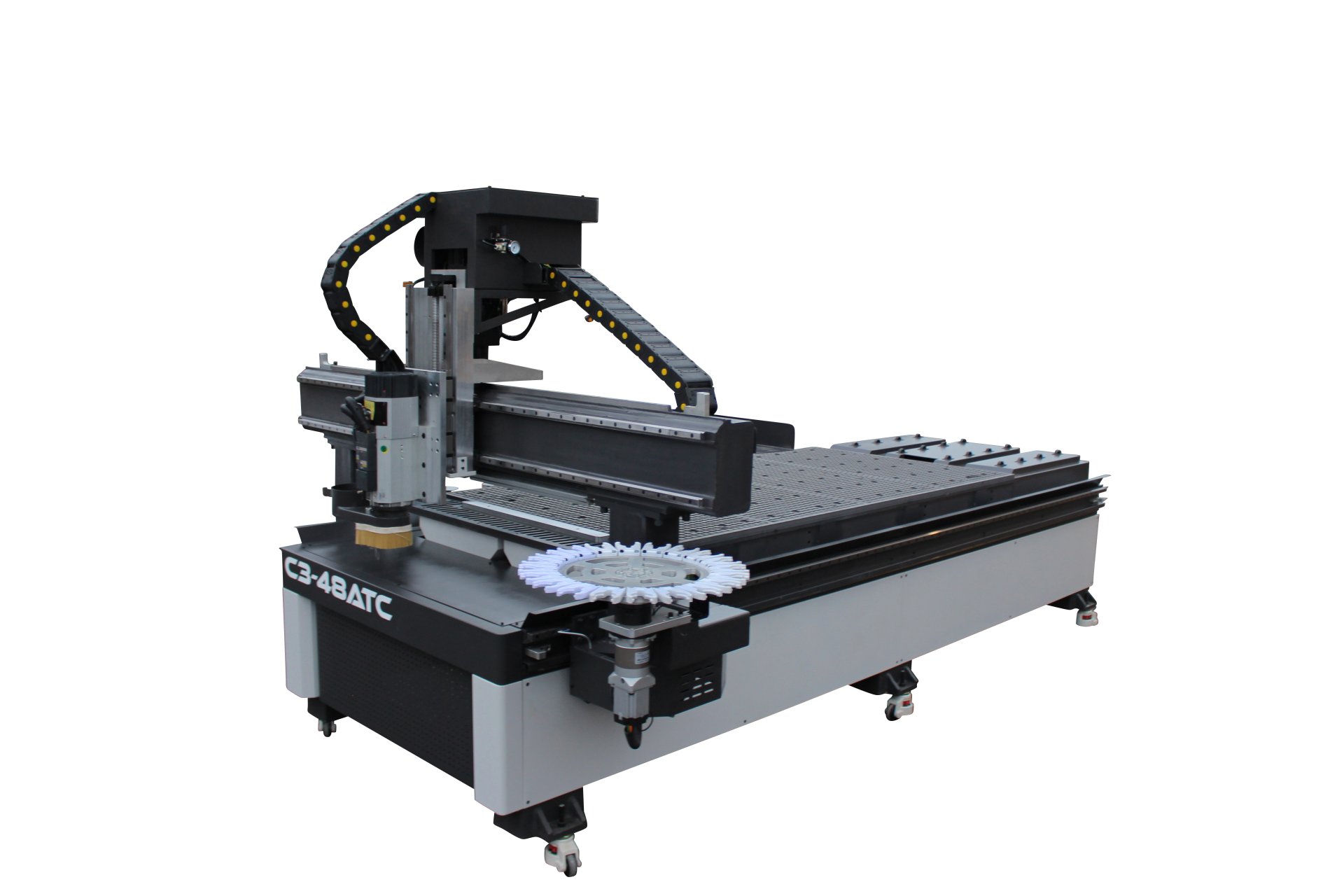

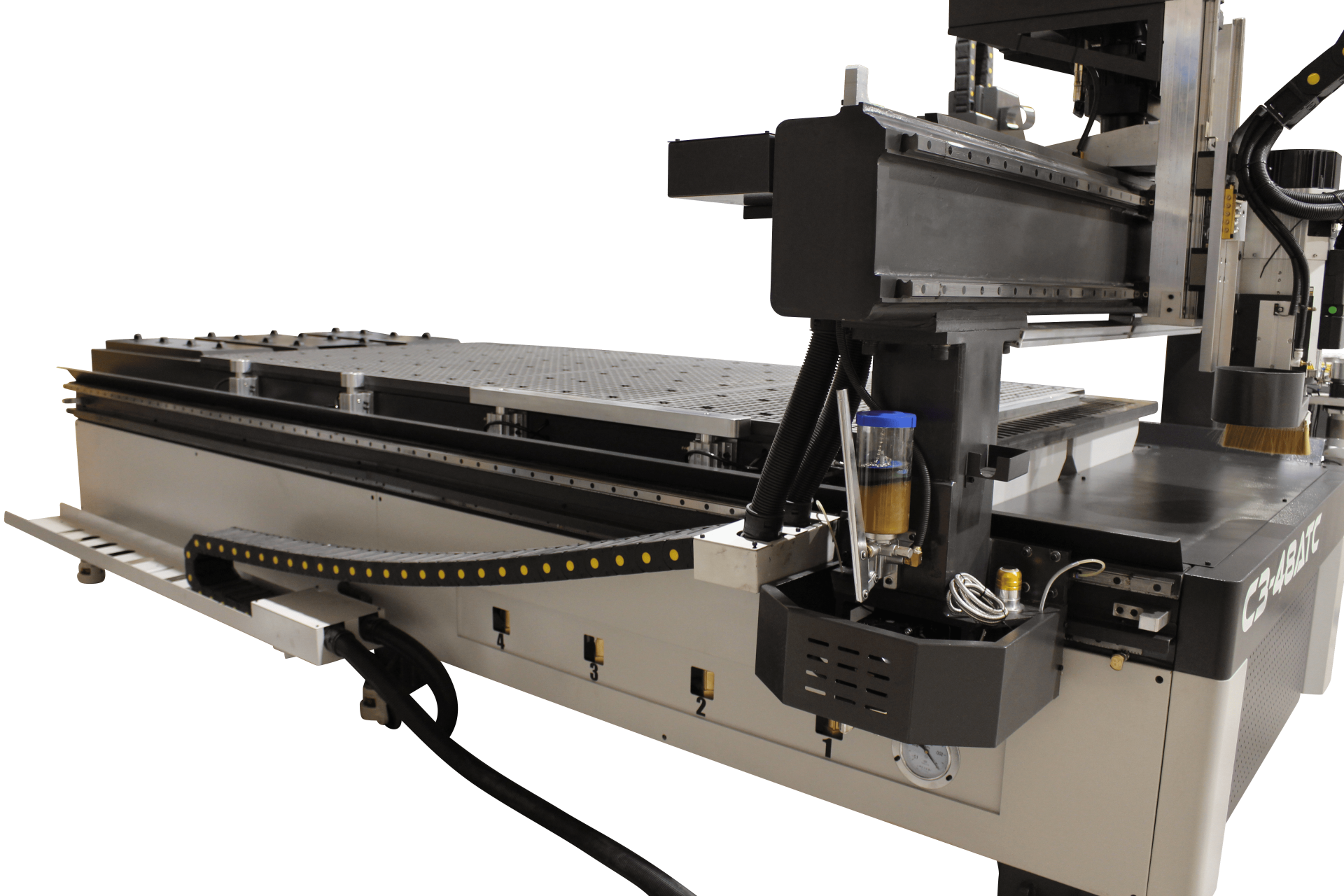

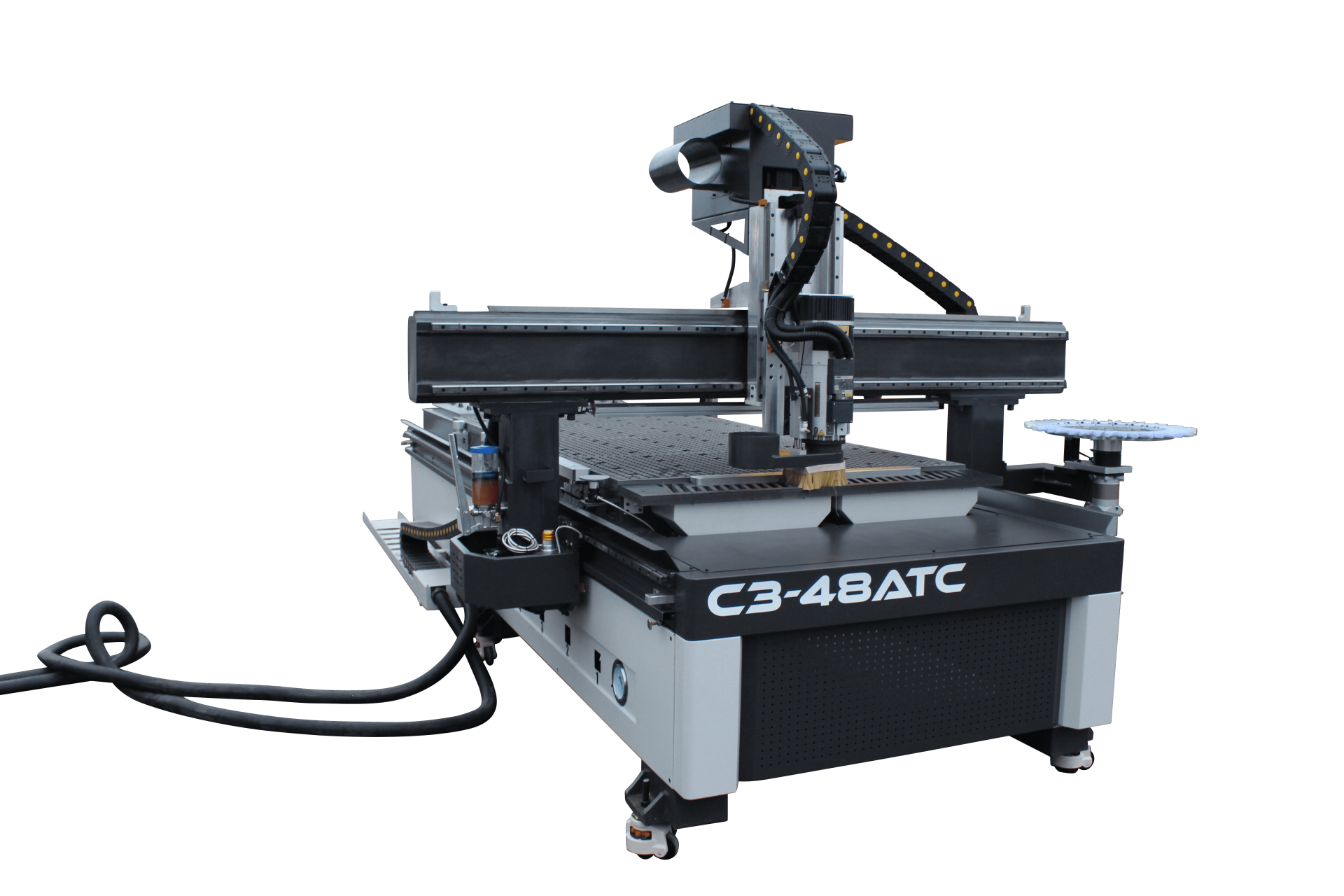

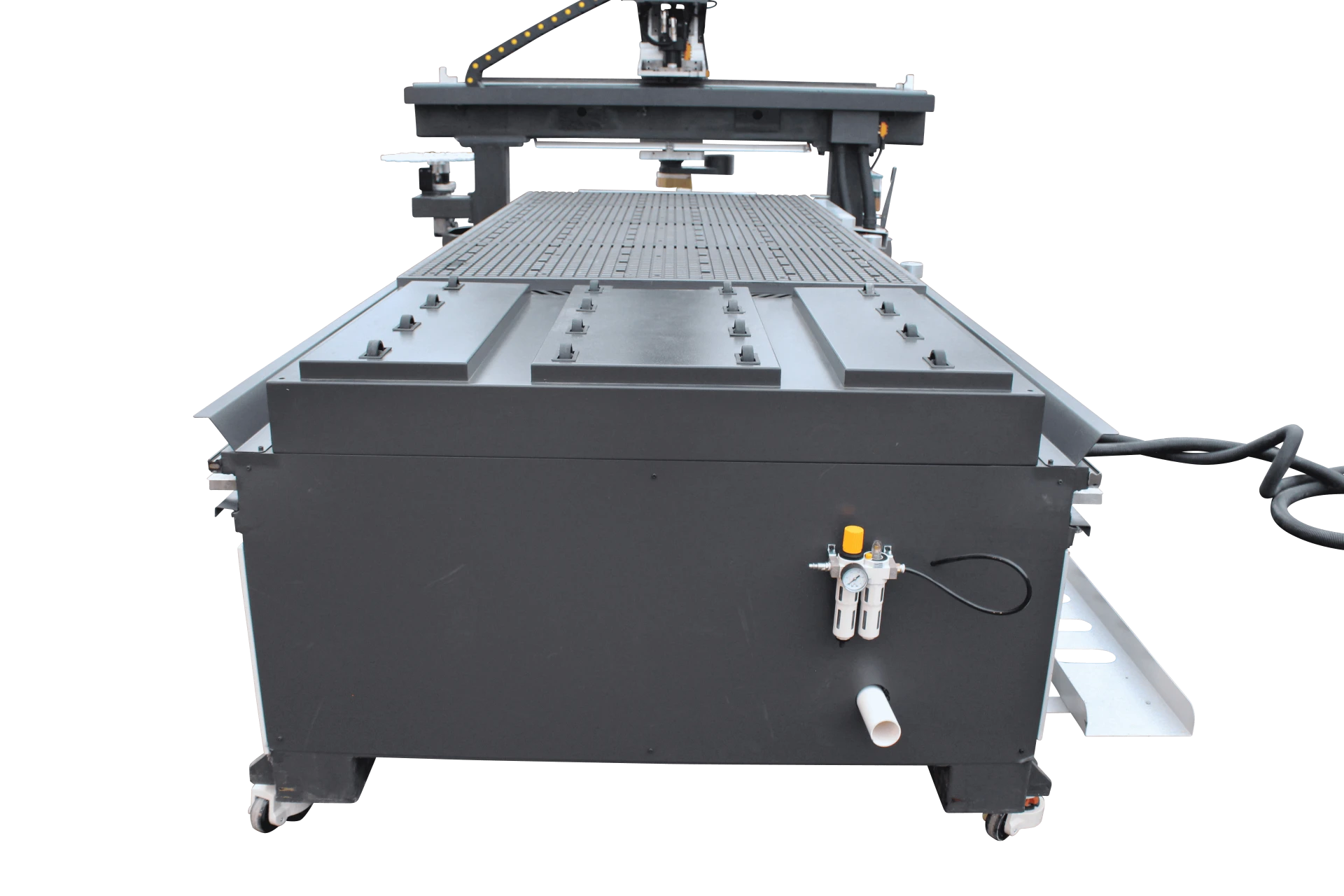

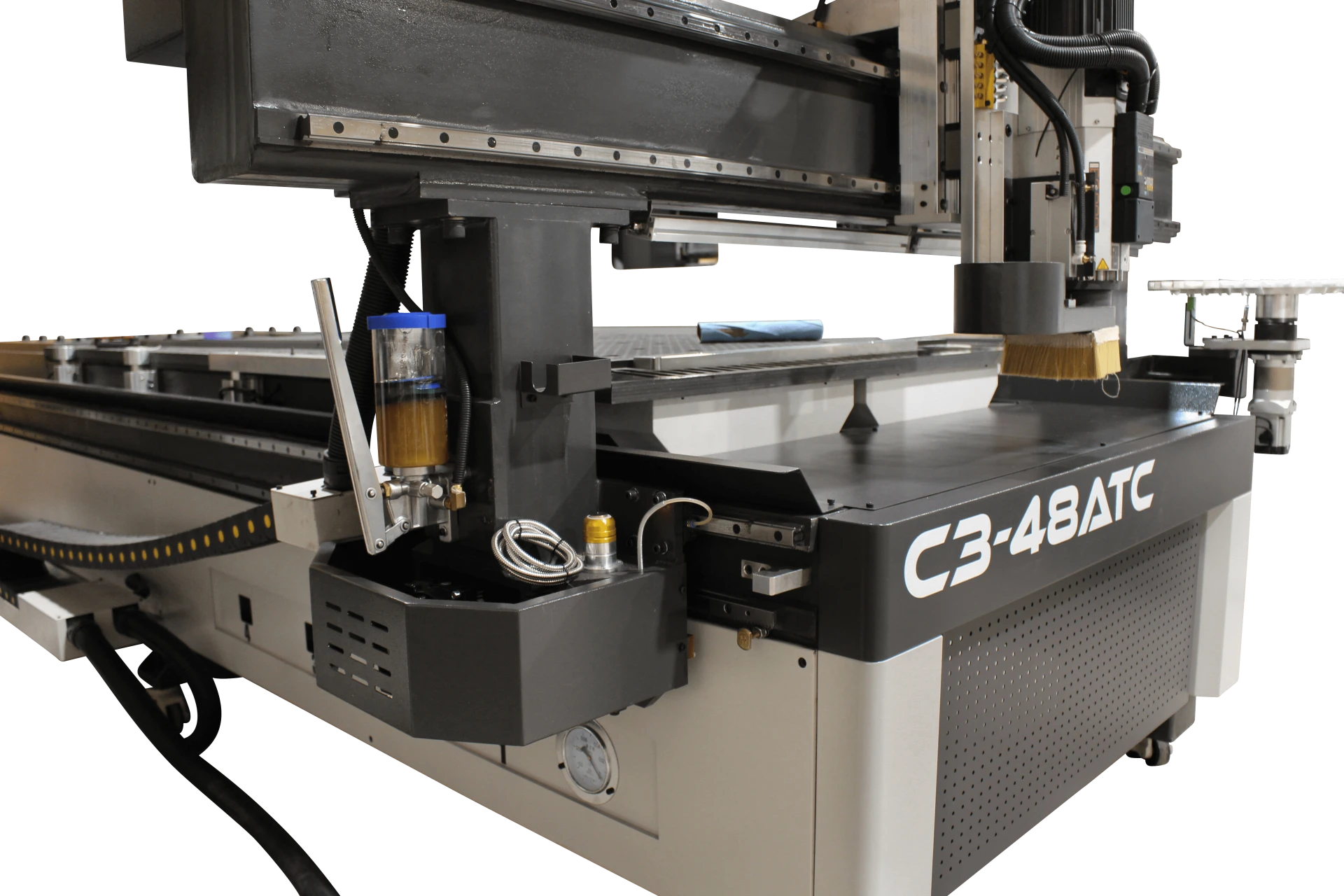

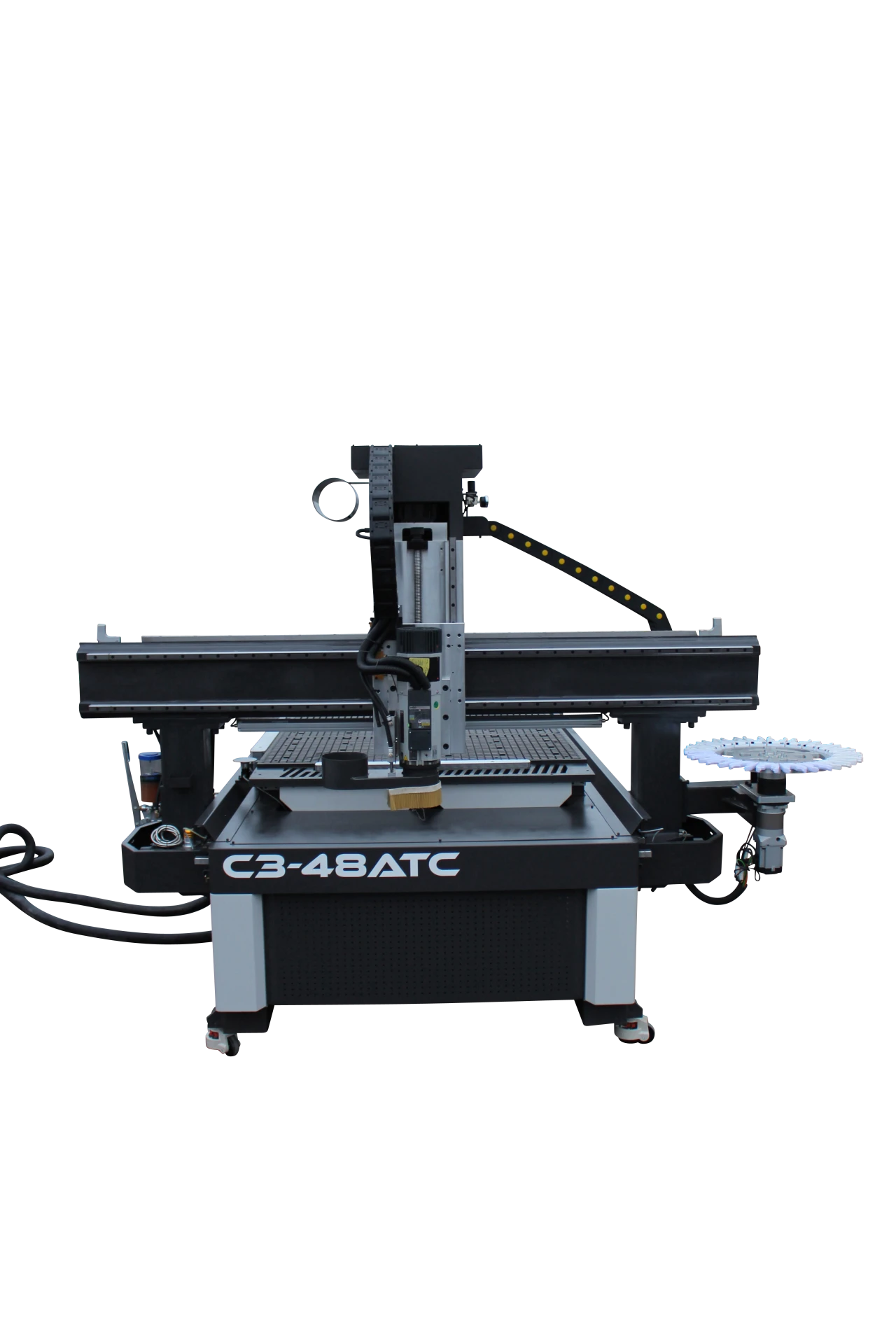

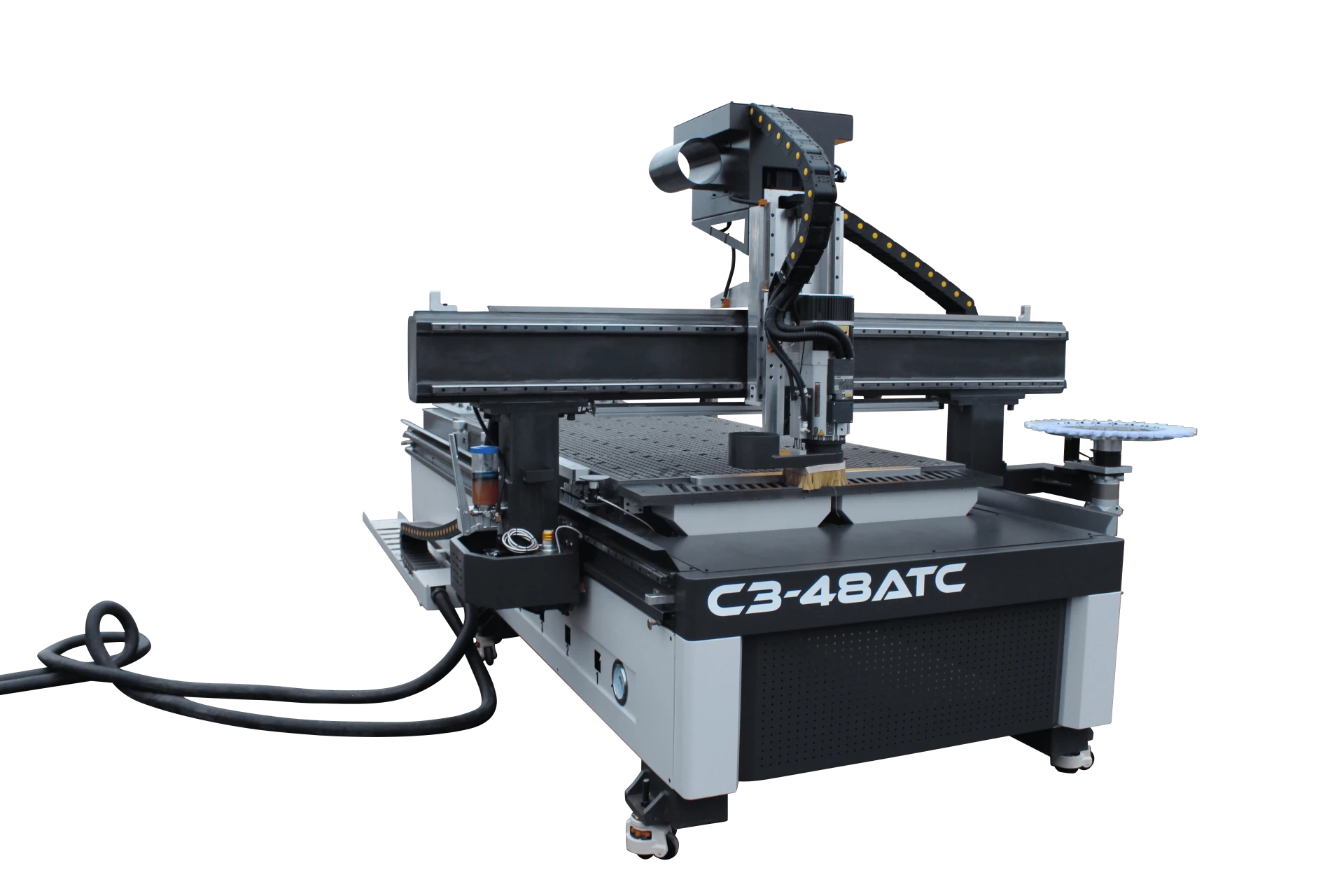

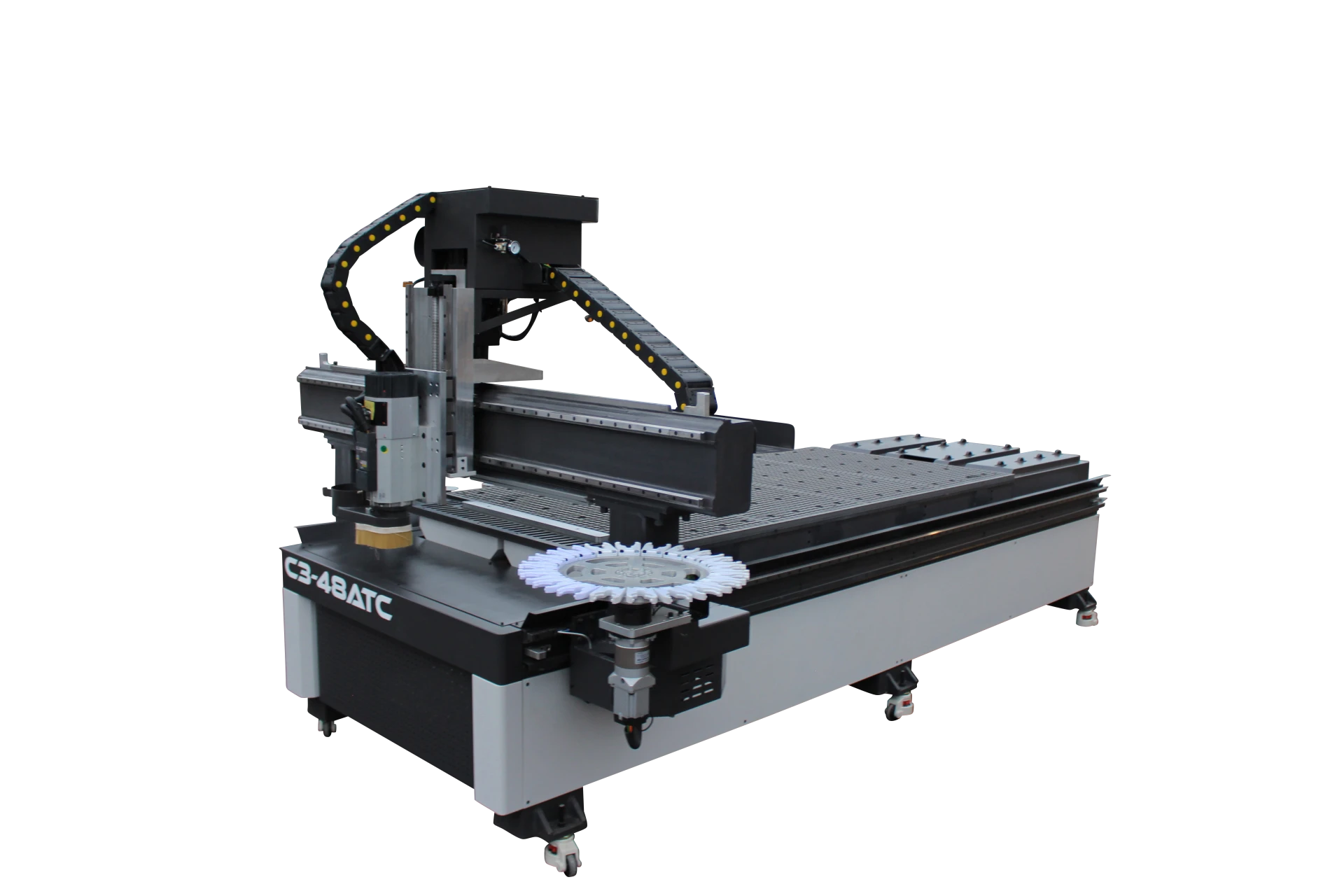

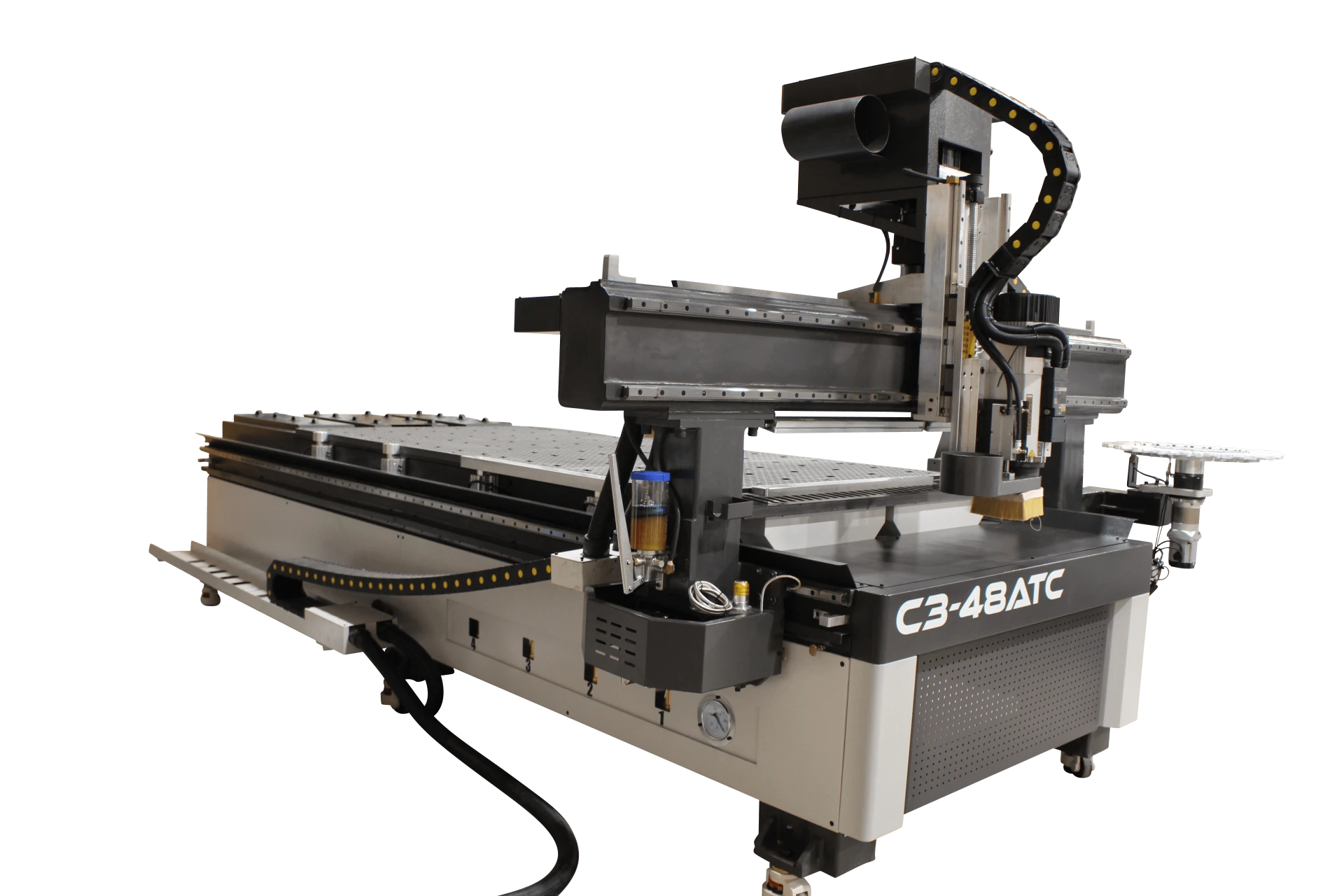

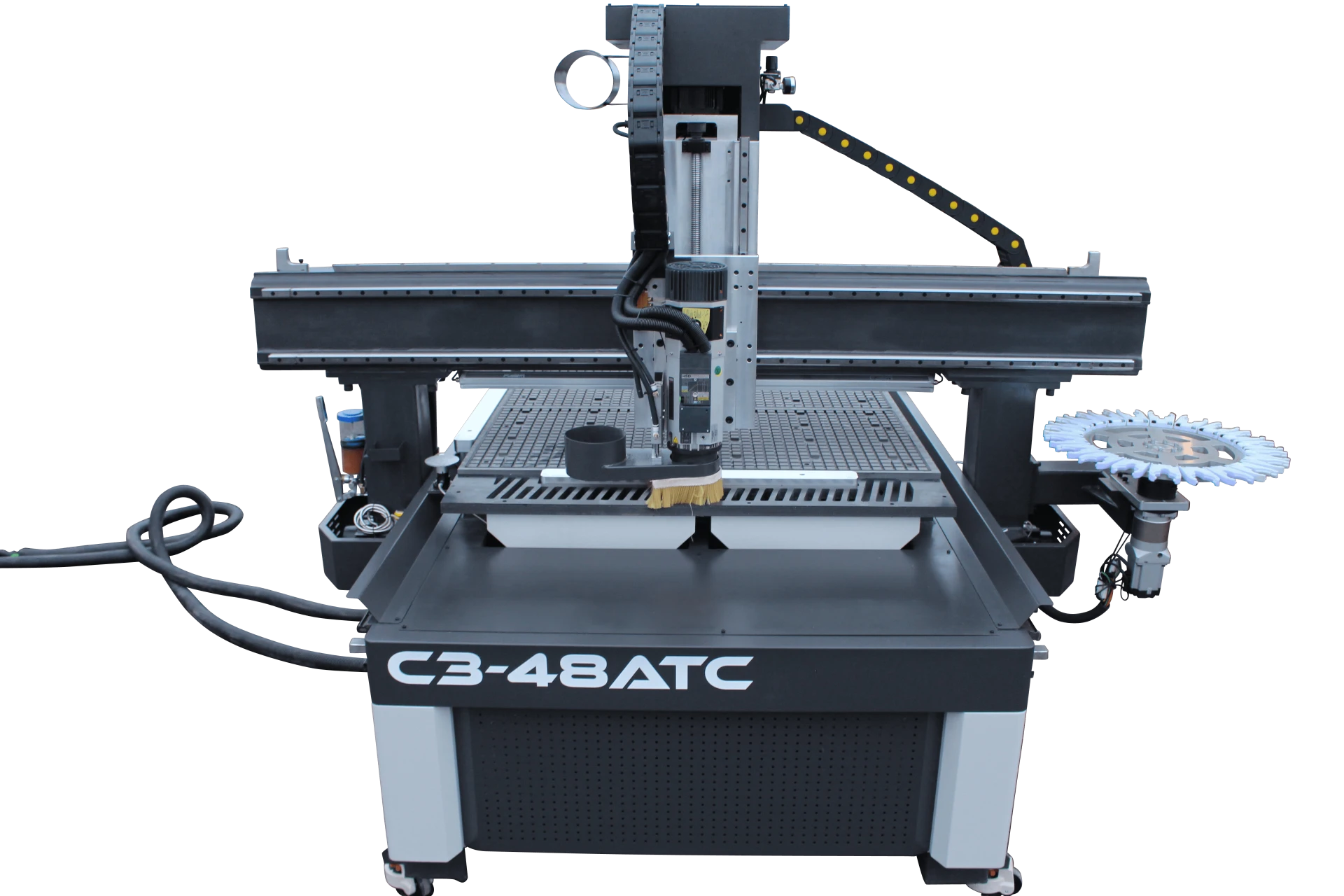

C3-48ATC Industrial 4x8' CNC Router
C3-48ATC
C3-48ATC Industrial 4x8' CNC Router

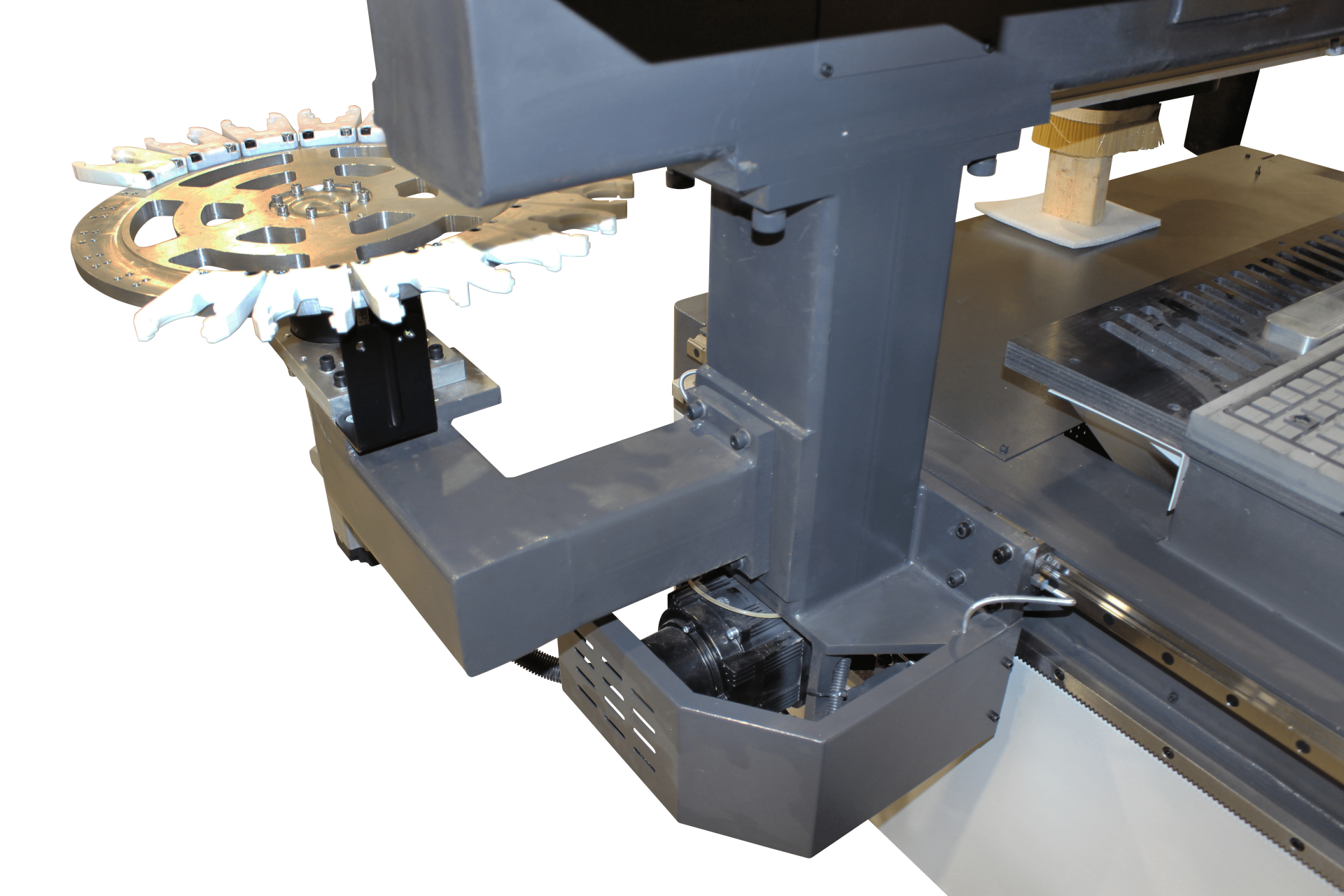

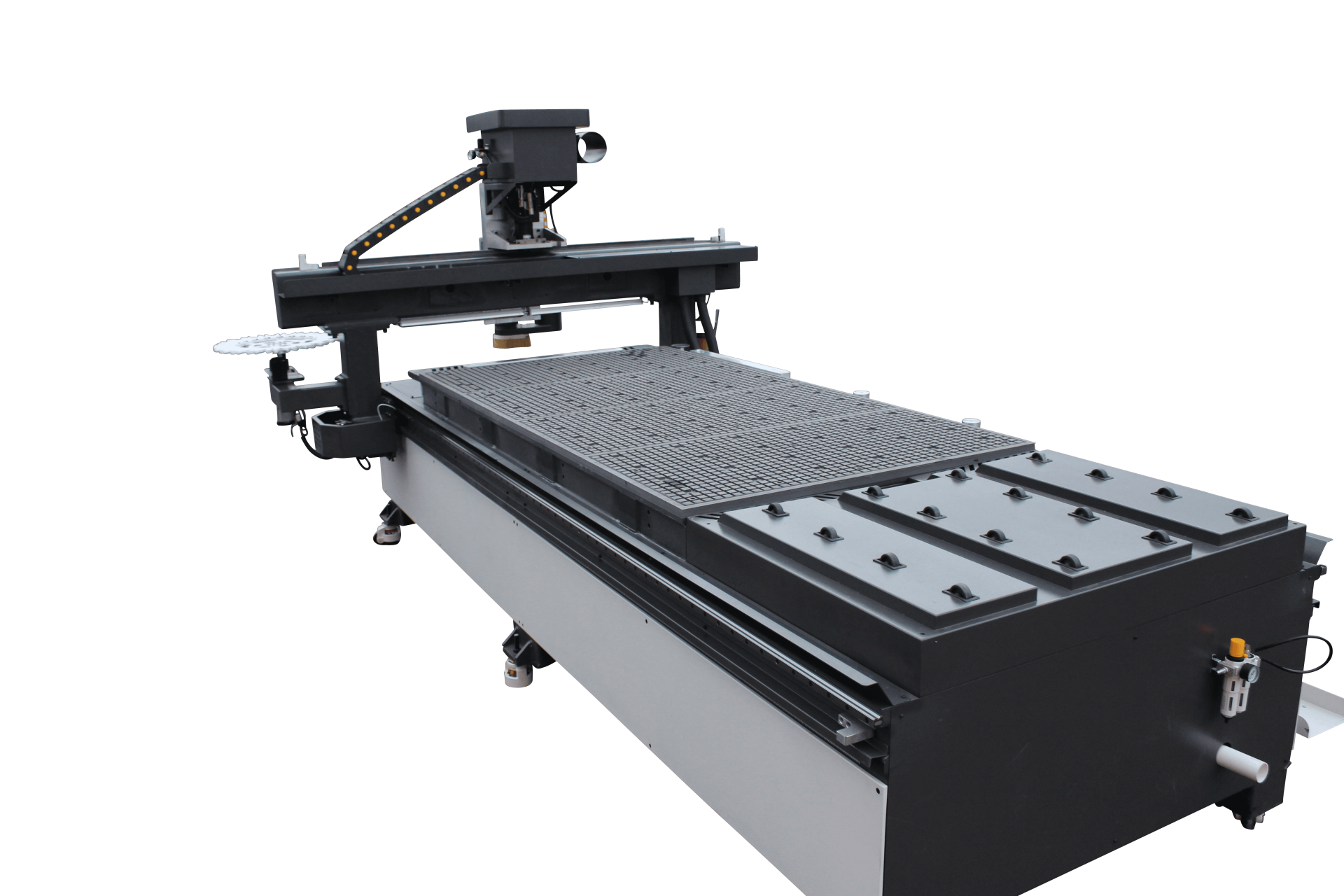

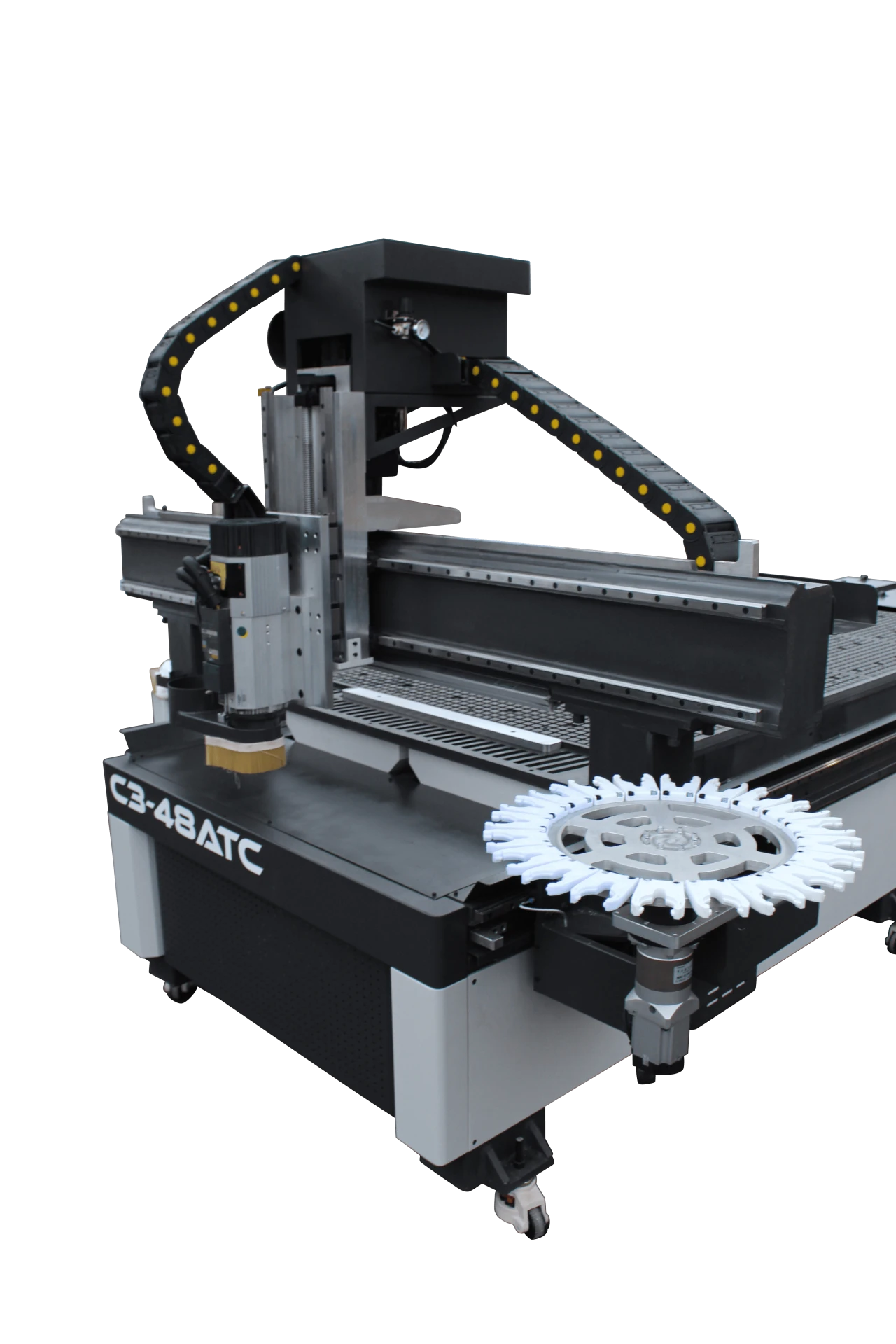

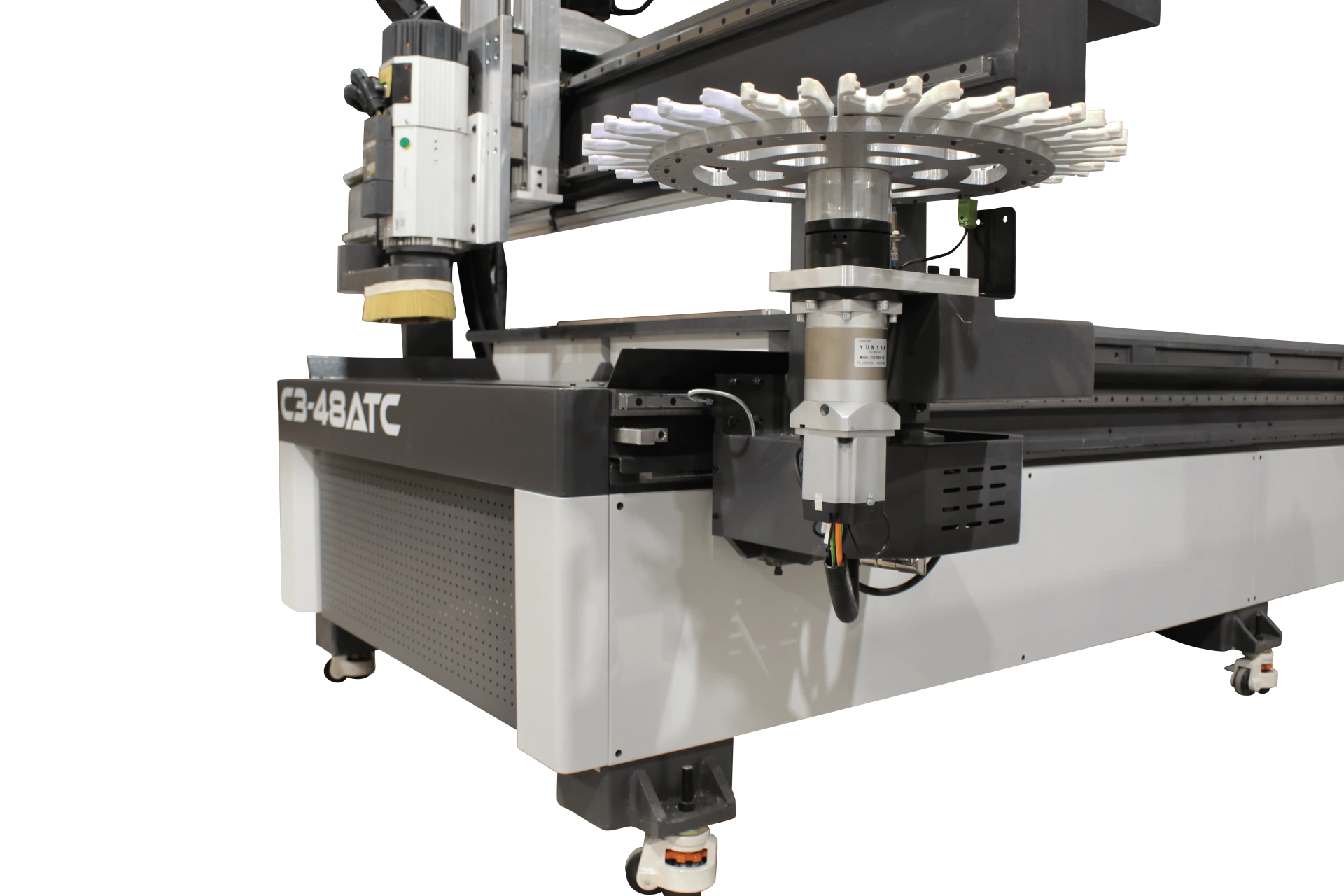

The C3 Series CNC machines are engineered and built for high volume production applications… at an impressive price point. Key design features allow fast, accurate cutting with guaranteed reliability. The C3 Series CNC machines are engineered and built for quicker tool changes with the carousel tool changer colocated with the spindle. Everything on this machine is designed and purpose built for heavy duty industrial routing including the larger servos ,thicker steel frame along with the substantial linear guide components when compared to the C2. The CNC machine is designed for high production applications and can be manufactured up to 40' in length. Unlike competitors who charge for upgraded components or add on accessories,CanCam has include a number of these as standard feature such as pneumatic solenoid-actuated vacuum zones, pop up location pins, easy sheet rollers, castors, a matrix vacuum table, helical rack and pinion motor mount, planetary gear vs. belt driven gantry , centralized lubrication along with two calibrators, one fixed and one mobile.
Item related to this Product
-
$5,124.00 -
$6,406.00 -
$13,488.00 -
$7,818.00 -
-
$1375 -
$1450 -
$420 -
$279.99 -
$9 -
$3,450.00 -
$4,400.00 -
-
-
$900 -
$2500 -
$2000
-
$1050 -
$1900 -
$1550 -
$420
-
$420 -
$420 -
$420 -
$9
Description

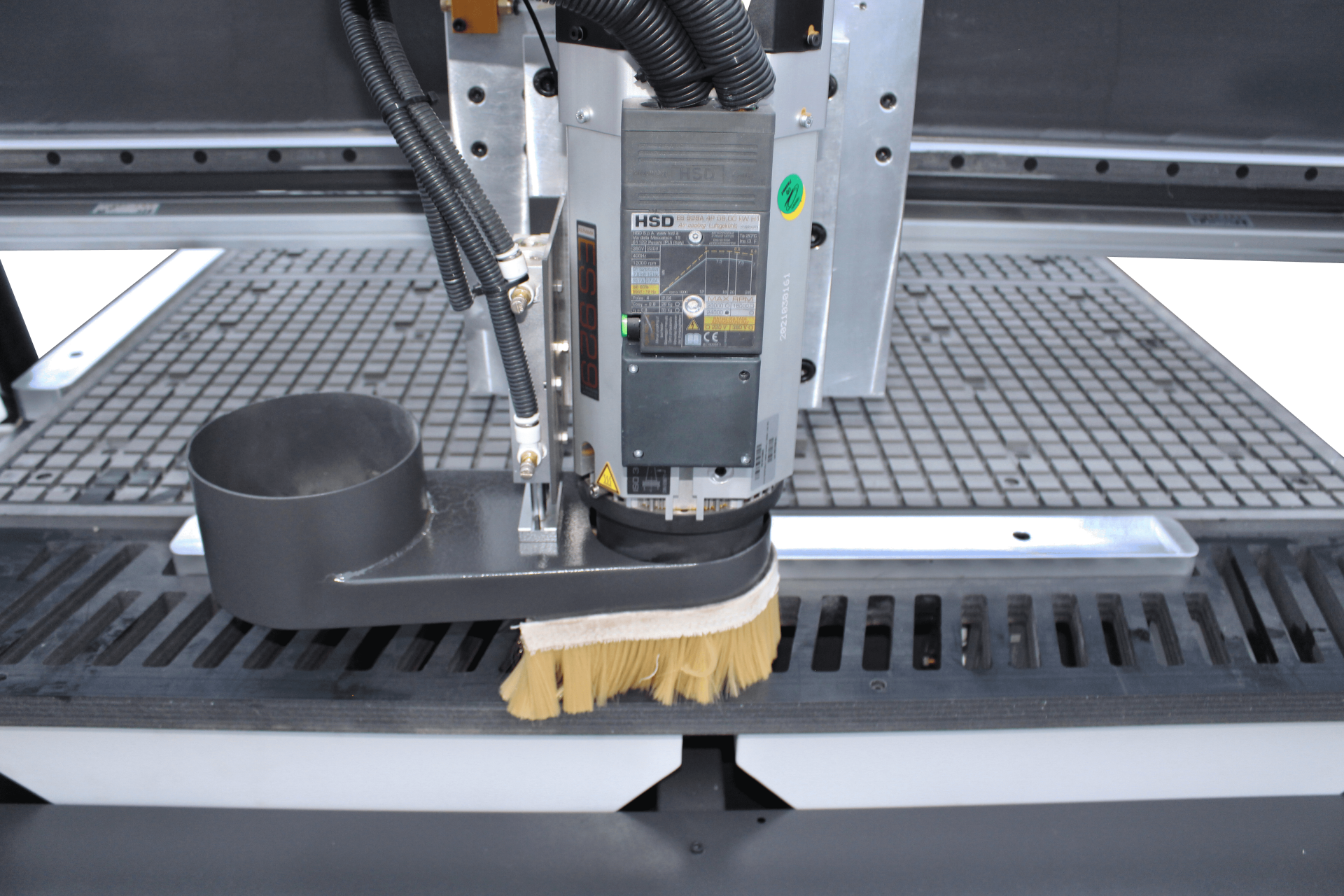

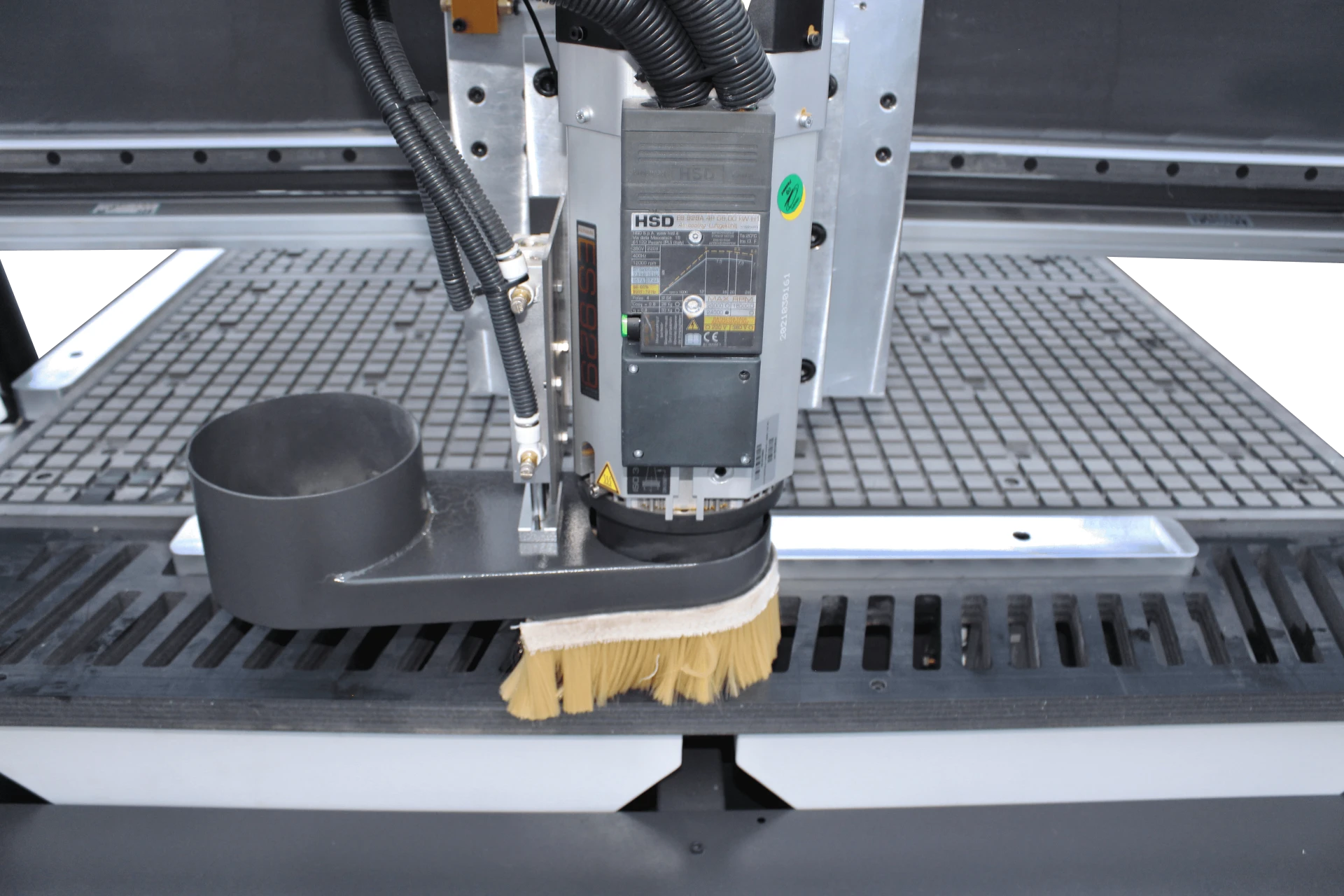

This machine’s rugged vibration-reducing design and durability allows the spindle to achieve speeds of up to 24000 RPM and IPM feed rate up to 1200. This ensures the finishing on the material of your choice will be perfect, with minimized cutting time. Minimized cutting time allows you to complete jobs faster thus maximizing your output.
The C3 series is designed to use the latest state of the art Masso controller. The Masso controller allows you to use both fixed and mobile auto tool touch offs, ensuring you save time when switching out tools at any point during the production.

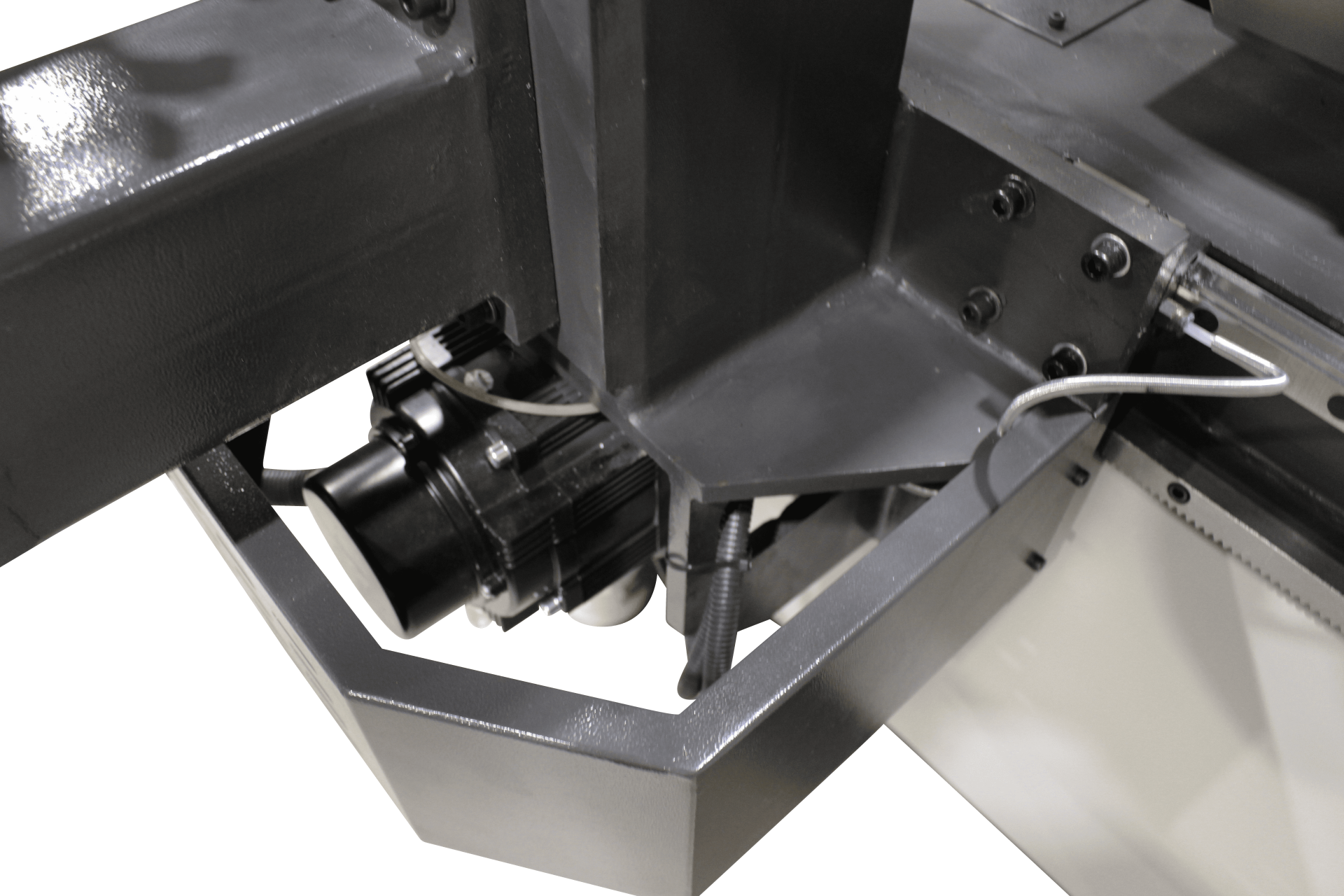

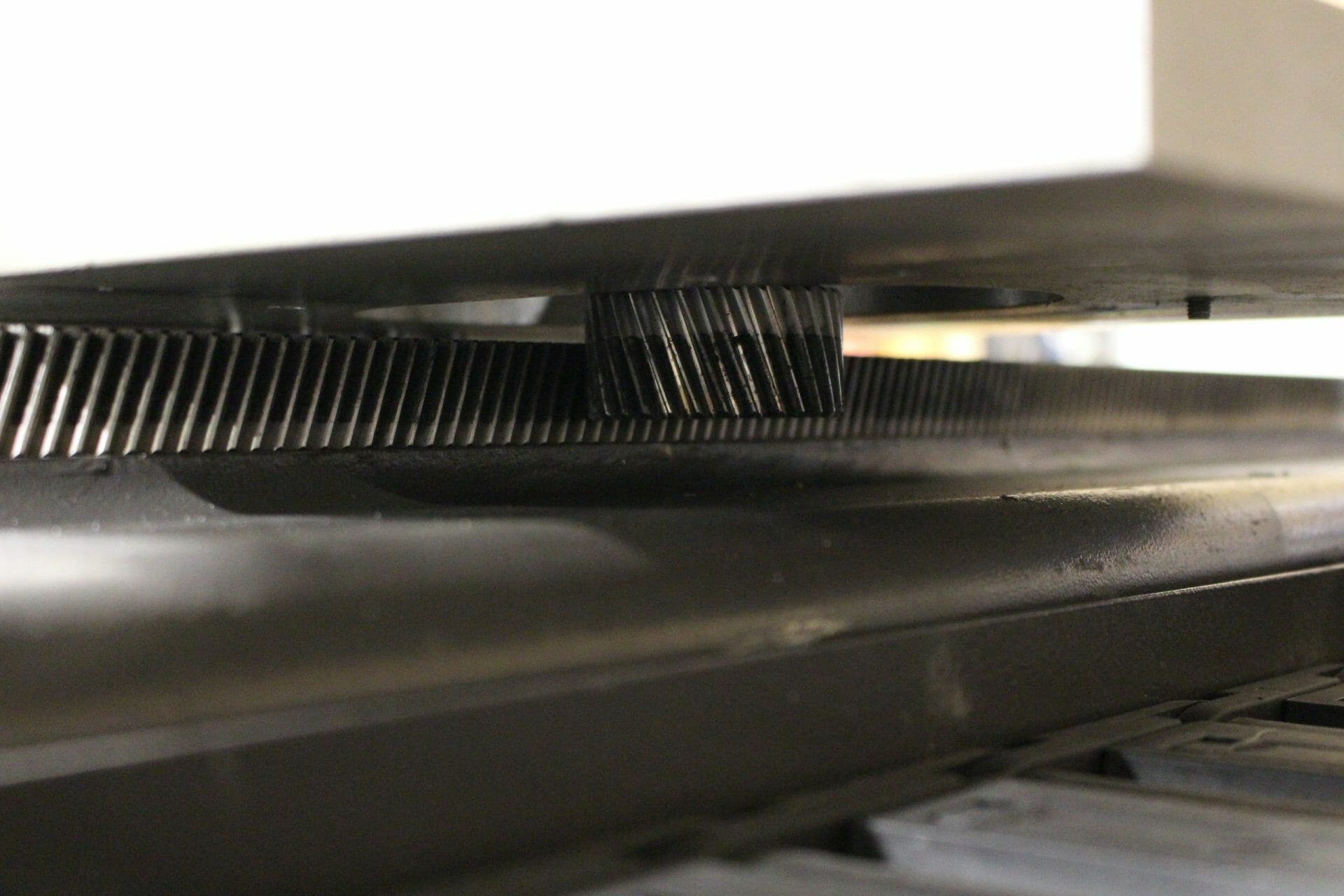

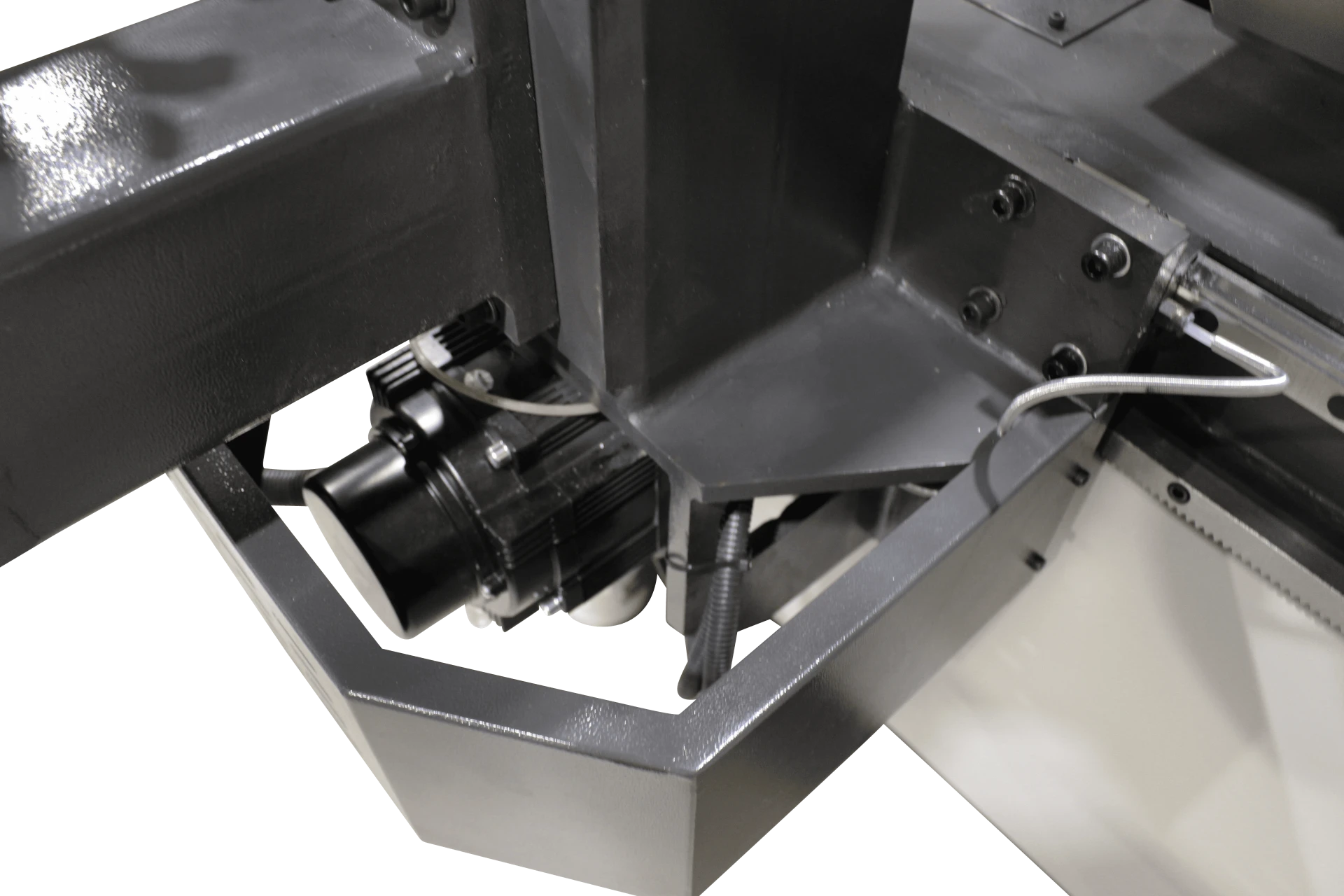

The C3 series industrial CNC routers come with closed loop servos, linear guides, helical rack and pinion motor mounts along with planetary gear reducers making this machine a high quality build with tighter tolerances typically found in ball screw machines without compromising cutting speed.
The carbon alloy steel gantry and prestressed frame are nearly 1/2” thick along with the 1” milled gantry support posts that contribute to reducing vibration without compromising accuracy.
Flexibility in the product offering is available through increased gantry heights up to 15” clearance, variety of table top options.
This model is available in a variety of sizes ranging from 4’ wide to 40′ in length.
The combination of the engineering and quality components built into this design ensure that you get the ‘Up in class, Down in price’ that CanCam is committed to delivering to all its customers.
Product Features

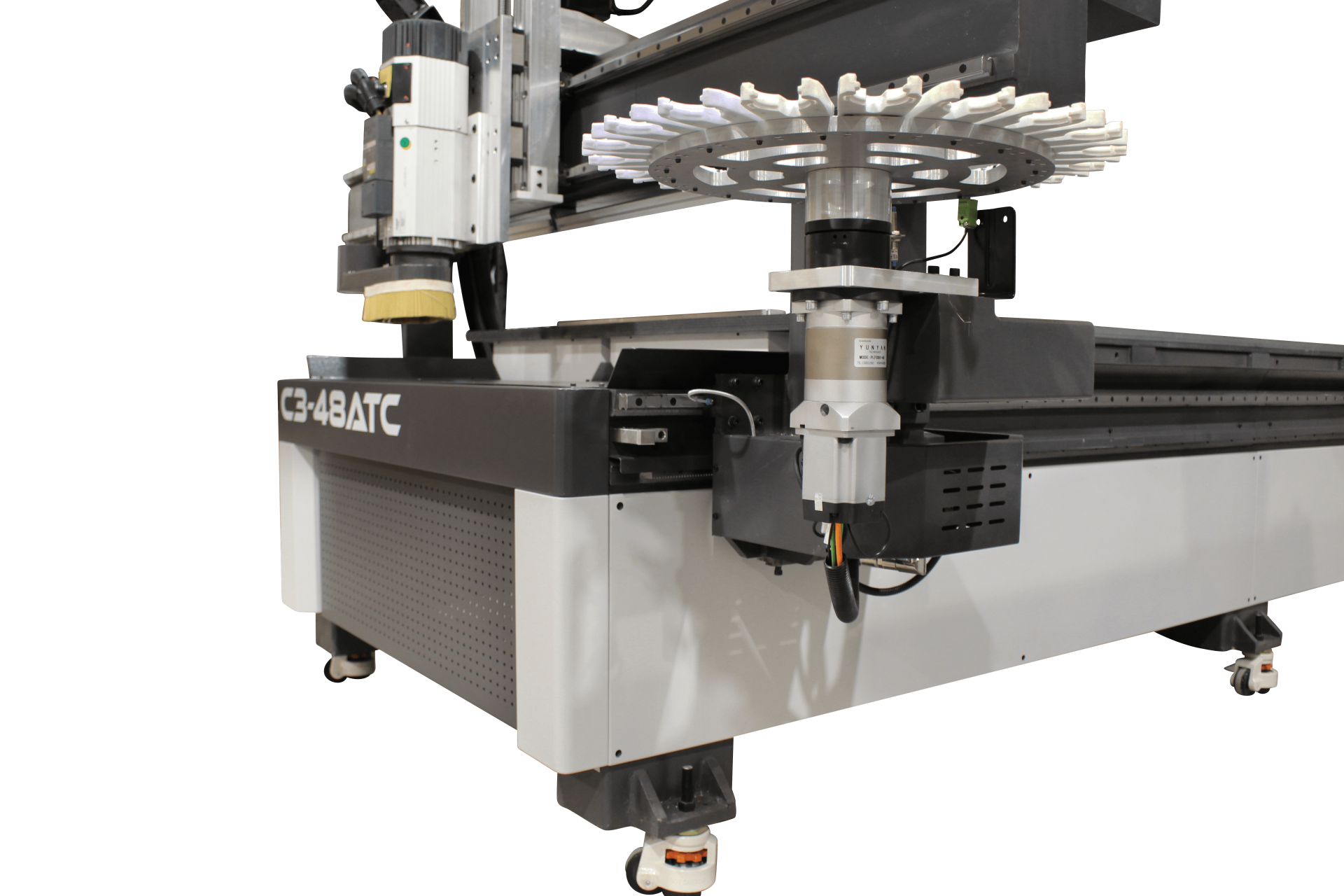

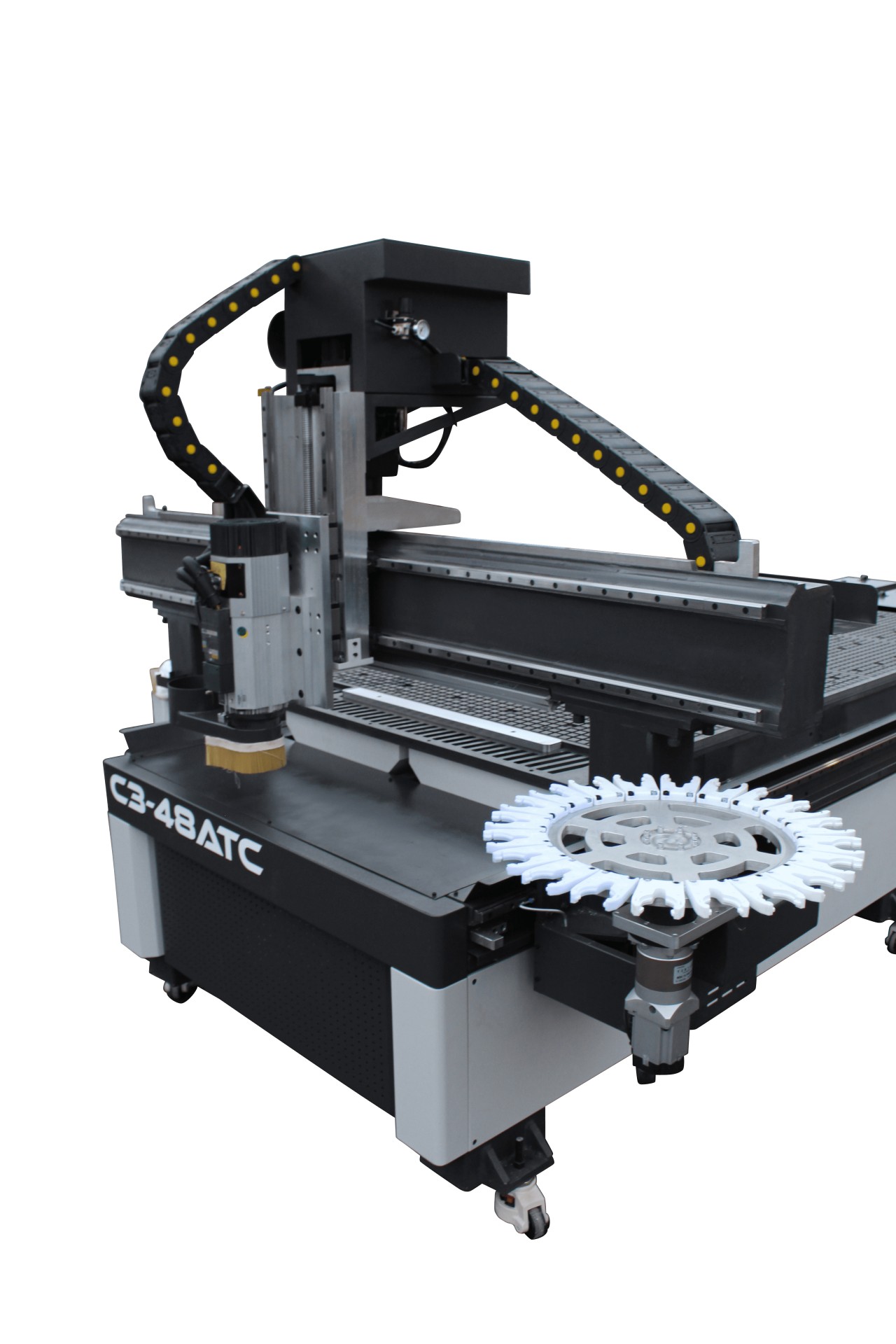

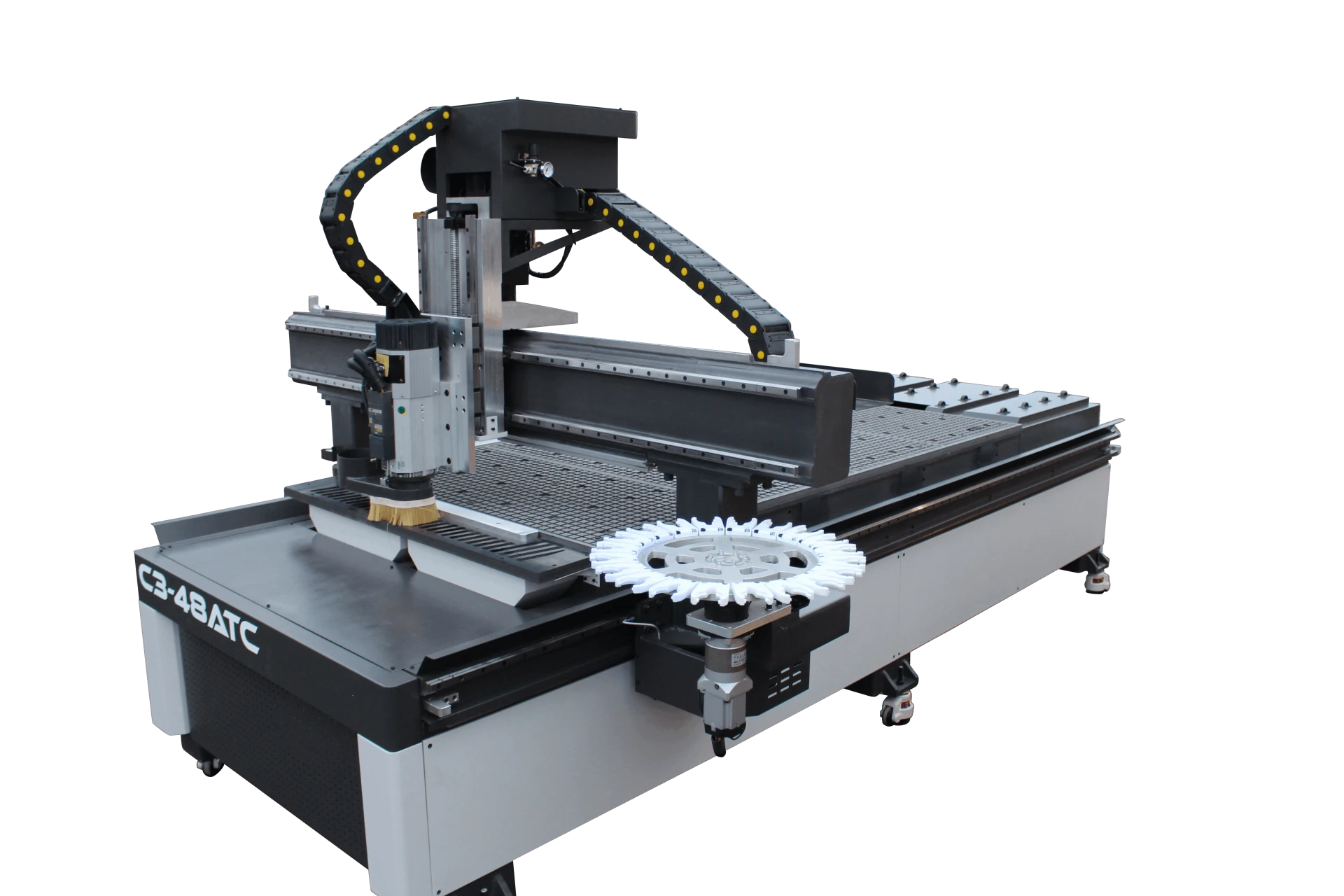

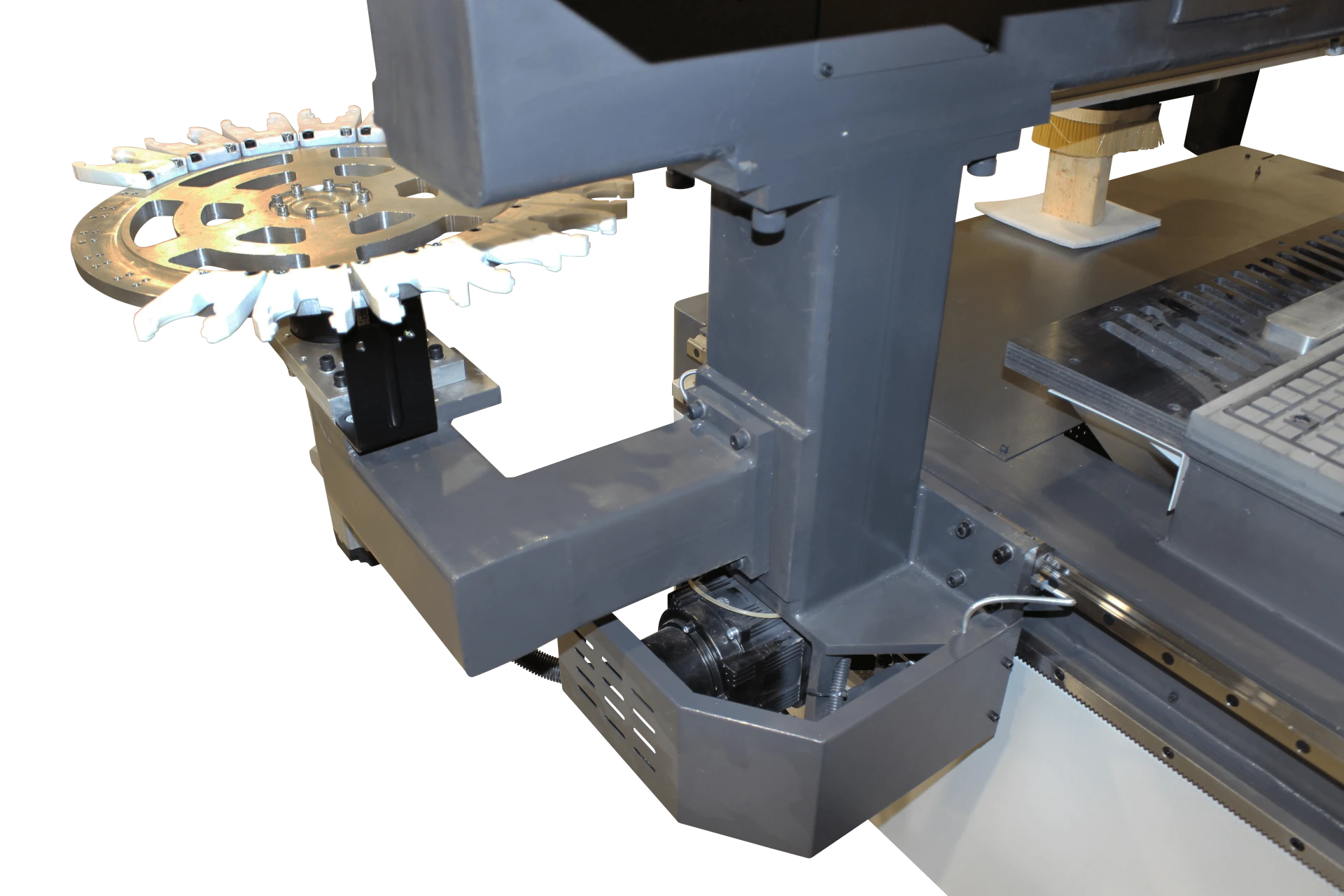

| Carousel tool changer |
 | Pneumatic Solenoid actuated vacuum zones |
| Two calibrators |

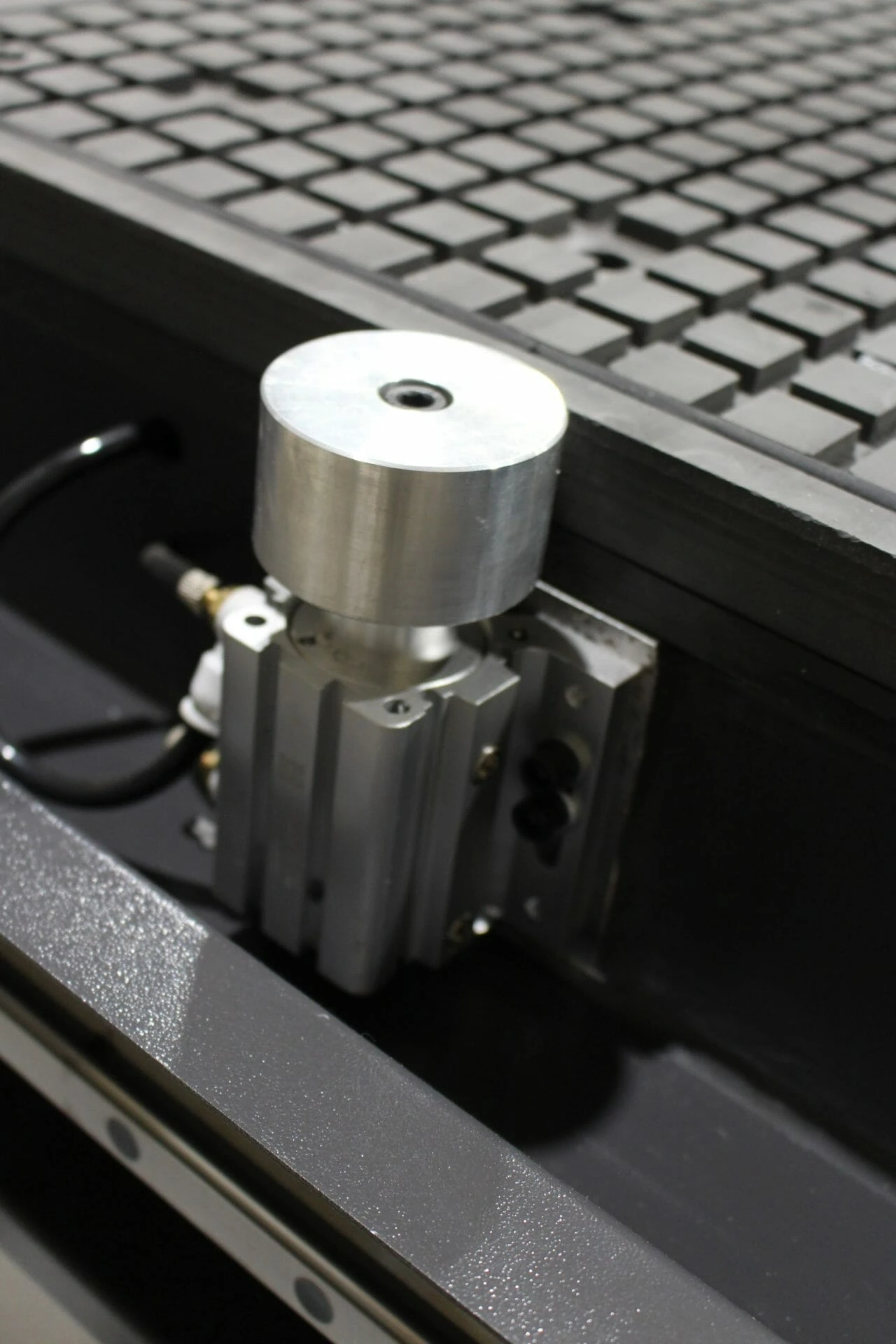

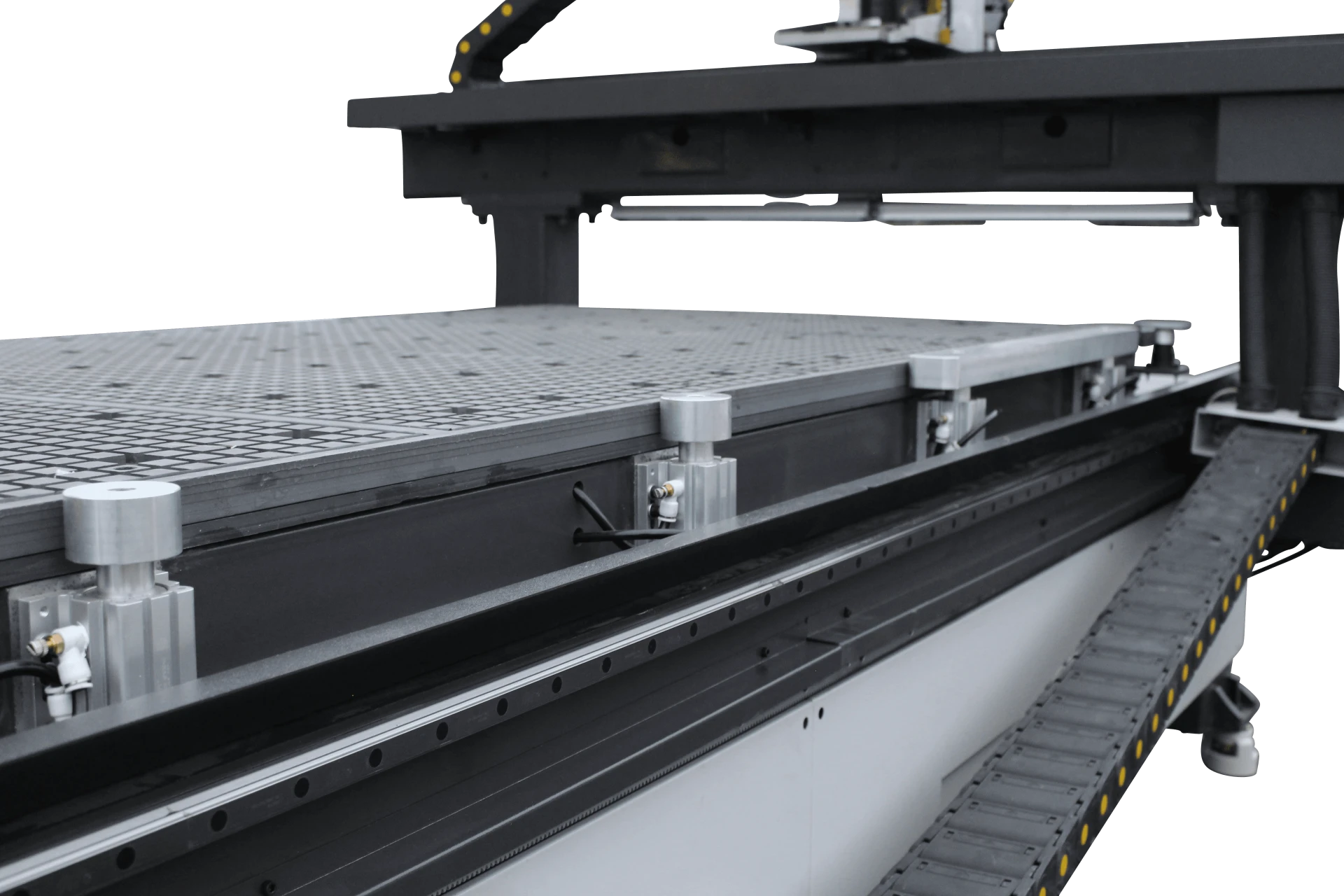

 | Easy sheet rollers |

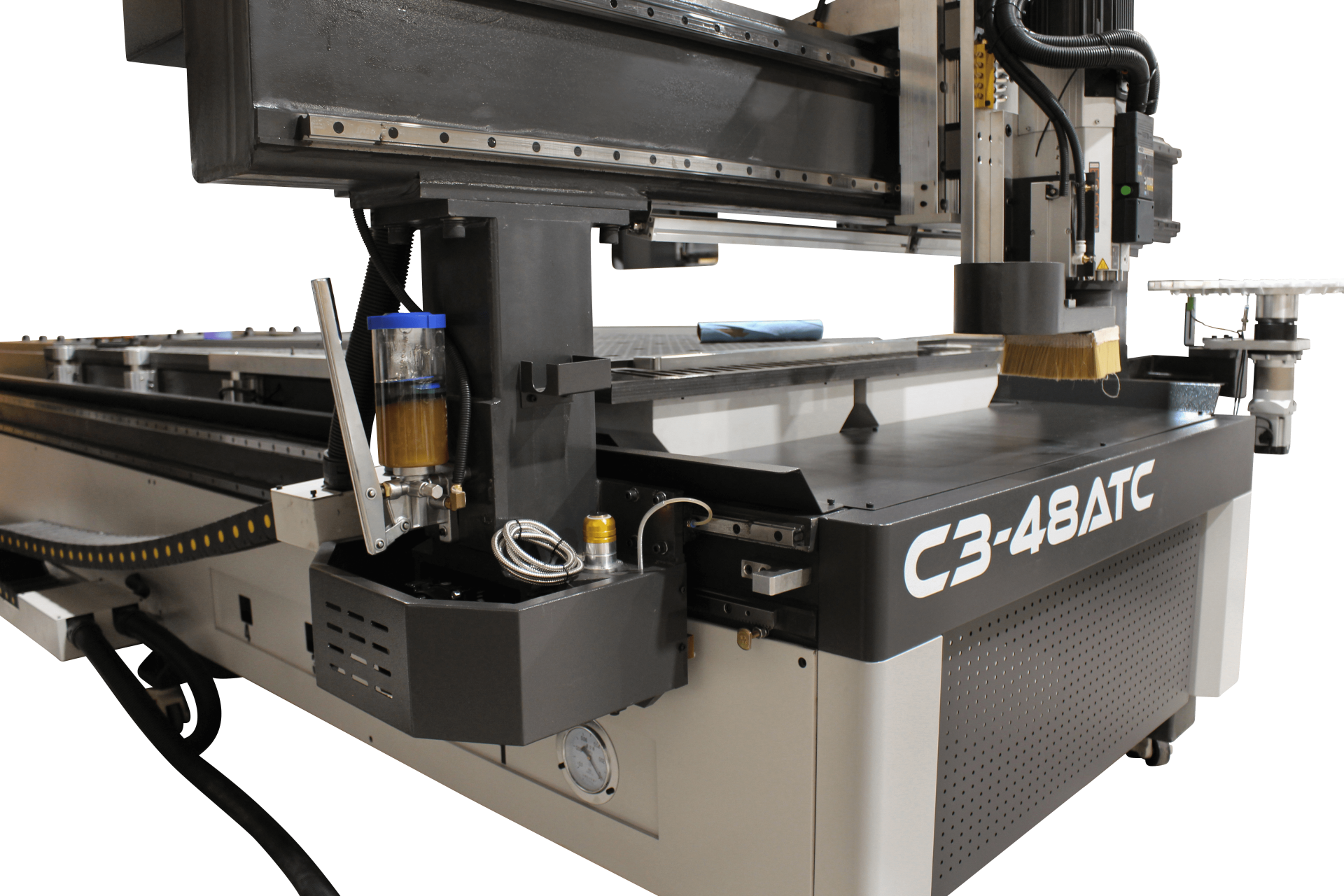

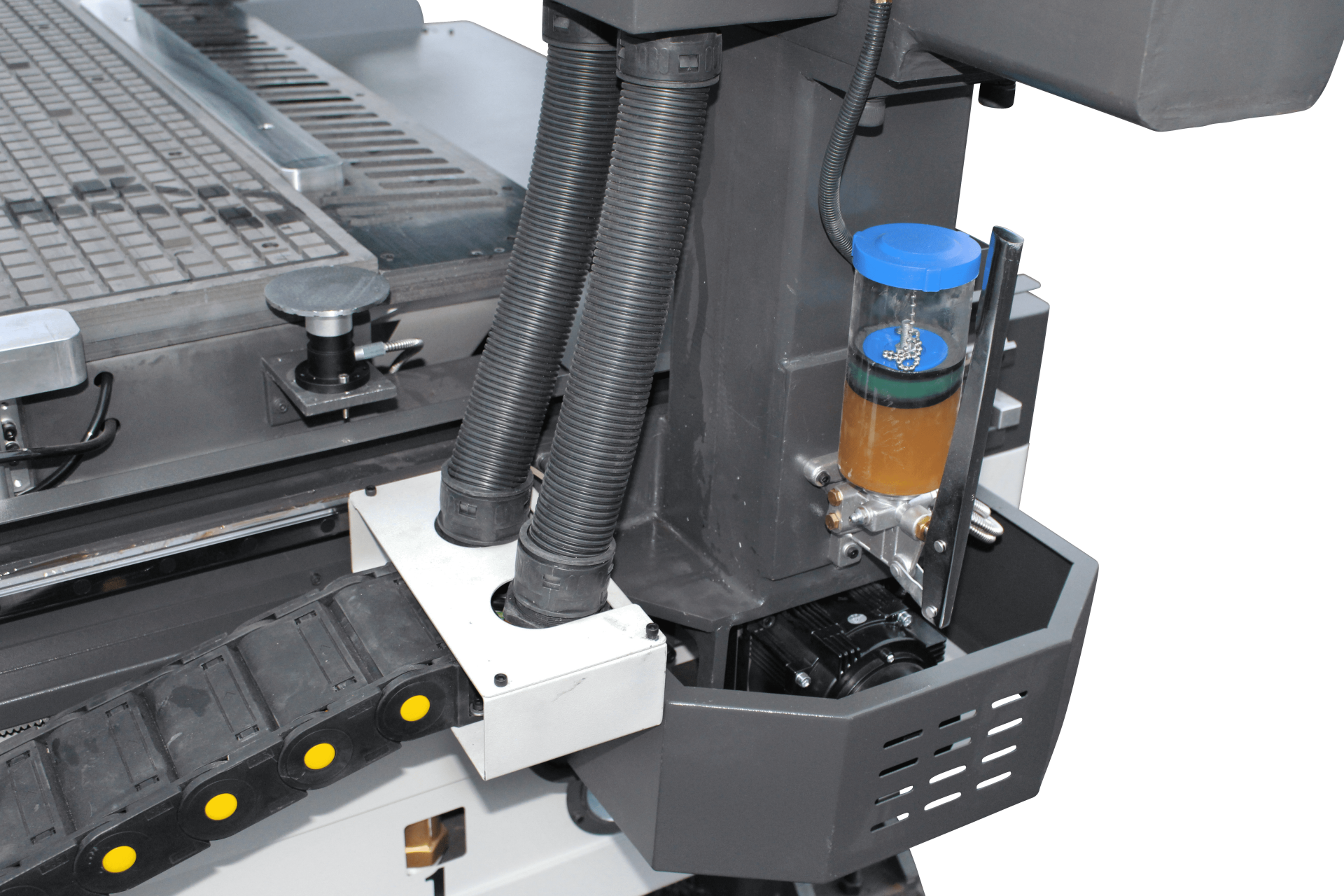

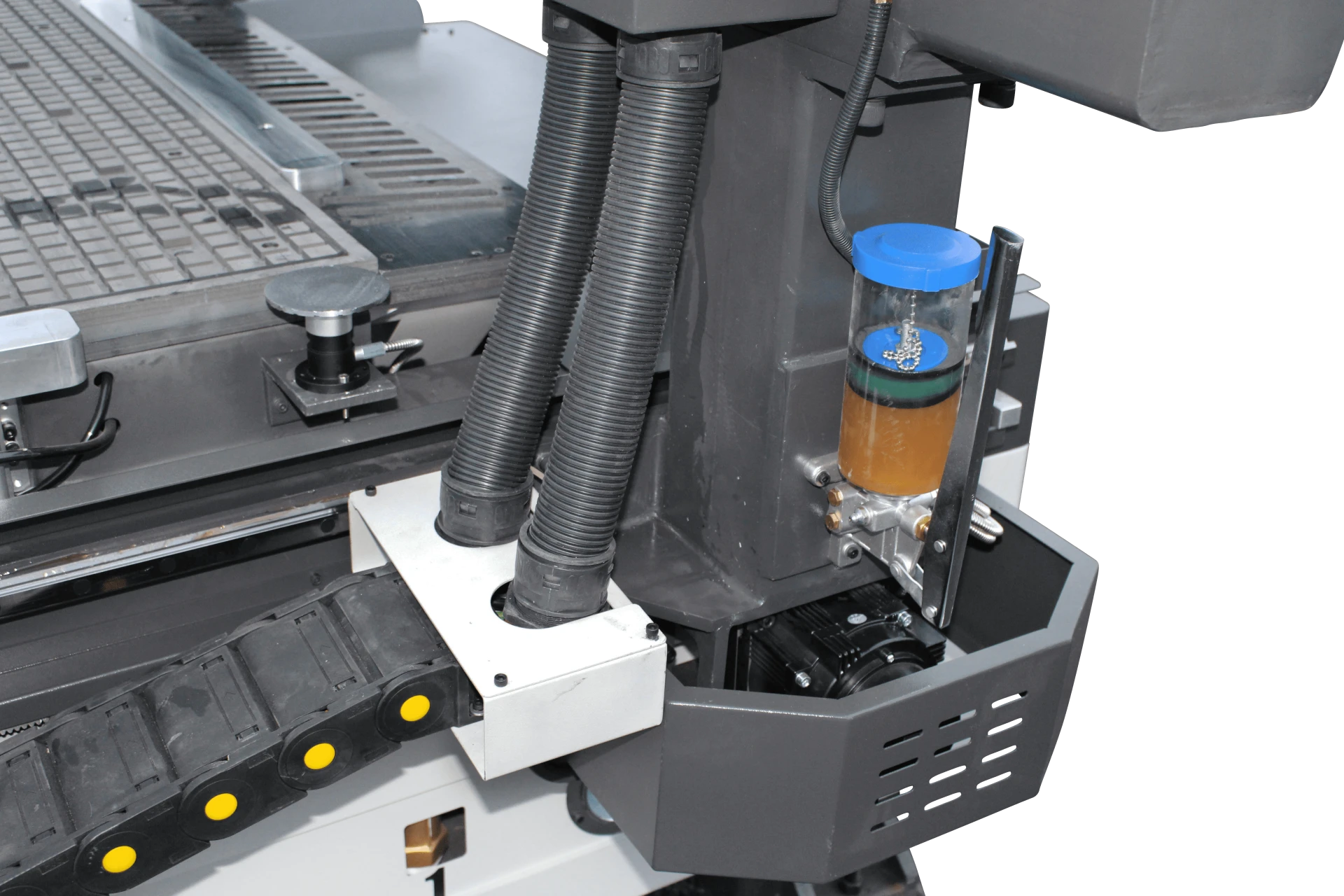

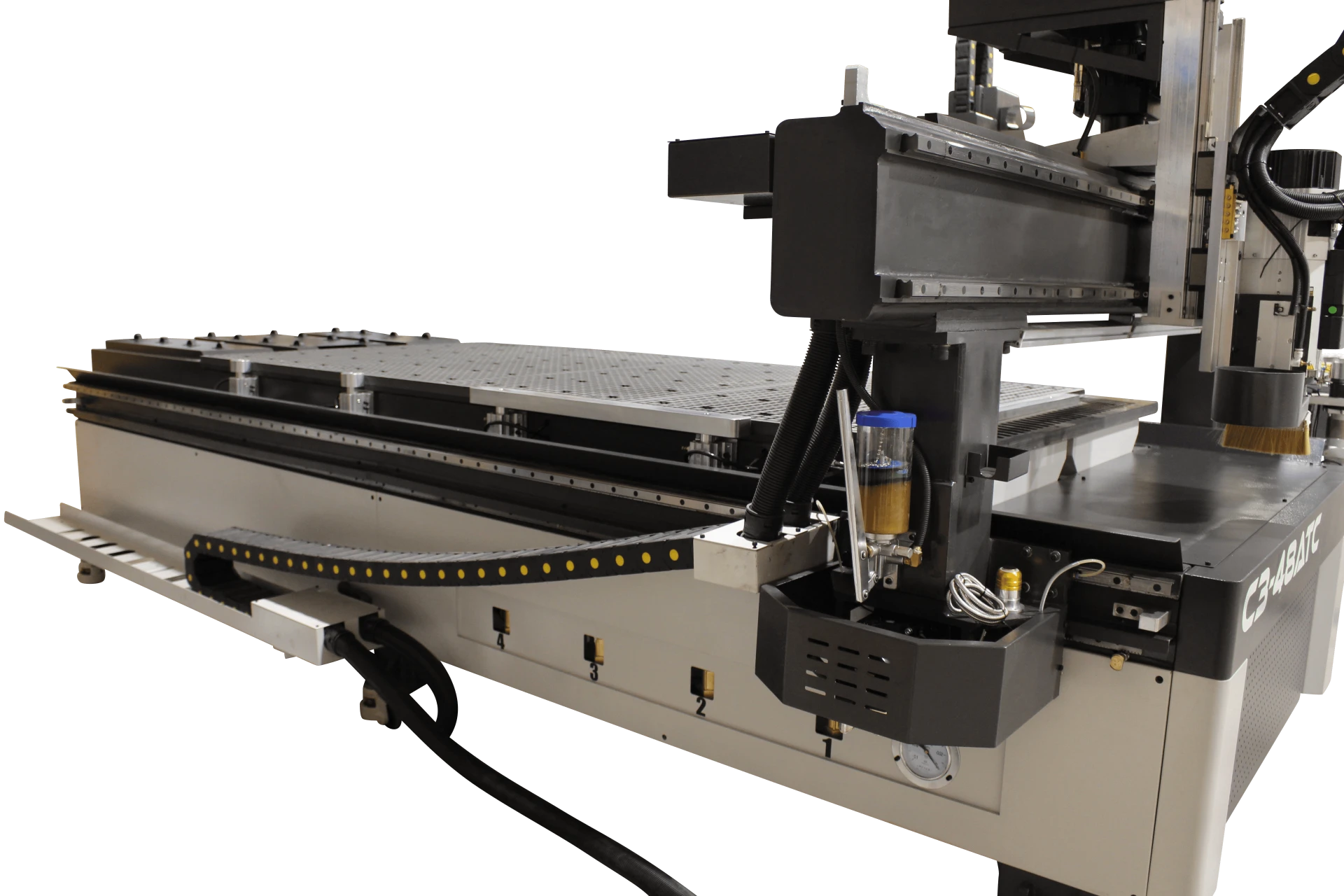

| Integrated lubrication system |
 | Low maintenance |

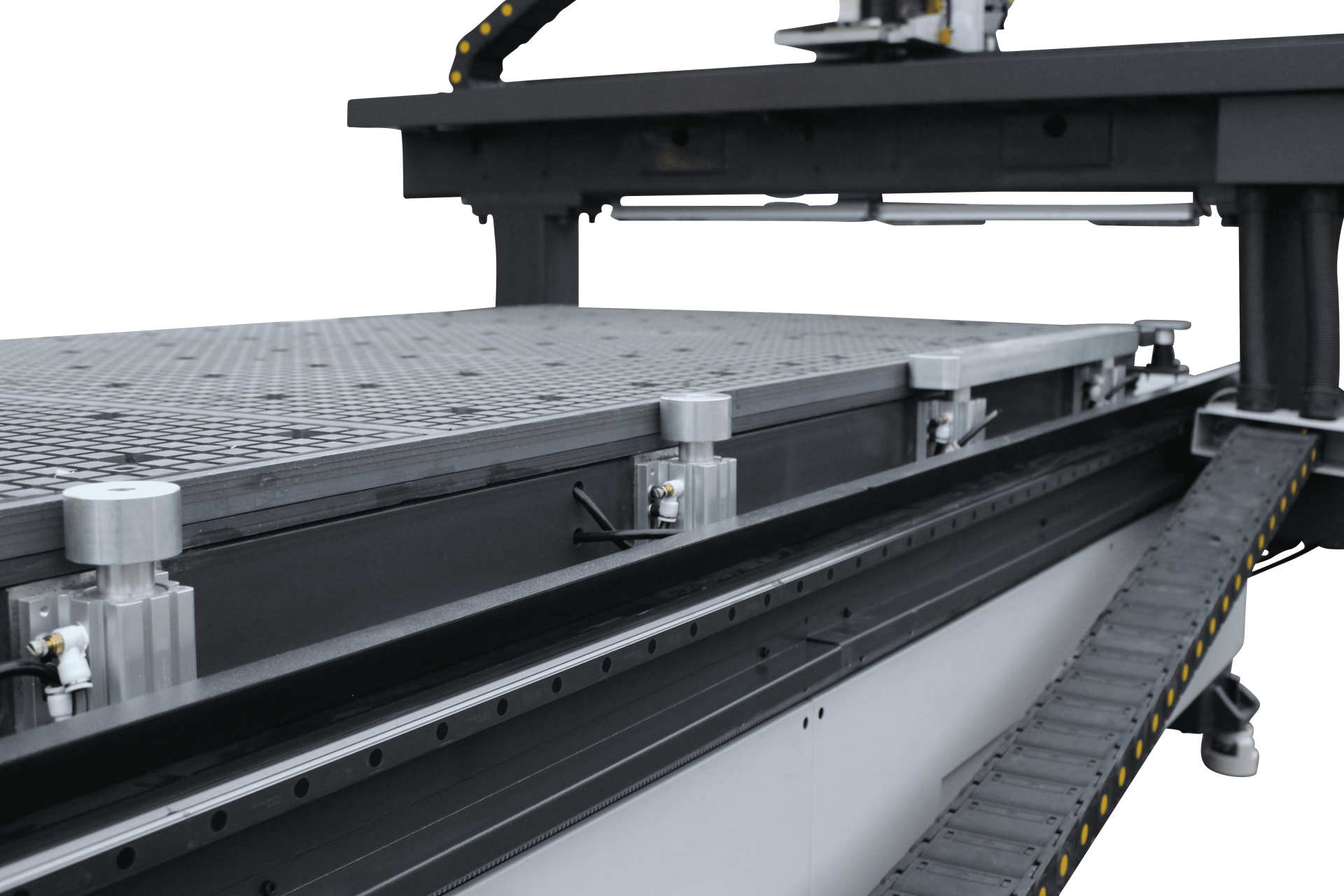

| Pop up location pins |
 | LED lights |
 | Castors for ease of mobility |
 | Quick release tool holder |
Optional Product Features
| Three Phase Vacuum Pump Three phase vacuum pumps can be more efficient on electrical consumption in comparison to single phase. The main benefit from the use of a three phase vacuum pump such as Becker is the additional holding pressure measured in Hg sealed vacuum, which means millimeters of mercury. A three phase vacuum has the potential capability to hold down some material/substrate more effectively with less slippage for this reason. This product requires for you to have 208-600v three phase power available at your location. |
| Coolubricator JR™ Lubrication system’s durable, 16 oz. (0.5 L) vented reservoir. The Coolubricator JR™ combines lubricant and air in a co-axial nozzle tip. The oil mist lubrication system keeps atomization and distribution of the liquid consistent regardless of the hose length. Plastic 12 in. nozzle is coupled with 5 ft. Co-Axial hose. A heavy-duty magnetic base at the hose/nozzle connection of the oil mist lubrication system makes it easier to relocate and position the nozzle at the friction points. Typically used for the maching non ferrous metals to prevent welding and increase tool longevity. |
| The 9 watt laser diode is 445 nm An accessorial add on of a diode laser is useful for a variety of cuts or engravings. Fast and easy engraving on polished and anodized aluminum, steel, stainless steel without engraving paste, copper & brass. Laser engraving on plywood or balsamic birch, leather, glass,acrylic, stone,plastics. |
| Donek Tools D1 Drag Knife The Donek Tools Drag Knife for CNC routerss can be used to cut almost anything you would cut with a utility knife, but with the speed and precision of a CNC router. The Donek Drag Knife fits into your CNC router or spindle collet, making it a universal fit for almost any CNC router available. The tools were designed to use a utility knife blade (which can be purchased at just about any hardware store) which dramatically reduces the cost of consumable blades. Fits in 1/2in Collet. Common materials that are used with this tool are wood veneer for inlay/marquetry artwork, leather, carbon fiber pre-preg laminates for aerospace, military, and automotive components, cardboard for custom packaging, and much more. |
| Donek Creasing Attachment Donek CNC router creasing attachment can be used to crease cardboard, foam and similar materials.
|
| Mill Foam Matt Mill foam mat is ideal for wood, plastics or aluminum that is uneven or wavey. The purpose of this product is to assist in creating a vacuum seal between your spoilboard and the workpiece. This product is made in Germany and can be used for a long period of time if you do not cut all the way through it. Please note the milling foam matt is sold in 60×12” width x length at a 3mm thickness. |
| Single Phase Vacuum Pump Single phase vacuum pumps work for majority of our clients end use application. |
 | Vortec Mini Cold Air Gun Cold Air Guns use vortex tube technology and filtered compressed air to produce sub-freezing air as low as -30 deg F for numerous industrial spot cooling applications. With no moving parts to wear out, Cold Air Guns require no electricity at the target, just a compressed air source. Cold Air Guns are most often used for cooling of metal parts such as your cutting tool when machining to prevent welding and tool wear. |
| Rotary Lathe 1 Piece The one piece CNC router rotary lathe is extremely robust and heavy duty. |
| Two piece rotary lathe The two piece CNC router rotary lathe is meant for a light for medium duty workload. |
| Hold Down Pressure Rollers 2 fully automated rollers on each side of the cutting spindle envelope, which engage the sheet material to maintain firm contact with the router’s table. The hold down pressure rollers are ideal for holding down warped stock, multiple stacked material, or when machining narrow, low surface area parts. Each roller offers full, independent control over regulating holding pressure, It is important to note that the rollers are designed to supplement (not replace) the standard vacuum holding, creating optimal performance and maximum speed without moving parts. |
 | Masso Controller Our highly recommended robust CNC controller solution that is guaranteed to deliver a fun and productive experience. This controller is astand alone solution and does not require a computer to run. The Masso controller features Wifi, interpolating axis, touch screen, dual screen positioning and ease of control. |
- mm
- inch
Specification
Physical Features
| Machining Bed Width/Length | 2500 mm x 1250 mm |
| Z Travel | 254 mm or 355 mm |
| Gantry Height Clearance Standard | 207 mm or 304 mm |
| Gantry Height Clearance Option | 15" |

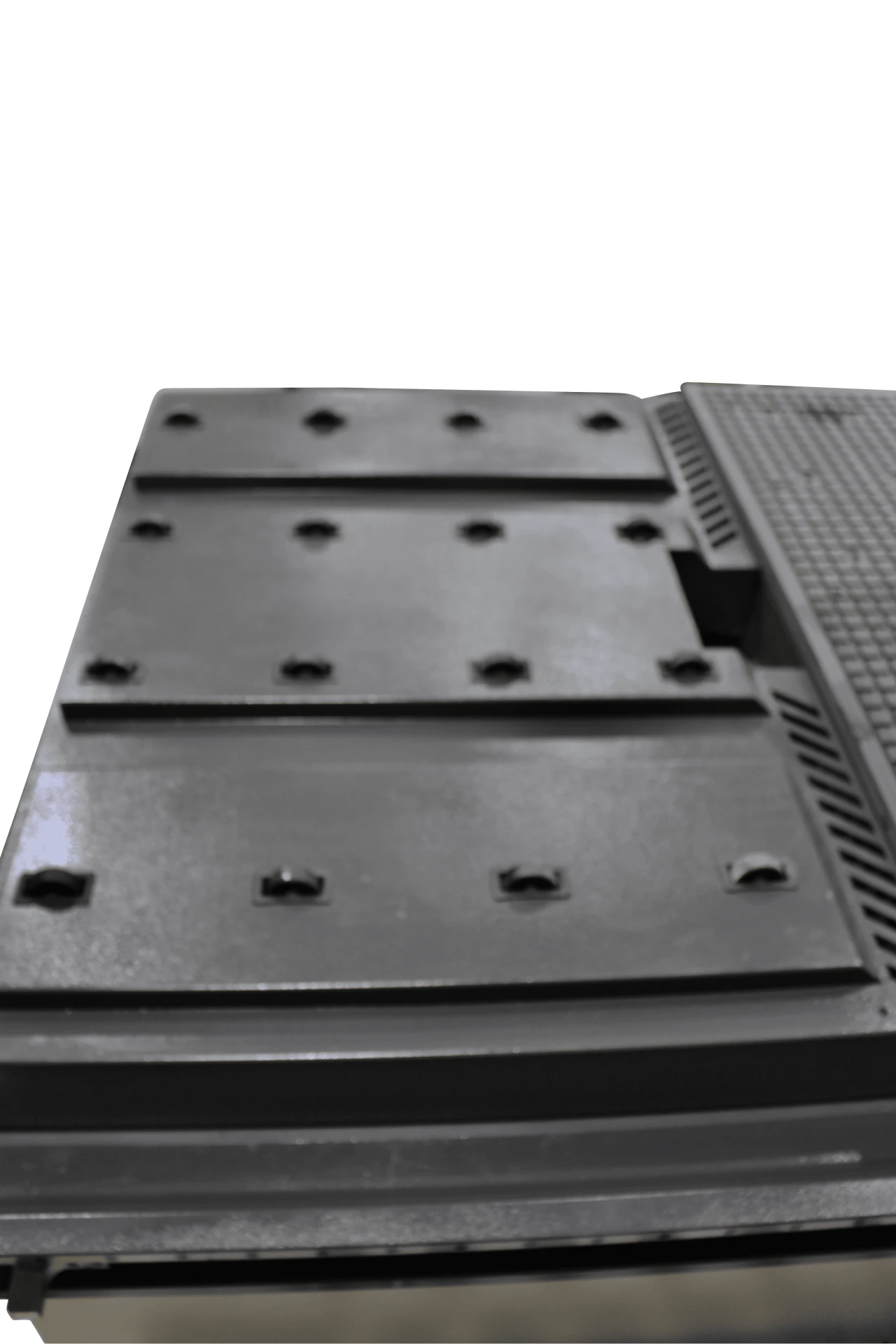

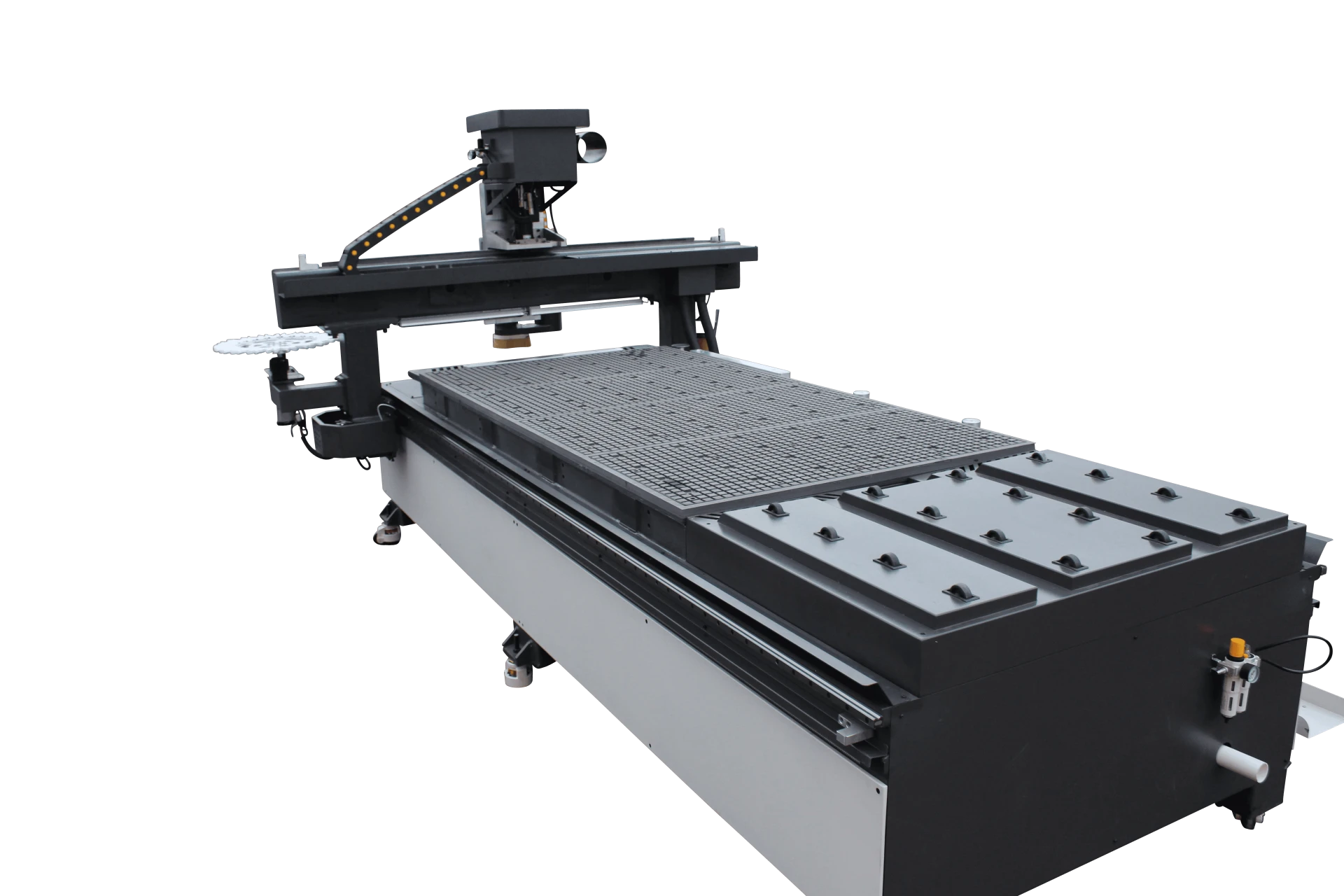

| Table Top | 4 zone T-Slot/Vacuum Combo Table |
| Location Pins | Included |
| Centralized Lubrication | Included |
| Leveleing Castors | Included |
| Auto Tool Touch off-Mobile | Included |
| Auto Tool Touch off-Fixed Position | Included |
| Machine Footprint | N/A |
| Electrical Cabinet Size | 762mm x 610mm x 1016mm |
| Net Weight | 4300 lbs/1950 kg |
| Gross Weight | 4500 lbs/2040 kg |
Power
| Voltage | 220V Single phase 60Hz |
| Optional Voltage | 208V three phase |
| Rated Power Requirement with vacuum pump | 40 AMP |
| Power Requirement without vacuum pump | 20 AMP |
Controller
| Interface | MASSO G3 Touch |
| Type | Industrial capacitive touch |
| Screen Size | 15 inch LED |
| Touch Screen | Included |
| Operating System | Dedicated |
| Inputs | USB |
| MPG Handwheel | Included |
| Wifi | Included |
| Controller Upgrade Option | N/A |
Standard Spindle
| Model | Generic |
| Power | 4.5 KW / 6 HP |
| Max Speed | 18000 RPM |
| Collet Size | ER 32 ISO 30 |
| Spindle Upgrades | 6 KW / 8 HP, 9.0 KW / 12 HP (ER32 ISO 30) |
| Variable Frequency Drive | N/A |
| Cooling System | Air Cooled |
| Tool Change Type | Automatic |
| Tool Holder Positions | 8 |
Drive System
| Motor | Leadshine 7 Series |
| Type | Servo |
| Transmission | X and Y axis - Helical Rack and Pinion Drive/Z axis - TBI Ball Screw/PMI Linear Guide rails for all axes |
Speed
| Rapid Speed XY | 1200 IPM |
| Rapid Speed Z | 400 IPM |
| Max Cutting Speed | 1000 IPM |
Tool Calibrator
| Fixed Position | Included |
| Portable | Included |
Accuracy
| Positioning | 0.05 mm |
| Repositioning | 0.05 mm |
Physical Features
| Machining Bed Width/Length | 98in x 49in |
| Z Travel | 10in or 14in |
| Gantry Height Clearance Standard | 8in or 12in |
| Gantry Height Clearance Option | 15" |
| Table Top | 4 zone T-Slot/Vacuum Combo Table |
| Location Pins | Included |
| Centralized Lubrication | Included |
| Leveleing Castors | Included |
| Auto Tool Touch off-Mobile | Included |
| Auto Tool Touch off-Fixed Position | Included |
| Machine Footprint | N/A |
| Electrical Cabinet Size | 30in x 24in x 40in |
| Net Weight | 4300 lbs/1950 kg |
| Gross Weight | 4500 lbs/2040 kg |
Power
| Voltage | 220V Single phase 60Hz |
| Optional Voltage | 208V three phase |
| Rated Power Requirement with vacuum pump | 40 AMP |
| Power Requirement without vacuum pump | 20 AMP |
Controller
| Interface | MASSO G3 Touch |
| Type | Industrial capacitive touch |
| Screen Size | 15 inch LED |
| Touch Screen | Included |
| Operating System | Dedicated |
| Inputs | USB |
| MPG Handwheel | Included |
| Wifi | Included |
| Controller Upgrade Option | N/A |
Standard Spindle
| Model | Generic |
| Power | 4.5 KW / 6 HP |
| Max Speed | 18000 RPM |
| Collet Size | ER 32 ISO 30 |
| Spindle Upgrades | 6 KW / 8 HP, 9.0 KW / 12 HP (ER32 ISO 30) |
| Variable Frequency Drive | N/A |
| Cooling System | Air Cooled |
| Tool Change Type | Automatic |
| Tool Holder Positions | 8 |
Drive System
| Motor | Leadshine 7 Series |
| Type | Servo |
| Transmission | X and Y axis - Helical Rack and Pinion Drive/Z axis - TBI Ball Screw/PMI Linear Guide rails for all axes |
Speed
| Rapid Speed XY | 1200 IPM |
| Rapid Speed Z | 400 IPM |
| Max Cutting Speed | 1000 IPM |
Tool Calibrator
| Fixed Position | Included |
| Portable | Included |
Accuracy
| Positioning | 0.0020 in |
| Repositioning | 0.0020 in |
