C1-23H

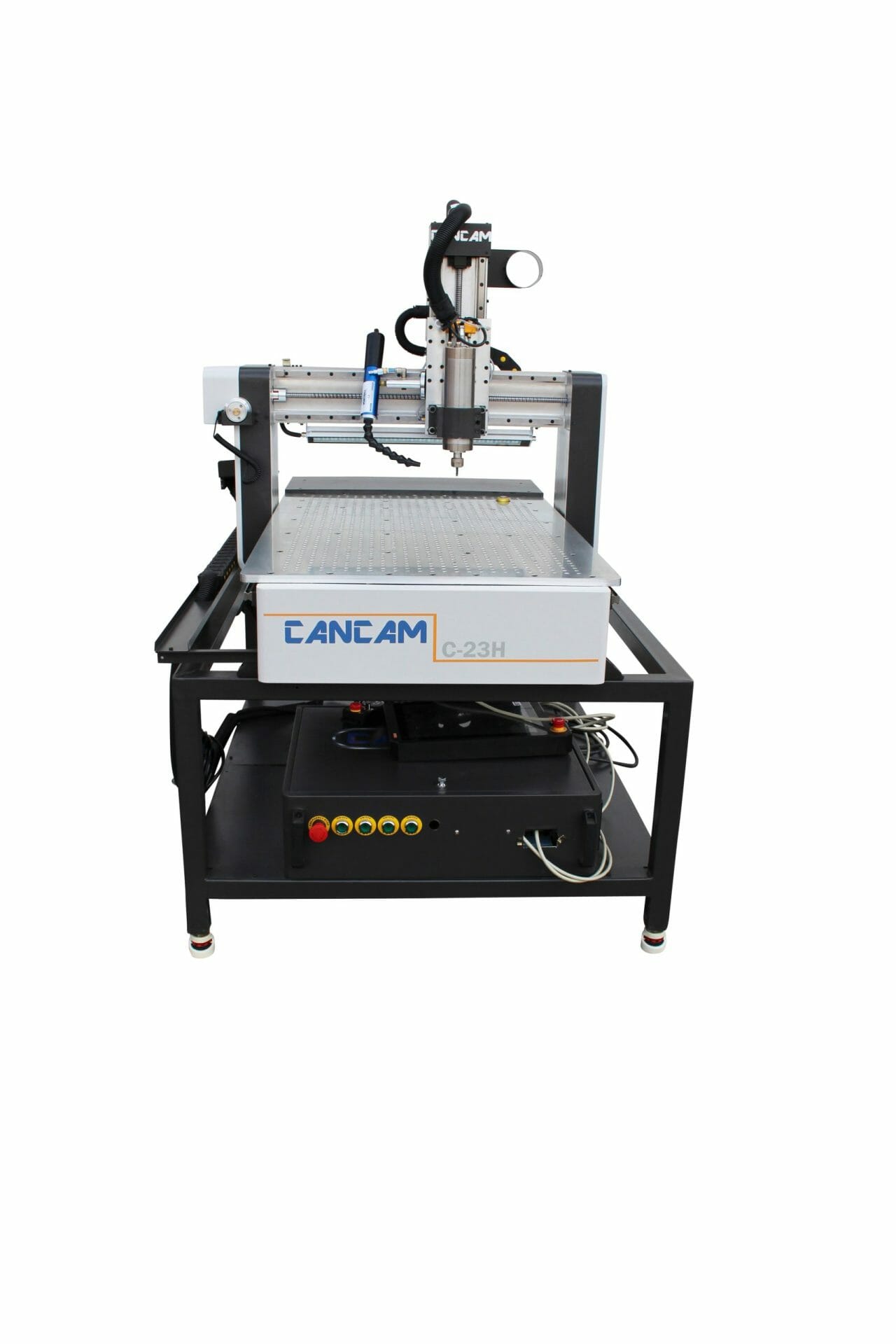

C1-23H 2x3' CNC Router For Aluminum/Steel
C1-23H

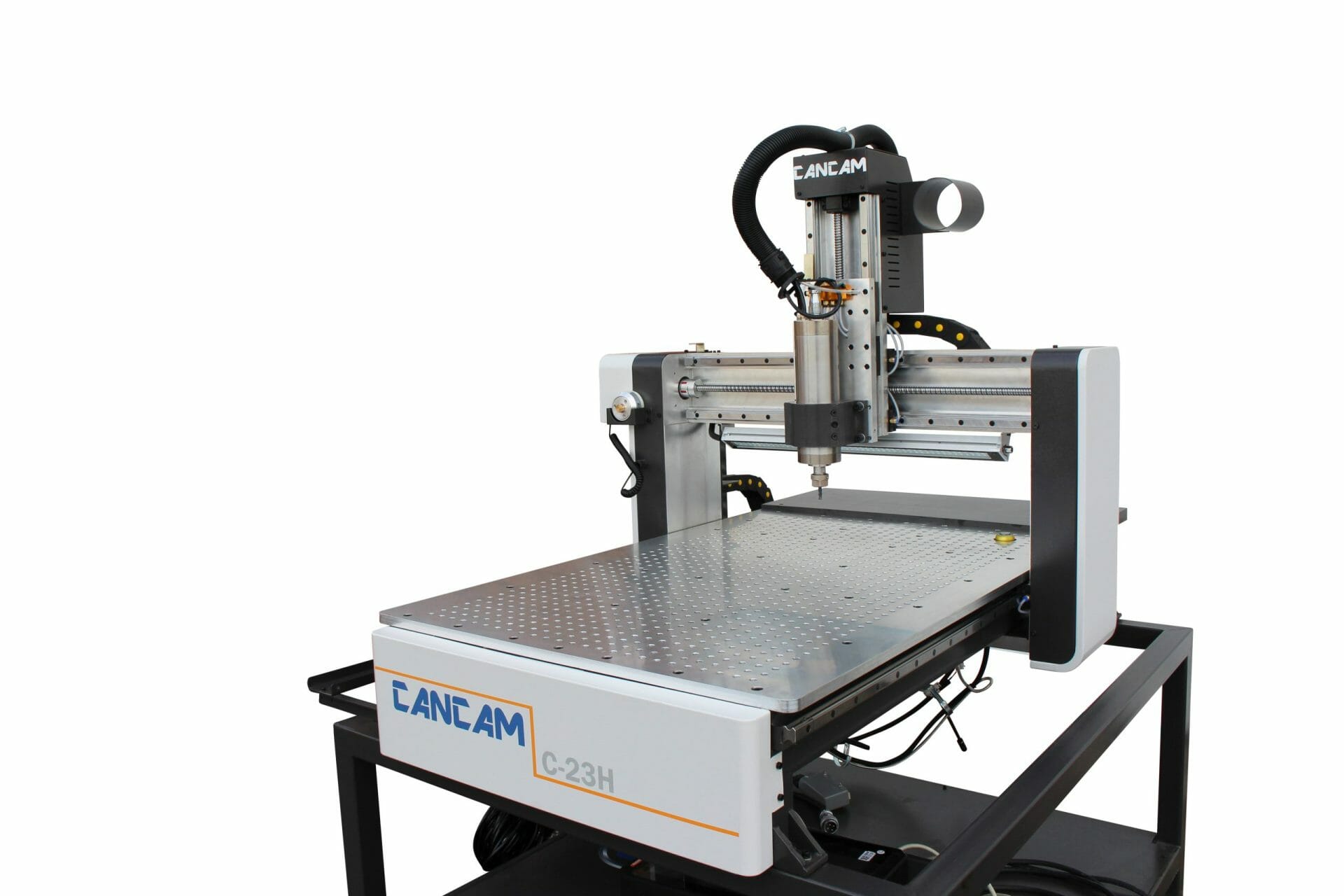

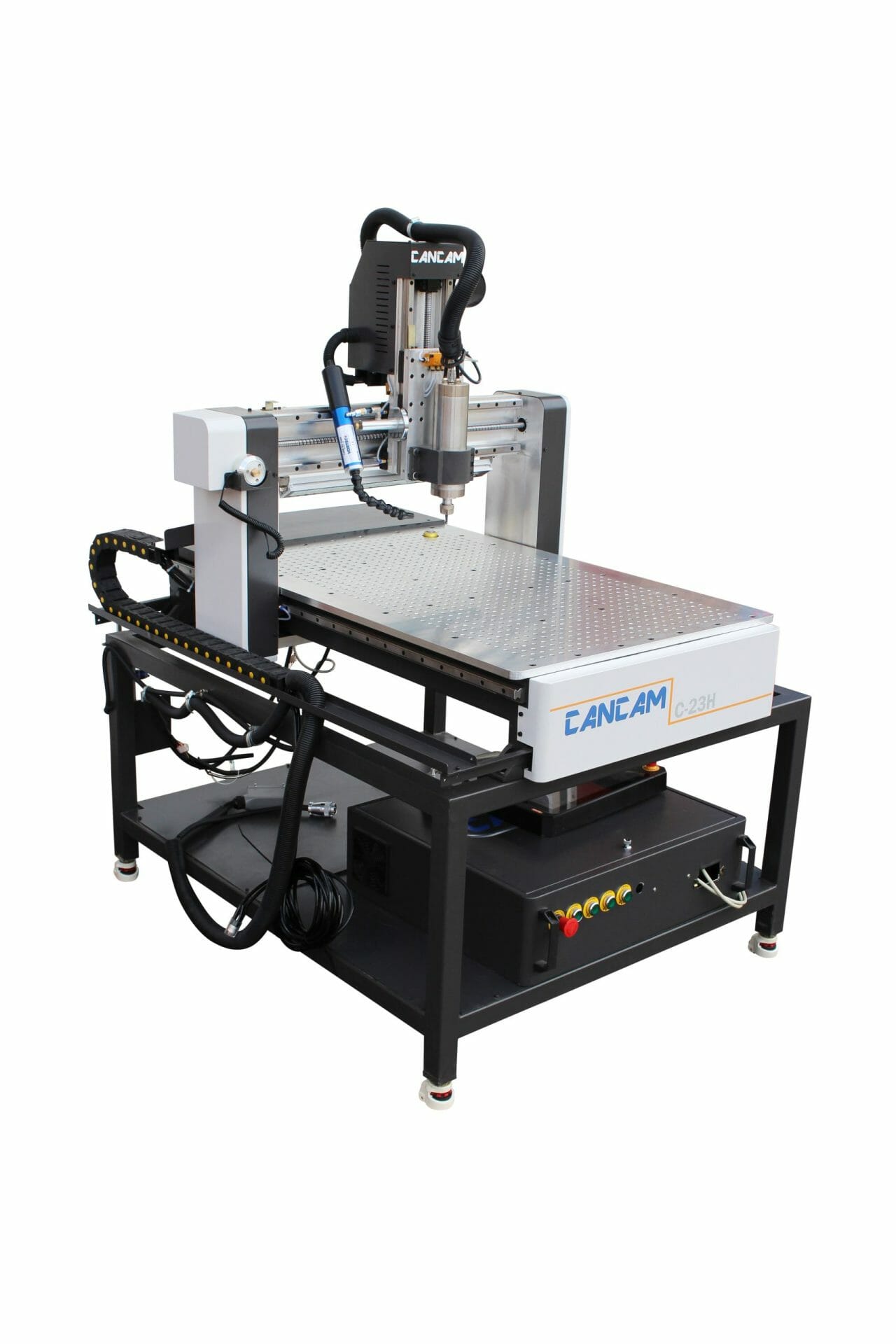

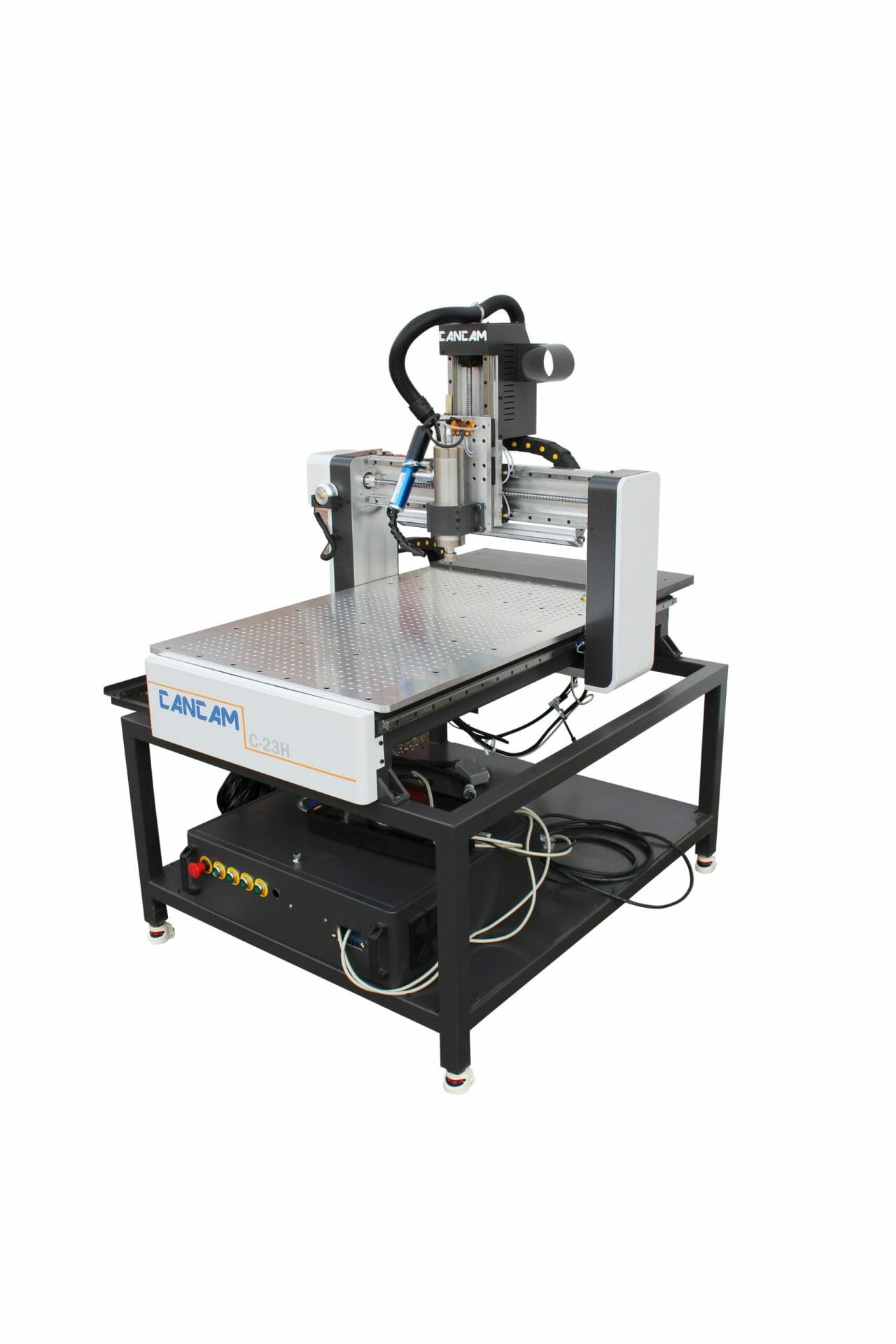

C1-23H 2x3' CNC Router For Aluminum/Steel

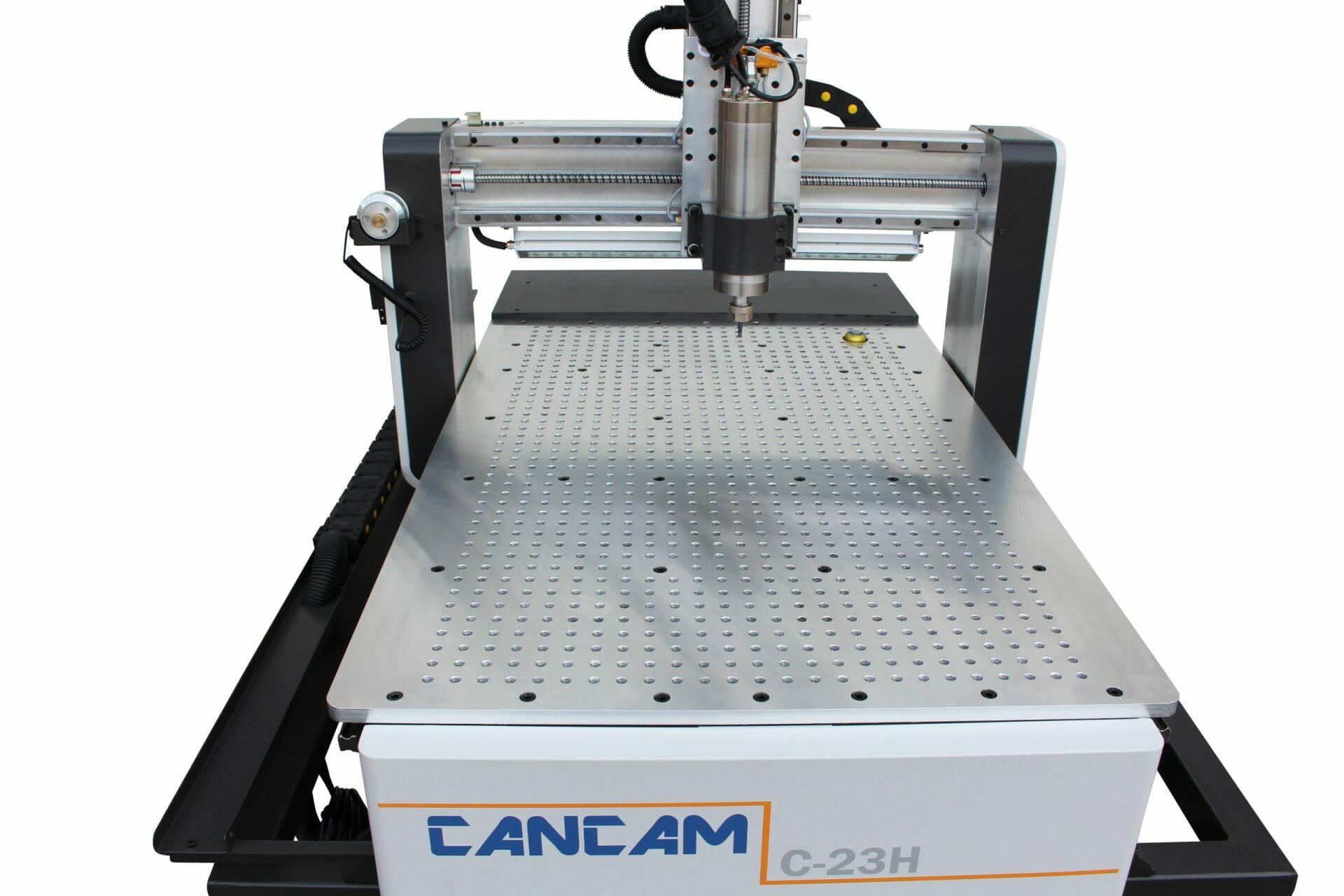

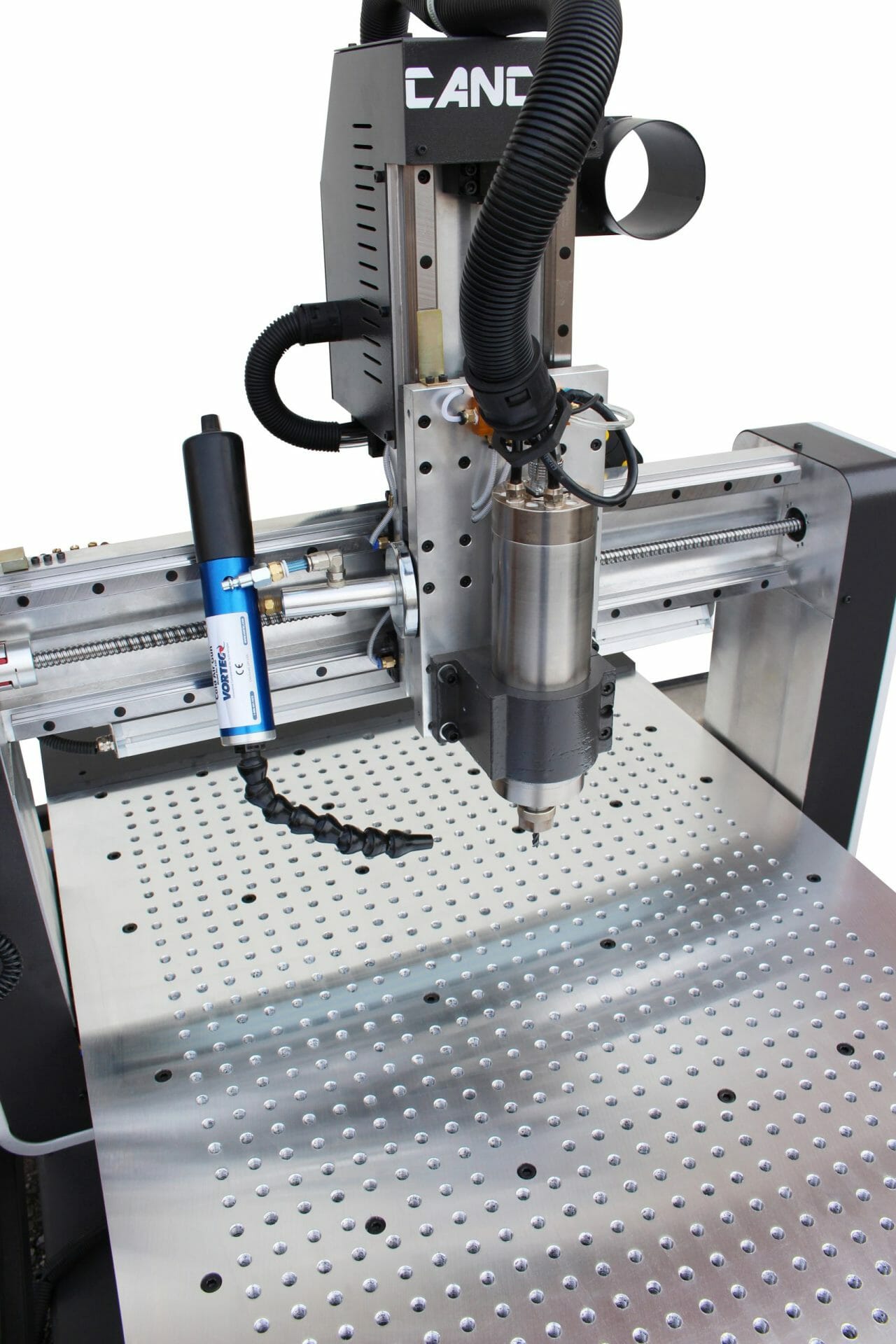

C1-23H is a manual tool, robust CNC Router. The CNC machine is engineered for light metal and non ferrous metal milling and cutting at an impressive price point. The table comes standard as a tapped and threaded aluminum work holding
Item related to this Product
-
$2,829.00 -
$4,044.00 -
$1375 -
$1450 -
$420 -
$279.99 -
$9 -
$2,800.00 -
$3,450.00 -
$900 -
$2000 -
$1050 -
$1550 -
$420
-
$420 -
$420 -
$420 -
$9
Optional Product Features
| Coolubricator JR™ Lubrication system’s durable, 16 oz. (0.5 L) vented reservoir. The Coolubricator JR™ combines lubricant and air in a co-axial nozzle tip. The oil mist lubrication system keeps atomization and distribution of the liquid consistent regardless of the hose length. Plastic 12 in. nozzle is coupled with 5 ft. Co-Axial hose. A heavy-duty magnetic base at the hose/nozzle connection of the oil mist lubrication system makes it easier to relocate and position the nozzle at the friction points. Typically used for the maching non ferrous metals to prevent welding and increase tool longevity. |
| The 9 watt laser diode is 445 nm An accessorial add on of a diode laser is useful for a variety of cuts or engravings. Fast and easy engraving on polished and anodized aluminum, steel, stainless steel without engraving paste, copper & brass. Laser engraving on plywood or balsamic birch, leather, glass,acrylic, stone,plastics. |
| Donek Tools D1 Drag Knife The Donek Tools Drag Knife for CNC routerss can be used to cut almost anything you would cut with a utility knife, but with the speed and precision of a CNC router. The Donek Drag Knife fits into your CNC router or spindle collet, making it a universal fit for almost any CNC router available. The tools were designed to use a utility knife blade (which can be purchased at just about any hardware store) which dramatically reduces the cost of consumable blades. Fits in 1/2in Collet. Common materials that are used with this tool are wood veneer for inlay/marquetry artwork, leather, carbon fiber pre-preg laminates for aerospace, military, and automotive components, cardboard for custom packaging, and much more. |
| Donek Creasing Attachment Donek CNC router creasing attachment can be used to crease cardboard, foam and similar materials.
|
| Mill Foam Matt Mill foam mat is ideal for wood, plastics or aluminum that is uneven or wavey. The purpose of this product is to assist in creating a vacuum seal between your spoilboard and the workpiece. This product is made in Germany and can be used for a long period of time if you do not cut all the way through it. Please note the milling foam matt is sold in 60×12” width x length at a 3mm thickness. |
 | Single Phase Vacuum Pump Single phase vacuum pumps work for majority of our clients end use application. |

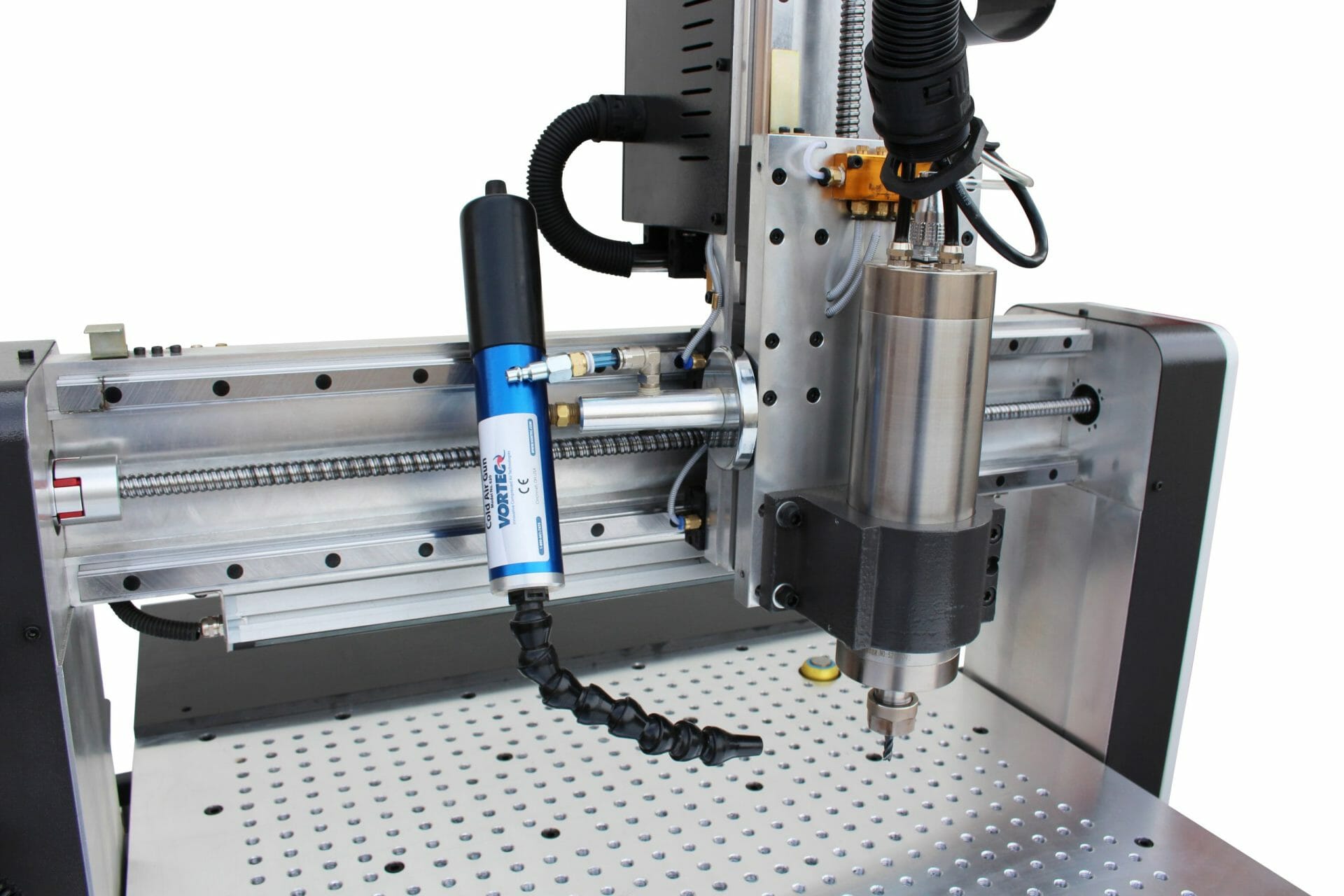

 | Vortec Mini Cold Air Gun Cold Air Guns use vortex tube technology and filtered compressed air to produce sub-freezing air as low as -30 deg F for numerous industrial spot cooling applications. With no moving parts to wear out, Cold Air Guns require no electricity at the target, just a compressed air source. Cold Air Guns are most often used for cooling of metal parts such as your cutting tool when machining to prevent welding and tool wear. |
| Rotary Lathe 1 Piece The one piece CNC router rotary lathe is extremely robust and heavy duty. |
| Two piece rotary lathe The two piece CNC router rotary lathe is meant for a light for medium duty workload. |
 | Masso Controller Our highly recommended robust CNC controller solution that is guaranteed to deliver a fun and productive experience. This controller is astand alone solution and does not require a computer to run. The Masso controller features Wifi, interpolating axis, touch screen, dual screen positioning and ease of control. |
- mm
- inch
Specification
Physical Features
| Machining Bed Width/Length | 915mm x 610mm x 205mm |
| Z Travel | 200mm |
| Gantry Height Clearance Standard | 203mm |
| Gantry Height Clearance Option | 12" |
| Table Top | N/A |
| Location Pins | N/A |
| Centralized Lubrication | Included |
| Leveleing Castors | Included |

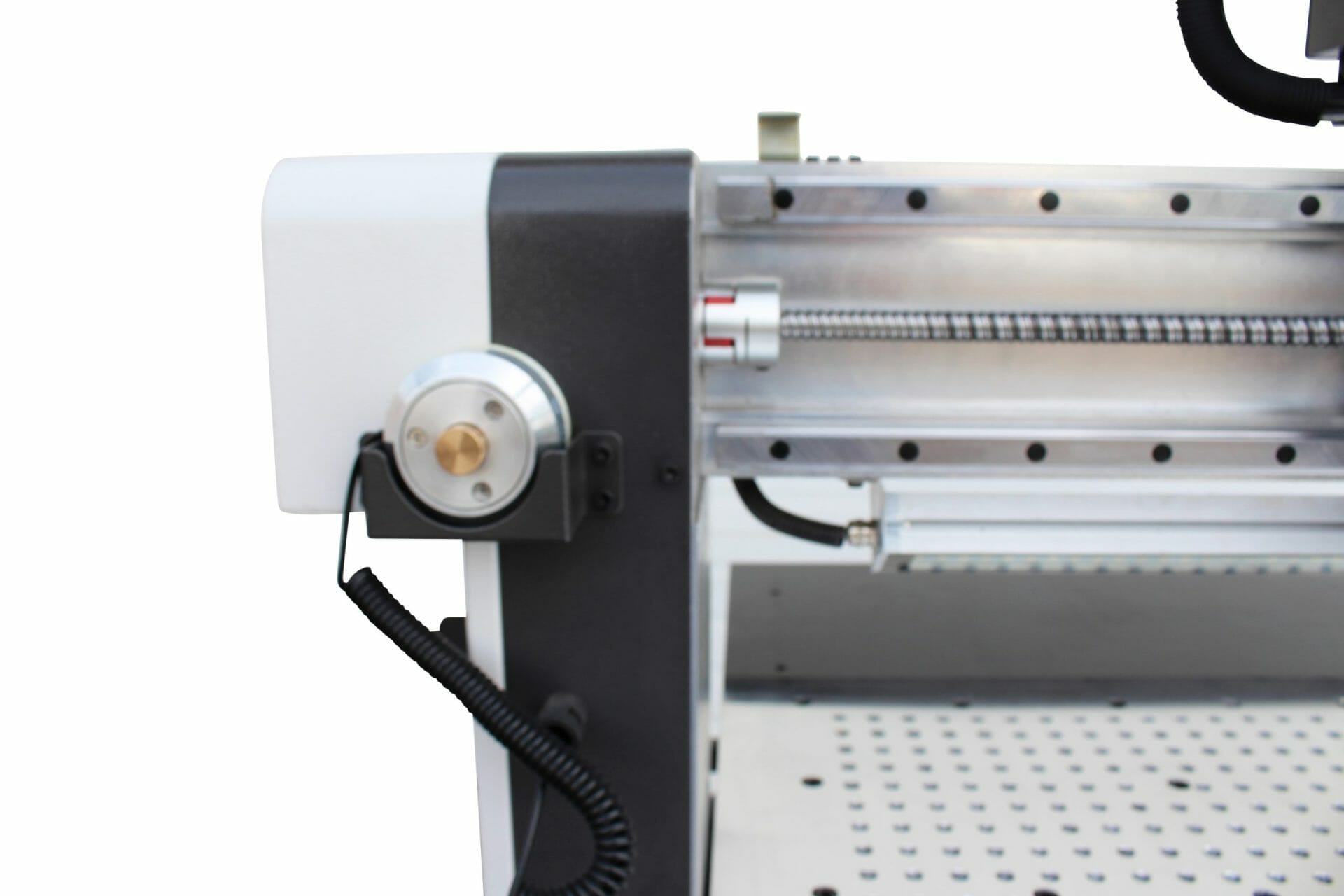

| Auto Tool Touch off-Mobile | Included |

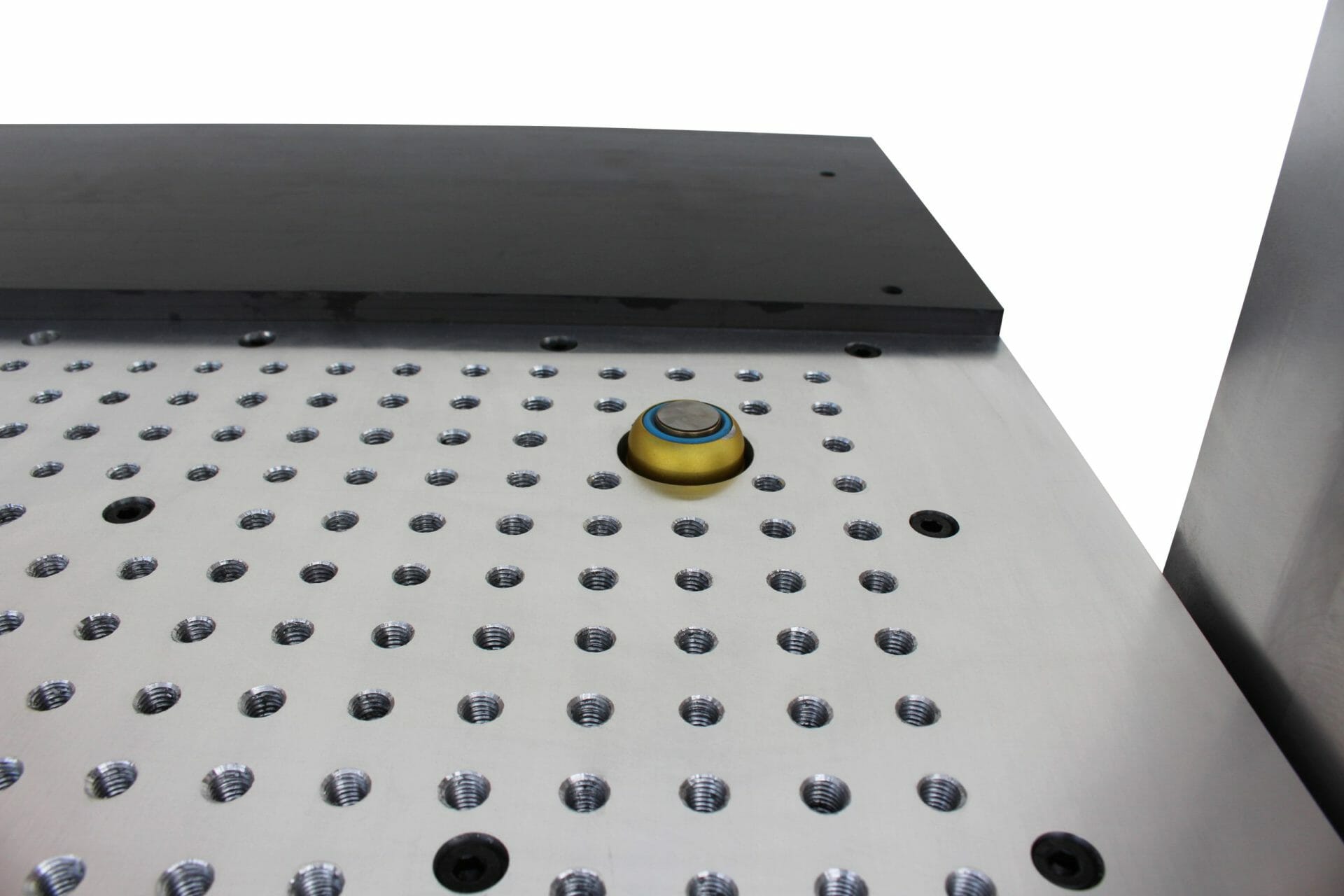

| Auto Tool Touch off-Fixed Position | Included |
| Machine Footprint | N/A |
| Electrical Cabinet Size | N/A |
| Net Weight | N/A |
| Gross Weight | N/A |
Power
| Voltage | 220V Single phase 60Hz |
| Optional Voltage | 208V three phase |
| Rated Power Requirement with vacuum pump | 40 AMP |
| Power Requirement without vacuum pump | 20 AMP |
Controller
| Interface | MASSO G3 Touch |
| Type | Industrial capacitive touch |
| Screen Size | 15 inch LED |
| Touch Screen | Included |
| Operating System | Dedicated |
| Inputs | USB |
| MPG Handwheel | Included |
| Wifi | Included |
| Controller Upgrade Option | N/A |
Standard Spindle
| Model | Generic |
| Power | 2.2 KW / 3 HP |
| Max Speed | 18000 RPM |
| Collet Size | ER 20 ISO 20 |
| Spindle Upgrades | N/A |
| Variable Frequency Drive | Fuling VFD - DBZ200 |
| Cooling System | Water Cooled With Chiller |
| Tool Change Type | N/A |
| Tool Holder Positions | N/A |
Drive System
| Motor | Leadshine 758S |
| Type | Hybrid Servo |

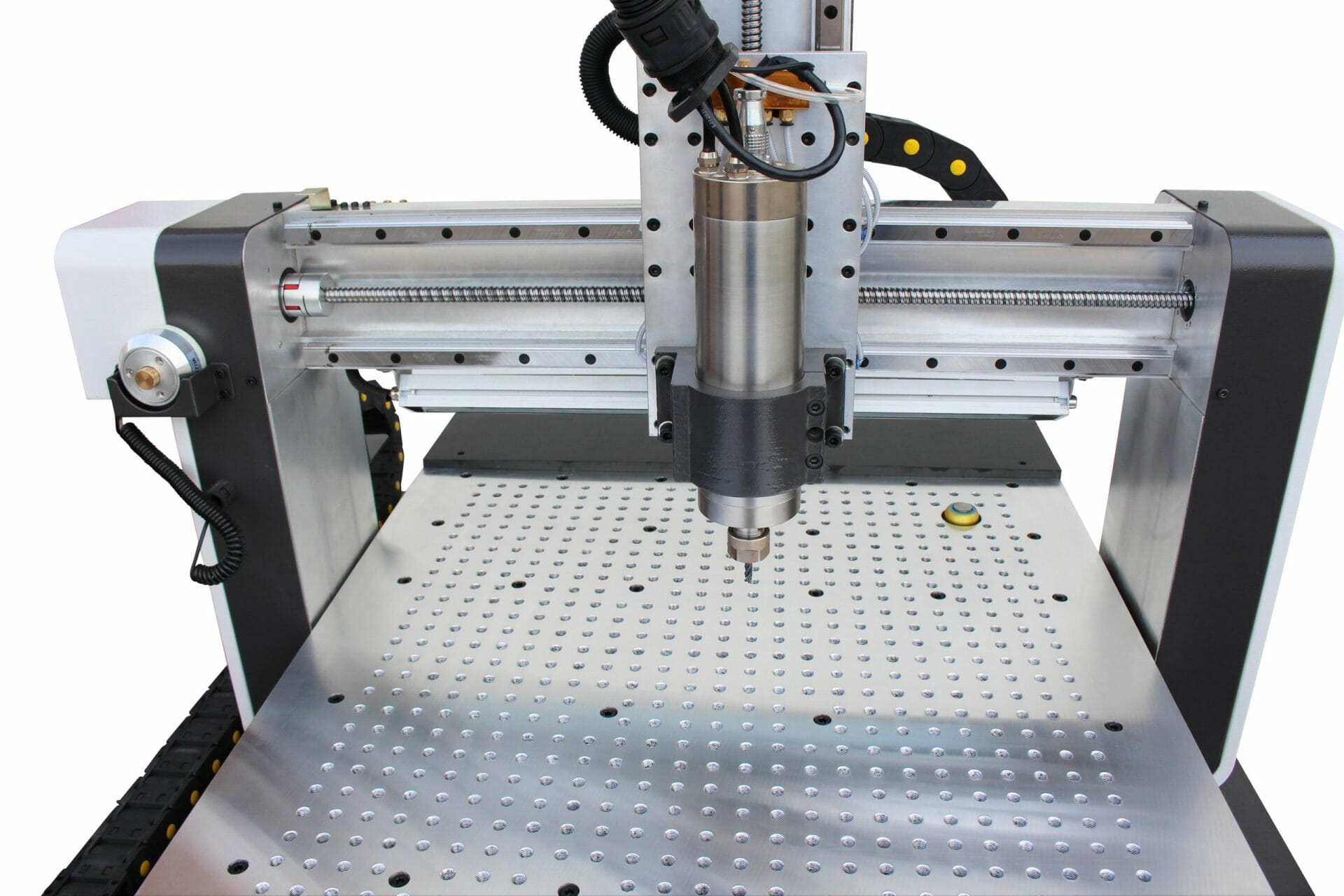

| Transmission | X and Y axis - TBI Ball Screw/Z axis - TBI Ball Screw/PMI Linear Guide rails for all axes |
Speed
| Rapid Speed XY | 400 IPM |
| Rapid Speed Z | 200 IPM |
| Max Cutting Speed | 400 IPM |
Tool Calibrator
| Fixed Position | Included |
| Portable | Included |
Accuracy
| Positioning | 0.05 mm |
| Repositioning | 0.05 mm |
Physical Features
| Machining Bed Width/Length | 36in x 24in x 8in |
| Z Travel | 7.9in |
| Gantry Height Clearance Standard | 8in |
| Gantry Height Clearance Option | 12" |
| Table Top | N/A |
| Location Pins | N/A |
| Centralized Lubrication | Included |
| Leveleing Castors | Included |
| Auto Tool Touch off-Mobile | Included |
| Auto Tool Touch off-Fixed Position | Included |
| Machine Footprint | N/A |
| Electrical Cabinet Size | N/A |
| Net Weight | N/A |
| Gross Weight | N/A |
Power
| Voltage | 220V Single phase 60Hz |
| Optional Voltage | 208V three phase |
| Rated Power Requirement with vacuum pump | 40 AMP |
| Power Requirement without vacuum pump | 20 AMP |
Controller
| Interface | MASSO G3 Touch |
| Type | Industrial capacitive touch |
| Screen Size | 15 inch LED |
| Touch Screen | Included |
| Operating System | Dedicated |
| Inputs | USB |
| MPG Handwheel | Included |
| Wifi | Included |
| Controller Upgrade Option | N/A |
Standard Spindle
| Model | Generic |
| Power | 2.2 KW / 3 HP |
| Max Speed | 18000 RPM |
| Collet Size | ER 20 ISO 20 |
| Spindle Upgrades | N/A |
| Variable Frequency Drive | Fuling VFD - DBZ200 |
| Cooling System | Water Cooled With Chiller |
| Tool Change Type | N/A |
| Tool Holder Positions | N/A |
Drive System
| Motor | Leadshine 758S |
| Type | Hybrid Servo |
| Transmission | X and Y axis - TBI Ball Screw/Z axis - TBI Ball Screw/PMI Linear Guide rails for all axes |
Speed
| Rapid Speed XY | 400 IPM |
| Rapid Speed Z | 200 IPM |
| Max Cutting Speed | 400 IPM |
Tool Calibrator
| Fixed Position | Included |
| Portable | Included |
Accuracy
| Positioning | 0.0020 in |
| Repositioning | 0.0020 in |
Option
